Regulation of the Lewis Blood Group Antigen Expression: A Literature Review Supplemented with Computational Analysis Open Access

The Lewis (Le) blood group system, also listed as ISBT 007 by the International Society of Blood Transfusion (ISBT) Working Party for Red Cell Immunogenetics and Blood Group Terminology, differs from most other blood group systems because the glycan antigens of the Lewis blood group system are not synthesized by the red blood cells themselves but adsorbed onto the erythrocyte membrane from the plasma. The antigen source is epithelial cells in digestive, bronchial, mammary, seminal, urinary, or orbital tissue, which secrete glycan antigens either to the outside via exocrine secretion or into the interstitial space from where they can reach the plasma [1].The epithelial cells of the digestive tract seem to be the main origin of the Lewis antigens [2]. This observation is consistent with data from the human protein atlas (https://www.proteinatlas.org/), reporting the highest expression levels of the Le-antigen synthesizing enzyme FUT3 in the gastrointestinal tract (shown in Fig. 1).

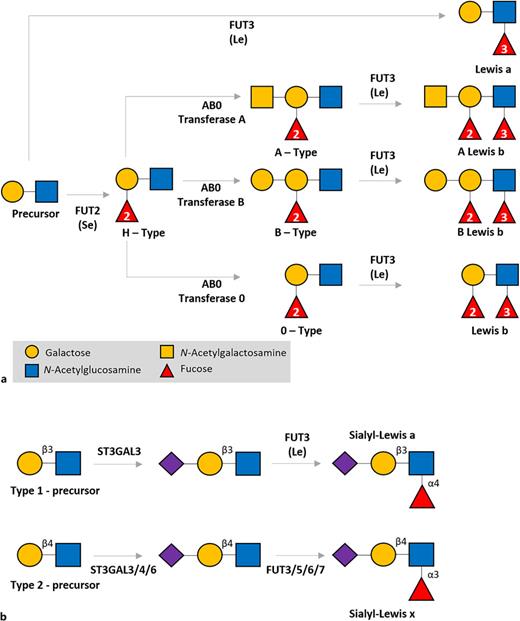

The biosynthesis of the Lewis blood group antigens is governed by FUT3, which encodes for the α(1,3/4)-fucosyltransferase Lewis (Le) [3]. The exact antigen product is however depending on the precursor fucosylated by Le. Le^a is produced if individuals are missing FUT2, which encodes for the α(1,2)-fucosyltransferase secretor (Se) [4]. Therefore, a fucose moiety is added at the α1-4 end of the N-acetylglucosamine residue. In the presence of both FUT2/Se and FUT3/Le, the final antigen is determined by the active ABO glycosyltransferases. In blood group O individuals, Le^b is synthesized, while ALe^b and BLe^b are made in blood groups A and B, respectively (shown in Fig. 2a). Of note, trace amounts of Le^a will be present in most humans but are difficult to detect phenotypically. There are also rare cases of individuals with simultaneous Le^a and Le^b expression, resulting from a functionally impaired FUT2/Se enzyme being enzymatically less efficient [5].

Above-described Lewis antigens are all synthesized from type 1 precursors. However, also type 2 precursor chains are targeted by FUT2 and FUT3, resulting in the synthesis of Le^x and Le^y, isomeric forms of Le^a and Le^b, respectively. However, there are only minimal amounts of Le^x and Le^y present on the red blood cell surface and are therefore not considered as antigens of the Lewis blood group system [7]. Le^a or Le^x may additionally occur in their sialylated forms (shown in Fig. 2b), which in the case of sialyl-Le^x act as ligands for E-selectin in neutrophils [3]. Of note, processing of type 2 precursors can involve the additional fucosyltransferases FUT4/5/6/7 [4].

The functionality of the FUT2 and FUT3 enzymes and the absence or presence of their antigen products can have severe effects on the onset of diseases, especially in the gastrointestinal tract. The carbohydrate-based Lewis antigens have been shown to have a correlation with the gut microbiome and are considered as influential on the development of inflammatory bowel diseases (IBDs) [5]. Among IBDs, Morbus Crohn’s disease (CD) and ulcerative colitis (UC), both characterized by a chronic inflammatory state in the gastric entity, have been linked with loss-of-function mutations in both FUT2 [5] and FUT3 [8]. In a CD study from Forni et al., a correlation between an FUT2 polymorphism and the susceptibility to CD in a Belgian study cohort has been shown. However, this has not been confirmed in an Italian study [9]. There are various known SNPs in FUT2 that result in an enzymatically inactive “non-secretor” phenotype, which has been shown to increase CD susceptibility [10]. The known non-secretor-related SNP in FUT2 (W143X) has been reported to have differences in the host microbiome community compared to healthy individuals. These alterations in microbial composition and diversity are further linked to disease-by genotype influence in CD patients [11]. Regarding FUT3, a recent meta-analysis identified the rs3745635 gene polymorphism being associated with IBD susceptibility, at the same time ruling out other causal polymorphisms [8]. Another study in a Chinese UC population revealed that SNPs in FUT3 are correlated with vulnerability to UC [12].

Besides IBD, FUT2 polymorphisms defining the secretor/non-secretor phenotype have been linked with either susceptibility or resistance to gastroenteritis-causing noroviruses and rotaviruses, respectively. The viruses use the Lewis antigens to attach to host cells, consequently infecting them [13].

Scientific reports on the regulation of FUT2 and FUT3 transcription in healthy individuals are scarce. In this review, current knowledge of transcriptional regulation of FUT2 and FUT3 expression is supplemented by bioinformatics analyses, aiming to predict new candidate transcription factors (TFs) and micro-RNAs (miRNAs) that interact with the two genes, in order to improve our understanding of transcriptional regulation of the Lewis and secretor fucosyltransferases.

Regulation of gene expression is essential for cells in order to be able to react to intra- and extracellular signals, differentiate during development, and to mediate cellular activity [14]. Regulation of transcription can occur at various stages of the process, beginning with chromatin remodeling mediating accessibility to the DNA. This is mediated by the methylation status of target gene promotors, which are typically rich in cytosine-guanine dinucleotide (CpG) repeats, so-called CpG islands. A heavily methylated promoter (hypermethylated) is associated with low transcription activity, while low methylation status (hypomethylated) allows transcription initiation [15]. FUT3 promotor methylation in pigs has been shown to interfere with the accessibility for the two TFs HIF1A and Sp1, consequently influencing produced mRNA levels [16, 17]. The production of Le^a in human gastric cancer cells has been shown to be linked to FUT3 promotor methylation status [18]. Treatment with demethylation agents resulted in an increase of Lewis enzyme and Le^a levels. These results were confirmed by using a luciferase reporter gene of the FUT3 promotor in methylated and unmethylated forms, showing that high FUT3 expression in gastric cells correlates with promoter hypomethylation [18]. This observation was followed up by a recent machine learning approach to identify different methylation patterns as prediction factors regarding risk habits, nodal status, tumor staging, prognosis, and HPV infection in cancer, in which also FUT3 was found to be involved [19] (Table 1).

An important step of regulation takes place during the actual transcription process via the interaction of target genes with DNA-binding TFs. TFs are able to recognize specific sequence motifs located in enhancer elements and recruit either RNA polymerase II or additional co-factors upon binding, enhancing, or repressing transcription [20].

Since there are relatively little published data on the regulation of FUT2 and FUT3 transcription, we decided to complement the existing knowledge with the help of IT-based algorithms. Getting a better understanding of the regulation could be used to predict susceptibility to diseases, such as virus infections or cancer, caused by altered expression of FUT2 and FUT3. To identify possible TFs regulating FUT2 and FUT3 expression we used the PROMO TF prediction algorithm (https://alggen.lsi.upc.es). This online Webtool uses the data of the TRANSFAC collection of TFs [21] as source for target sequence information and predicts potential TF binding sites by positional weight matrices [22, 23]. For both genes FUT2 and FUT3, a 2000 bp long sequence upstream of exon 1, obtained from the Ensembl genome browser (https://www.ensembl.org/index.html), was analyzed [24] (online suppl. Tables 1, 2; for all online suppl. material, see https://doi.org/10.1159/000538863).

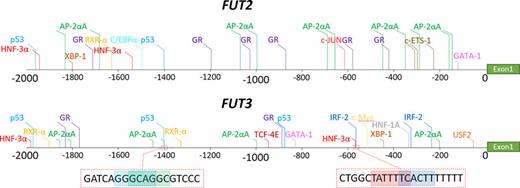

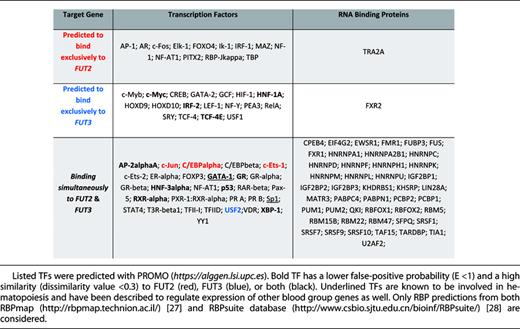

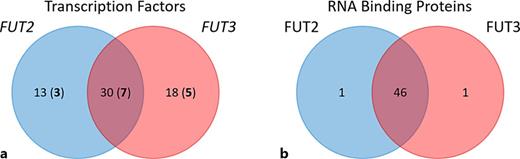

PROMO identified 43 and 48 potential TFs with multiple binding motifs for FUT2 and FUT3, respectively. Comparing the predicted TFs, we found that 30 of them were predicted to interact with both FUT2 and FUT3. Additionally, FUT2 contains unique sites for 13 TFs while we found 18 TFs exclusively for FUT3 (shown in Fig. 3a; Table 2).

We further filtered our predicted TFs in order to reduce the number of possible false positives. We only considered factors with PROMO’s dissimilarity metric of <0.3, which indicates a high similarity to the TF’s canonical target sequence. We further set the threshold for the E value to <1, to eliminate hits with a high chance of random occurrence of the cognate sequence. The resulting 15 TFs are blotted in Figure 4, showing possible overlaps of motifs and their exact location in a 2,000-bp sequence upstream of the transcription start. With this, we are able to identify TF motif clusters of around 200 bp length, which would correspond to enhancer regions.

By taking a closer look at the predicted regulators, we also found TFs that are currently well known for regulating blood group antigen expression. Among these, GATA-1 and GATA-2, which belong to the GATA family of TFs, have been described to play major roles during hematopoiesis: GATA-1 is responsible for driving the differentiation of progenitor cells into erythrocytes and GATA-2 and 3 are crucial in maintaining constant self-renewal of hematopoietic stem cells [29]. More recently, GATA-1 has also been described to be involved in the transcriptional regulation of 33 blood group genes, also including sites for FUT2 [30]. Consistent with this, PROMO predicted GATA-1 binding sites upstream of FUT2. For the PROMO-predicted GATA-1 site in FUT3, experimental evidence is still lacking.

Another highly interesting TF is Sp1, a zinc finger protein that is known to regulate expression via binding GC-rich elements in target genes, as mentioned above. It is considered essential during early development as Sp1 deficiency in mice is lethal at a very early developmental stage [31]. A recent study also linked Sp1 to the hematopoietic system as Sp1^−/− mice lack the ability to progress beyond the progenitor phase of the red blood cell development and therefore are not able to build fully differentiated red blood cells [32]. Similar to GATA-1, PROMO predicts Sp1 binding sites in the promoters of both FUT2 and FUT3, together suggesting a link between fucosyltransferase expression and healthy erythrocyte development.

Although relatively little is known about the regulation of FUT2 and FUT3 expression in healthy individuals, a large body of literature exists on the relationship between FUT2/FUT3 expression and cancer (shown in Table 3). Tumors exploit increased expression of FUT2 and FUT3 as it is linked to increased epithelial-mesenchymal transition (EMT) levels [33]. In colorectal cancer (CRC) diagnostics, high expression levels of sialyl-Le^a glycans are used as tumor markers, not only to predict overall survival but also metastatic potential [34]. Still, there are limitations as SLe^x is not exclusively synthesized by FUT 3 but rather by several alpha1,3-fucosyltransferases (see Fig. 2b). Therefore, additional detailed determination of the Lewis antigens on the RBC, potentially including molecular analysis, would be necessary for the use of SLe^x as a biomarker. However, detailing the fully comprehensive diagnostics workflow for full serological and molecular workup of such phenotypes is out of the scope of this review.

In colon cancer, the caudal-type homeobox 2 (CDX2) TF is described to bind to the FUT2 promotor and upregulate its transcription [33]. CDX2 is exclusively expressed in the intestine and responsible for intestinal tissue differentiation [40]. Sakuma et al. [33] showed that during the EMT, colon cancer cells repress CDX2 and consequently the expression of FUT2, inducing a shift in favor of the sialyl Lewis x/a glycans (sLe^x/a). Additional binding site motifs for CDX1, HNF1A, and HNF4A were identified in the FUT2 5’ regulatory region; however, these have not yet been further investigated [33, 36].

One of the TFs involved in FUT3 expression is the well-known c-Myc, an oncogene sometimes referred as a “master regulator” due to its involvement in cellular signaling cascades regulating cellular growth and metabolism [41]. Upon the exposure to EGF or bFGF, c-Myc phosphorylation status changes, by elevating the levels of phospho-c-Myc^Ser62/Thr58. Especially the hyperphosphorylation of Ser62 of c-Myc is linked to its increased recruitment, binding to its target promoter and consequently causing an increase in FUT3 expression in colon cancer cells [33].

Another TF that has been shown to mediate FUT3 transcription is nuclear factor-κB (NF-κB) [35]. There are five known members of the NF-κB family, NF-κB1 (p50), NF-κB2 (p52), RelA (p65), RelB, and c-Rel, which mediate transcription by interacting with specific DNA motifs as various hetero- or homo-dimers [42]. When human diploid fibroblasts infected with herpes simplex virus type 1 (HSV-1) were simultaneously treated with NF-κB inhibitors, they showed a significant decrease in FUT3 expression. Short interfering RNA-mediated knockdown experiments identified RelA as the main activating TF as its absence resulted in a strong decrease of FUT3 transcription. This is in line with our prediction of RelA binding to the distal activating element upstream of FUT3. However, it is worth noting that NF-κB alone was not able to induce elevated transcription levels and that a combination with additional factors seems to be necessary for driving transcription of FUT3 [35].

In a recent study, Wang et al. [37] performed an in-depth analysis of 22 CRC cell lines investigating the role of different Lewis antigen levels as well as revealing various TFs mediating FUT3 transcription. By comparing the glycosylation status of different Lewis antigens with the expression levels of known TFs, they were able to find a positive correlation of the TFs CDX1, ETS2, HNF1A, HNF4A, MECOM, and MYB with higher levels of Lewis-mediated fucosylation. The connection between CDX-1, highly fucosylated N-glycans, and elevated FUT3 levels were validated by Holst et al. [36] who found higher FUT3 gene expression levels and a higher abundance of multi-fucosylation in CDX-1 high colon cancer cell lines compared to CDX-1 low cells. Using a combination approach of high-throughput glycan analysis with a genome-wide association study, HNF1A and its downstream target HNF4A were shown to act as key regulators for the fucosyltransferase and fucose biosynthesis gene expression. Knockdown of both TFs led to a significant decrease of FUT3 gene expression levels [38].

In contrast to the activating TFs discussed above, Snail and ZEB1/2 act as transcription repressors for FUT3 [39]. Snail1 belongs to the Snail family of zinc-finger TFs, which are involved in embryonal development and have been shown to be major drivers of EMT [43]. ZEB1/2 are part of the ZEB family and are implicated in cellular plasticity, dissemination, and EMT as well [44]. Both Snail and ZEB1/2 have been shown to harbor various binding sites in the FUT3 gene [39]. An analysis of 51 breast cancer cell lines also showed a negative correlation between Snail and ZEB1/2 and FUT3 [39].

Notably, not all TFs described in this chapter have been found in our in silico prediction. This can be explained by the lack of recognition motifs for CDX-1, HNF4A, MECOM, Snail, and ZEB1/2 in the PROMO database. The missing prediction of CDX2 binding to the FUT2 promotor, however, is surprising, given its presence in the database.

Post-transcriptional gene regulation describes the process following mRNA synthesis and includes mRNA maturation, nuclear-cytosolic transport, mRNA stability, and translation. During all these processes, RNA-binding proteins (RBPs) influence the biogenesis, fate, and function of their target RNAs [45]. So far, 1,914 different RBPs have been characterized based on their ability to interact with RNA through a specific RNA-binding domain, corresponding to 7.5% of all protein-coding genes [27]. Their recognition motifs are frequently found in the 5′ and 3′ untranslated regions (UTRs) of the mRNAs [28].

To identify possible RBPs interacting with either FUT2 or FUT3 mRNA, we used two Webtools: RBPmap (http://rbpmap.technion.ac.il/) [46] and RBPsuite (http://www.csbio.sjtu.edu.cn/bioinf/RBPsuite/) [47]. Both are able to identify experimentally verified motifs on a target RNA sequence and predict the exact binding positions of RBPs (see online suppl. Tables 3, 4). This way, we identified 305 RBPs from both Webtools that are predicted to interact with FUT2 mRNA. Further analysis resulted in 47 RBPs that are listed by both searches and are thus considered to more likely to bind FUT2 mRNA. Similarly, for FUT3, we found 302 different RBPs that are predicted to interact with its mRNA. Among these, there were 47 FUT3 hits overlapping for both database searches. Interestingly, FUT2 and FUT3 share 46 identical RBPs of each of their 47 hits and only show one single unique predicted RBP each: TRA2A and FXR2, respectively (shown in Fig. 3b; Table 2). Still, as for many other data reported here, experimental data are necessary to validate our observed in silico hits and prove the post-transcriptional processes that are affected by these RBPs.

One RBP known to interact with FUT3 mRNA is DDX39B, a member of the DEAD box RNA helicase family, which is characterized by the presence of a preserved DEAD motif (Asp-Glu-Ala-Asp). DEAD box RNA helicases are known to be involved in nearly all cellular RNA metabolic processes, like splicing, ribosome biogenesis, nuclear export, translation, and degradation [25]. In human CRC, DDX39B mediates FUT3 mRNA splicing and its nuclear export, resulting in increased Lewis expression levels [26]. Interestingly, in the CRC context, elevated FUT3 expression correlates with increased fucosylation of TGFβR-1, which promotes TGFβ downstream signaling and consequently initiates the EMT program and promotes tumor progression [26]. Of note, DDX39B was not included in either of the two databases used for our in silico analysis.

miRNAs are small, non-coding RNA molecules that regulate gene expression by hybridizing with their specific target mRNA, either inducing its degradation or inhibiting translation. We used the miRWalk Webtool (http://mirwalk.umm.uni-heidelberg.de/) developed by the University of Heidelberg to search for possible miRNA binding sites in the FUT2 and FUT3 mRNAs [48]. To further corroborate our search results, we only considered miRNAs that we could confirm using the additional database miRBD [49]. With this, we identified 15 miRNAs that are predicted to target FUT2 and 15 different miRNAs that harbor one or more binding sites on FUT3 (shown in Table 4). Mapping the exact positions of the predicted miRNA binding sites, we located 9 sites in both, the coding sequence and 3′UTR of FUT2, while in FUT3 the majority of 12 sites is located in the 3′UTR.

Interestingly, one of our candidates, hsa-miR.502-5p, is predicted to have binding motifs in the 5′UTR, coding sequence, and 3′UTR of FUT3 mRNA. This miRNA has been described as negative regulator for the TF SP-1 and was shown to inhibit proliferation, migration, and invasion in gastric cancer cells, labeling it as a tumor suppressor [51, 50].

An additional predicted regulator miRNA is miR-17-5p, which has been shown to interact with FUT2 mRNA and act as negative regulator for its expression [52]. In the setting of osteoarthritis, this downregulation of FUT2 is abolished by the non-coding RNA HOTAIR, which is able to bind miR-17-5p and in this way indirectly restores the expression of FUT2 [52].

There is accumulating evidence that regulatory control of FUT2 and FUT3 expression and resulting changes in levels of Le^a and Le^b fucosylation or shift to sLex/^a might have important implications in several pathologies such as IBD and cancer. In order to shed light on roles of the different Lewis antigens in these pathologies, it is essential to understand which regulators are involved, at what stage they take effect, and how they affect the expression of their target. With our in silico approach to identify novel candidate TFs for both FUT2 and FUT3, we predicted several interesting new factors that have not been described yet. TFs like GATA-1, known already for regulating other blood group antigens and being of general importance in hematopoiesis [30], or Sp1, described to be essential during hematopoietic differentiation [32], are noteworthy hits that warrant further investigation and experimental validation. Combining these in silico data with regulators already validated in experimental studies, such as c-Myc, CDX1, or HNF1A, will improve our understanding of the complex transcriptional regulation of FUT2 and FUT3 genes.

When it comes to identifying factors that influence the expression of FUT2 and FUT3, there are pronounced gaps between our in silico findings and the experimental in vitro reports by others. This may be due to the fact that binding and action of TFs in FUT2 and FUT3 expression have as yet been poorly studied in experiments. It might also be due to the lack of known binding motifs in the PROMO databases or the nucleotide range used for the analysis. We chose the range of 2000 bp upstream of the transcription start site, according to previous studies indicating the regulatory role of this area [18, 53]. Increasing the area further upstream could possibly show additional TF sites, and looking for downstream regulatory elements could be of great interest for future studies. Another reason for a low overlap of experimentally identified and electronically predicted TFs involved in the expression of FUT2 and FUT3 might be the tendency of different TFs to interact with each other. They can either co-operate in supporting each other to bind [54] or be in competition with each other [55], this way adding another layer of transcriptional regulation. In addition, it must be assumed that the competition of different TFs with identical or overlapping binding motifs (e.g., for p53 and AP-2αA and for HNF-3α and IRF-2, see Fig. 4) will be governed by their respective binding affinities to the target genes [56]. This is of particular importance as most of the TF examples studied in vitro were described in cancer cells, which are generally known to have drastically altered gene expression profiles in comparison to healthy cells, hence might present with altered TF concentrations, shifting binding equilibria in competitive scenarios.

Additionally, with RBPs and miRNAs inciting more and more interest in their regulatory role in recent years, we were able to identify novel targets that are likely to interact with FUT2 or FUT3 and regulate their expression on a post-transcriptional level. Taken together, these points will improve our understanding of the regulation of FUT2 and FUT3 and consequently of the expression of the Lewis blood group antigens. This could also be transferred into diagnostic use as some of the TFs mentioned in this review could be used as prediction markers for susceptibility to IBDs or to predict overall survival and metastatic potential in colon cancer.

C.G. acts as a consultant to Inno-Train GmbH, Kronberg im Taunus, Germany, a provider of genotyping kits for molecular blood group diagnostics since 1998 and holds the European and US patents P3545102 and US20190316189 on the “determination of the genotype underlying the S-s-U-phenotype of the MNSs blood group system.” All other authors state no conflict of interest.

The Institute of Translational Medicine of the Private University in the Principality of Liechtenstein is financially supported by the Hans Groeber Stiftung, Vaduz, Fürstentum Liechtenstein, and the Tarom Foundation, Schaan, Fürstentum Liechtenstein.

M.W. and C.G. designed the study, collected and analyzed data, and wrote the paper. S.M. and M.B. collected data and reviewed the paper.
