Background: One-way endobronchial valve (EBV) treatment has shown safety and efficacy at 6 months after treatment in patients with severe emphysema and confirmed absence of interlobar collateral ventilation. Longer follow-up in this subgroup is not available. Objectives: To investigate the efficacy and safety of EBV treatment of the STELVIO cohort at a 1-year follow-up. Methods: Emphysema patients who have been treated with EBV in the STELVIO trial were invited for a voluntary 1-year follow-up visit. Both the original treatment group and the control group who crossed over to treatment have been included. Analyses are performed on the patients who attended the 1-year follow-up visit. Results: Sixty-four patients received EBV treatment. At 1 year, 40 patients (26 female; mean age 59 ± 8 years; FEV1 0.86 ± 0.29 L; RV 4.56 ± 1.00 L; 6MWD 367 ± 78 m; and SGRQ 56 ± 13 points) visited the hospital. Significant improvements (p < 0.001) were found for FEV1 (+17%, 95% CI, 11 to 24), RV (-687 mL, 95% CI, -918 to -456), 6MWD (+61 m, 95% CI, 42 to 80), and SGRQ (-11 points, 95% CI, −17 to −6). Two patients died: 1 after 58 days due to progressive respiratory failure and 1 after 338 days of follow-up due to a myocardial infarction. Seventeen percent of the patients underwent valve replacement and 22% of the initially treated patients had permanent valve removal. In 22% of the patients, pneumothoraces occurred before 6 months, and none occurred between 6 and 12 months. Conclusions: EBV treatment results in clinically relevant benefits at 1 year of follow-up. Maintenance bronchoscopies to achieve this are needed. This study supports the use of EBV treatment in carefully selected patients with severe emphysema without collateral ventilation.
Recently published studies [1,2,3] have shown that one-way endobronchial valve (EBV) treatment results in clinically and statistically significant effective improvements in lung function, exercise tolerance, and quality of life. These studies have highlighted the importance of careful patient selection, particularly using the Chartis system to demonstrate absence of interlobar collateral ventilation, as a basis for the success of this treatment.
However, treatment success is also accompanied with some risk, particularly an approximately 20% incidence of the treated patients developing pneumothorax in the early postbronchoscopy phase. Another, less frequent complication was the loss of lung volume reduction due to granulation tissue formation around the valves and subsequent valve dislocation, raising the question of whether the risks for these complications continue to be present beyond 6 months of follow-up. The risk for pneumonia and exacerbations after obstructing the airways with a foreign body like the EBV is expected to be high, but the 6-month data of the STELVIO trial were reassuring in that perspective. Finally, one could anticipate that, since emphysema is a progressive disease, disease progression in the nontreated ipsilateral lobe may negatively influence the effects of successful lung volume reduction over the course of time. Successful lung volume reduction of the target lobe increases mechanical stress and overexpansion of the nontreated lobe and induces compensatory emphysema, associating with loss of the original lung volume reduction effect . In other words: does lung volume reduction persist after 6 months of treatment?
The aims of this uncontrolled study are to investigate the efficacy and safety of EBV treatment of the open-label STELVIO cohort at a 1-year follow-up. This follow-up study lacks a control group because the control group patients in the STELVIO trial were also crossed over and treated with EBV after their 6-month follow-up, as per the original study protocol.
We included patients who were previously treated with one-way EBV in the “STELVIO trial” (trial registration: NTR2876)  and had severe emphysema, hyperinflation, marked dyspnea irrespective of heterogeneous or homogeneous distribution, and a confirmed absence of interlobar collateral ventilation measured with the Chartis system. The study was approved by the University Medical Center Groningen Medical Ethics Committee, and all participants signed informed consent.
Chartis Assessment and EBV Treatment
The procedure has been described before . Briefly, collateral ventilation was assessed under conscious sedation using the Chartis system (Pulmonx, Redwood City, CA, USA). The EBV (Zephyr®; Pulmonx) were placed in all (sub)segments of the target lobe under general anesthesia or conscious sedation .
In the initial study, the “STELVIO trial,” EBV treatment was performed in 64 patients, of whom 34 were randomized to the EBV group, and 30 patients were treated as “crossover” patients after initially having been randomized to the control group. All treated patients had proven absence of collateral ventilation confirmed with the Chartis assessment .
Patients were previously randomized 1:1 to the EBV group or to the control group. Patients randomized to the EBV group received the treatment immediately and underwent a 6-month follow-up visit. Patients in the control group continued to receive standard medical care, underwent a 6-month follow-up visit, and afterwards received the EBV treatment. This crossover control group underwent a 6-month posttreatment follow-up visit. All patients exited the study following completion of the 6-month posttreatment evaluations. Subsequently, all patients, except patients whose valves had to be removed after treatment, were invited for a voluntary evaluation visit 1 year after valve treatment.
At the 1-year follow-up, we performed pulmonary function measurements, a 6-min walk test, and chest X-ray in the patients, and the patients completed questionnaires. Patients were also evaluated by a physician who reported on the patients' health status during the past year. Pulmonary function tests (Jaeger MasterScreen™; CareFusion, Germany) were performed according to ATS/ERS guidelines [5,6]. The 6-min walk test was performed as per ATS recommendations . Health-related quality of life was measured by the St. George's Respiratory Questionnaire (SGRQ) [8,9], and dyspnea severity was measured by the modified Medical Research Council (mMRC) dyspnea scale . The BODE score was calculated at baseline as well as after 6 months and 1 year of follow-up . If patients did not visit our hospital for their follow-up, available spirometry data from other hospitals were collected. This was also necessary for patients whose valves had to be removed after treatment and for patients who were initially not treated with EBV due to either positive collateral ventilation or local airway anatomy not compliant with valve treatment. The baseline inspiratory high-resolution CT scan was used to assess emphysema distribution for the treated lung. Less than 15% difference in destruction score between treatment lobe and nontreatment ipsilateral lobe in the EBV target lung was defined as “homogeneous” and more than 15% as “heterogeneous” .
Survival was evaluated up to 1 year in all patients who underwent screening assessment in the initial STELVIO study. Serious adverse event data were collected during the study from all patients who were treated with EBV.
Efficacy outcome measures were improvement in change from baseline to the 1-year follow-up in pulmonary function (spirometry and body plethysmography), 6-min walk distance (6MWD), and the SGRQ total score. Clinical response was defined using established minimal clinically important differences (MCID) for FEV1: 10% , residual volume (RV): -430 mL , 6MWD: 26 m , and SGRQ: -4 points [15 ]and -7 points .
Statistical comparisons for the change from baseline to 6 or 12 months of follow-up were performed using paired t tests or, in case of non-normally distributed data, the Wilcoxon signed-rank test was used to compare the outcomes in change from baseline to 6 or 12 months of follow-up. To adjust for multiple testing, p values of <0.025 were considered to indicate statistical significance. SPSS Statistics version 22 (IBM, Armonk, NY, USA) was used for all analyses.

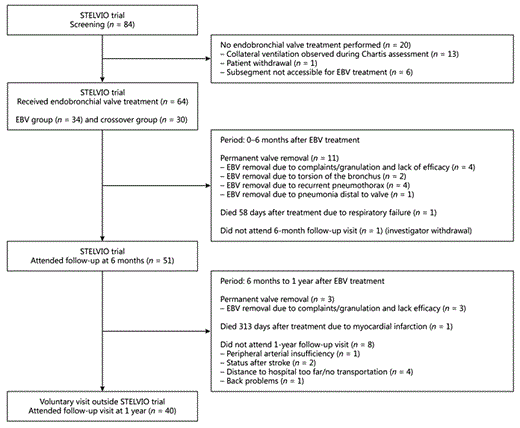

The initial STELVIO study was performed between June 2011 and November 2014, with the last patient reaching the 1-year follow-up in October 2015 . Eighty-four patients were screened for eligibility. Of these, 13 patients were excluded for proven presence of interlobar collateral ventilation, 6 were excluded because of local airway anatomy not accessible for EBV placement, and 1 patient was withdrawn, resulting in 64 patients who were treated with EBV . Of the 64 treated patients, 2 (3%) patients died and 14 (22%) patients were not able to retain the EBV throughout the 1-year study period, which was related to valve removal procedures: 4 secondary to a pneumothorax, 2 due to airway torsion, 7 due to granulation tissue formation, lack of efficacy, and complaints, and 1 due to pneumonia distal to valve. Eight patients did not attend the 1-year follow-up visit for various reasons (Fig. 1; online suppl. Table 1, see www. karger.com/doi/10.1159/000453529). At 1 year, 48 (78%) patients retained their valves, of whom 40 (83%) visited the hospital for follow-up assessments. The baseline characteristics of these 40 patients are shown in Table 1, and the study flowchart is presented in Figure 1. Baseline characteristics were similar between the patients who attended the 1-year follow-up (n = 40) compared to the patients who did not attend the 1-year follow-up.

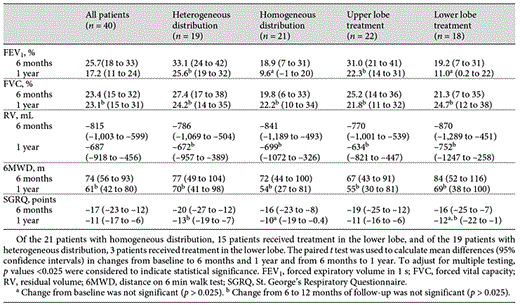

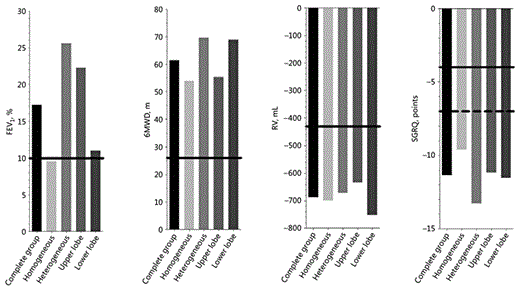

Among patients who attended the 1-year follow-up visit, significant improvements (all p < 0.001) between baseline and 1-year follow-up were measured: FEV1 +17% (95% CI, 11 to 24), RV -687 mL (95% CI, -918 to -456), 6MWD +61 m (95% CI, 42 to 80), and SGRQ total score -11 points (95% CI, −17 to −6). All these results exceeded the established MCID. At the 1-year follow-up, improvements in FVC and 6MWD were comparable to those observed at the 6-month evaluation. The 1-year results for FEV1, RV, and SGRQ were slightly declined compared to those at the 6-month evaluation but still clinically meaningful (exceeded the MCID) and significantly improved compared to baseline. At 1 year, no significant differences, except for FEV1, were found between heterogeneous and homogeneous patients as well as between patients who were treated in the upper lobes and those treated in the lower lobes (Table 2; Fig. 2). Figure 3 shows the individual patient outcomes compared to baseline at 6 months and 1 year of follow-up of the patients who attended the voluntary 1-year follow-up visit (n = 40).
The BODE index at 1 year showed an improvement from baseline of -1.13 points (95% CI, -1.5 to -0.7; p < 0.001). Eight patients who retained the valves did not attend the 1-year follow-up visit: 4 patients did not have transportation, 2 patients were not able to attend the visit due to a previous stroke, 1 patient due to peripheral artery insufficiency, and 1 due to back problems. Spirometry data were retrieved for 7 of these patients. Median (minimum-maximum) changes in key outcome measures from baseline to 6 months and a median of 528 days (267-770), respectively, after treatment were: FEV1 +13.1% (-7.8 to +58.9) and +6.3% (-28.0 to +55.6) (p = 0.176), and FVC +17.8% (-0.5 to +37) and +11.9% (-15.4 to +23.5) (p = 0.091). The individual data are shown in the online supplementary Table 1.
Fourteen patients were not able to retain the EBV up to 1 year. Spirometry data were retrieved for 7 of these patients. At a median of 399 days (minimum 62 days, maximum 826 days) after valve removal, the mean change from baseline in FEV1 was +2.8% (95% CI, -15 to 21; p = 0.743) and in FVC +4.9% (95% CI, -12 to 22; p = 0.539).
Twenty patients of the initial 84 patients screened were not treated with EBV. At a median of 400 days (minimum 106 days, maximum 834 days) after screening, the mean change from baseline for FEV1 was -3.5% (95% CI, -12 to 5; p = 0.415) and for FVC -1.1% (95% CI, -12 to 10; p = 0.830).
Serious Adverse Events

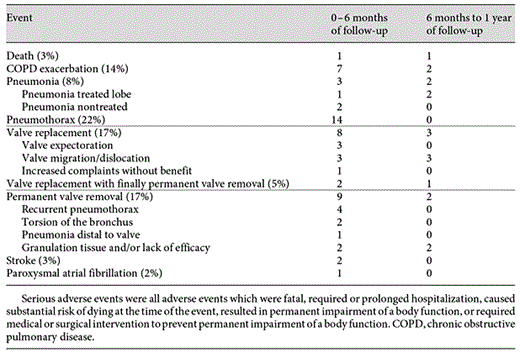

Of the 64 treated patients, 2 (3%) deaths occurred at the 1-year follow-up (Table 3). One death was due to progressive respiratory failure (58 days after treatment), and one was due to a myocardial infarction (313 days after treatment). At the 1-year follow-up, 9 chronic obstructive pulmonary disease exacerbations and 5 pneumonias requiring hospitalization were reported. Serious treatment-related adverse events included pneumothorax (22% of all treated patients)  and events requiring valve replacement (17% of all treated patients) or permanent valve removal (22% of all treated patients). Pneumothoraces occurred only in the first 6 months: 12 within 2 days of EBV treatment, 1 at 19 days after treatment, and 1 at 126 days after treatment. In the patients (n = 20) who did not receive EBV treatment, 2 (10%) deaths were recorded at 160 and 267 days after the screening visit, both due to chronic obstructive pulmonary disease progression.
One-way EBV treatment provides significant clinical benefits for carefully selected patients with severe emphysema, a patient group with limited treatment options. One year after EBV treatment, there were significant improvements in pulmonary function, exercise capacity, and quality of life compared to baseline values. This improvement exceeded the established MCID with a high responder rate. The occurrence of a pneumothorax is a frequent complication in the acute posttreatment phase [1,17,18]; however, no pneumothoraces occurred between the 6-month and 1-year visits. Seventy-eight percent of the initially treated patients retained the EBV over the 1-year study period, although 17% needed to undergo extra bronchoscopies with valve replacements to restore valve dysfunction.

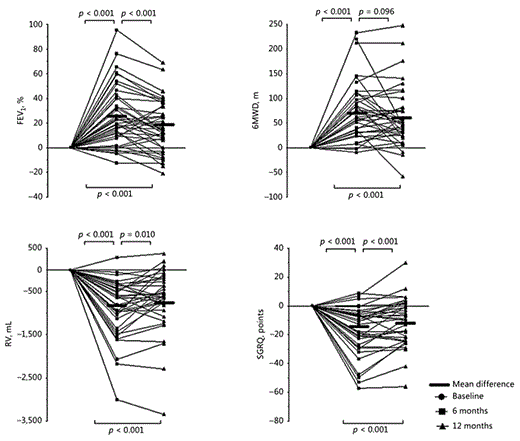

Our 1-year follow-up results show that the largest improvements in FEV1, RV, and SGRQ after EBV treatment are observed at 6 months after treatment, with a slight decline in these variables at the 1-year timepoint. However, the improvements for all endpoints, FEV1, RV, and SGRQ, at 1 year remained statistically significant with clinically relevant improvements compared to baseline. The slight decline in lung function parameters, noted primarily in the homogeneous and lower lobe cohorts, did not result in a decline in exercise performance between the 6- and 12-month follow-up. Possible causes of the observed lung function loss are ongoing progression of emphysema, overexpansion of the nontreated ipsilateral lobe , and loss of EBV function. The durability of the treatment effect of improved lung function after the first year of successful treatment with EBV needs to be explored in larger studies with longer follow-up, which are currently underway (NCT01796392).
Importantly, also at 1 year, the benefit from EBV treatment was maintained not only in patients with a heterogeneous emphysema distribution on high-resolution CT, but also in patients with homogeneous emphysema. Recently published data from a randomized clinical study in patients with homogeneous emphysema showed the benefits of EBV treatment at 3 months . The present data provide important long-term (12 months) observations of persistent benefits in patients with homogeneous emphysema with limited treatment options including no surgical alternatives, with the NETT trial showing that surgical lung volume reduction in patients with a homogeneous emphysema is associated with higher mortality as compared to medical controls .
Pneumothorax was the most important serious adverse event in the first 6 months of the STELVIO trial, occurring predominantly during the immediate posttreatment period when patients were still hospitalized and under observation. In this 1-year follow-up study, no additional pneumothoraces were observed between 6 and 12 months. Despite this encouraging observation, future pneumothoraces may still occur, although it will be difficult to discriminate between treatment-related and spontaneous pneumothoraces. Another device-related event after 6 months of follow-up was permanent valve removal because of valve dislocation due to formation of granulation tissue, resulting in complaints like coughing and loss of valve efficacy. Formation of granulation tissue in response to implanted devices is a well-known and therapeutically challenging problem, also encountered after placement of central airway stents . Removing the valves indeed resolves this granulation tissue formation; however, the beneficial lung volume reduction effects also disappear. Importantly, follow-up spirometry data from patients who were not able to retain their valves showed both FEV1 and FVC values comparable to baseline values at a median of 399 days after valve removal. One might consider surgical lung volume reduction in patients who demonstrate significant initial clinical benefit from the valve treatment, but were unfortunate to develop local airway granulation formation, leading to permanent valve removal .
Eight patients did not attend the 1-year follow-up visit, which could bias the outcome measures. Therefore, we collected the individual spirometry data from the patients' local hospitals. For these data, the conditions under which spirometry was performed were not know (pre- or postbronchodilator). The available data were predominantly assessed over more than 1 year after EBV treatment. The external spirometry data showed that only 1 patient had a decrease in both FEV1 and FVC compared to baseline. In 4 patients, both FEV1 and FVC and in 2 patients FVC were still improved compared to the baseline values, indicating that our results would not have been materially altered, even if they had visited our institution for their follow-up visit.
Our study demonstrated a statistically significant and clinically relevant improvement in the BODE index at the 1-year follow-up. Two large randomized trials [22,23] using the same EBV demonstrated comparable results 6 months after treatment, but only in patients with intact fissures and successful lobar occlusion . Patients who underwent lung volume reduction surgery also demonstrated similar improvements in the BODE index after 6 months. This improvement in the BODE index was associated with a significant decrease in mortality . Prolonged survival of subjects treated with EBV who achieved lobar atelectasis was also suggested in multiple cohorts [25,26,27]. While the data in our study has shown an improvement in the BODE index, suggesting a survival benefit, longer-term follow-up after EBV treatment is necessary to better investigate this potential survival benefit.
The uncontrolled study design after 6 months of follow-up in the present study is a limitation of our cohort study. We cannot correct for potential placebo effects; however, the efficacy outcomes in the original STELVIO trial were controlled with patients who did not receive EBV treatment, and these patients did not show any improvement after 6 months of follow-up.
A randomized controlled trial with a 1-year follow-up, ideally with a larger number of patients, would be useful to confirm our results. Another limitation is that not all patients who retained the valves were able to attend the voluntary 1-year follow-up visit, resulting in a smaller number of patients assessed at 1 year.
In summary, we present the 1-year follow-up results of patients with severe emphysema and absence of collateral ventilation who were previously treated with one-way EBV in the “STELVIO trial.” We demonstrated clinically relevant and significant improvements in pulmonary function, exercise capacity, and quality of life, with good responder rates at 1 year after EBV treatment. An important observation is that no pneumothoraces occurred between 6 and 12 months of follow-up, in contrast to the 20% pneumothorax rate in the first weeks after treatment. Valve replacement or permanent valve removal can be required. We conclude that this 1-year follow-up study supports the use of EBV treatment in carefully selected patients with severe emphysema without collateral ventilation.
