Circulating Neutrophil Extracellular Trap Levels in Well-Controlled Type 2 Diabetes and Pathway Involved in Their Formation Induced by High-Dose Glucose Open Access

Type 2 diabetes (T2D) is a growing health care burden primarily due to its long-term complications, including nephropathy, retinopathy, and neuropathy [1]. These complications are considered as microvascular disorders. In earlier studies, both abundant oxidative stress and nonenzymatic glycation of proteins associated with high levels of plasma glucose have been shown as risk factors for vascular endothelial cell damage in T2D [2].

Several clinical studies, including the Kumamoto study in Japan, have demonstrated that intensive therapy prevents the progression of microvascular complications in T2D [3,4,5]. However, approximately 10% of T2D patients in a well-controlled state still develop certain complications, such as nephropathy and retinopathy. Therefore, it is important to identify risk markers to predict the development of microvascular complications in well-controlled T2D patients.

Neutrophil extracellular traps (NETs) are net-like DNA decorated with antimicrobial proteins, including histones and myeloperoxidase (MPO), which are released from microorganism-triggered neutrophils [6]. The activated neutrophils die in due course with the formation of NETs. Consequently, the dying neutrophils can trap microorganisms by the net-like DNA and kill them using antimicrobial proteins. On the other hand, the histones that are NET components exhibit a strong cytotoxic effect on vascular endothelial cells [7] and exert thrombogenic activity in terms of the potential to bind platelets and coagulation factors in the blood [8,9]. Although the NET formation is regarded as an essential event in the innate immunity, excessive formation of NETs can induce vascular endothelial cell damage and thrombosis resulting in the development of microvascular disorders.

Recently, the glucose metabolism has been shown as a requirement for the NET formation [10]. In addition, it has been shown that the NET formation is increased under high-dose glucose condition and that the circulating NET levels in the serum are associated with T2D [11].

In the present study, in order to determine if the amount of NET formation in vivo can be a risk marker for microvascular complications in well-controlled T2D patients, we examined the relation of circulating NET levels represented by MPO-DNA complexes in the serum with certain clinical and laboratory parameters in these patients. We examined further the pathway involved in the NET formation induced by high-dose glucose.

Eleven patients diagnosed with T2D in the Hokkaido University Hospital were selected to be enrolled in this study because their casual plasma glucose (CPG) levels did not exceed 200 mg/dl. Since all participants were outpatients, CPG was employed in this study instead of fasting plasma glucose. Clinical and laboratory parameters of these patients are shown in online supplementary table S1 (see www.karger.com/doi/10.1159/000444881 for all online suppl. material). Thirteen healthy volunteers were included in this study as controls. After obtaining written informed consent, peripheral blood samples (5 ml) were obtained without anticoagulants, and the sera were stored at -20°C until use. This study was approved for practice by the Institutional Clinical Research Committee of the Hokkaido University Hospital (permission No. 014-0043).

The amount of in vivo NET formation can be monitored as MPO-DNA complexes in the serum [12]. The enzyme-linked immunosorbent assay (ELISA) for MPO-DNA complexes was carried out as described previously [12,13,14]. In brief, microtiter plates (Thermo Fisher Scientific, Waltham, Mass., USA) were first coated with the monoclonal antihuman MPO antibody (5 µg/ml; AbD Serotec, Kidlington, UK) and incubated overnight at 4°C. After blocking with 1% bovine serum albumin, the sera (final dilution, 1:3) and horseradish peroxidase-conjugated anti-DNA antibody in the cell death detection kit (Roche Diagnostics, Tokyo, Japan) were applied to the wells followed by the development of color according to the manufacturer's instruction of the kit. The serum from a patient with MPO-antineutrophil cytoplasmic antibody-associated vasculitis served as a positive control.

Reagents used in this study included phorbol myristate acetate (PMA; Sigma-Aldrich, St. Louis, Mo., USA), glucose (Wako Pure Chemical Industries, Osaka, Japan), mannitol (Wako Pure Chemical Industries), 2-deoxyglucose (2-DG; Wako Pure Chemical Industries), ranirestat (aldose reductase inhibitor; Sumitomo Dainippon Pharma, Sapporo, Japan), and sotrastaurin [protein kinase C (PKC) inhibitor; Sigma-Aldrich].

Human neutrophils were obtained from 5 ml of peripheral blood of healthy volunteers by density centrifugation using Polymorphprep (Axis-Shield, Dundee, UK) according to the manufacturer's instruction. The obtained cells were resuspended in RPMI-1640 medium supplemented with 10% fetal bovine serum and then seeded in wells of 4-well chamber slides (Thermo Fisher Scientific, Yokohama, Japan) (5 × 10⁵/ml). After incubation for 15 min at 37°C, the medium was removed, and then the remaining cells were washed with PBS. Thereafter, the remaining cells were exposed to 100 nM PMA in PBS or to various concentrations of glucose in PBS for another 2 h at 37°C in order to induce NETs. Since conventional RPMI medium contains glucose at concentrations of ∼200 mg/dl, we used PBS as solvent instead. After washing with PBS, the remaining cells were fixed with 4% paraformaldehyde for 15 min at room temperature, and then the chambers were removed. Finally, the remaining cells on the glass slides were incubated with the 4′,6-diamidino-2-phenylindole (DAPI)-containing solution (Sigma-Aldrich).

Photomicrographs (magnification: ×200) were taken randomly under a fluorescent microscope (6/well of chamber slides). Simultaneously, we observed the neutrophils that formed NETs under phase contrast condition in order to confirm cell death with rupture of the plasma membrane. The amount of NETs was determined as a mean value of DAPI-positive area/neutrophil of the 6 photomicrographs taken using ImageJ software as described previously [14].

Two independent groups were compared using unpaired Student's t test. When the variance of the 2 groups was not equivalent, Welch's t test was applied. p values <0.05 were regarded as statistically significant.

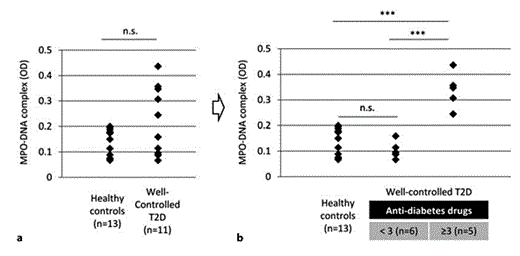

In order to evaluate the NET formation in vivo, we determined the MPO-DNA complex levels in the sera of the well-controlled T2D patients (n = 11), and the data were compared with the healthy controls (n = 13). As a result, the serum MPO-DNA complex levels were 0.209 ± 0.133 (mean optical density ± SD) in the well-controlled T2D patients and 0.135 ± 0.053 in the healthy controls (fig. 1a). Although the mean value of the T2D samples was higher than that of the healthy controls, they were not statistically different. Since the T2D values showed greater variance than those of healthy controls, we next aimed to determine which factors were associated with a large variance. For this purpose, we focused on the quantity of antidiabetic drugs used in the T2D patients. Although the range of the HbA1c levels of the well-controlled T2D patients was relatively narrow [6.1-7.1% (43-53 mmol/mol)] (online suppl. table S1), the type and quantity of antidiabetic drug used varied among individuals (online suppl. table S2). Thus, it is reasonable to consider that the patients who use more antidiabetic drugs are the ones with more severe T2D. Interestingly, when the well-controlled T2D patients were divided into 2 subgroups, namely, the patients treated with <3 antidiabetic drugs and those treated with ≥3 antidiabetic drugs, the serum MPO-DNA complex levels in the latter subgroup (n = 5) were significantly higher than those in the former subgroup (n = 6) (fig. 1b).

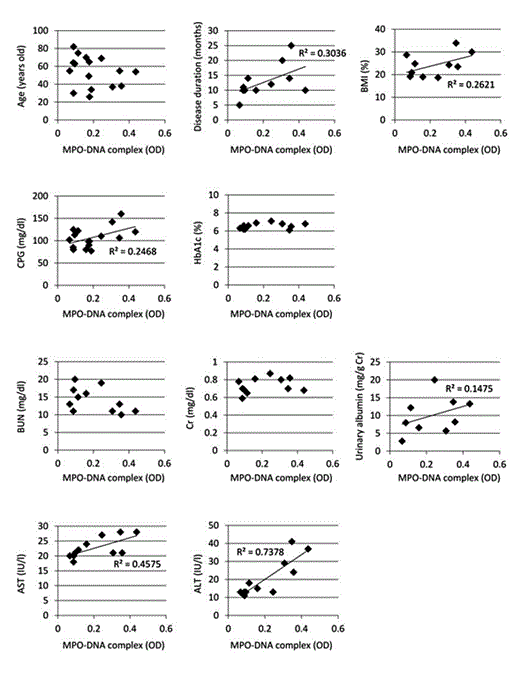

Next, we examined the correlation of the serum MPO-DNA levels with certain clinical and laboratory parameters of the well-controlled T2D patients and healthy controls, including age, disease duration, body mass index (BMI), CPG, HbA1c, blood urea nitrogen, creatinine, urinary albumin, aspartate transaminase (AST), and alanine transaminase (ALT). Among them, disease duration, BMI, CPG, urinary albumin, AST, and ALT showed positive correlations (r² > 0.100) with the serum MPO-DNA complex levels (fig. 2). In order to elicit the strongest correlates with the serum MPO-DNA complex levels, logistic analysis was conducted. As a result, ALT was nominated as the strongest correlate with the serum MPO-DNA complex level (p < 0.001).

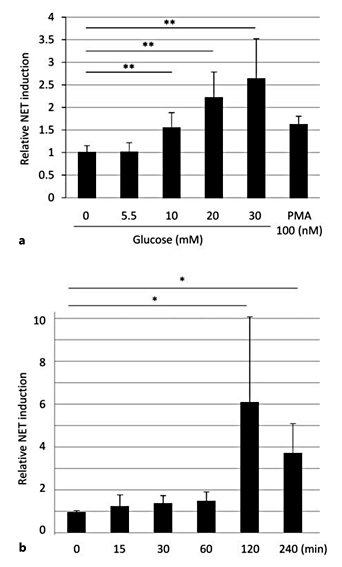

We next determined the mechanism of NET induction under high-dose glucose condition by in vitro experiments. At first, the dose dependency of glucose on the NET formation was examined. When the neutrophils from healthy volunteers were exposed to various concentrations of glucose for 2 h at 37°C, the DAPI-positive area was significantly increased by the exposure to >10 mM of glucose, and the increase was dose dependent (fig. 3a). Next, the time dependency of NET induction by 20 mM glucose was examined. As shown in figure 3b, NETs were initiated to be induced after incubation for 2 h under high-dose glucose condition.

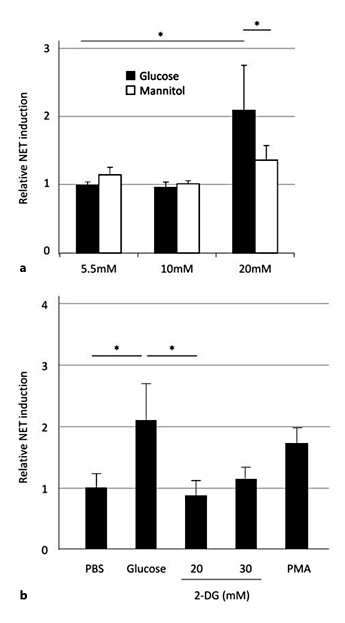

Next, in order to rule out the possibility that the high osmotic pressure in the high-dose glucose solution affected the NET formation, we employed mannitol with osmotic pressure similar to glucose [15]. Since the exposure to 20 mM glucose, but not to mannitol, for 2 h at 37°C induced NETs (fig. 4a), NET induction under high-dose glucose was not caused by the high osmotic pressure. Moreover, in order to determine the requirement of intracellular metabolism of glucose on the NET formation under high-dose glucose condition, the glucose analogue, 2-DG, was employed. Glucose incorporated in neutrophils is phosphorylated to glucose-6-phosphate and becomes adenosine triphosphate. On the contrary, 2-DG is taken up by neutrophils via the glucose transporter, but it is not metabolized in the cells [16]. Interestingly, the exposure to 20 mM glucose, but not 2-DG (even at 30 mM), for 2 h at 37°C induced NETs (fig. 4b). The collective findings suggest that the intracellular metabolism of glucose is essential for the NET induction under high-dose glucose condition.

The NET formation depends on the generation of reactive oxygen species (ROS) [17]. In the metabolism of glucose, the major pathway that generates ROS is the polyol pathway [18]. In this pathway, ROS are generated by NADH directly and by PKC that is activated by diacylglycerol, of which the production is mediated by NADH (online suppl. fig. S1). It has been shown that glucose challenge indeed induces ROS production in neutrophils [19] and that the polyol pathway in neutrophils is activated in patients with diabetic microvascular complications [20,21].

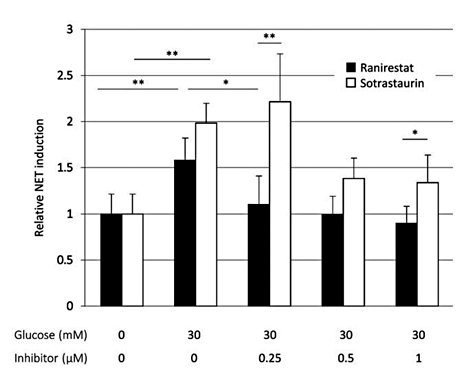

In order to determine the involvement of the polyol pathway in the NET formation induced by high-dose glucose, we conducted experiments using specific inhibitors. Ranirestat was employed as an aldose reductase inhibitor that could function at the up- and mainstream of this pathway. Sotrastaurin was employed as a PKC inhibitor that could function downstream and at the tributary stream of the pathway. As a result, ranirestat inhibited completely the NET formation induced by high-dose glucose (30 mM) even at low concentration (0.25 µM) (fig. 5). In a like manner, sotrastaurin inhibited the NET formation, but the effect was partial even at high concentration (1 µM). These findings suggest that the polyol pathway is involved in the NET formation induced by high-dose glucose, and the upstream inhibition is more effective than the downstream inhibition.

More than 10 years have passed since the discovery of NETs in 2004 [6]. Up to now, many studies have revealed the biological roles of NETs. Although NETs are essential for the innate immunity, especially for the elimination of microbes, the extracellular release of DNA and intranuclear/cytoplasmic proteins is regarded as a risk factor for microvascular disorders [22]. Diverse stimuli, such as the bacterium-derived formyl-Met-Leu-Phe and lipopolysaccharide [23], PMA, antineutrophil cytoplasmic antibody [12,14], and high-dose glucose [11], have been shown to induce NETs.

In the present study, we have demonstrated that the levels of circulating NETs represented by serum MPO-DNA complexes in the well-controlled T2D patients treated with several (≥3) antidiabetic drugs are significantly higher than in the patients treated with less (<3) antidiabetic drugs and healthy controls. Although further studies, for example continuous glucose monitoring, are needed, it is possible that the ‘well-controlled' state is apparent in the patients treated with ≥3 antidiabetic drugs, though their HbA1c value is equivalent to the patients treated with <3 antidiabetic drugs.

In addition, the serum MPO-DNA complex levels have positive correlations with some of the clinical and laboratory parameters of the well-controlled T2D patients. These parameters, including prolonged disease duration, and high levels of BMI, CPG, urinary albumin, AST, and ALT, are known risk factors for the cardiovascular complications of T2D [24]. Therefore, we suggest that the amount of NET formation in vivo can be a risk marker for microvascular complications in the well-controlled T2D patients. The logistic analysis suggests ALT as the strongest correlate with the serum MPO-DNA complex level. Liver enzymes, especially ALT, are shown to be predictors for incident diabetes [25]. Thus, the strong correlation of serum MPO-DNA complex levels with ALT values suggests that these markers can disclose the ‘not good' control of the apparently ‘well-controlled' T2D patients.

The NET formation in the T2D patients is fraught with controversies. Joshi et al. [26] first demonstrated that the potential of NET formation induced by lipopolysaccharides and PMA in neutrophils derived from T2D patients was lower compared with healthy controls and suggested that it could link to their susceptibility to infection. On the contrary, Menegazzo et al. [11] showed that high-dose glucose and hyperglycemia increased the release of NETs. In the present study, we have demonstrated that serum MPO-DNA complex levels are elevated in some patients with well-controlled T2D. On the other hand, neutrophils derived from T2D patients formed fewer NETs under high-glucose condition than those from healthy donors [our unpubl. observations]. These findings suggest that incidental hyperglycemia, e.g. postprandial hyperglycemia, can induce NET formation in vivo under well-controlled conditions in T2D patients because the potential of NET formation persists in such situations. This hypothesis is consistent with previous reports, which demonstrated that acute glucose fluctuations rather than sustained chronic hyperglycemia activated oxidative stress and, thus, were associated with the development of microvascular complications in T2D patients [27,28].

The limitations of this study are its retrospective study design and small sample size (n = 24) from a single institution. Further investigations with enrollment of more participants from multiple institutions are needed to confirm the correlation of the amount of NETs in vivo with certain clinical and laboratory parameters in well-controlled T2D patients. In addition, prospective studies investigating differences in the outcome of well-controlled T2D patients with high and low levels of circulating NETs should be conducted in the future.

The identification of the pathway involved in the NET formation induced by high-dose glucose is worthy of attention. The latest study has demonstrated that the increase in the NET formation in T2D is associated not only with microvascular complications but also with impaired wound healing [29,30]. The blockade of the polyol pathway, especially upstream events, can completely inhibit the NET formation induced by high-dose glucose. In fact, the aldose reductase inhibitor, ranirestat, has completed two phase III clinical trials and exhibited reproducible results of measurable objective beneficial effects on diabetic neuropathy [31,32]. In addition, it has been shown that in the polyol pathway aldose reductase plays a pathogenic role in the development of other cardiovascular complications of T2D as well as neuropathy [33]. Inhibition of aldose reductase activity is, therefore, a useful strategy for the prevention and treatment of cardiovascular complications arising from T2D. We suggest that a part of the efficiency of aldose reductase inhibitors such as ranirestat is attributable to the inhibitory effect on the NET induction.

This study was supported by a grant-in-aid (No. 15K15105) from the Ministry of Education, Culture, Sports, Science and Technology of Japan to A.I.

The authors have no conflicts of interest to report.
