Angiotensin Receptor Blockers Are Associated with Reduced Fibrosis and Interleukin-6 Expression in Calcific Aortic Valve Disease

Calcific aortic valve disease (CAVD) is the most frequent heart valve disorder. To date there is no medical treatment for CAVD [1]. Clinical risk factors such as age, male gender, diabetes, hypertension and features of the metabolic syndrome have been associated with CAVD [2]. Over the past decade, the prevalence of CAVD has increased and it is believed that aging of the population as well as the epidemic of obesity may have contributed to this phenomenon [3]. In this regard, obesity is associated with a plethora of metabolic dysfunction, including the production of small, dense low-density lipoproteins (LDL) and activation of the renin angiotensin system (RAS), which promotes inflammation and the development of cardiovascular disorders [4,5].

CAVD is an inflammatory disorder characterized by the progressive fibrosis and mineralization of aortic tissue [6]. However, the fibrotic component and its relative contribution to the pathobiology of CAVD are still ill-defined. Studies have highlighted that several components of the RAS including angiotensin-converting enzyme (ACE) and chymase, two enzymes that generate angiotensin II, are present within CAVD valves [7,8]. Hence, inhibition of the RAS either with ACE inhibitors (ACEi) or angiotensin receptor blockers (ARBs) may help reduce fibrosis of the aortic valve during CAVD.

Studies indicate that angiotensin II promotes inflammation and fibrosis. On the other hand, interleukin-6 (IL-6) is a pleiotropic cytokine secreted by macrophages and fibroblasts, which is liberated in response to angiotensin II [9]. Recent investigations indicate that angiotensin II-induced IL-6 expression is a key factor involved in fibrotic response [10]. Hence, the objectives of the present work were the following: (1) to examine the association between the fibrotic process and the severity of CAVD, (2) to document the relationships between the fibrotic process, inflammation and IL-6 and (3) to explore the relationships between the ARBs, ACEi with inflammation and the fibrotic remodeling of the aortic valve.

We examined 477 aortic valves that were explanted from patients at the time of aortic valve replacement for CAVD. The protocol was approved by the local ethical committee and informed consent was obtained from the subjects. Demographic data and medications of the patients (including ARBs and ACEi) were recorded. There was no patient under double therapy (ARBs and ACEi). Duration of treatment with ARBs and ACEi was not available. Patients with history of rheumatic disease, endocarditis and inflammatory diseases were excluded. Valves with an aortic valve regurgitation grade >2+ were excluded. Patients with reduced left ventricular ejection fraction <40% were excluded. All patients underwent a comprehensive Doppler echocardiographic examination preoperatively. Doppler echocardiographic measurements included the left ventricular stroke volume and transvalvular gradients using the modified Bernoulli equation.

Each valve excised at the time of surgery was placed in a container filled with HEPES solution and analyzed at the pathology department. As part of an ongoing protocol, one cusp was also placed in RNAlater (Ambion Inc., Austin, Tex., USA) for ulterior use. The amount of RNAlater was identical for every specimen and of known weight, thus allowing the precise determination of aortic cusp weight. The cusps in HEPES solution were removed from the container, placed on absorbent paper and then weighed on a laboratory scale. The weight of the valve was then determined by the sum of weighed cusps in HEPES and in RNAlater. Then, one cusp was snap frozen in liquid nitrogen for ulterior quantification of calcium content (103 valves were available for quantification of calcium content). The remaining cusps were decalcified in Cal-Ex (Fisher Scientific, Nepean, Ont., Canada) for 24 h and fixed in formaldehyde 10% for histological processing; 5-μm-thick sections were obtained and stained with hematoxylin eosin. Histological sections were analyzed and the degree of valvular tissue fibrosis was attributed by a visual semiquantitative score as follows: score 1 = fibrotic tissue representing less than 25% of the section surface; score 2 = fibrotic tissue representing a surface between 25 and 50% of the section surface; score 3 = fibrotic tissue representing more than 50% of the aortic surface. The fibrosis score was attributed by experienced cardiovascular pathologists (C.C., S.P. and S.T.) blinded to clinical and echocardiographic data. The fibrotic score was validated in 25 valves by picrosirius staining for collagen. The 5-μm-thick cusp sections were stained with 0.1% sirius red in saturated picric acid (Spectrum Chemical, Gardena, N.B., Canada) and observed under polarized light microscopy. The quantitative morphometric analysis of collagen fiber was evaluated in the following manner: using a microscope at 10× magnification, the total area of each valve was determined with Image-Pro Plus version 6.1 image analysis software. Using a 40× magnification, the quantity of collagen, represented by red pixels in polarized light, was measured on the entire valve section. Then, the percentage of collagen pixels on the total area of the valves was calculated and the results were expressed as pixels/mm² of tissue.

Immunohistology was performed in cryostat sections of 103 valves available for further analyses. Immunohistological analysis was performed using the mouse Mab anti-monocyte/macrophages CD68+ (Cedarlane, Hornby, Ont., Canada). Slides were then incubated with an anti-mouse EnVision Dual Link System-HRP, followed by AEC substrate (Dako, Carpinteria, Calif., USA). Tissue sections were counterstained with hematoxylin (Dako). Mouse serum was used as a negative control in immunohistological experiments. In order to assess the numbers of monocytes/macrophages (CD68+) representative regions rich in cells were detected in each section and the number of cells was counted by two observers blinded to clinical results. The cells were counted at 400× in triplicates, and a mean value was attributed to each valve. Data were reported as the average number of cells per 400× field.

In 103 CAVD valves, RNA was extracted. Total RNA was isolated with the RNeasy micro kit (Qiagen, Mississauga, Ont., Canada). The RNA extraction protocol was performed according to the manufacturer's instructions using 100 mg of tissue. The quality of total RNA was monitored by capillary electrophoresis (Experion, Bio-Rad, Mississauga, Ont., Canada); 1 μg of RNA was reverse transcribed using the QuantiTect Reverse Transcription Kit from Qiagen. Quantitative real-time PCR (qPCR) was performed with QuantiTect SYBR Green PCR kit from Qiagen in the Rotor-Gene 6000 system (Corbett Robotics Inc., San Francisco, Calif., USA). IL-6, MCP-1, TNF-α and IL-1β (Qiagen) were quantified with real-time qPCR under the following conditions: an initial 15-min run at 95°C before starting, then 94°C for 10 s, 55°C for 30 s and 72°C for 30 s for a total of 40 cycles. The expression of a reference gene, HPRT (Invitrogen, Burlington, Ont., Canada; coding: TGG CGT CGT GAT TAG TGA TG, non-coding: AAT CCA GCA GGT CAG CAA AG), was chosen as a normalizer to control for any difference in the amount of cDNA starting material. The real-time PCR for HPRT was done under the following conditions: an initial 15 min run at 95°C before starting, then 94°C for 10 s, 58°C for 30 s and 72°C for 30 s for a total of 40 cycles.

In 103 patients additional tissues were available from the ongoing protocol to measure calcium. In these patients, a segment of valve tissue was kept in liquid nitrogen until determination of the calcium content. Leaflets were homogenized and treated with HCl 6N at 95°C for 24 h. The treated tissues were then centrifuged at 4,400 RPM for 30 min and supernatants were collected. Calcium content was determined by the Arsenazo III method. Results were expressed as milligrams of calcium per wet weight of tissue (mg/g ww).

Overnight fasting plasma was collected and immediately processed by the laboratory for the measurement of total cholesterol, LDL, high-density lipoprotein cholesterol (HDL) and triglycerides. The size of LDL particles was determined on a polyacrylamide gradient gel electrophoresis as previously detailed [11].

Continuous data were expressed as mean ± SEM and compared using Student's t test (when 2 groups were compared) or one-way ANOVA to test the effect of group (when more than 2 groups were compared). Post hoc Tukey analyses were done when the p value of the ANOVA was <0.05. Categorical data were expressed as a percentage and compared with the χ² test. Correlations between variables were determined using Spearman's coefficients. Multiple linear regression analysis was used to identify the independent correlates. Variables with a p value <0.1 were considered for entering into the multiple linear regression analysis. A p value <0.05 was considered significant. Statistical analysis was performed with a commercially available software package, JMP 8.0.1.

The semiquantitative fibrosis score of the aortic valve was first corroborated in a subset of 25 aortic valves in which quantitative morphometric analysis of fibrosis was documented after picrosirius red staining. The amount of collagen within the aortic valves increased significantly with the fibrosis score (p < 0.0001, ANOVA; fig. 1). In turn, the fibrosis score was associated with an elevated aortic valve weight, a marker of remodeling related to the severity of CAVD (fig. 2a). The fibrosis score was also significantly related to the amount of calcium within the aortic valve, indicating that both mineralization and fibrotic processes are closely associated during the development of CAVD (fig. 2b). In addition, the fibrosis score of the aortic valve was associated with a higher peak transvalvular gradient and lower aortic valve area (fig. 2c, d). After correction for covariates including age, male gender and bicuspid aortic valve (BAV), the fibrosis score (β = 6.95, p = 0.02) and weight of the aortic valve (β = 12.02, p < 0.0001) remained independently associated with the transaortic peak gradient, a measure of hemodynamic severity of CAVD (r² adjusted = 0.25, p < 0.0001; table 1). In the multivariate model, when replacing the weight of the aortic valve with the valvular calcium concentration, the fibrosis score (β = 9.6, p = 0.001) remained independently related to the transaortic peak gradient (r² adjusted = 0.14, p = 0.0002).

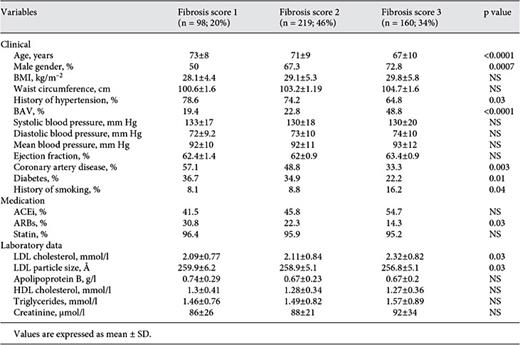

Table 2 shows the characteristics of the 477 patients with CAVD according to the fibrosis score. There were 98 patients (20%) with a fibrosis score of 1, whereas there were 219 (46%) and 160 (34%) subjects with a score of 2 and 3, respectively. There was a higher proportion of male patients and smokers in the groups with higher valve fibrosis scores. In addition, patients with an elevated fibrosis score were younger and had a lower prevalence of diabetes, hypertension and coronary artery disease. There were more BAV among patients with a higher fibrosis score. Among variables of the blood lipid profile, patients with a higher fibrosis score had higher LDL plasma levels and smaller LDL particle size. The proportions of patients under statin treatment were similar among the different fibrosis score groups. After correction for covariates including age, smoking, diabetes, LDL plasma level, male gender and BAV, the size of LDL particles (β = -0.02, p = 0.03) remained inversely associated with the fibrosis score of the aortic valve (r² adjusted = 0.20, p < 0.0001; table 3). It is relevant to point out that after multivariate adjustments, LDL plasma level (β = 0.02, p = 0.7) was no longer associated with the fibrosis score. Patients with or without statin treatment had a similar size of LDL particles (257.7 ± 0.5 vs. 257.8 ± 4.4 Å, p = 0.5).

According to the fibrosis score, less patients were treated with ARBs in valves with higher grades of fibrosis (grade 1 = 30.8%, grade 2 = 22.0% and grade 3 = 14.3%, p = 0.03, ANOVA; fig. 3). Of note, the proportion of patients under ACEi in different fibrosis score groups was not significantly different (fig. 3). Patients treated with ARBs or ACEi had a similar amount of calcium within CAVD valves (48.5 ± 7.5 vs. 59.7 ± 5.6 mg/g ww) as those without medication, i.e. no ARBs or ACEi (55.1 ± 4.1 mg/g ww, p = 0.4, ANOVA), suggesting that potentially the effect of this class of medication on the remodeling process is mainly through the fibrotic process. It should be highlighted that patients with ARB treatment had smaller LDL particle size compared to patients without this medication (ARBs = 255.4 ± 4, ACEi = 259.4 ± 5.3 and no medication = 257.91 ± 5.5 Å, p = 0.04; table 4). Despite the fact that patients under ARB treatment had higher BMI, waist circumference, prevalence of hypertension and lower LDL particle size, the use of ARBs (β = -0.34, p = 0.003) remained independently and inversely associated with the fibrosis score of the aortic valve even after corrections for the following covariates: age, male gender, BMI, mean blood pressure, BAV, aortic valve weight, and the size of LDL particles (r² adjusted = 0.67, p < 0.0001; table 5). Even when forcing the peak transaortic gradient in the multivariate model, the use of ARBs (β = -0.45, p = 0.005) remained independently and inversely related to the fibrotic score (r² adjusted = 0.67, p < 0.0001). Also, considering that the group under ACEi had a slightly elevated proportion of diabetic patients and higher creatinine value, we introduced in a third model, diabetes and creatinine values, to the aforementioned variables. In this model, the use of ARBs (β = -0.41, p = 0.0002) remained independently and inversely related to the fibrosis score (r² adjusted = 0.59, p < 0.0001).

The examination of CAVD valves revealed that patients under ARBs but not ACEi had a lower density of macrophages (ARBs = 4 ± 2.1, ACEi = 10 ± 2.05 and no medication = 11.75 ± 1.78 cells/400× field, p = 0.04, ANOVA; fig. 4). There was a tendency (p = 0.08) in patients under ARBs to have a lower level of the chemokine MCP-1 (ARBs = 0.98 ± 0.10 vs. no ARBs = 1.21 ± 0.11 copies/HPRT, p = 0.08).

The density of macrophages was not associated with the fibrosis score of the aortic valve (score 1 = 6.1 ± 3.6, score 2 = 10.1 ± 2.0 and score 3 = 14.1 ± 2.7 cells/400× field, p = 0.20, ANOVA), whereas the expression of IL-6, a cytokine highly expressed in CAVD tissues, was significantly associated with fibrosis. In this regard, after measurement of IL-6 by qPCR, we found that IL-6 transcript levels increased significantly with the aortic valve fibrosis score (p = 0.02; fig. 5a). The level of transcripts encoding for other cytokines such as TNFα (p = 0.36) or IL-1β (p = 0.32) were not significantly related to the remodeling score of the aortic valves (data not shown). Of interest, ARBs but not ACEi were associated with reduced levels of IL-6 transcripts in CAVD (ARBs = 1.74 ± 0.68, ACEi = 3.24 ± 0.6 and no medication = 4.25 ± 0.39 copies/HPRT, p = 0.03, ANOVA; fig. 5b).

In this study, we report that the fibrotic component of the aortic valve remodeling process was related to the severity of CAVD. Furthermore, we found that the small, dense LDL phenotype was independently related to the fibrosis of the aortic valve. More importantly perhaps, we also observed that patients under ARBs, despite having more cardiovascular risk factors (with elevated BMI and smaller mean LDL particle size), had a lower fibrosis score of the aortic valve and this even after adjustment for covariates. Hence, this study raises the possibility that ARBs might have a potential role in preventing fibrosis of the aortic valve tissue, which is an important component in the pathobiology of CAVD.

We previously reported that small, dense LDLs are associated with aortic valve accumulation of oxidized LDL and valvular inflammation [11]. On this score, it should be pointed out that small, dense LDLs have a higher oxidation rate and may thus promote tissue inflammation [6]. On the one hand, it is worth emphasizing that the small, dense LDL phenotype is closely associated with visceral obesity and the presence of the metabolic syndrome [4,12]. On the other hand, the metabolic syndrome has been linked to a higher prevalence of aortic valve calcification as well as to a faster progression of CAVD [13,14]. It then follows that metabolic perturbations related to obesity are likely to be major players in the development/progression of CAVD. Among other things, obesity is also well known for its activation of the RAS, which may be one crucial component in the activation of inflammation along with the small, dense LDL phenotype [15]. To this effect, activation of the RAS has been linked to aortic valve inflammation in a group of prehypertensive men with CAVD [16]. Thus, intricate links exist between the RAS, valvular inflammation and the small, dense LDL particles.

The present study emphasizes that along with mineralization, fibrosis is an important contributor to the pathobiology of CAVD. In this regard, we documented that the fibrotic component of CAVD is independently related to hemodynamic indices of severity. Also worthy of note, we found that the level of fibrosis of the aortic valve was associated with the amount of calcium within the aortic valve. Hence, these findings underscore that mineralization of CAVD is intertwined with fibrosis, with both processes playing a mutual role in the pathology. This study is in line with recent findings indicating that the expression of genes related to fibrosis is highly upregulated in CAVD [17]. Therefore, this study also underscores the importance of analyzing the effect of potential novel therapeutic drugs for CAVD on the fibrotic process of the aortic valve.

The RAS is well known for its activation of inflammation and fibrosis. We previously reported that ARBs were associated with a lower remodeling of the aortic valve in 208 patients with CAVD [18]. In the present study we further refined our previous findings and found in 477 patients that ARBs were independently associated with a lower fibrosis score of the aortic valve, which is one component of the remodeling process along with mineralization. It should be underlined that ARBs were not associated with a lower amount of calcium within CAVD tissue, suggesting that ARBs may act predominantly by altering the fibrotic process of the aortic valve. In the present study, we found that the use of ARBs was associated with a lower accumulation of macrophages and also a reduced number of IL-6 transcripts within CAVD tissue. Furthermore, we found that the expression of IL-6 in CAVD was correlated with the fibrosis score. Of interest, a recent investigation found that cross-talks between macrophage and cardiac fibroblast promote fibrosis through the secretion of IL-6 [9]. These findings are in line with another work, which indicates that angiotensin II promotes IL-6 expression in the kidney, whereby fibrotic gene expression is triggered [10].

Retrospective studies with ACEi have provided conflicting results. One study reported that ACEi were associated with lower accumulation of aortic valve calcium, whereas another report could not find an association between the use of ACEi and the hemodynamic progression of CAVD [19,20]. In the present study, we found that ARBs but not ACEi were associated with lower aortic valve inflammation and fibrosis. Along with these findings, one experimental study in hypercholesterolemic rabbits documented that olmesartan, an ARB, significantly reduced the accumulation of macrophages within the aortic valve, as well as the expression of α-smooth muscle actin, a marker of cell synthetic activity [21]. The question that arises at this stage is why ARBs but not ACEi are related to reduced fibrosis of the aortic valve. The answer may reside in the fact that an angiotensin II-producing enzyme, chymase, is abundantly expressed in CAVD tissue and is not blocked by ACEi [8]. Blocking the RAS downstream of the cascade with ARBs may thus provide a more effective means to control the RAS-mediated effect on the aortic valve, namely the fibrotic process. To this effect, the finding in the present study that the use of ARBs but not ACEi is associated with a lower aortic valve infiltration in macrophages and a lower level of IL-6 transcripts support the latter hypothesis.

Insofar this study has examined CAVD tissue with an advanced pathological process mandating surgery, the present conclusion cannot be necessarily transposed to the early phase of the disease process. A cause-and-effect relationship cannot be ascertained from cross-sectional observations. Also, the duration of the medication is unknown. Nonetheless, the present findings provide evidence that ARBs may have a biological activity in CAVD by decreasing tissue inflammation and fibrosis of the aortic valve. Further experimental and clinical studies evaluating the role of ARBs in the progression of CAVD are thus warranted.

Fibrosis of the aortic valve is one important component in the pathobiological process leading to the development of CAVD. ARBs are independently related to a lower fibrosis score of CAVD. This effect of ARBs on the fibrosis of the aortic valve could be mediated by the ability of this class of medication to reduce valve inflammation and expression of IL-6, a cytokine possibly related to the fibrotic activity in CAVD.

This work was supported by a HSFC grant (P.M.), CIHR grants MOP114893 (P.M.) and MOP 79342 (P.P.) and the Quebec Heart and Lung Institute Fund (P.M.). N.C. is supported by studentship grants from Fonds de Recherche en Santé du Québec; Y.B. is a research scholar from the Heart and Stroke Foundation of Canada; P. Mathieu is a research scholar from the Fonds de Recherche en Santé du Québec; P.P. holds the Canada Research Chair in Valvular Heart Diseases, and J-P.D. holds the International Chair on Cardiometabolic Risk at Université Laval.

None.
