Associations between Intra-Pancreatic Fat Deposition, Pancreas Size, and Pancreatic Enzymes in Health and after an Attack of Acute Pancreatitis Open Access

Acute pancreatitis (AP) is a complex disease with a variable course that is often difficult to predict, with an incidence of 34 people per 100,000 in the general population worldwide [1, 2]. Gallstones and alcohol abuse are the most common causes of AP [2]. While the old belief was that AP is a self-limiting disease, it is now appreciated that individuals after AP often develop metabolic sequelae [2]. For example, a 2020 prospective longitudinal cohort study with regular follow-ups (as part of the LACERTA project by the Clinical and epidemiOlogical inveStigations in Metabolism, nutritiOn, and pancreatic diseaseS [COSMOS] group) demonstrated that 43% of non-diabetic patients with AP developed new-onset prediabetes or diabetes within 2 years of hospital discharge [3]. This is in accord with evidence from a 2014 meta-analysis of cross-sectional and case-control studies by the COSMOS group that found that up to 40% of AP patients without a prior history of diabetes developed prediabetes or diabetes after the first attack of AP [4]. Further, a 2021 population-based study (as part of the NORMA project by the COSMOS group) showed that exocrine pancreatic dysfunction is common after an attack of pancreatitis, and it represents a significant risk factor for new-onset diabetes in this setting [5]. Although the pathogenesis of endocrine and exocrine pancreatic dysfunction in individuals after AP is complex and its predisposing factors are yet to be fully elucidated, recent studies suggested that one of its key drivers is changes in pancreas morphology – specifically, increased intra-pancreatic fat deposition (IPFD) and reduced total pancreas volume (TPV) [6-8].

Morphological changes in the pancreas are increasingly recognized as a quantifiable comprehensive measure of pancreas health, thanks to advances in imaging techniques such as magnetic resonance (MR) imaging [9-12]. A 2017 meta-analysis of 24 human studies by the COSMOS group revealed that increased IPFD was significantly associated with several metabolic disorders [13]. Moreover, a 2020 meta-analysis of 20 human studies by the COSMOS group showed that low circulating levels of pancreatic enzymes characterize many metabolic disorders, including fatty pancreas disease [14]. Similarly, changes in pancreas size (as determined by TPV, pancreas diameters, areas, and lengths) were reported in a broad range of disorders [15]. A 2018 systematic review of 27 human studies by the COSMOS group demonstrated significant changes in TPV in people with diabetes. Specifically, compared with healthy individuals, large (the effect size of 1.3) and medium (the effect size of 0.4) reductions of TPV were shown in individuals with type 1 diabetes and type 2 diabetes, respectively [10]. Also, a 2019 MR study by the COSMOS group reported that both TPV and pancreas tail diameter (PTD) reductions were associated with increased recurrence of AP [8]. To the best of our knowledge, no study to date has explored the inter-relationships between pancreas size and IPFD in the post-pancreatitis setting. The present study aimed to investigate the associations between IPFD, pancreas size, and pancreatic enzymes in individuals after an attack of AP and healthy individuals.

This was a cross-sectional study nested into prospective longitudinal cohort study as part of the ARIES project, approved by the Health and Disability Ethics Committee (13/STH/182) [8, 16-18]. Adult individuals residing in Auckland (New Zealand) were eligible for the study if they had a primary diagnosis of AP established prospectively based on the international guidelines [19]. Individuals were excluded if they had an attack of AP within 3 months prior to enrolment into the study, post-endoscopic retrograde cholangiopancreatography pancreatitis, chronic pancreatitis, hereditary pancreatitis, autoimmune pancreatitis, pancreatic cyst, congenital anomalies of the pancreas, cystic fibrosis, pancreatic lipomatosis or lipomatous pseudohypertrophy, malignancy, cognitive impairment, received surgical, endoscopic, or radiological interventions involving the pancreas, received steroid therapy, had metallic foreign body implants, heart pacemakers, or other implantable electronic devices, or were pregnant.

Healthy controls were also recruited. They had no personal history or symptoms of diseases of the exocrine pancreas or diabetes, no upper abdominal pain or nausea, no history of acute infectious or inflammatory conditions requiring medical treatment or evaluation in the preceding 6 months, no family history of diseases of the exocrine pancreas, diabetes, coeliac disease, or cystic fibrosis. All participants provided informed consent.

All participants underwent abdominal MR imaging at the Centre for Advanced Magnetic Resonance Imaging (University of Auckland, Auckland, New Zealand). A 3.0 Tesla MAGNETOM Skyra scanner (Siemens, Erlangen, Germany) was used to acquire MR images in all study participants. Participants underwent MR imaging wholly and exclusively for the purpose of the ARIES project [18]. Axial T1-weighted volumetric interpolated breath-hold examination Dixon sequence was used with the following parameters: true form abdomen shim mode; FOV, 420 mm; flip angle, 9°; slice thickness, 3 and 5 mm. Four types of images were generated: in-phase, out-of-phase, fat-only, and water-only images. These images were retrieved from the MR scanner and exported as DICOM files for analyses using ImageJ software (National Institutes of Health, Bethesda, MD, USA).

The studied MR imaging-derived variables included IPFD, TPV, and pancreas diameters. Two independent raters performed all the measurements blinded to the study group allocation, and the average value of 2 measurements was used for the statistical analyses. Intra-class correlation coefficients (ICCs) were calculated to assess the inter-rater reliability. The inter-rater reliability was deemed excellent if the ICC was more than 0.90 [8].

IPFD was measured based on fat-only images, as described in detail elsewhere [7, 18]. Briefly, 2 candidate slices from a series of 5-mm-thick slices with clear visualization of the pancreas were chosen from a series of abdominal scans. Out-of-phase images were used for confirmation of region of interest placement. Three regions of interest (100 mm²) were placed in the head, body, and tail regions of the pancreas to determine IPFD (Fig. 1). A thresholding range of 1–20% was applied to prevent the potential inclusion of non-parenchymal tissues (such as visceral fat, the main pancreatic duct, and blood vessels) within the selected regions of interest [20]. IPFD (%) was calculated by taking the average of measurements of the 2 slices.

Quantification of TPV was based on out-of-phase images of 5 mm slice thickness, as described in detail elsewhere [8]. Briefly, the pancreas outline was traced on each slice in which it was visible, and the associated pixel content was calculated. Water-only images served as the reference for each slice, and care was taken to exclude surrounding blood vessels. TPV, measured in cubic centimetres (cm³), was obtained by multiplying the pixel content from all the slices in series with the pixel area and slice thickness.

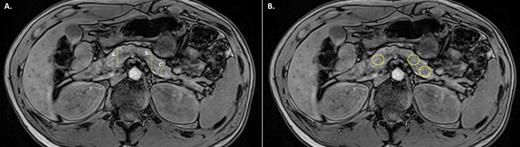

Pancreas diameters were measured in millimetres (mm) using out-of-phase images with 3-mm slice thickness (Fig. 1). The pancreas head diameter (PHD) was measured in line with the right-most point of the confluence of the superior mesenteric and splenic veins [8]. The pancreas body diameter (PBD) was measured in line with the left lateral border of the lumbar vertebrae [8]. The PTD was measured as a line perpendicular to the organ midline, at a point 20 mm from the distal-most point of the pancreas in the slice. The slice used for PTD measurement was the one that offered the best tail visualization (within close proximity to the splenic hilum). Care was taken to exclude surrounding blood vessels.

Venous blood samples were obtained from each participant (after at least 8 h of fasting) at the time of their participation in the ARIES project. These blood samples were centrifuged 4,000 g for 7.5 min at 4°C; the plasma was separated into aliquots and stored at −80°C until further use. Pancreatic amylase was measured in the plasma using the Reflotron® Plus reflectance photometer (Roche®, Basel, Switzerland), and results were expressed in U/L. Pancreatic lipase and chymotrypsin were measured using sandwich ELISA. Pancreatic lipase was measured using the Cloud-Clone Corporation ELISA kit (Houston, TX, USA), and results were expressed in pg/mL. Intra- and inter-assay variations of the assay were <10% and <12%, respectively. Chymotrypsin concentration was measured using the Cusabio ELISA kit (Wuhan, Hubei Province, China), and results were expressed in ng/mL. Intra- and inter-assay variations of the assay were <8% and <10%, respectively. Absorbance was detected at 450 nm. The concentration of the enzymes in each sample was estimated using a standard curve.

Fasting plasma glucose and fasting insulin were analysed using the above blood samples at LabPlus – a tertiary referral medical laboratory at Auckland City Hospital (Auckland, New Zealand). Fasting plasma glucose was measured using the enzymatic colorimetric assay (F.Hoffmann-La Roche Ltd., Basel, Switzerland). Fasting insulin was measured using the chemiluminescence sandwich immunoassay (Roche Diagnostics, Auckland, New Zealand). The weight and height of all participants were measured at the time of MR imaging to calculate body mass index.

All statistical analyses were conducted using SAS version 9.4 for Windows (SAS Institute, Cary, NC, USA). Data were presented as median and interquartile range or frequency. The independent t-test and χ² test were used to determine the differences in baseline characteristics between post-pancreatitis individuals and healthy controls. Linear regression analysis was conducted separately in post-pancreatitis individuals and healthy controls. The statistical analyses were conducted in 3 stages. First, to investigate the inter-relationship between TPV and pancreas diameters (i.e., PHD, PBD, and PTD), each pancreas size variable (TPV, PHD, PBD, and PTD) was treated as both independent and dependent variables. Second, to investigate the associations between pancreas size (i.e., TPV, PHD, PBD, and PTD) and IPFD and pancreatic enzymes (i.e., pancreatic amylase, pancreatic lipase, and chymotrypsin), IPFD and pancreatic enzymes were treated as independent variables. Last, to investigate the associations between IPFD and pancreatic enzymes (i.e., pancreatic amylase, pancreatic lipase, and chymotrypsin), IPFD was treated as an independent variable, and pancreatic enzymes were treated as dependent variables. The following 3 models were constructed for all the aforementioned analyses: (1) unadjusted, (2) adjusted for age and sex, (3) adjusted for age, sex, body mass index, and fasting plasma glucose. All data were reported as β coefficients with corresponding standard errors and p values. p values <0.05 were deemed statistically significant. The most robust R² metric was yielded for each unadjusted model.

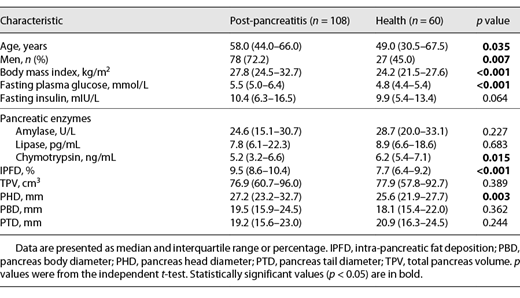

A total of 168 individuals were included, of whom 108 were post-pancreatitis individuals and 60 were healthy controls. Post-pancreatitis individuals were studied at 20 months (interquartile range, 12–29 months) since their last attack of AP. Detailed characteristics of the study groups are presented in Table 1.

The median TPV (cm³) was 76.9 cm³ (interquartile range, 60.7–96.0 cm³) in the post-pancreatitis group and 77.9 cm³ (interquartile range, 57.8–92.7 cm³) in the control group (p = 0.389). The ICC of TPV measurements was 0.97.

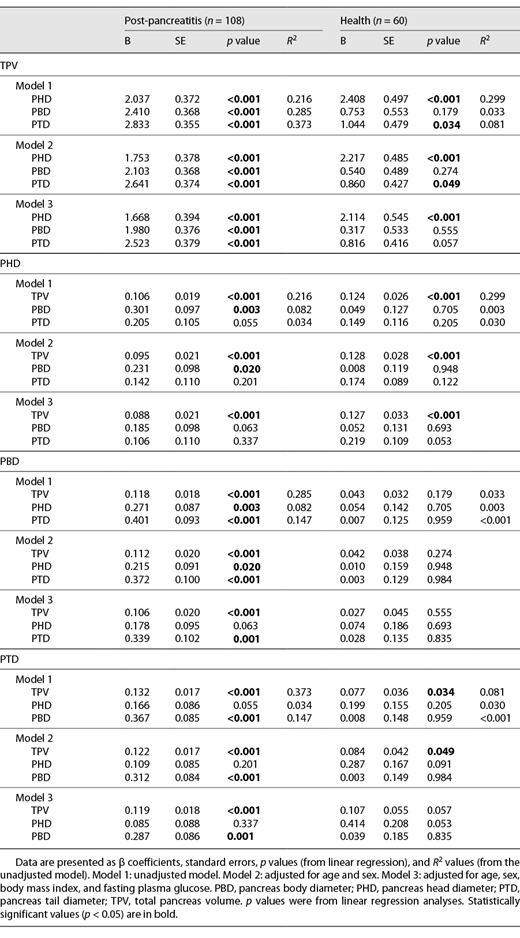

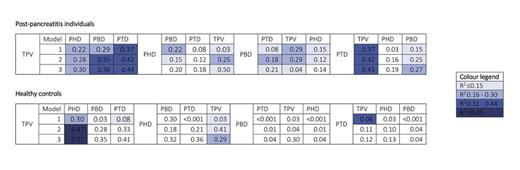

In the post-pancreatitis group, TPV was significantly associated with PHD in both the unadjusted (β = 2.037, p < 0.001) and all the adjusted models (p < 0.001 in model 2; p < 0.001 in model 3) (Fig. 2). TPV was significantly associated with PBD in both the unadjusted (β = 2.410, p < 0.001) and all the adjusted models (p < 0.001 in model 2; p < 0.001 in model 3). TPV was significantly associated with PTD in both the unadjusted (β = 2.833, p < 0.001) and all the adjusted models (p < 0.001 in model 2; p < 0.001 in model 3). Inter-relationships between PHD and PBD as well as between PHD and PTD were not significant in the adjusted models (Table 2).

In the control group, TPV was significantly associated with PHD in both the unadjusted (β = 2.408, p < 0.001) and all the adjusted models (p < 0.001 in model 2; p < 0.001 in model 3) (Fig. 2). TPV was significantly associated with PTD in the unadjusted (β = 1.044, p = 0.034) model, but not in the most adjusted model (p = 0.057 in model 3). Inter-relationships between 3 pancreas diameters were not significant in both unadjusted and adjusted models (Table 2).

The median IPFD (%) was 9.5% (interquartile range, 8.6–10.4%) in the post-pancreatitis group and 7.7% (interquartile range, 6.4–9.2%) in the control group (p < 0.001). The ICC of IPFD measurements was 0.97.

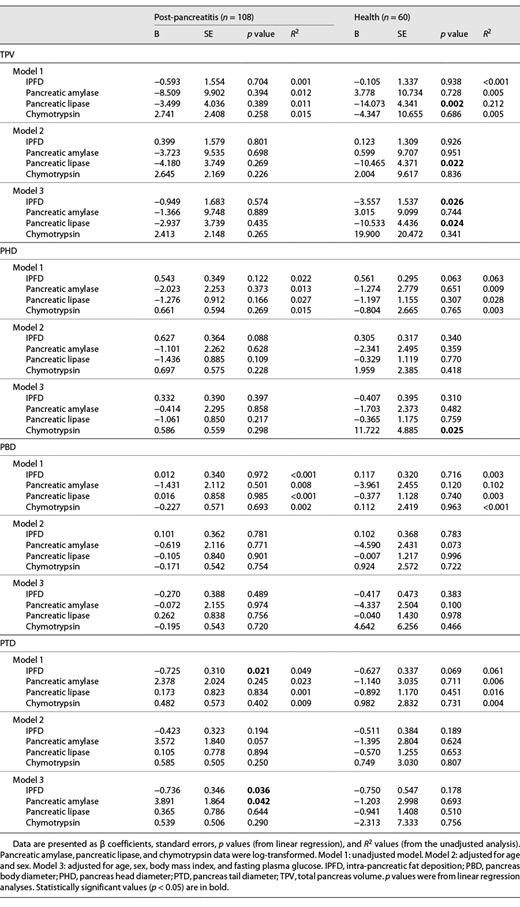

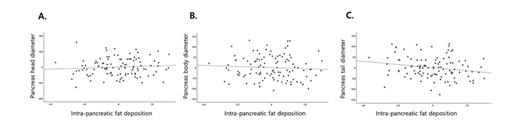

In the post-pancreatitis group, IPFD was significantly associated with PTD in both the unadjusted (β = −0.725, p = 0.021) and the most adjusted model (p = 0.036 in model 3) (Fig. 3). Other pancreas size variables were not significantly associated with IPFD in any model (Table 3).

In the control group, IPFD was significantly associated with TPV in the most adjusted model (p = 0.026 in model 3). The other pancreas size variables were not significantly associated with IPFD in any model (Table 3).

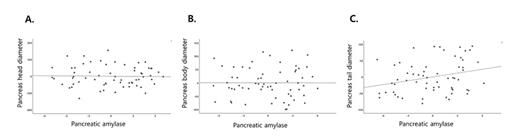

In the post-pancreatitis group, pancreatic amylase was significantly associated with PTD in the most adjusted model (p = 0.042 in model 3) (Fig. 4). Other pancreas size variables were not significantly associated with pancreatic enzymes in any model (Table 3).

In the control group, pancreatic lipase was significantly associated with TPV in both the unadjusted (β = −14.073, p = 0.002) and all the adjusted models (p = 0.022 in model 2; p = 0.024 in model 3). Chymotrypsin was significantly associated with PHD in the most adjusted model (p = 0.025 in model 3). The other pancreas size variables were not significantly associated with pancreatic enzymes in any model (Table 3).

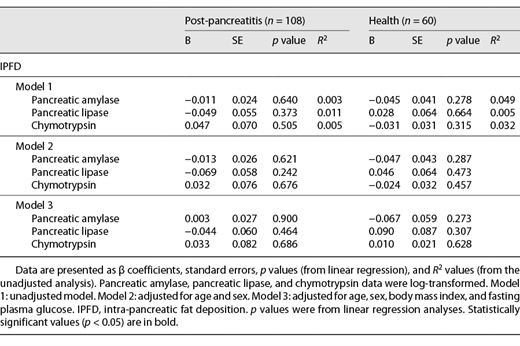

In both the post-pancreatitis group and the control group, there were no statistically significant associations between IPFD and the studied pancreatic enzymes in all models (Table 4).

The present study comprehensively investigated the associations between pancreas morphology derived from 3T MR imaging and pancreatic enzymes in post-pancreatitis individuals. It presented the first data on differential associations between IPFD and pancreas size (including TPV and diameters of the head, body, and tail of the pancreas) in the post-pancreatitis setting. Further, this study provided evidence on associations between pancreas morphology and 3 pancreatic enzymes – pancreatic amylase, pancreatic lipase, and chymotrypsin (Fig. 5). All MR imaging-derived measurements, performed by 2 independent raters, had excellent inter-rater reliability (ICC of 0.97 for both IPFD and TPV). The main finding of this study was that increased IPFD was significantly associated with reduced PTD (but not TPV, PHD, or PBD) in the post-pancreatitis group. Also, increased IPFD was significantly associated with reduced TPV (but not PHD, PBD, or PTD) in the control group. Further, of the 3 pancreatic enzymes investigated, pancreatic amylase was directly associated with PTD in the post-pancreatitis group, whereas pancreatic lipase was inversely associated with TPV in the control group. Notably, the above findings were independent of age, sex, body mass index, and fasting plasma glucose – variables found to considerably affect pancreas size in the systematic reviews by the COSMOS group conducted to inform the design of the ARIES project [8, 10, 15].

Consistent evidence shows that TPV is inversely associated with IPFD and decreases further with the time since onset of metabolic disorders. A longitudinal study from the UK found that an increase in TPV was associated with the remission of type 2 diabetes following dietary weight loss during a 24-month follow-up [21]. The authors suggested that a decrease in IPFD and restoration of β-cell function were associated with gradual normalization of the pancreas size [21]. A longitudinal MR study in which individuals with chronic pancreatitis were followed up for 4 years showed a significantly reduced TPV and increased IPFD in comparison with baseline measurements [22]. In addition to TPV reduction, a reduction in the size of the tail of the pancreas in individuals with metabolic disorders was reported. Specifically, in the setting of type 1 diabetes, the tail of the pancreas was the first to shrink and displayed the greatest extent of atrophy relative to the head and body regions of the pancreas [15]. Similarly, a 2019 MR study found pancreas tail shrinkage in individuals with recurrent attacks of AP [8]. In the present study, each unit increase in IPFD was significantly associated with a 0.7-mm reduction in PTD; and a 10-U/L reduction in circulating levels of pancreatic amylase was significantly associated with a 0.4-mm reduction in PTD in the post-pancreatitis group (independent of age, sex, body mass index, and fasting plasma glucose). The finding of a higher IPFD in the post-pancreatitis group than in the control group (9.5% [interquartile range: 8.6–10.4] versus 7.7% [interquartile range: 6.4–9.2]; p < 0.001) and the significant inverse association between IPFD and PTD suggest that IPFD might be involved in the pathogenesis of exocrine pancreatic dysfunction [5, 23]. However, in the present study, while PTD was significantly associated with both IPFD and pancreatic amylase, there was no association between IPFD and pancreatic amylase (or the other pancreatic enzymes) in the post-pancreatitis group. The mechanisms underlying these inter-relations remain unclear, and the effect of a residual confounder cannot be ruled out [24]. Prospective cohort studies are now warranted to investigate whether the abnormal pancreas morphology can be reversed with the use of interventions (e.g., diet modifications) in individuals after clinical resolution of AP [25, 26].

Another notable finding in the present study relates to healthy controls. In the present study, each unit reduction in IPFD was significantly associated with a 3.6-cm³ increase in TPV; and a 10 pg/mL reduction in circulating levels of pancreatic lipase was significantly associated with a 1.1-cm³ increase in TPV (independent of age, sex, body mass index, and fasting plasma glucose). This finding is broadly in line with previous studies that showed a clinical relevance of IPFD to exocrine pancreatic function. An earlier population-based study found that MR imaging-derived IPFD was inversely associated with circulating levels of serum lipase (unlike the present study, pancreatic amylase and chymotrypsin were not investigated) in the general population, suggesting that increased IPFD was associated with reduced acinar cell mass of the pancreas [27]. Moreover, a 2019 study of 1,458 individuals showed that MR imaging-derived IPFD was inversely associated with exocrine pancreatic function (as measured by fecal elastase), in both crude analysis and after adjustment for age, sex, and body mass index [28]. Another study of MR imaging-derived IPFD investigated individuals without a history of diabetes or pancreatitis and demonstrated a significant exocrine pancreatic dysfunction (as measured by fecal elastase) in individuals with excess IPFD compared with controls [29]. Taken together, increased IPFD in generally healthy people could be a harbinger of exocrine pancreatic dysfunction and possible subsequent metabolic diseases [30-32].

There are further points to consider when interpreting the results of the present study. First, this was a cross-sectional study with an average of nearly 2 years after an attack of pancreatitis. Longitudinal studies are warranted to capture temporal changes in pancreas morphology with a view to drawing causal inferences. Second, levels of amylase, lipase, and chymotrypsin in the gastrointestinal tract were not measured. Hence, it is unknown whether their circulating and intraluminal levels were associated in the study groups. However, a 2020 systematic review and meta-analysis by the COSMOS group identified circulating levels of serum amylase and lipase as biomarkers of several metabolic disorders [14]. Third, histological data were not available due to the technical difficulties associated with pancreas biopsy. Further, such a procedure would be unethical in our study population. Last, the reported findings cannot be extrapolated to the pediatric setting as pancreas size typically increases from infancy to adolescence [10, 15].

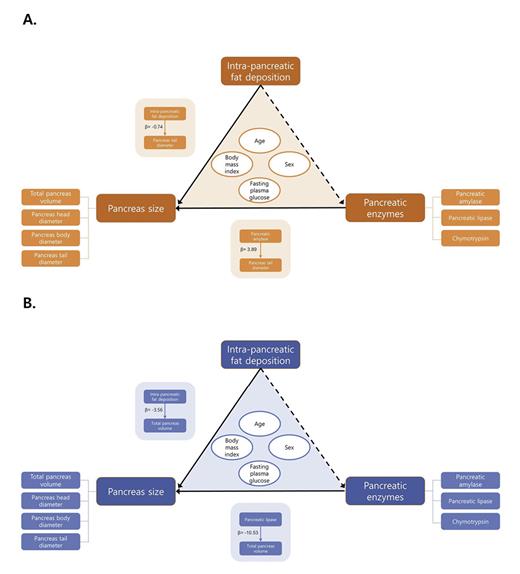

This study holistically investigated morphological changes in the pancreas (determined with the use of 3T MR imaging for each study participant by 2 independent raters in a blinded fashion), encompassing IPFD, TPV, and regional pancreas diameters in both individuals after AP and healthy individuals. Our results showed that increased IPFD was significantly associated with reduced PTD in individuals after AP and reduced TPV in healthy individuals (Fig. 5). Further, PTD was directly associated with pancreatic amylase in individuals after AP, whereas TPV was inversely associated with pancreatic lipase in healthy individuals. These findings were irrespective of age, sex, body mass index, and fasting plasma glucose. Deposition of fat in the pancreas has implications for the exocrine pancreas in both health and disease.

This study was part of the COSMOS programme.

The study was approved by the Health and Disability Ethics Committee (13/STH/182). All participants provided their written informed consent.

The authors have no conflict of interest.

This study was supported by the Royal Society of New Zealand (Rutherfold Discovery Fellowship to Professor Max Petrov), which played no role in the study design, collection, analysis, interpretation of data, or writing of the manuscript.

Conceptualization and the study design were conceived by M.S.P.; patient recruitment was conducted by J.K., S.P., and S.H.B.; data acquisition was performed by J.K., L.S.H., S.P., W.K., and S.H.B.; analysis and interpretation of data were performed by J.K.; statistical analysis was conducted by J.K.; drafting of the manuscript was performed by J.K.; revision of the manuscript was performed by L.S.H., S.P., W.K., S.H.B., and M.S.P.; study supervision was performed by M.S.P.

All data generated or analysed during this study are included in the manuscript.
