Development of a Chronic Kidney Disease Model in C57BL/6 Mice with Relevance to Human Pathology

Chronic kidney disease (CKD) leads to end stage kidney failure (ESKF) through a progressive scarring and fibrotic process irrespective of the initiating disease. One of the best tools we have in understanding the biology of fibrosis is the use of genetically modified mice. Many genetically modified mice have been generated on a C57BL/6 background [1,2] due to several significant advantages of this strain [3]. However, ESKF research is hampered by a lack of both aggressive and relevant models of CKD in mice and especially in the fibrosis resistant C57BL/6 strain. Therefore, costly and time-consuming back crossing onto other suitable strains is often required.

The most commonly used mouse model is the unilateral ureteral obstruction (UUO) model [4]. While the UUO model works in C57BL/6 mice [5], the biggest problem is that this model does not provide data on kidney function or proteinuria, both of which are essential for proper assessment of any gene manipulation or intervention. Although UUO induces inflammatory tubulointerstitial fibrosis, the generation of scar tissue is mild in C57BL/6 mice. In addition, the UUO model is complicated by the extensive nephrosis that engulfs the kidney with time and interferes with assessment of fibrosis in more advanced disease. The streptozotocin model of diabetic nephropathy in mice is highly variable and it is experimentally difficult to find a balance between hyperglycaemia and death in mice, especially in the C57BL/6 strain. The db/db mouse model of diabetic nephropathy shows a slow development of fibrosis [6] and is complicated when needing to cross with genetically modified mice. In C57BL/6 mice, the 5/6 subtotal nephrectomy fails to show any interstitial change with insignificant glomerulosclerosis [7], although this model does work in 129SV mice [8]. Protein overload instigates acute kidney failure rather than CKD, and a strain-dependent variability in disease development has been reported, with C57BL/6 mice being the least responsive strain [9]. Puromycin aminonucleoside and adriamycin nephropathies do not work as models of focal segmental glomerulosclerosis in most mouse strains, although BALB/c is partially susceptible. Therefore, there is a clear requirement to develop mouse models of CKD in C57BL/6 mice that mirror human pathology.

Recently, aristolochic acid nephropathy (AAN) has been recognised as a cause of CKD. It was first reported in Belgium in the early 1990s when two women following a weight loss program rapidly developed ESKF [10]. An epidemiological survey revealed other patients who had similar disease also attended the same weight loss program. All patients used slimming pills that contained the Chinese medicinal herb [10] aristolochic acid (AA) [11,12,13,14,15,16]. Morphologically, AAN is characterised predominantly by hypocellular interstitial scarring with small focal pockets of hypercellular interstitial fibrosis, both of which lead to tubular atrophy. Disease is more marked in the medullary ray and the outer cortex, with the glomeruli relatively spared [11,17]. Kidneys from AAN patients are typically smaller [18]. Findings of increased low molecular weight proteins (α1-microglobulin, β2-microglobulin, cystatin C, Clara cell protein and retinal-binding protein) [19], with decreased neutral endopeptidase (an ectoenzyme of the proximal tubule brush border) in the urine from AAN patients [20], indicated that proximal tubular epithelial cells are the main target of AA.

AAN patients may present with anaemia, mild proteinuria, glycosuria or leukocyturia, normal to mildly elevated blood pressure and increased serum creatinine [21]. AAN can rapidly progress to ESKF and the progression of the disease can continue despite removing exposure to AA [22]. Approximately 2/3 of AAN patients require renal replacement therapy.

The exact mechanism of how AA causes CKD is unknown. Current findings show that aristolochic acid I (AAI) induces severe reduction of peritubular capillaries resulting in hypoxia and tubular cell death [23,24]. AAI also decreased epidermal growth factor (EGF) expression in tubular epithelial cells, suggesting lack of regeneration in these cells. This was also confirmed by the negative proliferating cell nuclear antigen (PCNA) staining in tubular cells from AAN patients [24]. Furthermore, AAI increased the expression of fibrogenic cytokines transforming growth factor β1 (TGFβ1) and connective tissue growth factor (CTGF) [24]. Taken together, AAI induces an irreversible tubule damage causing tubulointerstitial fibrosis.

AA is found in Aristolochia and Asarum species. It has 11 derivatives with AAI and aristolochic acid II (AAII) being prevalent. Both AAI and AAII are potentially carcinogenic, but only AAI has a nephrotoxic effect [25]. While the kidney is the primary target organ of AAI due to AAI being concentrated in urine, AAI-DNA adducts have been found in kidney, bladder, stomach, intestine, liver, spleen, lung and brain [26] suggesting widespread distribution.

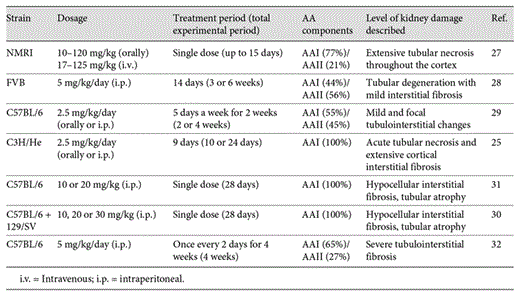

So far, the few CKD studies using AAN in mice have employed a large variation in dosing regimens, ranging from single high doses to daily low doses as well as a variable composition of AA. Furthermore, a wide variety of mice strains have been used (table 1). Most importantly, in these studies AA induced either acute kidney failure or just mild changes in kidney fibrosis [25,27,28,29]. Most studies failed to show convincing images of kidney fibrosis [30,31,32]. Therefore, in this study, we aimed to develop a standardised protocol of kidney fibrosis in C57BL/6 mice using pure AAI, with extensive characterisation of tubulointerstitial fibrosis to demonstrate the relevance of the pathology to that in man.

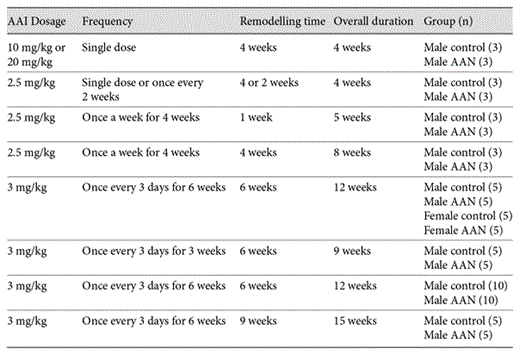

AAN was induced in 8-week-old C57BL/6 mice by intraperitoneal injection of AAI (Sigma Aldrich, China) using various dosing regimens (table 2). Control animals received intraperitoneal injection of vehicle (DMSO, Sigma Aldrich, China). Mice were maintained at 20°C and 45% humidity on a 12-hour light/dark cycle and allowed free access to standard rodent chow and tap water. All procedures were carried out under license according to regulations laid down by Her Majesty’s Government, United Kingdom (Animals Scientific Procedures Act, 1986).

Systolic blood pressure measurement was performed in conscious, restrained mice using a BP-2000 blood pressure analysis system with a tail cuff inflator and a photoelectric sensor (Visitech Systems Inc., USA). To acclimatise the mice, blood pressure measurement was performed 5 days a week for 2 weeks before the actual readings were recorded.

4 µm, neutral-buffered, formalin-fixed, paraffin-embedded sections were stained using the Masson’s Trichrome stain kit (Sigma Aldrich, UK) following the manufacturer’s instructions (stains collagenous material blue and nuclei, fibres, erythrocytes and elastin red/pink). Quantification of kidney fibrosis on Masson’s Trichrome-stained sections was undertaken using multiphase image analysis as previously described using Cell F software (Olympus, Germany) [33].

Terminal blood samples were taken. Twenty-four-hour urine samples were collected using metabolic cages 24 h before termination. Serum and urine creatinine were measured as previously described [34] with modifications. 100 µl of serum was mixed with 1 ml of acetonitrile or 10 µl of urine mixed with 0.5 ml of acetonitrile. Samples were then centrifuged at 13,000 g for 15 min at 4°C. Supernatants were transferred, air dried and resuspended in 50 or 100 µl of 5 mM sodium acetate (pH 5.1) for serum or urine samples, respectively. 25 µl of processed sample was injected into an Agilent 1100 high-pressure liquid chromatography (HPLC) system with a 10-µm 4.1 × 100 mm PRP-X200 cation exchange column (Hamilton, USA). Isocratic HPLC was performed at a flow rate of 1.5 ml/min for 12 min after each injection using UV absorbance at 234 nm. A creatinine standard curve between 0 and 0.5 nmol was used for serum and between 0 and 6.5 nmol for urine. Blood urea nitrogen (BUN) was measured by standard autoanalyser technique. Albumin ELISA was performed by using a mouse albumin ELISA kit (Bethyl Laboratories, USA) following the manufacturer’s instructions.

Immunofluorescent staining was carried out on 4-µm paraffin sections using a secondary antibody conjugated with fluorescein isothiocyanate (1:20; DAKO, Denmark) or Texas Red (1:200; Southern Biotech, USA). Following antigen retrieval, primary antibodies were applied as follows: rabbit anti-collagen I (1:100; Abcam, UK), goat anti-collagen (1) III (1:10; Southern Biotech, USA), rabbit anti-collagen IV (1:35; Millipore, USA), rat anti-F4/80 (1:50; Serotec, UK), rat anti-CD45 (1:50; BD Pharmingen, UK), mouse anti-α-smooth muscle actin (α-SMA) antibody conjugated with fluorescein isothiocyanate (1:50; Sigma Aldrich, UK), rabbit anti-S100A4 (1:100; Abcam, UK).

Ten cortical fields of each section were acquired at a magnification of 200. These were analysed using multiphase image analysis as above with correction to 4’,6-diamidino-2-phenylindole (DAPI) staining.

Kidney homogenates containing 1.5 mg protein per sample were hydrolysed in 6 M HCl at 110°C for 18 h. These were clarified by centrifugation at 18,000 g for 2 min and freeze dried. Samples were then resuspended in 200 µl of lithium loading buffer (Biochrom, UK) and 40 µl fractionated using a lithium chloride gradient on a Biochrom 30 amino acid analyser using the manufacturer’s standard protocol (Biochrom, UK). Hydroxyproline was identified against an amino acid standard and expressed as nmol per mg protein.

Data is shown as mean ± SEM. Data analyses were performed using one-way ANOVA or two-way ANOVA followed by a Bonferroni post hoc test. A probability of 95% (p < 0.05) was taken as significant.

A single intraperitoneal dose of >10 mg/kg AAI caused acute kidney failure and death within 14 days (fig. 1). Under this regime the tubular cells sloughed off the tubular basement membrane (fig. 1b, arrowhead), with some tubules blocked by debris (fig. 1b, arrow). Single or twin doses (administrated on day 0 and day 14) of 2.5 mg/kg of AAI failed to induce fibrosis by 1 month (fig. 1c). A weekly injection of 2.5 mg/kg AAI for 4 weeks plus 1 week disease development time caused tubular damage in the outer cortical area and medullary ray (fig. 1d), with a slight increase in fibrosis when given 4 weeks of disease development time (fig. 1e). A dose of 3 mg/kg AAI every 3 days for 6 weeks followed by 6 weeks after AAI resulted in more severe tubulointerstitial fibrosis (fig. 1f).

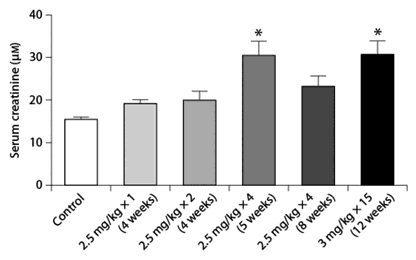

Although similarly high levels of serum creatinine were detected in mice injected with 2.5 mg/kg AAI weekly for 4 weeks with 1 week remodelling time and those receiving 3 mg/kg AAI every 3 days for 6 weeks with 6 weeks remodelling time (fig. 2), the first group failed to develop corresponding fibrosis (fig. 1d, f). Therefore, the dose of 3 mg/kg AAI every 3 days for 6 weeks was chosen for further studies in both male and female C57BL/6 mice.

Five male and 5 female mice received either 3 mg/kg AAI every 3 days (AAN groups) or vehicle (control groups) for 6 weeks and were then left for another 6 weeks. Mice not receiving AAI showed a steady increase in body weight through the experimental period. Compared to the untreated mice, mice receiving AAI had 30.7 and 15.2% weight loss in male and female animals, respectively, at 12 weeks (fig. 3a). There was a small trend of increased systolic blood pressure in AAN mice (fig. 4a). However, the change was not significant. Kidneys from AAN animals were all found to be smaller and paler (fig. 3b). 90% of the AAN mice also showed smaller and paler livers. There was no obvious tumour development observed in organs, but 50% of AAN mice did start to develop observable ascites 5 weeks after the first AAI injection.

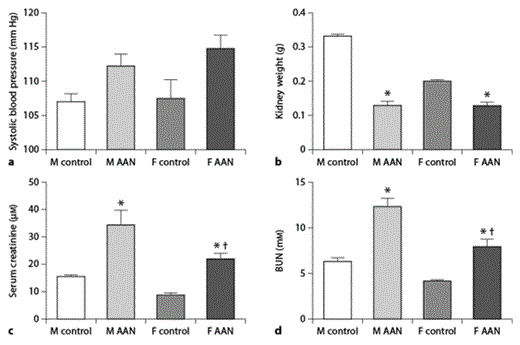

Mice receiving AAI had a 60.8% loss of kidney weight in males and 36% in females (fig. 4b). AAI caused increases in serum creatinine from 15.4 to 34.4 µM in male mice and from 8.6 to 21.9 µM in female mice (fig. 4c). Changes in BUN were consistent with changes in serum creatinine (fig. 4d).

The lesions in the AAN kidney from C57BL/6 mice were mainly located in the cortical area, especially at the edge of the cortex and medullary ray. The damage to the tubules caused by AAI seemed to be identical in both male (fig. 5b) and female (fig. 5d) mice. However, the subsequent tubulointerstitial fibrosis was more severe in male AAN mice than in female AAN mice (fig. 6a). This was confirmed by levels of hydroxyproline (representing whole kidney collagen). In the AAN male mice, levels of hydroxyproline were 4.7 times higher than in the male control group, while in female mice, it was reduced to 2.1-fold between AAN and control animals (fig. 6b). While there were clearly pockets of hypocellular fibrosis (fig 5b), especially in the medullary rays, the majority of the lesions contained increased numbers of infiltrating cells, notably in the outer cortex of the AAN kidneys. The bulk of the infiltrating cells were CD45+ lymphocytes (fig. 7A), although there were significant numbers of fibroblast specific protein 1 (FSP1) positive cells present in the AAN kidney. However, most of these were not α-SMA positive (fig 7B). The α-SMA positive cells in the AAN kidney were mainly vascular smooth muscle cells seen in arteries and arterioles (fig. 7B). Macrophages were hardly detectable (fig. 7C).

Increased collagen I was observed in the tubulointerstitial area in both male (fig. 5f) and female (fig. 5h) AAN mice (fig. 6c). Changes in collagen III showed a similar trend to collagen I, with higher levels of collagen III deposition in the tubulointerstitium in male AAN mice than female AAN mice (fig. 6d). Kidneys from male AAN mice clearly demonstrated an elevated deposition of collagen IV occurred in the tubulointerstitium near the edge of the cortex and around the glomerular capsule (fig. 5n). Although there was a trend towards increasing collagen IV in female AAN mice, this was not significant. Again changes in collagen IV deposition were higher in male AAN than in female AAN mice (fig. 6e).

Correlation analysis between Masson’s Trichrome staining and the three stained collagens revealed that increases in the deposition of collagen I (Pearson’s r = 0.7221, p = 0.0003), collagen III (Pearson’s r = 0.8501, p < 0.0001) and collagen IV (Pearson’s r = 0.7928, p < 0.0001) contributed to the build-up of fibrosis.

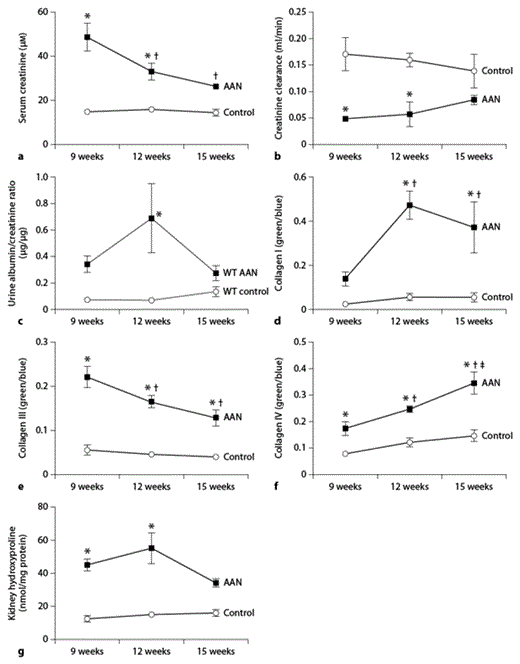

To assess if progressive disease could be established in the AAN model, a repeat experiment was performed. From the 12-week model used above (6 weeks AAI treatment with 6 weeks remodelling time) experimental periods were shortened to 9 weeks with the AAI treatment time reduced to 3 weeks, or lengthened by keeping to 6 weeks of AAI treatment and allowing 9 weeks after cessation of AAI (i.e. 15 weeks) (table 2). No significant changes in blood pressure were detected between the AAI-treated and AAI-untreated animals along the experimental period (data not shown). Results of both serum creatinine (fig. 8a) and creatinine clearance (fig. 8b) showed that kidney function was impaired by 9 weeks, but given a longer disease development time, it started to recover progressively from 9 to 15 weeks when the difference no longer reached significance. Although the albumin/creatinine ratio in urine was increased in the AAN mice, it only reached significance at 12 weeks (fig. 8c). Kidney fibrosis as demonstrated by Masson’s Trichrome staining showed that the damage occurred around the outer cortex area by 9 weeks (fig. 9a) and collagen accumulation (blue) was increased by 12 weeks (fig. 9b) and progressed to 15 weeks (fig. 9c). This was confirmed by quantification of the staining (fig. 9g). However, no obvious fibrotic changes were observed in glomeruli (fig. 9d, e). Significant increases in collagen I deposition occurred at 12 and 15 weeks (fig. 8d). Levels of collagen III deposition were increased in the AAN groups at the 3 time points, but they started to decrease from 12 weeks (fig. 8e). In contrast, collagen IV accumulation in the AAN groups was progressively increased throughout the experimental period (fig. 8f). When whole kidney collagen levels were assessed, in AAN mice an increase of kidney collagen was seen at 9 and 12 weeks until no significant difference was noted at 15 weeks (fig. 8g).

To date, a large number of studies have used genetically modified mice on a C57BL/6 background to demonstrate the role of specific genes in the progression of various diseases. However, C57BL/6 mice have been reported to be the most nephropathy-resistant strain, limiting the extent of their use in CKD studies [8,29,35]. Therefore, to address this we have established a suitable AAN model of CKD in this strain of mice.

The regimen of a 3 mg/kg AAI intraperitoneal injection once every 3 days for 6 weeks with 6 weeks remodelling time was selected for more substantial analysis as reduced kidney function was accompanied by clear tubulointerstitial fibrosis in the outer cortical area including the medullary ray. Hypocellular scarring is a typical human AAN feature, but was clearly not as prominent in this model being restricted to the lower areas of the medullary ray. Instead, the bulk of the fibrosis was associated with both a lymphocyte and fibroblast interstitial infiltrate. However, it should be noted that in man, there are also pockets of fibrosis with interstitial infiltrate present amongst the hypocellular fibrosis within the published images [17] which are often disregarded. Importantly, in this 12-week mouse model, lesions in the C56BL/6 kidney matched the detailed AAN pattern reported in rabbit [11] and in man [17] with progression down the medullary rays and sparing of the glomeruli. Of note was that there were clearly FSP-1-positive fibroblasts detectable in the interstitium which were not α-SMA positive and thus unlikely to be myofibroblasts. α-SMA staining was not noted outside of the vasculature at any of the 3 time points studied and thus it is not likely, but cannot be proved because of remodelling times used, that the extracellular matrix (ECM) expansion is myofibroblast independent. While it is recognised that tubular cells can drive ECM expansion in AAN by the production of interstitial collagens [36], fibroblasts would clearly contribute to scar tissue formation by increasing interstitial collagen production and components which regulate the ECM homeostasis such as TIMPs and MMPs.

The increase in infiltrating cells in the AAN mice kidney is consistent with a rat AAN model where Pozdzik et al. [37] demonstrated that during the progression of AAN, there was an early and massive interstitial inflammation consisting of monocytes, macrophages and T lymphocytes, explaining why steroid therapy is also beneficial in some AAN patients at earlier stages of disease [38].

A potential complication of this model is the development of ascites, which was surprising given that this has not previously been reported in AAN models. However, given that some of the models described in table 1 used much higher doses of AA and often for a prolonged period, it is difficult to understand why this had not been described before. Although there was no liver cirrhosis visible in any animal when assessed using Masson’s Trichrome staining, and the morphology looked normal in all animals (fig. 10a), livers from 90% of the AAN animals did seem to be slightly paler and fractionally smaller suggesting liver damage may potentially contribute to the ascites seen in the AA-treated animals. Alternatively, ascites could be the consequence of peritoneum mesothelioma, consistent with the carcinogenic potential of AAI. Although specific AA-DNA adducts were not found in the peritoneum from AAN patient, such typical biomarkers of genotoxic damage by AA were present in the rabbit peritoneum which had been directly exposed to AA by intraperitoneal injection [39]. No mesotheliomas were seen in this study, although Masson’s Trichrome staining on the peritoneum confirmed that some peritoneal sclerosis occurred in AAN mice (fig. 10b), which may also cause ascites, as could AAI-induced inflammation in the peritoneum that causes inflammatory ascites. Irrespective, the cause of ascites induced by AAI is beyond the scope of this study, but effectively limits AAI administration at 3 mg/kg every 3 days to 6 weeks duration as beyond this, drainage may be needed in some mice, while the 9-week model with 3 weeks of AA1 treatment is less problematic in terms of ascites.

Of interest, the AAN mice showed an obvious gender difference in disease progression. As in humans, males typically had a faster progression to ESKF [40,41,42,43]. The female sex hormone oestrogen is reported to contribute to the renal protective effect by interacting with endogenous vasoactive mediators such as endothelial nitric oxide synthase (eNOS) and vascular endothelial growth factor (VEGF) [44]. Equally, testosterone has been shown to have an effect on kidney morphology. Male rats have a larger cortex due to a more extensive development of proximal tubules. Female rats have a greater volume of the medulla, gaining an increased proximal tubule volume if treated with testosterone [45]. Therefore, due to AA damaging mainly the cortical region by targeting proximal tubules, it is not surprising that the application of AAI has more severe consequences in male mice. That said, in Europe AAN predominantly affects the female gender. This may be explained by the fact that women are more likely to attend slimming programmes [46].

Of note in this study is that when fibrosis is measured by the area of Masson’s Trichrome and collagen immunofluorescence, it continues to increase from 9 to 15 weeks based on area of positive stain. In contrast, levels of total kidney collagen (hydroxyproline) adopt a downward trend at 15 weeks, while kidney function also appears to recover. It is noticeable that while the area of lesions increases, the intensity by eye of Masson’s Trichrome staining lowers, which is indicative of lower ECM levels. This is supported by the hydroxyproline data which would also measure increased collagen synthesis at the time of insult as well as that deposited. Therefore, we predict that given time, the mice would undergo remission as occurs in about 30% of human AAN patients who are identified early. Thus, we hypothesise that if this accelerated model is to be pushed into ESKF, a second period of AAI injections is needed to facilitate irreversible CKD in much the same way that is used in nephrotoxic nephritis models of CKD. Given that some animals develop ascites after 5 weeks of treatment at 3 mg/kg every 3 days, we suggest that a 3-week AAI administration period with 6 weeks of recovery followed by a second 3-week AAI administration period may facilitate ESKF without the complication of ascites. However, the potential start of recovery in the model described here between 12 and 15 weeks provides the opportunity to study mechanisms involved in fibrosis resolution or remission which are also of great scientific value.

The model described here is simple, reproducible, independent of variations in AA, provides functional data, can be used in mice and is technically undemanding without the need for surgical skill or facilities. It effectively can be used as a generic model of interstitial fibrosis in much the same way as the subtotal nephrectomy and UUO models are currently used, but has characteristics of many types of interstitial nephropathies, for example ischemia, Lupus nephritis, partial ureteric obstruction, analgesic nephropathy and tubular toxicity. In conclusion, we have shown that AAN can be induced in C57BL/6 mice with a similar pathology to human disease. Unlike previous studies, the regimen chosen was capable of inducing substantial tubulointerstitial fibrosis in a compressed time frame rather than acute kidney failure seen with a high single dose. It is anticipated that this model of experimental kidney fibrosis could be consistently induced in genetically modified mice with a C57BL/6 background, thus offering a valid alternative to the well-established UUO model with the benefit of kidney function measurements and fibrotic lesions more closely reflecting those in man.

This work has been supported by Wellcome Trust grant 087163 to T.S.J. and E.A.M.V., and the Sheffield Kidney Research Foundation.

The authors declare that they have no conflicts of interest.

The results presented in this paper have not been published previously in whole or in part, except in abstract format.
