Screening a Prognosis-Related Target Gene in Patients with HER-2-Positive Breast Cancer by Bioinformatics Analysis Open Access

• Based on bioinformatics principles, this study identified RRM2 as a new biomarker and a therapeutic target for HER-2-positive breast cancer.

• RRM2 is associated with cell cycle regulation in the occurrence and development of HER-2-positive breast cancer.

HER-2-positive breast cancer accounts for about 20% of all the breast cancer cases in China and is closely associated with a highly aggressive clinical course, due to amplification of the HER-2 or overexpression of the protein. Trastuzumab plus chemotherapy has become the first-line systemic therapeutic regimen, which has been shown to significantly prolong the overall survival (OS) in breast cancer patients [1]. However, due to the development of primary or secondary resistance to targeted drugs, some patients still experience recurrence of the disease or metastasis after targeted therapy. Therefore, it is imperative to explore the underlying molecular mechanisms and identify new target genes involved in the pathogenesis of HER-2-positive breast cancer.

In recent years, high-throughput sequencing technologies have provided oncologists with multiple levels of tumor data, including genomic, transcriptomic, proteomic, and epigenetic data. Similarly, bioinformatics analysis has enabled us to investigate tumor progression and intrinsic mechanisms of carcinogenesis at the genome level for many types of cancer. The series of analyses performed on differential genes could facilitate the identification of biomarkers and drug targets for the diagnosis and treatment of cancers, allowing for the rapid evolution of precision oncology.

In this study, we carried out a comprehensive analysis of multiple authoritative databases using bioinformatics methods. Finally, RRM2 was identified as a target gene closely correlated with lymphatic metastasis and the prognosis of patients with HER-2-positive breast cancer. A list of the databases used in this study is displayed in online suppl. Table 1 (for all online suppl. material, see www.karger.com/doi/10.1159/000516322). The study flowchart is shown in online suppl. Figure 1.

Two independent microarray datasets (GSE29431 and GSE65194) based on the GPL570 platform of Affymetrix Human Genome U133 Plus 2.0 Array (HG-U133_Plus_2) were obtained from the GEO database. Data on breast cancer mRNA expression and corresponding clinical information were downloaded from the TCGA data portal. Respective characteristics of the 3 selected datasets are summarized in online suppl. Table 2. Basic clinicopathological information of HER-2-positive breast cancer is presented in online suppl. Table 3.

The probe ID was mapped to a gene symbol, and the probe level expression values were averaged across the probes for genes with multiple probes. The array data were normalized and calibrated using the RMA algorithm.

For GSE29431 and GSE65194, the LIMMA package was used for the detection of differentially expressed genes (DEGs) between HER-2-positive breast cancer and normal samples, while for mRNA expression data in TCGA, DEGs were identified using the DESeq2 package. The criteria for determining DEGs included a fold change of ≥2 and an adj p value (Benjamin-corrected p value) of <0.01. The false discovery rate was controlled by correcting the p value with respect to the Benjamini-Hochberg procedure. The volcano plot was produced using the R software to display the results of differential gene expression analysis in 3 datasets. Finally, the common DEGs were identified by the Draw Venn Diagram tool.

Protein-protein interaction (PPI) analysis was carried out using the Search Tool for the Retrieval of Interacting Genes (STRING) database with a combined score of ≥0.7 as the threshold. Subsequently, the PPI network was visualized using the Cytoscape software. We used the Molecular Complex Detection (MCODE) and CytoHubba, two of Cytoscape plugin software, to perform module analysis of the PPI network and screen the hub genes, respectively. Moreover, degree cutoff = 2, node score cutoff = 0.2, k-core = 2, and max. depth = 100 were set as the cutoff criteria in module analysis. The highest scores of the degree algorithm were retained as the criteria to screen out hub genes with high connectivity in the most significant module.

We used the GEPIA database to perform an OS analysis of the previously identified hub genes. Using the clinical data (age, pathologic T, pathologic N, and pathologic stage) of the 123 patients with HER-2-positive breast cancer, we further explored the correlation between hub genes and clinical parameters and identified a target gene most closely related to the development of HER-2-positive breast cancer.

In the present study, using the Oncomine, TIMER, UALCAN, and Kaplan-Meier plotter database, we validated the overexpression and prognostic value of the target gene in HER-2-positive breast cancer.

We used UALCAN and cBioportal to assess the correlation between target gene mRNA expression and its methylation values. Moreover, MethSurv, a freely valuable platform, was used to assess the effects of target gene methylation on patient survival time.

The cBioPortal was used to analyze the genomic alteration status of the target gene in breast cancer. Four breast cancer studies in the cBioPortal were utilized for this analysis. The 4 studies included Breast Invasive Carcinoma (TCGA, Cell 2015), Breast Invasive Carcinoma (TCGA, Firehose Legacy), Breast Invasive Carcinoma (TCGA, Nature 2012), and Breast Invasive Carcinoma (TCGA, PanCancer Atlas). The COSMIC database was used to examine the different types of mutations affecting the target gene in breast cancer.

We used the cBioPortal database to screen genes coexpressed with the target gene in breast cancer, with Spearman scores >0.5 as unique criteria. We then conducted an analysis of the Gene Ontology (GO) annotation and the Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway using the clusterProfiler package [2]. A Benjamin-corrected p value <0.05 indicated significant enrichment of GO terms and KEGG pathways, and the GO annotation comprised the biological process, molecular function, and cellular component.

The microarray datasets (GSE29431 and GSE65194) were standardized, and the results were illustrated in a box plot (online suppl. Fig. 2). With a cutoff of adj p value <0.01 and fold change ≥2, we eventually identified 503 DEGs (96 upregulated and 407 downregulated), 1,525 DEGs (809 upregulated and 716 downregulated), and 2,035 DEGs (1,000 upregulated and 1,035 downregulated) in GSE29431, GSE65194, and TCGA respectively, which were differentially expressed between HER-2-positive breast cancer samples and normal breast tissues. The volcano plot showed the DEGs (Fig. 1a–c). The VENN plot delineated the common 217 DEGs in the 3 datasets, including 50 upregulated genes and 167 downregulated genes (Fig. 1d, e).

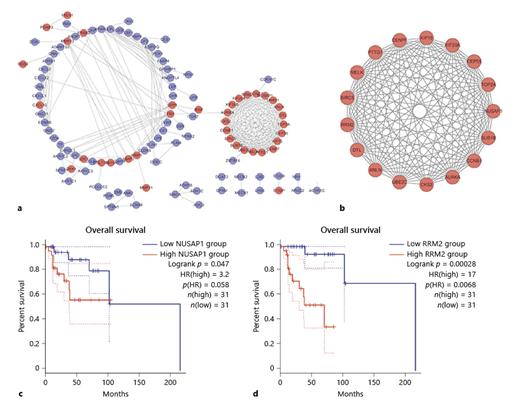

The 217 DEGs were input into the STRING database for PPI network analysis, which was then visualized by the Cytoscape software, and achieved a PPI network of 111 nodes and 310 edges, with combined scores ≥0.7 (Fig. 2a). The most significant cluster 1 totally consisting of upregulated genes was identified using the MCODE plugin (Fig. 2b). Subsequently, with the highest connectivity degree = 16, 13 genes selected from cluster 1 were considered as hub genes, including UBE2C, KIF20A, PTTG1, CENPF, CCNB1, BIRC5, TOP2A, CEP55, AURKA, RRM2, BUB1B, NUSAP1, and MELK. These genes are presented in online suppl. Table 4.

Using the GEPIA database, we assessed the prognostic value of hub genes in HER-2-positive breast cancer patients. The specific results of the survival analysis are shown in online suppl. Table 5. Among them, only the upregulated NUSAP1 and RRM2 genes were associated with a poor prognosis based on the OS (Fig. 2c, d). Clinicopathological analysis of RRM2 and NUSAP1 using the χ² test demonstrated that only RRM2 was linked with pathologic N (p < 0.05; Table 1). As shown in online suppl. Table 6, there was no significant association of NUSAP1 expression with age (p = 1.000), pathologic T (p = 0.618), pathologic N (p = 0.054), and pathologic stage (p = 0.533). These results suggested that RRM2 may be involved in the occurrence, development, and prognosis of HER-2-positive breast cancer.

Using the Oncomine and TIMER databases, we found that RRM2 was overexpressed in multiple cancer types (online suppl. Fig. 3a, b), suggesting that it might be relevant to the oncogenesis of these tumors. From the Oncomine and UALCAN databases, RRM2 overexpression was confirmed in HER-2-positive breast cancer (online suppl. Fig. 3c, d). By using the Kaplan-Meier plotter database, we further corroborated the prognostic significance of RRM2 (online suppl. Fig. 3e). Consequently, RRM2 was confirmed to be associated with HER-2-positive breast cancer.

From the UALCAN and cBioPortal databases, we observed that the RRM2 methylation levels in HER-2-positive breast cancer samples were apparently lower than those in normal breast tissues (p < 0.05) and showed a negative association with gene expression (p < 0.05, r = −0.30) (Fig. 3a, b). Using the MethSurv web tool, we found that hypermethylation was significantly correlated with a more favorable prognosis (Fig. 3c). We thus deduced that DNA hypomethylation was correlated with high gene expression levels, which may play an important role in the occurrence and development of HER-2-positive breast cancer.

Using 4 studies in the cBioPortal, we explored the genetic alterations of RRM2 in breast cancer patients. The results demonstrated that RRM2 was altered in 52 (1.4%) out of 3,798 patients (online suppl. Table 7). As depicted in online suppl. Figure 4a and b, these alterations including amplification, deep deletion, and mutation were associated with a poor prognosis and a lower OS in breast cancer patients. Furthermore, the pie chart showed the corresponding types of mutation of RRM2 in breast cancer patients from the COSMIC database, with missense and synonymous mutations being the most common types, and the mutations of the coding strand in RRM2 were as follows: G > A, A > T, G > T, A > G, and C > T (online suppl. Fig. 4c, d).

According to the gene coexpression modules obtained from the cBioPortal database, a total of 292 genes with Spearman’s correlation scores >0.5 were identified as being coexpressed with RRM2. The top 10 coexpressed genes are listed in online suppl. Table 8. For the GO analysis, the results pointed out that organelle fission was principally enriched in biological processes, and the chromosomal region was primarily enriched in the cellular component, whereas ATPase activity was chiefly enriched in molecular functions. Besides, KEGG pathway analysis indicated that these coexpressed genes were mainly enriched in the cell cycle. The results of the functional enrichment analysis are revealed in online suppl. Figure 5. As shown in Figure 4, the corresponding genes were colored red in the pathway mainly located in the S or G2/M phases of the cell cycle.

HER-2 subtype breast cancer often presents with tumor recurrence and metastasis, and the patients’ OS rate is lower. In recent years, targeted drug therapies have improved the OS for patients with HER-2 subtype breast cancer [1]. Despite the advent of this standardized initial therapy, some patients rapidly develop disease progression, which is predominantly due to the development of primary and secondary resistance to targeted drugs. Thus, further studies are necessary to explore the pathogenesis of breast cancer and search for novel therapeutic targets.

In this study, we identified 217 DEGs in 3 datasets. With a highest connectivity degree of 16, 13 genes were considered as hub genes, including UBE2C, KIF20A, AURKA, BIRC5, PTTG1, CENPF, CCNB1, TOP2A, CEP55, BUB1B, NUSAP1, MELK, and RRM2. Clinicopathological analysis suggested that only RRM2 was positively correlated with a poor prognosis and associated with lymph node metastasis in HER-2-positive breast cancer. Additionally, using the Oncomine and TIMER databases, we found that RRM2 was overexpressed in multiple tumors (online suppl. Fig. 3). Thus, we deduced that RRM2 may play the role of oncogene in diverse carcinomas and is linked to the occurrence, development, diagnosis, treatment, and prognosis of HER-2-positive breast cancer.

High UBE2C expression contributes to estrogen-independent growth in HR+ breast cancer cells, which suggests that tamoxifen treatment combined with inhibitors targeting UBE2C could be a potential therapeutic strategy to overcome resistance in endocrine therapy [3]. KIF20A small interfering RNA has been reported to significantly inhibit the proliferation of pancreatic cancer cell lines [4]. Alisertib, a selective small-molecule AURKA inhibitor, was found to be able to promote preferential growth inhibition in AI-resistant cell lines [5]. Overexpression of BIRC5 has been shown to promote breast tumor proliferation by inducing genetic instability [6]. PTTG1 is correlated with the regulation of cancer stem cells in breast cancer [7]. Sun et al. [8] demonstrated that CENPF promoted breast cancer bone metastasis by activating the PI3K-AKT-mTOR signaling pathway. CCNB1 silencing inhibits cell proliferation and promotes cell senescence via activation of the p53 signaling pathway in pancreatic cancer [9].

The PTEN/AKT signaling pathway affects the expression of TUBB3 and TOP2A, reducing cell growth and inducing apoptosis of human breast cancer MCF-7 cells through ATP and caspase-3 signaling pathways [10]. CEP55 has been shown to promote hepatocellular carcinoma cell migration and invasion by regulating the JAK2-STAT3-MMPs signaling pathway [11]. The oncogenic effect of BUB1B has been proven to be impaired by rapamycin via downregulation of the mTORC1 signaling pathway [12]. NUSAP1 is a potential prognostic marker for breast cancer patients that promotes the progression of breast cancer through the Wnt/β-catenin and epithelial-mesenchymal transition pathways [13]. Previous studies have demonstrated that MELK inhibition promotes cancer cell death through the p53 signaling pathway [14].

RRM2, a rate-limiting enzyme for DNA synthesis and repair, is involved in cell cycle regulation and overexpressed in various tumors, which is associated with cell proliferation, invasiveness, and migration. This is consistent with the findings observed in the present study. Previous studies have shown that small molecular antagonists of the RRM2 gene significantly reduce tamoxifen-resistant cell proliferation and decrease tumor growth [15]. Moreover, suppression of RRM2 synthesis could enhance the tumor’s chemosensitivity to Adriamycin, which has led to the recognition of RRM2 as a suitable biomarker [16]. However, the studies focused only on estrogen-negative breast cancer, and the cancer-forming pathways underlying this process are yet to be discussed. In this study, we aimed to find an effective target for the treatment of HER-2-positive breast cancer, comprising estrogen-positive breast cancer (luminal B subtype [positive HER-2 expression]). In this study, we elucidated the molecular mechanisms and signal pathways and also performed further analysis of RRM2 genomic alterations and mutations. We inferred that methylation of the RRM2 gene may also serve as a potential drug target.

In recent years, some current therapeutic regimens or drugs use RRM2 as the therapeutic target. GTI2040, as an RRM2 expression silencer, is complementary to a region of the coding sequence in the RRM2 mRNA and shows strong antitumor activity. Additionally, GTI2040 decreases RRM2 mRNA expression in human tumor cell lines and arrests cells in the early G1/S phase. GTI2040 in combination with weekly doses of gemcitabine has shown good treatment outcomes for patients with advanced solid tumors in a phase I study [17]. Another RRM2 inhibitor, GW8510, suppresses the survival of lung squamous cell carcinoma cells and reverses their resistance to gemcitabine by inducing DNA damage and cell apoptosis [18].

Subsequently, we found a significantly low level of RRM2 methylation and identified trends for the negative correlation between its methylation and expression levels, thus confirming that DNA hypomethylation was primarily responsible for the increased RRM2 expression in HER-2-positive breast cancer. Survival analysis revealed that increasing levels of methylation were related to poor prognosis, which indicates that level of methylation of RRM2 can be used as a prognostic predictor with breast carcinoma.

Based on these observations, we speculated that most RRM2-related genes are linked to the cell cycle and promoted tumorigenesis and progression by regulating the G2/M phase transition in breast cancer. Previous studies have shown that multiple drugs can alter the proliferative activity of tumor cells by regulating the G2/M phase transition in the cell cycle. For example, CAPE could inhibit the cell cycle and eliminate breast cancer cells in the G2/M phase [19]. Moreover, cucurbitacin B has been shown to inhibit the proliferation of breast cancer cells by inducing cell cycle arrest at the G2/M phase, leading to apoptosis [20]. Therefore, RRM2 inhibition by regulating the G2/M phase in HER-2-positive breast cancer could possibly serve as a novel therapeutic strategy.

In summary, this study demonstrated that RRM2 was overexpressed in HER-2-positive breast cancer and was associated with lymph node metastasis and the prognosis of these patients, indicating that RRM2 expression is closely related to tumorigenesis and cancer progression. Based on functional enrichment analysis, we speculate that RRM2 promotes tumorigenesis principally via cell cycle regulation. These findings suggest that RRM2 could be used as a potential therapeutic target against HER-2-positive breast cancer in the future. However, animal experiments and population-based studies are necessary to confirm the results obtained in this study.

TCGA and GEO belong to public databases. The patients involved in the database provided ethical approval. Users can download relevant data for free for research and publish relevant articles. Our study is based on open source data, so there are no ethical issues.

The authors declare that they have no competing interests regarding the publication of this paper.
