Design, Mechanism of Action, Bioavailability and Therapeutic Effects of Mn Porphyrin-Based Redox Modulators Open Access

The increasing awareness of the role of superoxide dismutase (SOD), and in particular the mitochondrial isoform MnSOD under physiological and pathological conditions, resulted in the increased search for their mimics. Few compounds are true SOD mimics, i.e. able to catalytically remove superoxide (O₂^–·; oxidize and reduce it in a two-step dismutation process). Thus far, no compound has been reported to be a specific O₂^–· scavenger. Most of the redox-active compounds explored as potential therapeutics are able to scavenge a wide range of reactive species (though with different rate constants) and thus affect the cellular redox status, oxidative damage of biological molecules, signaling processes and in turn suppress the oxidative stress injuries. Both natural and synthetic compounds have been explored. Most natural compounds are polyphenol based and are able to redox cycle with reactive species between phenol/semiquinone (phenoxyl radical)/quinone forms, thus suppressing oxidative stress injuries [for reviews, see [1,2,3,4,5]]; some of these natural compounds possess modest SOD-like activity. Our studies have shown that the ability of compounds to mimic SOD parallels their ability to scavenge other species and impact redox-based cellular transcriptional activity. Most synthetic compounds contain a redox-active metal center and are therefore able to easily exchange electrons with targets of interests such as reactive oxygen, nitrogen and sulfur species as well as with redox units (cysteines) of cellular signaling proteins involved in transcription. Such compounds are shown in figure 1 (Mn and Fe porphyrins) and in figure 2 (metallocorroles, metallotexaphyrins, Mn salen derivatives and Mn cyclic polyamines) [for details, see also [6,7,8,9,10]]. In addition, simple metal salts and oxides, such as manganese salts, cerium dioxide (CeO₂), osmium tetroxide (OsO₄) and Pt nanoparticles are potent SOD mimics and have been explored for efficacy in in vivo studies (fig. 2) [8,11,12,13]. Few compounds are redox active but do not bear metals, such as nitroxides, nitrones, mitochondria-targeted ubiquinone and its derivatives [8,9,14,15,16].

We have recently reviewed different classes of SOD mimics [8,9] and Mn porphyrins in particular [6,7,10]. Herein we address the design of Mn pyridylporphyrins (MnPs) and our most recent thoughts on their in vivo mechanisms of action, bioavailability and therapeutic effects.

Redox-active Mn porphyrins have been initially developed as mimics of SOD enzymes. Yet, later it became obvious that SOD-like activity relates closely to their ability to undergo diverse interactions with biological targets, which is the molecular basis for their remarkable therapeutic efficacy. Thus, we will summarize here the principles of their development as SOD mimics.

There are 3 mammalian isoforms within the family of SOD enzymes: extracellular Cu,ZnSOD, cytosolic/mitochondrial intermembrane Cu,ZnSOD and mitochondrial matrix Mn SOD. SOD enzyme is a high-molecular-weight protein, and thus cannot cross the cellular membrane [17]; further, its use could cause an unfavorable antigenic response. The strategy adopted by Fridovich’s group was to mimic the properties of the SOD enzyme as closely as possible by employing low-molecular-weight compounds, which would cross biological membranes and not exert antigenicity. Archibald and Fridovich [18] showed that low-molecular-weight Mn compounds possess SOD-like activity; the most potent is Mn lactate – only 60-fold less potent than the SOD enzyme (fig. 3). Some organisms, such as Lactobacillus plantarum, accumulate manganese in millimolar quantities and use it instead of SOD enzyme [18]. Compared to cationic Mn(III)-ortho-N-substituted pyridylporphyrins, Mn²⁺ was of much lower efficacy in protecting SOD-deficient Escherichia coli when growing aerobically [19,20]. Thus, stable complexes based on porphyrin core have been developed where Mn is coordinated to the porphyrin ligand. The porphyrin ligand has been modified to finely tune the properties of the Mn trapped within the macrocyclic cavity so that it can be as efficient as the SOD enzyme [7,8,21]. Both, Fe and Mn can be used as redox-active metals. When scavenging O₂^–· , the metal center of those complexes redox cycles between +3 (more stable complex) and +2 (less stable complex) oxidation states. During this process, the less stable complex may release some of its metal. If the metal is Fe, a highly toxic species, hydroxyl radical (·OH), would be formed by the interaction of the free Fe²⁺ with hydrogen peroxide (Fenton chemistry). Due to the higher Mn^III/Mn^II reduction potential of +1.51 V versus a normal hydrogen electrode (NHE; relative to +0.77 V vs. NHE for Fe^III/Fe^II redox couple), the Mn reaction with H₂O₂ is unfavorable, and thus Mn does not undergo Fenton chemistry-based ·OH production. Consequently, we explored Fe porphyrins less, and considered them inferior to Mn porphyrins. Recently, though, the potential of Fe porphyrins has been reconsidered either for therapeutic or mechanistic purposes [22].

The first notion that a cationic, water-soluble porphyrin ligand bound to metal presents a strategy to mimic SOD was introduced by Pasternack and Halliwell [23] in 1979 on FeTM-4-PyP⁵⁺. The rationale behind such a strategy was obvious: to utilize the same advantage of the porphyrin cyclic structure that nature uses as a building block of numerous proteins and enzymes – hemoglobin, myoglobin, the cytochrome P450 enzyme family, nitric oxide (NO) synthases, etc., in order to conduct redox-based biological reactions such as transport of oxygen, synthesis of NO, oxidation (breakdown) of toxins, etc. The cyclic structure of a porphyrin ligand binds some metals (e.g. Mn³⁺, Fe³⁺) so strongly that strong acids like hydrochloric and sulfuric acids cannot cause the loss of the metal [7,8,24]. Consequently, the integrity of the metal site, where all actions of interest occur, is preserved. One biologically relevant reagent that can destroy a porphyrin ring is hydrogen peroxide (H₂O₂) [25,26,27]. This points to the crucial role of peroxide in vivo, and the reason why so many systems are developed by nature to keep H₂O₂ at low physiological nanomolar levels (catalases, glutathione peroxidases, glutathione transferases, glutathione reductases, peroxiredoxins, thioredoxins, etc.) [28].

The report by Pasternack and Halliwell [23] on FeTM-4-PyP⁵⁺ was followed by studies of different investigators on the reactions of Fe and Mn porphyrins with small molecules, such as oxygen, NO, carbon monoxide, cyanide, etc. [29,30,31]. In the 1990s, Irwin Fridovich’s group started exploring Mn porphyrins as SOD mimics [32]. The work has been continued in the Batinic-Haberle Laboratory. Several other laboratories are now involved in the development of metalloporphyrins and in the exploration of the mechanistic aspects of their mode(s) of action(s) [33,34,35,36,37,38,39,40,41,42,43,44,45]. The modification of the porphyrin core by enlargement (texaphyrins) and shrinkage (corroles) has been explored by Sessler’s and Gross’s groups, respectively (fig. 2) [46,47,48,49,50,51,52,53,54]. Mahammed and Gross [51] have shown that metal complexes of ‘shrinked’ porphyrins – metallocorroles – due to their enhanced stability in a higher +4 oxidation state than that of porphyrins possess a fair catalase-like in addition to SOD-like activity [46].

The design of an optimized Mn porphyrin structure was conducted in three phases. In phase I we aimed to synthesize Mn porphyrins that have a rate constant for the dismutation of O₂^–· as high as the SOD enzyme, with log k_cat(O₂^–· ) = 8.84–9.30. To achieve such a value of k_cat, we aimed to: (1) adjust the half-wave reduction potential (E_¹/2) of Mn porphyrins for the redox couple Mn^IIIP/Mn^IIP, to be around +300 mV versus NHE, similar to that of SOD enzyme, and (2) provide the electrostatic facilitation that would guide the anionic superoxide to the redox-active Mn site. For that reason, the cationic porphyrins were the compounds of choice as they bear 5 positive charges which guide O₂^–· to the Mn site (fig. 1) [55,56]. When cationic nitrogens are in ortho positions, the pyridyl substituents are stuck in vertical positions relative to the porphyrin core and thus form a cavity which additionally guides O₂^–· towards Mn [57]. Such a situation is reminiscent of the highly preserved electrostatic ‘funnel’ lined with positively charged amino acid residues that is believed to guide negatively charged superoxide towards the active metal site of the SOD enzyme [56,58,59,60]. Moreover, such cationic porphyrins, bearing 4 positively charged nitrogens in the vicinity of the Mn site (ortho positions) withdraw electron density from the Mn center at an appropriate magnitude, which in turn results in nearly identical thermodynamic properties of the Mn site of the porphyrin, as found with all isoforms of SOD proteins, regardless of the type of metal site (Fe, Cu, Mn or Ni). The resulting E_¹/2 allows Mn porphyrins and enzymes to oxidize (accept electrons, equation 1) and reduce O₂^–· (donate electrons, equation 2) similarly fast in a 2-step dismutation process described with equations 1 and 2:

Mn^IIIP⁵⁺ + O₂^–· ↔ Mn^IIP⁴⁺ + O₂(1)

Mn^IIP⁴⁺ + 2H⁺ + O₂^–· ↔ Mn^IIIP⁵⁺ + H₂O₂(2)

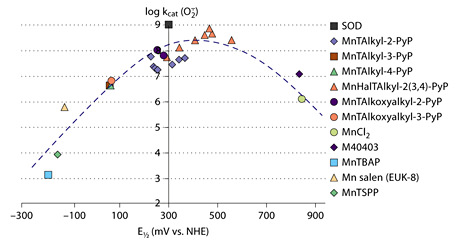

Based on the analysis of numerous Mn porphyrins that we have synthesized and some commercial compounds, the structure-activity relationship between the ability of the compound to mimic the enzyme [log k_cat(O₂^–·)] and its redox property (E_¹/2, mV vs. NHE) for Mn^IIIP/Mn^IIP redox couple (fig. 3) was established. The more positive E_¹/2, the easier Mn^IIIP is reduced to Mn^IIP by O₂^–· in the rate-limiting first step of the dismutation; consequently, the higher the k_cat is of a given MnP (for details, see also legend of fig. 3).

Based on the critical role played by cationic substituents at the meso positions on the SOD-like activity of the Mn(III) N-alkylpyridylporphyrins and their imidazolyl analogs, N,N′-dialkylimidazolylporphyrins of comparable SOD-like potency (table 1, fig. 1) were synthesized. The diethyl analog MnTDE-2-ImP⁵⁺ (AEOL10150) has been successfully explored for in vivo efficacy in diseases associated with oxidative stress [61,62,63,64]. The most potent among those compounds have E_¹/2 close to that of the SOD enzyme (fig. 3; table 1). With two ortho and meta isomeric Mn porphyrins [MnBr₈TM-3(and 4)-PyP⁴⁺], the potency of the SOD enzyme was reached [65,66]. With MnCl₅TE-2-PyP⁴⁺, an only slightly lower k_cat than that of SOD was achieved [67]. Those compounds with the highest k_cat are derivatized in both meso (substituted pyridyl groups) and beta positions (bromines or chlorines) with electron-withdrawing groups [65,66,67]. Due to excessive electron-withdrawing effects, these porphyrin ligands are so electron deficient that they do not have enough electron density to stabilize +3 oxidation state of Mn, and thus are isolated as Mn(II) complexes. However, these complexes with Mn bearing a 2+ charge (instead of 3+) are not stable from a metal/ligand structural point of view and lose metal readily [55,65,66]. While they are of no practical importance, their existence clearly shows that the same catalytic potency as that of SOD protein could be achieved even with a small porphyrin ligand.

In phase II we aimed to enhance the lipophilicity and in turn bioavailability of such compounds via increasing the length of alkyl chains from methyl to octyl (table 1) [6,7,8,68]. The lipophilicity has been assessed by the thin-layer chromatographic retention factor R_f, and a more commonly used partition between n-octanol and water, log P_OW [68,69]. Data are shown in table 1: the increase in alkyl chain from ethyl (MnTE-2-PyP⁵⁺) to octyl (MnTnOct-2-PyP⁵⁺) results in an approximately 5 orders of magnitude increase in lipophilicity, which translates into an approximately 3 orders of magnitude increased efficacy of lipophilic compounds in suppressing oxidative stress injuries in several animal and cellular models [6,7,8]. To find out how structural modifications of MnPs affect their in vivo availability, we developed high-performance liquid chromatography/fluorescence and tandem liquid chromatography mass spectrometry methods to determine MnP levels in plasma, tissues and subcellular compartments [70,71,72]. MnPs bearing long alkyl substituents (e.g. MnTnHex-2-PyP⁵⁺, MnTnHep-2-PyP⁵⁺ and MnTnOct-2-PyP⁵⁺) have a polar amphiphilic nature with cationic nitrogens and hydrophobic long alkyl chains – which determines their micellar character. Due to the increased lipophilicity, they accumulate in cells at higher levels. For both reasons, surfactancy and high bioavailability, they are more toxic at high concentrations than the more hydrophilic MnTE-2-PyP⁵⁺ [69,73,74].

In an ongoing phase III we aimed to reduce the general toxicity via disrupting the micellar property of these compounds by introducing oxygen atoms into hydrophobic long alkyl chains. Our very first analogs of that type were MnTMOE-2-PyP⁵⁺[75] and MnTMOHex-3-PyP⁵⁺[74]. In these compounds, oxygen atoms located at the end of alkyl chains are exposed to solvent, which makes the compounds fairly hydrophilic. We have recently synthesized a superior oxygen derivative, MnTnBuOE-2-PyP⁵⁺ (fig. 1). This compound has oxygen buried deeper in the alkyl chains, which prevents its excessive solvation [24]. When compared to MnTnHex-2-PyP⁵⁺ and MnTnHep-2-PyP⁵⁺, it has significantly reduced toxicity but preserved lipophilicity and high SOD-like activity [24]. The exploration of its in vivo efficacy and biodistribution is in progress.

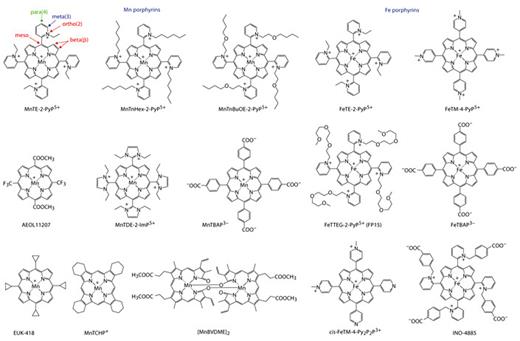

We have also listed in figure 2 the anionic Mn porphyrin MnTBAP^3– that has been often used by researchers, presumably due to its commercial availability. With its E_¹/2 of –194 mV versus NHE, it is a fairly redox-inactive compound and is not able to catalyze O₂^–· dismutation; thus it is not a SOD mimic [76]. It cannot be reduced with cellular reductants, ascorbate and glutathione, but it can be oxidized with strong oxidants such as peroxynitrite (ONOO^–), carbonate radical (CO₃^–·) and likely hypochlorite (ClO^–). Since the reactivity towards O₂^–· parallels the reactivity of MnPs towards ONOO^–, the ability of MnTBAP^3– to reduce ONOO^– is modest, but if administered at high concentrations, it may account for the reported beneficial in vivo effects [38,77]. In addition, the electrostatic interactions disfavor reactions between the anionic MnTBAP^3– and anionic reactive species ONOO^–, CO₃^–· and ClO^–, and thus limit the magnitude of the related rate constants. Such a structure-activity relationship is applicable to other anionic Mn porphyrins as well, such as MnTSPP^3–, MnBr₈TSPP^3– and MnBr₈TCPP^3–. Despite having a favorable reduction potential of approximately +200 mV versus NHE due to the strong electron-withdrawing bromines at β-positions, MnBr₈TSPP^3– and MnBr₈TCPP^3– lack electrostatic guidance for superoxide, thus demonstrate only fair SOD-mimicking potency.

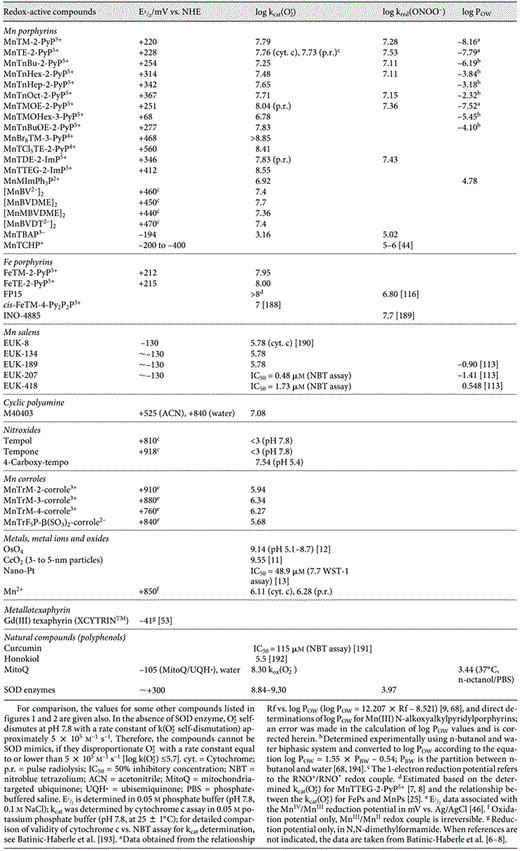

In addition to Mn porphyrins, a few other compounds possess fair-to-high SOD-like activity and are listed in table 1 and figures 1 and 2: Mn(III) corroles, Mn(III) biliverdins, Mn(III) salen derivatives, Mn(II) polyamines (M40403), as well as Fe(III) N-substituted pyridylporphyrins. FP15 and INO-4885 are ortho Fe(III) N-substituted pyridylporphyrins with triethyleneglycolated and 4-carboxylatobenzyl substituents. Their design was governed by the same principles (cationic charges at ortho-nitrogens) which provide Fe(III) and Mn(III) N-alkylpyridylporphyrins with high SOD-like activity and high ability to reduce ONOO^– [22,25]. While not reported as SOD mimics, and routinely viewed as peroxynitrite scavengers only, cationic Fe porphyrins are potent catalysts of O₂^–· dismutation as well, and react with other reactive species in a manner similar to Mn porphyrins (see under ‘Mechanism of action of Mn porphyrins’) [6,9]. Indeed, the SOD-like activity of the Mn analog of FP15 MnTTEG-2-PyP⁵⁺ was reported to be log k_cat(O₂^–·) = 8.11 [78].

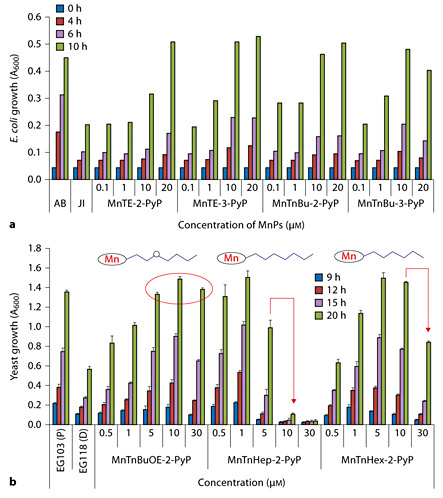

SOD-deficient E. coli mutants lacking cytosolic SOD enzymes (FeSOD and MnSOD) cannot grow aerobically as well as the wild type [79,80]. Such mutants appeared as an excellent tool, and an O₂^–·-specific model to evaluate the potential of Mn porphyrin-based drug candidates [24,69,74,81]. Any MnP that has reduction potential >+50 mV versus NHE has been tested in this SOD-deficient E. coli model; any MnP which supported the aerobic growth of the SOD-deficient E. coli was shown later to be efficacious in animal models of oxidative stress injuries. Figure 4a illustrates identical effects of isomeric Mn ortho- and meta-N-alkylpyridylporphyrins in allowing SOD-deficient JI132 E. coli to grow as well as its SOD-proficient counterpart AB1157. The somewhat inferior SOD efficacy of the meta analogs compared to the ortho species was compensated by their better bioavailability (determined mainly by their higher lipophilicity) [68,69]. The prokaryotic E. coli is much more sensitive to the toxicity of long alkyl chain analogs, such as MnTnHex-2-PyP⁵⁺, than are the eukaryotic yeast and mammalian cells [27,82].

We have therefore recently employed the SOD-deficient Saccharomyces cerevisiae aerobic growth as an additional tool to better evaluate the therapeutic potential of lipophilic analogs [24,83]; a representative plot of SOD-deficient yeast growth in the presence of Mn porphyrins is shown in figure 4b. The oxygen-derivatized MnTnBuOE-2-PyP⁵⁺ was efficacious but less toxic than its alkyl analogs of similar lipophilicities, MnTnHex-2-PyP⁵⁺ and MnTnHep-2-PyP⁵⁺. These data parallel the toxicity data obtained in a mouse study [24].

Despite their high positive charge, originally speculated to serve as a barrier, these compounds accumulate to levels high enough at targeted sites (mitochondria and nucleus) to afford protection from the damage due to oxidative stress. The cationic charge, driven by the negative mitochondrial membrane potential and attracted by anionic phosphate groups of cellular membranes, is the predominant reason for accumulation of Mn porphyrins in the mitochondria.

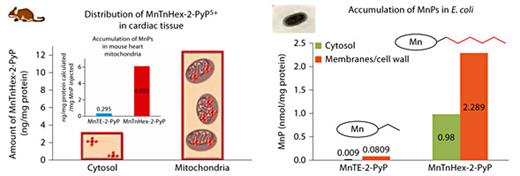

In an in vivo study, where porphyrin accumulation was investigated in heart mitochondria of mice receiving single intraperitoneal drug injection at 2 mg/kg, lipophilic compounds such as MnTnHex-2-PyP⁵⁺ accumulated severalfold more in mitochondria than in cytosol compared to the hydrophilic analog MnTE-2-PyP⁵⁺ (fig. 5) [9]. A similar distribution of porphyrin was registered with the yeast S. cerevisiae [72]. One of the evolutionary hypotheses claims that mitochondria arose from symbiotic bacteria. Therefore we can compare data obtained on mouse mitochondria to data obtained on the accumulation of Mn porphyrins in E. coli. Lipophilic MnTnHex-2-PyP⁵⁺ accumulates much more in both cytosol and cell wall/membranes of E. coli than MnTE-2-PyP⁵⁺[9]. To some extent, cationic Mn(III) N-alkylpyridylporphyrins may mimic both cytosolic and mitochondrial intermembrane space Cu,Zn SOD and matrix MnSOD. Our data on macrophages and lipopolysaccharide-stimulated bone marrow-derived macrophages showed approximately 3-fold higher levels of MnTE- 2-PyP⁵⁺ in the nucleus than in the cytosol, driven there by negatively charged phosphates of nucleic acids [10].

Initial efficacy studies of central nervous system injuries indicated that cationic Mn porphyrins are able to cross the blood-brain barrier [9,72,84]. Even the excessively charged and hydrophilic MnTE-2-PyP⁵⁺ accumulates over a 7-day period in the brain while its levels in other organs after initial build-up decrease in the same period of time [9,72,84]. The brain is rich in phospholipids and thus in anionic phosphates; this appears to be a driving force for the brain accumulation of pentacationic MnPs. After a single injection of 2 mg/kg, the lipophilic MnTnHex-2-PyP⁵⁺ accumulates at 24 h to an approximately 9-fold higher level in the mouse brain than does MnTE-2-PyP⁵⁺ at 10 mg/kg [85]. In a pharmacokinetic rat study, we reported for the first time the brain levels of MnTnHex-2-PyP⁵, which correspond to its remarkable efficacy in a stroke model (see under ‘Stroke’) [85].

Comprehensive pharmacokinetic studies via intravenous, intraperitoneal and oral routes of administration were performed for cationic MnTE-2-PyP⁵⁺ (10 mg/kg) and MnTnHex-2-PyP⁵⁺ (0.5 or 2 mg/kg) [70,86]. Though highly charged and fairly hydrophilic, both compounds are orally available. The plasma oral availability (expressed as AUC_ORAL/AUC_IV) was found to be 23 and 20% for MnTE-2-PyP⁵⁺ and MnTnHex-2-PyP⁵⁺, respectively. The plasma AUC_IP was found to be 83% of AUC_IV for MnTE-2-PyP⁵⁺ at 10 mg/kg and 84% for MnTnHex-2-PyP⁵⁺ at 0.5 mg/kg. The organ oral availability (based on the combined AUC of plasma and AUC of vital organs: liver, kidney, spleen, heart, lung, brain) expressed as AUC_ORGAN(oral)/AUC_ORGAN(ip) was found to be 13 and 33% for MnTE-2-PyP⁵⁺ and MnTnHex-2-PyP⁵⁺, respectively. The less hydrophilic MnTnHex-2-PyP⁵⁺ is approximately 2.5-fold superior relative to MnTE-2-PyP⁵⁺ with regard to organ distribution. The data demonstrate the impact of lipophilicity and pentacationic charge on MnP biodistribution and oral availability [86].

Cationic Mn(III) pyridyl and imidazolyl porphyrins are among the most potent synthetic SOD mimics available. However, the reactivity of MnPs towards O₂^–· is not specific. MnPs are also highly reactive towards ONOO^– and CO₃^–· (the degradation product of ONOO^– and CO₂ adduct; fig. 6). The k_red(ONOO^–) parallels the k_cat(O₂^–·) for Mn(III) N-alkylpyridylporphyrins [77]. Such a relationship is due to the same thermodynamic and electrostatic factors that favor the reaction of the cationic, electron-deficient metal complex with anionic species [6,7,8,10]. Therefore, the cationic MnPs with the highest kcat(O₂^–·) are the most potent scavengers of ONOO^– while anionic porphyrins [MnTBAP^3–, FeTBAP^3–, FeTSPP^3–, FeT(2,4,6-Me_2–3,5-[SO₃]₂-P)P^7–] and metal complexes that have no charges on the periphery and bear electron-rich metal sites [MnTCHP⁺, Mn(III) complex with bis(dihydroxyphenyl)dipyrromethene derivative, EUK-418 and AEOL11207; fig. 1, 2] are inferior [45,87,88,89,90]. MnTE-2-PyP⁵⁺ reacts with high affinity, rapidly and stoichiometrically with ·NO [91]. Studies are in progress with the group of Ferrer-Sueta on the reactivity of MnPs towards hypochlorite formed in vivo by the action of myeloperoxidase. Data are reported on the reactivity of several MnPs towards ClO^– and ClO₂^–[35,92,93,94]. Indirect studies indicate reactivity of MnTE-2-PyP⁵⁺ towards peroxyl and alkoxyl radicals [77,95,96]. Studies are in progress to broaden our insight into the reactivity of MnPs towards H₂O₂ and other biologically relevant peroxides [97]; Araujo-Chaves et al. [98 ]reported glutathione peroxidase-like activity of MnTM-4-PyP⁵⁺, while Gross’s group reported fair catalase-like activity of corroles [51]. Potent SOD mimics have metal-centered redox properties compatible with cellular reductants such as ascorbate, glutathione and tetrahydrobiopterin. Due to the high in vivo concentrations of those reductants, MnPs are likely coupled to these molecules while redox cycling with reactive species. By removing reactive species, MnPs can protect isocitrate dehydrogenase, therefore assuring regeneration of cellular antioxidant defenses [99,100].

As already noted, the reactive species, usually viewed as ‘bad guys’, are able to oxidize biological molecules, but at nanomolar levels are also essential for cellular signaling. Their levels are tightly controlled by the abundance of cellular endogenous antioxidants: small molecules such as ascorbate, tocopherols, tetrahydrobiopterin and glutathione, and proteins such as the SOD family of enzymes, catalases, peroxidases, peroxiredoxins, etc. Once their concentrations increase and approach micromolar levels, the cell is oxidatively stressed; subsequently it either upregulates antiapoptotic pathways, aiming at cell survival, or activates proinflammatory pathways, eventually leading to cell death or cell transformation and carcinogenesis. We have thus far reported that MnPs are able to prevent activation of major transcription factors that control those processes: hypoxia-inducible factor-1 (HIF-1α), a major factor in carcinogenesis; NF-ĸB, a major antiapoptotic factor (though it contains proapoptotic members of its family), and activator protein-1 (AP-1), which controls both cell proliferation and apoptosis (fig. 7) [6,9,10].

Originally, and based on the experimental evidence, the removal of reactive species by MnPs was proposed as means to prevent the activation of HIF-1α, AP-1 and NF-ĸB (fig. 7) [101,102,103,104,105]. However, very early on, in a cell-free system, Piganelli’s group suggested that MnTE-2-PyP⁵⁺ likely oxidizes cysteine of the p50 NF-ĸB subunit in the nucleus, which prevents the DNA binding of NF-ĸB and the related transcriptional activity (fig. 7). The efficacy of the imidazolium derivative MnTDE-2-ImP⁵⁺ in a stroke model was attributed to a similar mechanism [106]. We have subsequently shown the feasibility of such an event in an aqueous system where MnTE-2-PyP⁵⁺ proton-dependently oxidized the cysteine residue in glutathione [10]. Moreover, the compound indeed reaches the nucleus and accumulates there at a 3-fold higher level than in the cytosol of bone-marrow-derived macrophages [10]. Such action of MnP likely plays a role in the prevention of excessive inflammation of islet cells during isolation and significantly delayed or prevented animal death in young nonobese diabetic-severe combined immunodeficient mice [101]; note that the effects observed were antioxidative, but are likely a consequence of the MnP pro-oxidative action. The fact that MnTE-2-PyP⁵⁺ oxidizes and reduces O₂^–· in a dismutation process with similar rate constants (equations 1 and 2) supports such in vivo findings where it indeed acts either as anti- or pro-oxidant. Recently, Tome’s group in a study on lymphoma cells showed that, when combined with steroid dexamethasone, MnTE-2-PyP⁵⁺ glutathionylates cysteine of the p65 subunit of NF-ĸB in the presence of H₂O₂ (levels of which were increased due to the action of dexamethasone). Such a modification seems to occur in cytosol, and in turn prevents p65 DNA binding in the nucleus and NF-ĸB activation. In turn, it deprives cells of their key endogenous antioxidant glutathione and therefore enhances the anticancer/cytotoxic effect of steroids [107]. Whether cationic MnP oxidizes or glutathionylates the protein cysteine, electrostatics plays a role when it approaches the deprotonated anionic cysteine. Both sets of experiments caution us to distinguish between the nature of the actions of MnPs and the nature of the effects we observe in vivo.

To investigate the possibility that MnPs act as pro-oxidants in vivo, which results in mild oxidative stress and signals the organism to employ its own endogenous antioxidative defenses, we explored the MnP/ascorbate system [27]. The major reason behind such a strategy is that there are large intracellular micromolar levels of ascorbate whose primary role is to recycle oxidized tocopherol and thus assure its protective role in preventing lipid peroxidation. In a simple aqueous ascorbate/MnP system, MnTE-2-PyP⁵⁺ catalyzes ascorbate oxidation leading to the enhanced production of peroxide (fig. 8) [27]. Such a system could produce mild oxidative stress and signal to the organism that it needs to upregulate its own defense systems. Such an effect is also reminiscent of the effect of physical exercising: as a mild oxidative event, exercise has been shown to upregulate endogenous antioxidative defenses, including MnSOD [108].

Depending upon the levels of ascorbate, MnP and the cellular redox status, such an action may eventually lead to excessive H₂O₂ accumulation and in turn cell death and could be employed in anticancer therapy (fig. 8). Of note, the cancer cell is under oxidative stress and thus already has a perturbed balance between reactive species and antioxidant levels and a different transcription status profile relative to normal cells [9,27]. A small change in the levels of reactive species may thus be overwhelming and may signal the cancer cell to undergo death. Thus, particularly in cancer, redox coupling of MnP with ascorbate (exogenous or endogenous) may cause cancer cell death through increased peroxide production (fig. 8). The nature of the in vivo redox-based actions of MnP will depend upon the levels of reactive species, endogenous antioxidants, levels of MnPs and their cellular distribution. It may be safe to say, given their redox properties, that MnPs are potent biological catalysts of those redox reactions that would have otherwise occurred but to a smaller extent. It is further safe to say that k_cat(O₂^–·) describes the ability of Mn porphyrin to readily give and accept electrons, and thus to reduce and oxidize substrates. The k_cat(O₂^–·) is therefore an excellent measure of MnP therapeutic potential.

Researchers need to be aware that the preparations they obtain may not be pure enough or may contain impurities that could cause adverse effects or interfere with the active ingredient. Data have already been provided on such cases related to commercial preparations from Alexis, CalBiochem and Porphyrin Products [7,109]. Among such cases are those where the insufficient purity of commercial preparations of MnTE-2PyP⁵⁺ and MnTBAP^3– resulted in failures of those Mn porphyrins to perform in models with oxidative stress background [38,76,110]. Thus, prior to their use in biological studies, the compounds should be tested on their activity with basic analytical tools [76,109]. The impurities that may be present in preparations of MnPs relate to incomplete quaternization of pyridyl nitrogens (differently quaternized compounds), incomplete metallation (metal-free ligand) and incomplete removal of free manganese, and may be assessed as described elsewhere [76,109,111].

Another problem that continuously appears in publications is incorrect assignment of the function of Mn porphyrins and other types of antioxidants. Importantly, none of the synthetic or natural compounds explored are specific to a particular reactive species and cellular location. For many compounds, very limited data exist on their reactivity and subcellular distribution. For example, a few years ago we clearly showed that MnTBAP^3– is not an SOD mimic [76,109]. However, researchers continue to indicate that they have chosen for their research MnTBAP^3– due to its function as a SOD mimic. Its use authors have additionally justified by its mitochondrial targeting [112], even though insufficient data have thus far been provided on the mitochondrial localization of MnTBAP^3–. Based on the present knowledge that the drug needs to have a cationic charge to enter mitochondria, the accumulation of the negatively charged MnTBAP^3– in mitochondria would be disfavored [9]. Neutral porphyrins such as EUK-418, AEOL11207 and MnTCHP⁺ have been claimed to be either SOD mimics (EUK-418 [113] and AEOL11207 [90]) or potent ONOO^– scavengers (MnTCHP⁺[44] and Mn(III) complex of bis(dihydroxyphenyl)dipyrromethene derivative [45]). The ONOO^–-related potency of MnTCHP⁺ and Mn(III) complex with bis(dihydroxyphenyl)dipyrromethene derivative was evaluated based on the comparison to MnTM-4-PyP⁴⁺ (k = 4.3 × 10⁶M^–1s^–1) [114] which is an inferior ONOO^– scavenger compared to the severalfold more potent ONOO^– scavenger, MnTM-2-PyP⁵⁺ (k = 1.85 × 10⁷M^–1 s^–1) [114]. (OH)FeTM-4-PyP⁴⁺ (commonly indicated in the literature as FeTMPyP), FP15 and INO-4885 are declared as ONOO^– scavengers, while based on our data and the data of others, they are likely much stronger catalysts of O₂^–· dismutation than scavengers of ONOO^–[115,116,117]. Indeed, (OH)FeTM-4-PyP⁴⁺ was the first porphyrin-based SOD mimic ever tested by Pasternack and Halliwell [23]. To add to the existing confusion in the literature about metalloporphyrins, a paper by Suofu et al. [118] describes FeT[2,4,6-Me₃-3,5-(SO₃)₂-P]P^7– as ‘FeTMPyP’, which is a common abbreviation for Fe(III) meso-tetrakis(N-methylpyridinium-4-yl)porphyrin. The former is an anionic Fe porphyrin and the latter a cationic compound [118]. The latter is a commercially available Fe porphyrin, and perhaps the one used by the authors. Another manuscript by Thiyagarajan et al. [119] has a confusing statement, listing MnTE-2-PyP⁵⁺, M40403 and M40404 compounds as belonging to the same metalloporphyrin class of SOD mimetics with neuroprotective effects in cerebral ischemia models. Yet, M40403 and M40404 are Mn(II) cyclic polyamines; M40404 is an inactive analog of M40403 [7]. The papers listed above are only few among many which indicate the potential of metalloporphyrins in treating oxidative stress injuries, but introduce errors from therapeutic and mechanistic points of view.

Finally, the justification for use of the wide-spectrum antioxidant tempol in vivo has been based on its SOD activity [120,121]. However, at physiological pH, it is not an SOD mimic, although it can be oxidized to oxoammonium cation with ONOO^–, and oxoammonium cation reacts rapidly with O₂^–·, closing the catalytic cycle. Thus, tempol may be considered as ONOO^–/O₂^–· oxidoreductase. It does, however, react with ONOO^– and with CO₃^–· and ·NO₂^– degradation products of the ONOO^– adduct with CO₂[122,123,124,125]. Tempol has also been shown to react with other strong oxidants such as protein-derived, peroxyl and thiyl radicals [8].

Such improper assignments obviously lead to incorrect interpretation of data obtained from in vivo studies, and wrongly instruct future researchers what to use in their studies; consequently, incorrect conclusions are being perpetuated.

As the world population ages, the prevalence of cancer increases and is presently one of the major causes of death worldwide. It is thus no wonder that there is a growing interest in the development of anticancer drugs. Cancer is a disease with a staggering complexity that continues to generate new avenues of research. There are more than 200 different tumor types, each with its own subtypes. To further complicate matters, findings from animal models do not translate well to human subjects [126].

Most anticancer drugs can be classified according to their mechanism of action, such as DNA-interactive agents, antimetabolites, antitubulin agents, molecular targeting agents, hormones, monoclonal antibodies and other biological agents. MnPs present an entirely novel class of anticancer drugs: they are metal complexes whose redox potency is the basis for their in vivo efficacy; rather than targeting a specific protein, they target the cancer cell redox status which supports cancer cell metabolism and growth. MnPs can: (a) act as single anticancer agents; (b) enhance radiochemotherapy and hyperthermia; (c) offer radioprotection for normal tissue during cancer radiation therapy; (d) diminish consequences of the effect of the ‘chemobrain’ (the term that describes the brain-damaging effects of chemotherapeutics such as doxorubicin); (e) inhibit chronic morphine tolerance and thus allow pain management; (f) prevent neuropathic pain caused by anticancer chemotherapy, and (g) differentially image tumor versus normal tissue. All of these actions that substantiate the therapeutic potential of Mn porphyrin in cancer have thus far been reported by different laboratories for different cancer types [27,82,102,103,105,107,127,128,129,130,131,132,133,134].

Their actions as single agents in breast, prostate, skin and brain animal tumor models were investigated [63,103,105,131,132,133,135,136,137,138]. Except for skin cancer [105], thus far the antitumor effect has been moderate and is primarily understood as being at the level of tumor vasculature, i.e. by inhibiting HIF-1α activation and expression of its gene vascular endothelial growth factor (VEGF), which is crucial for tumor growth [63,103,131,132,133,135,136,137,138].

In a 4T1 breast cancer mouse model, MnTE-2-PyP⁵⁺ produced a moderate anticancer effect – tumor growth delay when given daily at 2 × 7.5 mg/kg s.c. for the duration of the study. HIF-1α and VEGF were suppressed, as was hypoxia and consequently microvessel density and endothelial cell proliferation. Oxidative stress was suppressed as measured by decreased levels of nitrotyrosine, DNA oxidation, NADPH oxidase and macrophage infiltration [103].

In an RM-9 mouse prostate model, MnTE-2-PyP⁵⁺ suppressed tumor growth in its own right only when it was injected immediately after subcutaneous implantation of 5 × 10⁵ RM-9 cells [139].

In a mouse skin carcinogenesis study, the antitumor effect of MnTE-2-PyP⁵⁺ as monotherapy was remarkable. Mouse skin was treated with as low as 5 ng/day for 5 days per week for 14 weeks. Tumor was induced with 7,12-dimethyl-benz-(a)-anthracene and promoted with 12-O-tetradecanoylphorbol-13-acetate. MnTE-2-PyP⁵⁺ was applied either 30 min before or 12 h after each 12-O-tetradecanoylphorbol-13-acetate treatment. MnP decreased the number of papillomas from 31 to 5, while MnSOD overexpression decreased the number of papillomas from 19 to 9 [105,140]. The smaller effect of MnSOD overexpression was due to the suppression of both cell apoptosis and proliferation; however, MnP was given in a timely manner (after the peak of apoptosis but before the peak of mitosis) and it thus suppressed proliferation only. In another study, depilated mice were exposed to 5 kJ/m² UVB irradiation [141]. MnTE-2-PyP⁵⁺, given at 5 mg/kg i.p. for 2 days before radiation protected mtDNA polymerase (a major constituent of nucleoids, responsible for the replication and repair of the mitochondrial genome). Oxidative damage (as measured by nitrotyrosine formation) was decreased at 1 and 24 h after radiation [141]. This study suggests that MnP would protect skin against the UVB-mediated development of skin cancer.

Two lipophilic Mn porphyrins were tested in a mouse brain tumor study on several glioblastoma and medulloblastoma cell lines and exerted an anticancer effect [131]. A significant anticancer effect was found in the presence of radiation, or temozolomide, or when combined both with radiation and temozolomide [127,128]. Lam’s group found in a cellular study that the combination of MnTnBuOE-2-PyP⁵⁺ with apoptotic gene and gap junction inhibitor confers potency in the treatment of brain tumors [131].

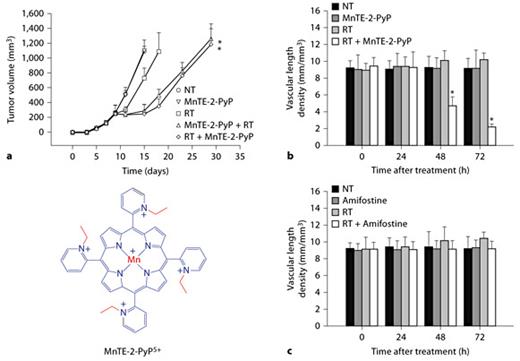

Mn porphyrins have been shown to radiosensitize tumors to radiation therapy [82,127,128]. It is known that HIF-1α is activated as a consequence of increased levels of reactive species formed by radiation [142]. Increased HIF-1α activation and consequent upregulation of angiogenic proteins (VEGF and basic fibroblast growth factor) outbalances to some extent the cytotoxic effect of radiation [82]. Based on the existing experimental evidence from a 4T1 mouse breast cancer study with subcutaneous xenografts (fig. 9) [102], the radiosensitizing effect of MnTE-2-PyP⁵⁺ has been attributed to the suppression of HIF-1α and its VEGF gene activation, which in turn led to suppression of angiogenesis (fig. 9). In a Balb/c nu/nu mouse brain tumor study, both lipophilic compounds MnTnHex-2-PyP⁵⁺ and MnTnBuOE-2-PyP⁵⁺ produced similar radiosensitizing effects [127,128].

MnTE-2-PyP⁵⁺ enhanced radiotherapy and showed a potential to enhance the antitumor immune response: a high number of T lymphocytes, natural killer cells in the spleen, B-cell counts in the blood and spleen, and increased IL-2 levels were found in mice receiving MnP [132]. The group receiving MnP plus radiation had reduced intratumoral HIF-1α and a decreased capacity to secrete TNF-α, whereas production of IL-4 was increased [135]. Moreover, MnTE-2-PyP⁵⁺ decreased the risk of radiation-induced normal tissue toxicity [133]. While the MnPs studied may theoretically protect tumors as well as normal tissue during radiation, such an effect, if present, has been insignificant [135] and has not diminished the cytotoxic effect of tumor radiation. Such negligible radioprotection of tumors by MnP relative to normal tissue may result from the differences between cancer and normal cells as a consequence of their differential redox status and transcription profile.

MnP + Temozolimide. It was further shown, with the brain tumor cell line D-245 MG in a Balb/c nu/nu mouse subcutaneous tumor xenograft study, that two cationic MnPs, MnTnHex-2-PyP⁵⁺ and MnTnBuOE-2-PyP⁵⁺, enhance temozolomide therapeutic efficiency [127,128].

MnP + Corticosteroid and MnP + Cyclophosphamide. In a cellular lymphoma model, Tome’s group showed that MnTE-2-PyP⁵⁺ accelerated dexamethasone-induced apoptosis in mouse thymic lymphoma cells WEHI7.2 and primary follicular lymphoma FL cells [130]. It also potentiated cyclophosphamide toxicity while inhibiting lymphoma cell growth and attenuating doxorubicin toxicity in H9c2 cardiomyocytes (immortalized clonal cell line derived from BDIX rat embryonic heart tissue) [130]. The effects are related to the inhibition of NF-ĸB activation by MnP as a consequence of MnP-driven catalysis of glutathionylation of the p65 subunit of NF-ĸB with H₂O₂ (produced by corticosteroid; see under ‘Mechanism of action of Mn porphyrins’) [107]. In an aqueous system, Fe and less so Mn porphyrins are able to hydroxylate cyclophosphamide in the presence of ascorbate, acting as cytochrome P450 mimics [26]. Due to the accumulation of MnPs in tumors, the activation of the prodrug cyclophosphamide would occur in situ in the tumor rather than in the liver.

MnP + Ascorbate. Levine’s group has pointed to the remarkable anticancer potency of ascorbate given as a single agent either via the intraperitoneal or intravenous route, but not orally [143,144,145,146]. The action was ascribed to the enhanced production of peroxide catalyzed by endogenous metalloproteins [144]. Ascorbate was also tested in a combination with other redox-able agents such as quinones; the combined treatment with menadione already has a clinical application for the treatment of prostate cancer [147]. In cellular experiments with 5 different cancer cell lines, MnTE-2-PyP⁵⁺ and MnTnHex-2-PyP⁵⁺ catalyzed ascorbate oxidation leading to the production of cytotoxic peroxide; 30 µM MnP and 3 mM ascorbate were employed [27]. In an E. coli study, in such a scenario, MnPs acting as pro- rather than antioxidants imparted oxidative stress, which subsequently induced an adaptive response by upregulating endogenous catalases and peroxidases so that the stressed cells grow as well as the nonstressed cells [148]. A similar action may occur even when MnP is administered as a single agent due to the high millimolar intracellular levels of ascorbate. E. coli data clearly point to the fact that at least one possible action of MnPs under certain in vivo conditions is an induction of mild oxidative stress (similar to physical exercising), which provokes the upregulation of endogenous antioxidative defenses. Subsequently, we observe antioxidative effects. In a preliminary 4T1 mouse breast cancer study, conducted with 2 × 1 mg/kg/day of MnTnHex-2-PyP⁵⁺ (s.c.) and 2 × 2 g/kg ascorbate (i.p.), tumor growth delay was observed (not reaching statistical significance). The effect can be due at least in part to the increased macrophage infiltration and reduced macrovessel density [27]. More work is needed to identify appropriate concentrations of both MnP and ascorbate in order to conduct an in vivo study with a significant therapeutic outcome. This will further our insight into the type of action of SOD mimics in vivo.

MnTE-2-PyP⁵⁺ largely potentiated hyperthermia [129]. Treatment of mice started 10 days after tumor implantation (day 1). Heat was delivered at 41.5°C on days 1, 5 and 8. MnTE-2-PyP⁵⁺ was delivered at 5 mg/kg twice per day to C57/BL6 mice carrying the B16F10 melanoma cell line, starting on day 1 until mice were sacrificed on day 9. Nearly full suppression of melanoma growth was observed as a result of this combinatorial treatment [129].

In a mouse prostate cancer study, Lascola’s group [149] showed that contrast changes of MnTE-2-PyP⁵⁺ are up to 6-fold greater in tumors than surrounding noncancerous tissues, suggesting its potential as a novel diagnostic tool in detecting prostate malignancy. In MRI experiments at 7 T, the phantom studies revealed approximately 2-fold higher T1 relaxivity changes with MnPs than observed with commercially available Gd chelates [149].

Radiation proctitis is a common adverse event associated with radiotherapy of tumors in the pelvic region. Archambeau [150] has shown that MnTE-2-PyP⁵⁺ decreases the severity of both acute and chronic proctitis in rats irradiated with 20- to 30-Gy protons delivered to a 2.5-cm segment of the rectum. MnP was given at 5 mg/kg s.c. either 1 h before or 1 h after irradiation with additional drug administered at weekly intervals thereafter [150]. The study indicates that MnPs may be useful as adjunctive agents for radiotherapy of pelvic tumors.

In several rat studies both MnTE-2-PyP⁵⁺ (1–6 mg/kg/day) and MnTnHex-2-PyP⁵⁺ (0.05–1 mg/kg/day) protected lungs from radiation when given daily for a 2-week period before or as late as 8 weeks after irradiation [73,151,152]. In a preliminary nonhuman primate study, MnTnHex-2-PyP⁵⁺ protected lungs from radiation at a dose as low as 0.05 mg/kg/day, given for 3 months starting 2 h after radiation [153]. The treatment with MnTnHex-2-PyP⁵⁺ delayed the onset of radiation-induced CT abnormalities and decreased lung weight, inflammation, edema and epithelial hyperplasia [153]. In a proteomic study, treatment with MnTE-2-PyP⁵⁺ partially prevented the apparent degradation of filamin and talin, reduced the level of cleaved caspases 3 and 9, and promoted Akt phosphorylation as well as β-catenin expression after a single dose of 28 Gy irradiation of the rat right hemithorax [154]. The imidazolium analog MnTDE-2-ImP⁵⁺ was efficacious in a lung radioprotection model also [63,138].

Mouse survival was increased by 80% when MnTM-2-PyP⁵⁺ was delivered intraperitoneally for 2 weeks at 5 mg/kg prior to 8-Gy whole-body radiation [155,156].

Treatment after whole-body radiation (WBR) with MnTE-2-PyP⁵⁺ significantly inhibited the increase in reactive oxygen species production and DNA damage in hematopoietic stem cells (HSCs) and the reduction in HSC frequency and clonogenic function induced by WBR. It appears also that MnTE-2-PyP⁵⁺ inhibited the induction of HSC senescence by WBR, which was shown to occur via the p16 senescence pathway: MnP suppressed the expression of p16Ink4a (p16) mRNA in HSCs induced by WBR and improved the long-term and multilineage engraftment of irradiated HSCs after transplantation [157]. In another mouse study, Zhou’s group showed that reactive species produced by NADPH oxidase play a causal role in the induction of hematopoietic genomic instability by ionizing radiation [158].

Protection of photoreceptors and retinal capillaries by 2.5 µM MnTE-2-PyP⁵⁺ administered into the vitreous humor was observed when the rat eye was exposed to 8- and 28-Gy proton radiation [136].

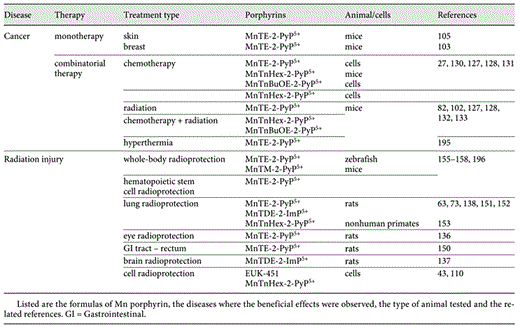

Therapeutic effects of Mn porphyrins on cancer- and radiation-related injuries are briefly summarized in table 2.

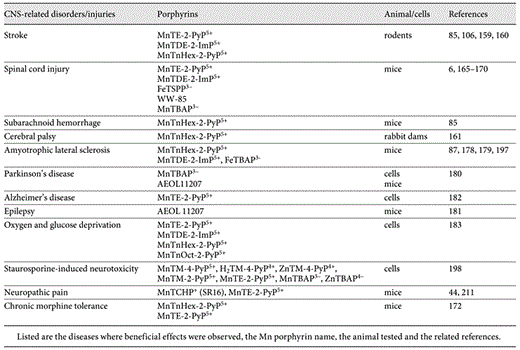

The therapeutic effects of porphyrins on central nervous system-related disorders/injuries are briefly summarized in table 3.

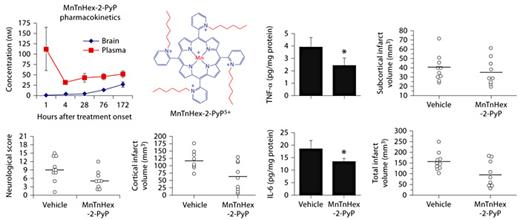

There is essentially no efficacious therapy available for the treatment of stroke. The efficacy of 3 cationic Mn pyridyl and imidazolyl porphyrins (MnTE-2-PyP⁵⁺, MnTnHex-2-PyP⁵⁺, MnTDE-2-ImP⁵⁺) in several studies of a rodent model of middle cerebral artery occlusion (MCAO) suggests the remarkable potential of these compounds [85,106,159,160]. In such models, ischemia/reperfusion was produced via 90-min MCAO. Reoxygenation at reperfusion leads to the increased levels of superoxide and its progeny, and in turn increases oxidative stress. Increased levels of reactive species subsequently upregulate inflammatory pathways via upregulation of NADPH oxidases, NO synthase and cytokines, which perpetuate oxidative stress, which in turn results in irreversible damage and/or cell death. In MCAO studies we have shown that Mn porphyrins are efficacious if given as a single bolus injection 60 min before ischemia, and either 5 min or 90 min or 6 h (but not at 12 h) after MCAO. The compounds were given to rats either intracerebroventricularly, intravenously or subcutaneously. When given intracerebroventricularly at 5 min or 90 min after MCAO, MnTE-2-PyP⁵⁺ decreased infarct size by 70–77%. The infarct size was decreased by 54% if given 6 h after MCAO [160]. Neurological effects were measured on day 7 after MCAO and oxidative stress markers 4 h after MCAO. Protection was observed in both cortex and caudoputamen, with no effect on body temperature. The imidazolium analog MnTDE-2-ImP⁵⁺ was also efficacious [160]. For a single injection of Mn porphyrin, the protective effects were primarily related to the initial oxidative damage, but not to the secondary/continuous oxidative stress. No reduction of infarct volume was detected several weeks after MCAO. However, when MnTDE-2-ImP⁵⁺ was given to rats intracerebroventricularly at 900 ng bolus dose and 56 ng/h for a week (via intravenous pumps) – starting at 90 min after 90-min MCAO, the efficacy was still present at 8 weeks after MCAO [160]. Suppression of NF-ĸB activation was observed, indicating an effect of MnP on signaling pathways (fig. 7). Recently, the more lipophilic analog MnTnHex-2-PyP⁵⁺ was tested. It was given to rats intravenously at 5 min or 6 h after MCAO at 225 µg/kg bolus dose and continued with 225 µg/kg s.c. twice daily. Neurological function, measured on day 7, was improved and total infarct size (fig. 10) was decreased with either treatment. The NF-ĸB activity (6 h after MCAO) and the expression of TNF-α and IL-6 (24 h after MCAO) were attenuated [85]. After bolus injection of 75 µg/kg i.v. followed by 7 days of twice injections of 225 µg/kg s.c., MnTnHex-2-PyP⁵⁺ accumulated in the brain to approximately 30 ng/mg tissue which level correlates with a remarkable drug efficacy. Given M_r = 1,189, the 30 ng/mg tissue relates to approximately 25 nM in fig. 10. At that time point, levels in plasma are only twice as high, about 59 ng/ml (approx. 50 nM on the plot in fig. 10) [85].

MnTnHex-2-PyP⁵⁺ proved efficacious in a mouse subarachnoid hemorrhage model. Mice underwent perforation of an anterior cerebral artery and were treated with MnTnHex-2-PyP⁵⁺ for 4 days at 225 µg/kg i.p. twice daily. Treatment improved their neurological score and increased diameters of internal carotid, middle and anterior cerebral arteries ipsilateral to the anterior cerebral artery perforation [85]. No differences in basilar artery diameter indicated similar perfusion conditions between groups during vessel casting. There was no effect of MnP on mean arterial pressure.

In a rabbit model, MnTE-2-PyP⁵⁺ (12 mg/kg) and MnTnHex-2-PyP⁵⁺ (at 0.12 and 1.2 mg/kg) were given to a dam at 30 min before and 30 min after 40-min ischemia (fig. 11). The hydrophilic MnTE-2-PyP⁵⁺, although given at up to 100-fold higher doses, was ineffective, while approximately 4 orders of magnitude more lipophilic compound, MnTnHex-2-PyP⁵⁺, was effective at both doses in decreasing significantly postnatal motor deficits. However, when the MnP was given after ischemia, and during perfusion only, it did not reach the brain fast enough (its t_max determined by MRI was 2 h), and the beneficial effect was negligible [161]. Under the same conditions, a combination of ascorbate and trolox (100 mg/kg trolox – a derivative of vitamin E and 1,600 mg/kg ascorbate) was protective.

The generation of reactive oxygen/nitrogen species is an early event following acute mechanical injury; hence the development of antioxidant therapeutic strategies has been considered a promising neuroprotective approach in a combinatorial treatment regimen [162,163,164]. Sheng et al. [165] have studied the effect of a catalytic antioxidant, MnTDE-2-ImP⁵⁺, in a mouse spinal cord injury model. The compound offered protection when given intrathecally at a single 2.5 and 5 µg/kg dose at 60 min after the spinal cord compression [165]. The total damage score and rotarod performance were improved on days 3, 7, 14 and 21 after spinal cord compression. However, the effect did not reach statistical significance when the compound was given intravenously, suggesting that bioavailability is critical in defining efficacy. With single intravenous dosing at 4 and 8 mg/kg 15 min after injury, MnTE-2-PyP⁵⁺ was marginally efficacious and thus shows promise at continuous multiple dosing. Indeed, the most recent data show remarkable efficacy of MnTE-2-PyP⁵⁺ given for a week at 1 mg/kg s.c. [Floyd et al., unpubl.]. Given the remarkable efficacy of a more lipophilic analog MnTnHex-2-PyP⁵⁺ in a stroke model, its application in spinal cord injury is promising.

The WW-85 [Fe(III) meso-tetrakis(N-[carboxylatobenzyl]pyridyl)porphyrin] given at 0.43 mg/kg i.p. at 1 h after trauma decreased inflammation, nitrotyrosine formation, proinflammatory cytokines (TNF-α, IL-1β, poly-ADP-ribose polymerase activation, NF-ĸB activation) and apoptosis and significantly ameliorated recovery of limb function [166]. Genovese et al. [167] studied the effect of iron porphyrin, FeTSPP^3– [Fe(III) meso-tetrakis(4-sulfonatophenyl)porphyrin] in a mouse spinal cord injury model. FeTSPP^3– treatment (10–100 mg/kg, i.p.) decreased the spinal cord inflammation and tissue injury, neutrophil infiltration, nitrotyrosine formation, poly-ADP-ribose polymerase activation, proinflammatory cytokine expression, NF-ĸB activation and apoptosis in a dose-dependent manner at 1 and 4 h after the spinal cord injury. Furthermore, FeTSPP^3– ameliorated recovery of limb function (evaluated by motor recovery score) [167].

The metalloporphyrin MnTBAP^3– [Mn(III) meso-tetrakis (4-carboxyphenyl)porphyrin] has also been tested in a rat spinal cord injury model by Hachmeister et al. [168]. Intrathecal pretreatment 30 min before spinal cord injury with 1 mg/kg MnTBAP^3– or 4-hour treatment after spinal cord injury with 2.5 mg/kg MnTBAP^3– decreased membrane lipid peroxidation and protein nitration, and increased the number of surviving neurons compared to vehicle controls [168]. In another study, MnTBAP^3– was able to partially prevent neuronal loss and apoptosis [169]. When given at 10 and 50 mg/kg i.p., it significantly reduced neuronal death in the sections 1–2.5 mm rostral and 1 mm caudal from the epicenter compared with that in the vehicle-treated group [169]. The therapeutic impact of neural stem cells was studied by Yu et al. [170]. During spinal cord injury, the inflammation caused a loss of donor human neural stem cell (hNSC) graft and killed host neurons. The authors studied the protective effect of polylactic coglycolic acid film embedded with MnTBAP^3– on the hNSCs [170]. The film was inserted into either T_7–8 or L_2–3 to cover the ventral side of the implanted porous polylactic coglycolic acid scaffold seeded with hNSCs. The authors showed that ONOO^–-triggered protein nitration and the activation of p38 mitogen-activated protein kinase, cytochrome c release, and caspases are involved in the elimination of NSC grafts and killing host neurons. MnTBAP^3– markedly protected hNSCs. Caution needs to be exercised regarding the identity and mechanism of action of MnTBAP^3– (see under ‘Purity and identity and assignment of type of action of Mn porphyrins’).

Chronic morphine use eventually ceases to provide an analgesic effect. This is known as chronic morphine tolerance and is ascribed to the oxidative damage of MnSOD and of critical proteins involved in neurotransmission: glutamate transferase and glutamine synthase [171]. The effects of MnPs have been studied in a mouse model of morphine tolerance [172]. At the doses studied, MnTE-2-PyP⁵⁺ and MnTnHex-2-PyP⁵⁺ did not exert independent analgesic effects; neither drug was efficacious in acutely reversing the established morphine tolerance. However, if given chronically with morphine, both MnPs inhibited the development of morphine tolerance and expression of inflammatory cytokines in the spinal cord dorsal horn [172]. Morphine tolerance was also associated with the inactivation of the critical endogenous enzyme MnSOD (via protein tyrosine nitration), but not Cu,ZnSOD and increased poly-ADP-ribose polymerase activity and 8-oxo-2′-deoxyguanosine formation in both brain and spinal cord [171]. Mn porphyrins suppressed these responses [172]. MnTnHex-2-PyP⁵⁺ was 30-fold more potent (0.1 mg/kg) than MnTE-2-PyP⁵⁺ (3 mg/kg), consistent with its greater lipophilicity.

Anticancer drugs such as vincristine, paclitaxel, oxaliplatin, cisplatin and bortezomib exert direct and indirect effects on sensory nerves to induce pain, which results in suffering and limits treatment. Different mechanisms are involved in the development of neuropathic pain and involve inflammation and oxidative stress [173]. Most recently Patti et al. [174 ]pointed to the N,N-dimethylsphingosine as a key cause of neuropathic pain arising from the sphingomyelin/ceramide pathway. Reactive species have been implicated in the ceramide pathway [175,176]. Inhibitors of methyltransferase or ceramidase have been suggested as possible therapeutic strategies. The mediation of the redox-based pathways may be a valid approach also [174,175,176]. Rats with an experimental painful peripheral neuropathy (the chronic constriction injury of the sciatic nerve model) display heat-evoked hyperalgesia [120]. Chronic constriction injury is a standard model used to screen novel nonnarcotic agents in chronic neuropathic pain. The effect of the nitroxide tempol, a scavenger of a wide range of reactive species [8], on the attenuation of neuropathic pain was reported [120,177]. Rausaria et al. [44] tested Mn(III) tetracyclohexenylporphyrin (MnTCHP⁺, SR16) and MnTE-2-PyP⁵⁺ in a neuropathic pain model, where these compounds dose-dependently reversed mechanoallodynia.

Crow’s group has successfully tested anionic Fe porphyrin, FeTBAP^3- in a G93A amyotrophic lateral sclerosis mouse model [178]. When given at 1 mg/kg/day, either starting at 40 days of age or at the onset of symptoms (with 2 mg/kg on the first day), FeTBAP^3- extended the survival interval by 1.55-fold. In a subsequent study, a more potent Mn porphyrin SOD mimic and redox modulator, MnTDE-2-ImP⁵⁺, was tested at 2.5 mg/kg delivered from onset of neurological deficit to death; the survival interval was increased 3-fold relative to FeTBAP^3-.

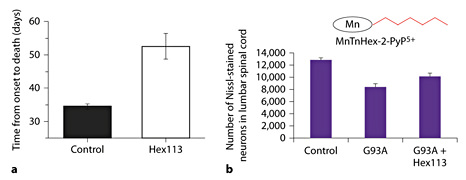

Equally potent but more lipophilic MnTnHex-2-PyP⁵⁺ (given at 0.1–0.3 mg/kg i.p., fig. 12) was 5- to 10-fold more efficacious than MnTDE-2-ImP⁵⁺ and displayed a similar efficacy to gadolinium texaphyrin. With the Gd complex, production of reactive species was proposed as a major mode of action [179]. At present, an antioxidant action has been predominantly assigned to MnTnHex-2-PyP⁵⁺; however, our most recent data suggest that this MnP may also produce reactive species in vivo (see under ‘Mechanism of action’).

Golden and Patel [180] have successfully employed Mn porphyrins in cellular and animal models of Parkinson’s disease.

Patel’s group studied the role of oxidative stress in epilepsy resulting from mitochondrial dysfunction using cross-bred mutant mice lacking MnSOD and employed the metalloporphyrin antioxidant AEOL11207 (fig. 1). At 5 mg/kg s.c. given daily (starting at 5 days of age for the duration of the study) AEOL11207-treated Sod2^–/– mice showed a significant decrease in both the frequency and duration of spontaneous seizures, although seizure severity was not affected. Notably, the average lifespan of AEOL11207-treated Sod2^–/– mice was increased compared to vehicle-treated Sod2^–/– mice [181].

St. Clair’s group has shown that MnTE-2-PyP⁵⁺ at 0.1 and 1 ng/ml protected developing neurons against β-amyloid-induced neuronal death and improved mitochondrial respiration [182]. Neurons were obtained from a homozygous mouse that incorporates the humanized Alzheimer’s disease (AD) mutation (APP^NLh/NLh × PS-1^P264L/P2641), and therefore stimulates natural progression of β-amyloid pathology observed in AD patients [182].

In a cellular study, MnTnHex-2-PyP⁵⁺ and MnTnOct-2-PyP⁵⁺ were able to protect neurons from oxygen/glucose deprivation more than hydrophilic compounds; MnTnOct-2-PyP⁵⁺ was effective at a >3 orders of magnitude lower concentration (0.01 µM) than MnTE-2-PyP⁵⁺[183].

MnTE-2-PyP⁵⁺ and MnTDE-2-ImP⁵⁺ are prospective agents in diabetes-related disorders. MnTE-2-PyP⁵⁺ significantly delayed or prevented the death of young nonobese diabetic-severe combined immunodeficient mice when a rapid onset of diabetes was induced with a diabetogenic T-cell clone (BDC-2.5) [184]. Soaking of islet cells in 34 µM solution of MnTE-2-PyP⁵⁺ increased their survival upon isolation: levels of proinflammatory cytokines IL-6 and IL-8 and monocyte chemoattractant protein 1 were greatly suppressed and islets gained the capacity to normalize diabetic recipient mice [185]. In streptozotocin-diabetic rats, MnTM-2-PyP⁵⁺ suppressed oxidative stress, decreased mortality and extended lifespan. In part such data are explained by the ability of MnP to protect isocitrate dehydrogenase, a source for NADPH-driven regeneration of endogenous antioxidative defenses [99,186]. The data on diabetes are summarized in Batinic-Haberle et al. [7,8].

While allowing for a wide therapeutic window, Mn porphyrins exert toxicity at higher doses. A limiting acute toxicity is related to blood pressure drop, if administered via the intraperitoneal or intravenous route [187]. Our preliminary data showed that shorter alkyl chain analogs, such as MnTM-2-PyP⁵⁺ and MnTE-2-PyP⁵⁺, exert a much smaller blood pressure drop than longer alkyl chain analogs. The more lipophilic analogs seem to be more toxic, which have been so far related to increased lipophilicity and thus increased cellular accumulation. Some other effects may possibly be involved. We have done a detailed mouse toxicity study of MnTnHex-2-PyP⁵⁺. Observations, weight measurements and morphopathological studies were performed on the following organs: salivary glands, skin, skeletal muscles, larynx, lymph nodes; lungs, heart, trachea, esophagus, bone marrow, bones; liver, spleen; pancreas, small intestine, stomach; colon, cecum, small intestine, kidneys, urinary bladder, adrenal, uterus, colon, oviduct, ovary; brain; eye and adnexae. MnP was delivered for a month twice daily subcutaneously at a total daily dose of 0.2–5 mg/kg. The drug caused skin (mild inflammation) and brain (acute degeneration of hippocampal neurons) toxicity at 1, 3 and 5 mg/kg/day. A coloration of liver Kupfer cells was also observed. No toxicity was observed when the MnP was given at 0.2 and 0.5 mg/kg/day doses. Preliminary data showed that when the mice were left without the drug for another month after a month of 0.2–5 mg/kg/day injections, these toxic effects disappeared.

Cationic, water-soluble Mn porphyrins are potential therapeutics for the treatment of different diseases that have oxidative stress in common as a mechanism of injury. Herein we summarized their effects in cancer (in particular in combination with radiation and chemotherapy) and in central nervous system injuries, because these are conditions where drugs are needed. Both cancer and stroke are prevalent pathological conditions and will become even more prevalent as the world population ages. The efficacy of those compounds, reported from several independent groups, is obvious and substantial and is in part related to their ability to accumulate in critical cellular compartments (mitochondria and nucleus), cross the blood-brain barrier, effectively scavenge reactive species, and couple with cellular reductants and cellular signaling proteins. Many factors involved in the actions of Mn porphyrins in vivo complicate the understanding of the mechanistic aspects of therapeutic effects: (1) numerous reactive species involved; (2) signaling proteins whose redox-active amino acids, such as cysteine, couple with MnPs; (3) reductants involved in the redox coupling with MnPs such as ascorbate, glutathione, tetrahydrobiopterin and uric acid; (4) multiple oxidation states of MnPs involved, and (5) different subcellular compartmentalization. Thus, more work is needed to fully comprehend the nature of the beneficial effects of Mn porphyrins which we routinely observe. For that purpose additional analogs have been synthesized, including Fe porphyrins. Also, future work will concentrate on the development of less toxic analogs. The good manufacturing practice campaign is in progress to obtain investigational new drug approval from the Food and Drug Administration and initialize clinical trials for several MnPs.

The authors acknowledge the financial help from Duke University’s CTSA grant 1 UL 1 RR024128-01 from NCRR/NIH (to A.T., I.B.H., I.S., T.W., H.S., D.S.W., M.L., A.A.), W.H. Coulter Translational Partners Grant Program (to I.B.H., I.S., A.T.), NIH U19AI067798 (Z.V., I.B.H. and A.T.) and NIH/NCI Duke Comprehensive Cancer Center Core Grant (5-P30-CA14236-29; to I.S.), and IBH general research funds (to A.T.). I.B.H., D.S.W. and I.S. are consultants with BioMimetix Pharmaceuticals Inc.

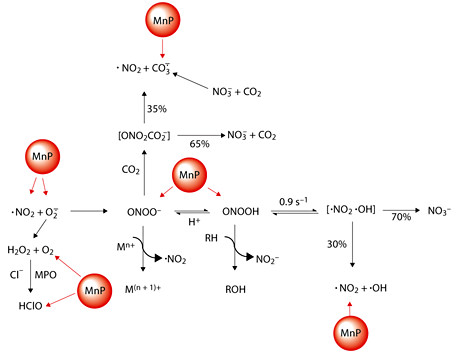

Charges of porphyrins are omitted in the figures for simplicity; ONOO^– + ONOOH = peroxynitrite; given its pK_a = 6.6 at pH 7.8, peroxynitrite exists predominantly as ONOO^–; O₂^–· = superoxide; ·NO = nitric oxide; CO₃^–· = carbonate radical; MnP = Mn porphyrin; 5,10,15,20 = meso position on porphyrin ring (fig. 1). When cationic porphyrins bear a 5+ charge, they have Mn in the +3 oxidation state (Mn^IIIP⁵⁺), and with a 4+ total charge Mn is in +2 (Mn^IIP⁴⁺) or +4 oxidation states (O = Mn^IVP⁴⁺); MnTAlkyl-2-PyP⁵⁺ = Mn(III) meso-tetrakis(N-alkylpyridinium-2-yl)porphyrin, the alkyl being methyl (M, AEOL10112), ethyl (E, AEOL10113, FBC007), n-hexyl (nHex), n-heptyl (nHep), n-octyl (nOct); MnTDE-2-ImP⁵⁺ = Mn(III) meso-tetrakis(N,N′-diethylimidazolium-2-yl)porphyrin, AEOL10150; Mn^IIBr₈TM-4-PyP⁴⁺ = Mn(II) β-octabromo-meso- tetrakis(N-methylpyridinium-4-yl)porphyrin; MnBr₈TM-3-PyP⁴⁺ = Mn(II) β-octabromo-meso- tetrakis (N-methylpyridinium-3-yl)porphyrin; Mn^IIITCPP^3– = Mn(III) meso-tetrakis(4-carboxyphenyl)porphyrin (also Mn^IIITBAP^3–, also abbreviated as MnTBAP); MnTTEG-2-PyP⁵⁺ = Mn (III) meso-tetrakis[N-(1-[2-(2[-2-methoxy]ethoxy)ethoxy]ethyl)pyridinium-2-yl]porphyrin; AEOL11207 = Mn(III) 5,15-bis(methylcarboxylato)-10,20-bis(trifluoromethyl)porphyrin; FeTSPP^3– = Fe(III) meso-tetrakis(4-sulfonatophenyl)porphyrin; FeT(2,4,6-Me₃-3,5-(SO₃)₂-P)P^7– = Fe(III) meso-tetrakis(2,4,6-trimethyl-3,5-disulfonatophenyl)porphyrin; FeTTEG-2-PyP⁵⁺ = Fe(III) meso-tetrakis[N-(1-[2-(2[-2-methoxy]ethoxy)ethoxy]ethyl)pyridinium-2-yl] porphyrin, FP15; WW-85 = Fe(III) meso-tetrakis (N-carboxylatobenzylpyridyl)porphyrin; INO-4885 = Fe(III) meso-tetrakis[N-(4-carboxylatobenzyl)pyridinium-2-yl]porphyrin; [MnBVDME]₂ = Mn(II) biliverdin IX dimethylester; MnTrM-2-corrole³⁺ = Mn(III) meso-tris(N-methylpyridinium-2-yl)corrole; MnTrF₅P-β(SO₃)₂-corrole^2– = Mn(III) meso-tris (pentafluorophenyl)-β-bis(sulfonato)corrole; salen = N,N’-bis-(salicylideneamino)ethane; tempo = 2,2,6,6,-tetramethylpiperidine-1-oxyl; tempol = 4-OH-2,2,6,6,-tetramethylpiperidine-1-oxyl; P_OW = coefficient which describes the partition between n-octanol and water; R_f = thin-layer chromatographic retention factor that presents the ratio between the solvent and compound path in 1:1:8 = satKNO₃(aq):H₂O:acetonitrile; E_¹/2 = half-wave reduction potential; NHE = normal hydrogen electrode; SOD = superoxide dismutase; HIF-1α = hypoxia-inducible factor-1, α-subunit; NF-ĸB = nuclear factor ĸB; AP-1 = activator protein-1; MCAO = middle cerebral artery occlusion. VEGF = vascular endothelial growth factor; i.v. = intravenous; i.p. = intraperitoneal; s.c. = subcutaneous.
