The Bacterial Phosphotransferase System: New Frontiers 50 Years after Its Discovery Free

Fifty years ago, a novel sugar-phosphorylating system was discovered in Escherichia coli[Kundig et al., 1964]. The unique features of this phosphotransferase system (PTS) included the use of phosphoenolpyruvate (PEP) as the phosphoryl donor for sugar phosphorylation and the presence of three essential catalytic entities, termed Enzyme I, Enzyme II and HPr (heat-stable, histidine-phosphorylatable protein). The discovery of this system provided an explanation for pleiotropic carbohydrate-negative mutants of E. colidescribed as early as 1949 [Doudoroff et al., 1949].

As noted above, the three initially recognized activities of the E. coliPTS were presumed to correspond to three proteins. Now, several dozen PTS proteins are known in E. coli[Tchieu et al., 2001], with even more in some Firmicutes [Barabote and Saier, 2005; Comas et al., 2008]. More recently, genes encoding proteins of the PTS have been identified and characterized in Archaea [Cai et al., 2014; Pickl et al., 2012], but no eukaryote has yet been shown to possess a protein constituent of the system. It therefore appears to be a prokaryote-specific system, a potential target of antimicrobial agents.

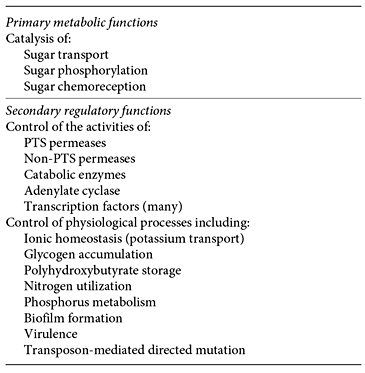

In 1964, a single function for the PTS, namely sugar phosphorylation, was known. Fifty years later, we found that this system plays roles in many surprising aspects of bacterial physiology (table 1). Established primary functions of the system include sugar transport and phosphorylation as well as sugar reception for chemotactic responses, whereas secondary functions include various ramifications of metabolic and transcriptional regulation [Lengeler and Jahreis, 2009; Vastermark and Saier, 2014]. Targets of PTS-mediated regulation include: (i) carbohydrate catabolic enzymes, sugar permeases and the cyclic (c)AMP biosynthetic enzyme, adenylate cyclase, all regulated allosterically by the IIA^G1c PTS protein in enteric bacteria; (ii) a variety of transcription factors, non-PTS transport systems and even the PTS itself, regulated by HPr(ser-P)-dependent allostery in many bacteria, including Gram-positive Firmicutes; (iii) transcriptional activators and antiterminators regulated by direct PTS-mediated phosphorylation in both Gram-negative and Gram-positive bacteria; (iv) other transcriptional regulators controlled indirectly by PTS-mediated phosphorylation by virtue of direct interactions with PTS proteins; (v) metabolism of nitrogen- and phosphorus-containing compounds; (vi) intracellular ionic (K+) homeostasis; (vii) carbon (glycogen, β-hydroxybutyrate) storage; (viii) biofilm formation; (ix) virulence and (x) directed transposon insertion for the purpose of operon activation (directed mutation) [Barabote and Saier, 2005; Krausse et al., 2009; Le Bouguenec and Schouler, 2011; Lopes et al., 2011; Pickering et al., 2014; Zhang and Saier, 2009a, b]. Moreover, the detection of novel, functionally uncharacterized PTS proteins in bacteria as diverse as E. coli, Acholeplasma laidlawii, Listeria monocytogenesand several antibiotic-producing species of Streptomyces, suggests the involvement of PTS proteins in cellular processes distinct from those listed in table 1 [Barabote and Saier, 2005; Deutscher et al., 2014; Rigali et al., 2006].

In his first insightful review on the PTS, Saul Roseman, who died in 2011 at the age of 90, noted a potential analogy between the PTS-catalyzed coupled transport and phosphorylation of sugars and Peter Mitchell's postulated mechanism of group translocation, a process in which penetration of the membrane by a solute occurs concomitantly with a chemical reaction that modifies the transported substrate [Mitchell, 1954; Roseman, 1969]. Evidence for the involvement of the PTS in sugar transport had been published in 1966 [Kundig et al., 1966]. Although the experimental design utilized in the reported studies proved to be both conceptually and technically faulty, the conclusion that the PTS is a transport system proved to be correct [Postma et al., 1993]. Thus, in this instance, intuition provided a more accurate view of reality than did empiricism.

The first PTS permease to be successfully purified [Jacobson et al., 1983, 1979], reconstituted in an artificial membrane [Leonard and Saier, 1983] and sequenced [Lee and Saier, 1983] was the mannitol Enzyme II of E. coli.Since then, several other PTS permeases have been purified and characterized and, recently, the high-resolution 3D structure of an integral membrane PTS Enzyme IIC was determined [Cao et al., 2011; McCoy et al., 2015]. The high-resolution structures of several IIA and IIB proteins (see below) have also been solved, alone or complexed to other PTS or non-PTS proteins. These basic scientific breakthroughs allow us to understand the PTS-mediated phosphoryl transfer and transport mechanisms in structural detail [McCoy et al., 2015].

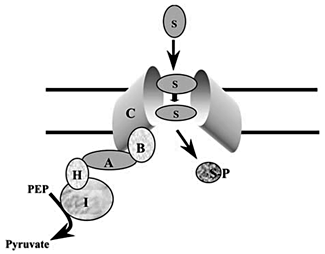

PTS permeases consist of two peripheral cytoplasmic membrane proteins or domains (IIA and IIB; sugar-specific energy coupling proteins) as well as one (or sometimes two) integral membrane proteins or domains (IIC, the actual sugar permease, with or without IID, depending on the system; fig. 1; table 2). These protein domains can be detached or fused together so that the Enzyme II complex can consist of one, two, three or four polypeptide chains encoded by the same number of genes. The IIA, IIB and IIC domains are frequently covalently linked to each other via gene-encoded flexible peptide linkers in a variable but nonrandom fashion. Thus, for example, a PTS permease containing a IIC domain may have the corresponding IIB domain either preceding or following it, but the IIA domain, when present in the same polypeptide chain, is usually linked at the C-terminal end of the permease.

The linking of IIA domains to general or sugar-inducible energy-coupling protein domains can occur either N-or C-terminal to the latter proteins. In a particular PTS permease, a domain may be either deleted, as is true of the IIA domains of the sucrose and trehalose permeases of E. coli,duplicated, as is true of the IIB domains of the fructose permeases of E. coliand Rhodobacter capsulatus[Wu et al., 1990], or spliced in half, as seems to be true of the IIC domain of the glucitol permease of E. coli[Yamada and Saier, 1987]. If a IIA domain is deleted, then another, such as IIA^Glc, must substitute for it since IIA, IIB and IIC are all required for PTS-mediated sugar phosphorylation.

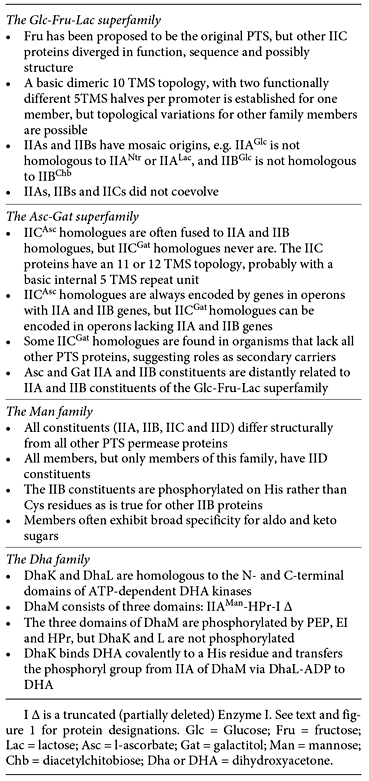

PTS Enzyme IIC proteins/domains fall into four families with members of each family being homologous, deriving from a common ancestral protein (table 2; see subclass 4.A in the Transporter Classification Database, TCDB; www.tcdb.org) [Saier et al., 2006, 2009, 2014]. The first of these four families is the Glucose-Fructose-Lactose (Glc-Fru-Lac) family, the largest of the four families. One member of this family, the diacetylchitobiose IIC protein, is now known to have a basic 10 transmembrane α-helical segment (TMS) topology consisting of two 5 TMS domains serving different functions [Cao et al., 2011; McCoy et al., 2015]. The split glucitol IIC system is probably a distant member of this superfamily. The second family, the Ascorbate-Galactitol (Asc-Gat) family, has members with 11 or 12 TMSs with a primordial internal duplication of 5 TMSs. The evidence summarized in table 2 suggests that these IIC proteins may derive from secondary carriers, and some may still be capable of catalyzing transport in the absence of sugar phosphorylation, although this possibility has not been adequately tested [Hvorup et al., 2003; Saier et al., 2005]. The third family, the Mannose (Man) family, with IIC domains probably of 6 TMSs, as well as a second integral membrane constituent unique to this family (IID), appears to have evolved four protein constituents (IIA, IIB, IIC and IID), all of which arose independently of all other PTS proteins [Erni, 2006; Garcia-Alles et al., 2002]. Finally, the Dihydroxyacetone (Dha) family apparently derived relatively recently from a cytoplasmic primordial ATP-dependent dihydroxyacetone kinase [Bächler et al., 2005; Erni et al., 2006; Saier et al., 2005] (table 2).

As emphasized in table 2, the IIA and IIB PTS proteins did not coevolve with the IIC constituents, and it is possible that different IIC members of the Glc-Fru-Lac family actually have different topologies [McCoy et al., 2015]. These observations reveal that the PTS is truly a mosaic system, derived from many ancestral sources that probably evolved independently of each other and later came together to form functional Enzyme II complexes [Saier and Reizer, 1994; Saier et al., 2005]. Thus, the PTS may have evolved late, after the appearance of established universal metabolic pathways such as glycolysis, gluconeogenesis and the Krebs cycle.

The PTS scientific community celebrated the 50th anniversary of the discovery of the PTS in the summer of 2014 in Göttingen, Germany. The meeting was organized by Jörg Stülke, Josef Deutscher and myself. Over 100 people, most of them actively researching the PTS, attended the meeting, and many of them presented talks or posters describing their recent research efforts. All in attendance agreed it was a most informative and enjoyable event with old friends meeting new members of the PTS community while exchanging scientific and personal information.

The first session of the meeting was opened by Joseph Lengeler of Germany who presented a historical view of the PTS in a talk which formed the basis for the first full-length article in this Journal of Molecular Microbiology and Biotechnology written symposium. The second article in the symposium, by Joyet et al., describes the recent research conducted within the research group of Josef Deutscher in France. This article concerns the involvement of the PTS in transcriptional regulation in Gram-positive Firmicutes. The next three articles in this symposium deal with different aspects of the PTS in Firmicutes, the first by Van der Heiden et al. (Belgium), dealing with the newly characterized PTS-mediated D-tagatose catabolic pathway in Bacillus licheniformis, the second, by Kuipers et al. (The Netherlands), concerning PTS-mediated fucose (6-deoxygalactose) metabolism in the pathogen Streptococcus pneumoniae, and the third, by W.J. Mitchell (UK), dealing with genomic analyses of the PTS in solventogenic Clostridia, fairly close relatives of the Bacilli.

The sixth symposium article, by Gordon et al., from the research group of Orna Amster-Chloder in Israel, deals with the bioinformatic identification and functional characterization of PTS-regulated RNA antiterminator-like sites in bacterial genomes, a paper that suggests the occurrence of novel functions for these sites. In the seventh article, Jacqueline Plumbridge (France) contrasts the regulation of amino sugar utilization by the proteobacterium E. coli and the firmicute B.subtilis. Two subsequent papers, one by Luettman et al. from Boris Görke's laboratory (Austria), and the second by Wolf et al. from Andreas Kremling's laboratory (Germany), deal with the involvement of the nitrogen regulatory PTS (EI^Ntr, NPr and IIA^Ntr) in the control of potassium ion uptake in two distantly related γ-Proteobacteria, Pseudomonas putida and E. coli, respectively. These papers describe a novel function of the PTS in maintaining ionic homeostasis.

In the tenth article, Carmona et al. (Guillermo Gosset's laboratory in Mexico) discuss the use of pts mutants of E. coli to facilitate the industrial production of various compounds, including aromatic metabolites and biofuels. As also noted in Wilf Mitchell's article, the biotechnological use of bacteria for useful metabolite production is of growing interest and utility. Sarah Sutrina of the West Indies, in the eleventh symposium article, summarizes the work executed in her laboratory defining the characteristics of E. coli biofilms and how these ‘differentiated' multicellular structures are organized and regulated during their biogenesis by the PTS and cAMP.

The final article, by my research associate, Zhongge Zhang and myself (USA), deals with the novel and surprising observation that the PTS regulates the process of directed mutation of the glycerol catabolic operon, glpFK, in E. coli. The gene products of this operon are essential for the normal growth of these bacteria with this compound as the sole carbon source. The PTS controls cAMP synthesis and inducer uptake, as established in previous publications from several laboratories. In this case, glycerol uptake via the glycerol facilitator, GlpF, is followed by its glycerol kinase (GlpK)-dependent phosphorylation to glycerol 3-phosphate, the true inducer of the glycerol (glp) utilization regulon. These two small molecules, cAMP and glycerol 3-P, interact with their cognate transcription factors, the cAMP receptor protein (Crp), an activator of transcription, and the glycerol repressor (GlpR), a negative effector of transcription, respectively. Binding of either of these two proteins to their DNA binding sites in the glpFK operon inhibits, and thereby regulates, insertion of a small transposon, IS5, into a single upstream site of the glpFK promoter, thereby activating this promoter and allowing the bacteria to overcome the inhibitory effects of nonmetabolizable PTS sugars on glycerol utilization [Saier and Zhang, 2014; Zhang and Saier, 2009b, a]. This novel discovery represents the most recently identified regulatory function of the PTS.

The studies reported in this comprehensive PTS50 written symposium illustrate the fact that our understanding of the PTS is still expanding with respect to its structure, mechanism, evolution and physiological functions. Since the last 50 years of PTS research have been so revealing, we wonder what the next 50 years will yield. Structural diversity in the proteins that comprise the system, novel mechanisms of catalysis and undreamt of functions are likely to come to light. Only a few of us may live to see that day. Nevertheless, our collective efforts will hopefully live on if we humans do not destroy the only habitat we have, the planet Earth.

I thank the many participants of the PTS50 congress for their insightful oral and written contributions and discussions. Jörg Stülke and Josef Deutscher were instrumental in ensuring the smooth flow of events at the meeting, making it most memorable for the PTS research community. Research in the Saier laboratory was supported by NIH grants GM077402, GM109859 and GM094610.
