Multi-Omics Integrated Analysis of the Protective Effect of EZH2 Inhibition in Mice with Renal Ischemia-Reperfusion Injury Open Access

Acute kidney injury (AKI) is a common clinical syndrome characterized by a rapid increase in serum creatinine (Scr) with or without decreased urine output [1]. AKI is associated with high incidence and mortality rates, with a rising trend in hospitalized patients in recent years [2]. There are three recognized causes of AKI, which are prerenal, renal, and postrenal injury. Renal AKI accounts for 80%–90% of cases, which is mainly caused by ischemic injury or nephrotoxins that damage the renal structures [3, 4]. In a clinic, neutrophil gelatinase-associated lipid transport protein (NGAL) and kidney injury molecule 1 (KIM-1) are commonly used diagnostic markers for AKI [5].

Histone modification-mediated epigenetic gene regulation plays an important role in ischemia-reperfusion injury (IRI), which is involved in histone modifications of proinflammatory and profibrotic genes [6]. Polycomb repressive complex 2 (PRC2) is a methyltransferase (HMT) in which the enhancer of zeste homolog 2 (EZH2) is the key subunit that trimethylates lysine 27 on histone H3 (H3K3me27), thereby silencing downstream target gene expression [7]. EZH2 is known to participate in various cellular processes such as cell cycle regulation, DNA damage repair, apoptosis, autophagy, and immunological responses, and thus, EZH2 was extensively studied in various cancers [8‒10].

EZH2 and H3K27me3 are upregulated in ischemia-reperfusion (I/R) or folic acid-induced AKI mouse kidneys [11]. The EZH2 inhibitor 3-deazaneplanocin A (3-DZNeP) reduced renal tubular epithelial cell death by preserving cell adhesion/junctions, reducing the expression of matrix metalloproteinases, and attenuating the Raf-2/ERK1/1 pathway in injured kidneys [11]. In another report, inhibition of EZH2 by 3-DZNeP preserved renal function and reduced tubular injury by regulating the p38 signaling pathway and inhibiting cell apoptosis as well as inflammation [12]. It has also been shown that EZH2 can induce the production of reactive oxygen species through the ALK4/Smad5/2 signaling pathway and thus EZH2 inhibition, exerting renal protection by reducing oxidative stress in IRI kidneys [13].

Multi-omics analysis encompasses genomics, transcriptomics, proteomics, and metabolomics [14]. Different omics approaches can be combined to dissect the signaling properties and mechanisms of a disease. For example, chromatin immunoprecipitation sequencing (ChIP-seq) and RNA-seq can be integrated to identify transcriptional regulated genes together with specific genomic DNA binding sites or histone modification [15].

Single-nucleus RNA sequencing (snRNA-seq) is a rapidly evolving technique, which can dissect cellular heterogeneity in complex tissues and characterize rare cell populations at a single-cell resolution [16]. A recent snRNA-seq study on an AKI mouse model revealed two novel clusters of proximal tubular (PT) cells, named NewPT1 and NewPT2, besides the healthy kidney cell clusters PTS1, PTS2, and PTS3 (corresponding to S1, S2, and S3 segments of the PT) [17]. NewPT1 cells belong to a cluster composed of the three acute injury states, while NewPT2 cells belong to a newly identified population of PT cells that fail to repair and expresses abundant proinflammatory and profibrotic genes, suggesting that NewPT2 is a cluster of PT cells that need to be targeted for therapy [17]. In this study, we aimed to investigate the downstream mechanism of EZH2 in renal IRI with integrated multi-omics assays.

Wild-type male C57BL/6 J mice aged 6–8 weeks (approx. 22 g) were used to establish the model of AKI induced by I/R. All mice were provided by the animal house of the Central Laboratory of the Ninth Hospital of Shanghai Jiao Tong University. The experimental procedures were approved by the Ethics Committee of the Ninth People’s Hospital (SH9H-2020-A655-1). Mice were equally divided into four groups: sham + normal saline (NS), I/R + NS, sham + 3-DZNeP, and I/R + 3-DZNeP. NS or 3-DZNeP (2 mg/kg, Selleck, USA) was intraperitoneally injected at 24 h before surgery. Mice were fasted for 12 h before the surgery. After anesthesia with 2% sodium pentobarbital (40 mg/kg), the abdomen of mouse was exposed, and both renal arteries were clamped for 30 min to achieve kidney ischemia. During this period, the animals were closely monitored to prevent a decrease in body temperature. After the ischemic period, the arterial clamps were removed. If the kidneys changed from dark red to bright red, it indicated a successful modeling. Then, 500 μL of sterile saline was added to the abdominal cavity, and the incision was sutured. The sham mice underwent the same surgical procedure without clamping the renal arteries. At 24 h after reperfusion, the mice were euthanized for blood and kidney collection.

The blood collected from the eyeball was centrifuged at 3,000× for 15 min, and the supernatant was sent to the Department of Laboratory of the Ninth People’s Hospital for enzymatic analysis of Scr and blood urea nitrogen.

Total RNA was extracted from kidney tissue using TRIzol reagent (15596-026, Thermo Fisher Scientific, USA) and then reverse-transcribed to generate cDNA using a Takara kit (Takara Bio, Shiga, Japan). The cDNA was subsequently subjected to qPCR amplification using SYBR Green premix (Yeasen, Shanghai, China) following standard methods. The relative gene expression was normalized to GAPDH. The primer sequences are listed in Table 1.

Kidney tissues were fixed by 10% paraformaldehyde. After embedding in paraffin, the specimens were sectioned and subjected to deparaffinization, dehydration, and staining with hematoxylin and eosin. Histological evaluation of kidney injury was performed under a light microscope.

All histological examinations were conducted by pathologists in a blinded manner. Renal pathological abnormalities were scored based on the presence and severity of components such as tubular necrosis or injury, loss of the brush border, tubular dilation, cell lysis, and tubular cast formation: 0 = normal kidney (no injury); 1 = minimal injury (<25% injury); 2 = mild injury (25–50% injury); 3 = moderate injury (50–75% injury); 4 = severe injury (>75% injury).

Total mRNA was isolated from mouse kidney tissues (n = 3) by TRIzol (B511311, Sangon Biotech, China). mRNA libraries were prepared with the Hieff NGS™ MaxUp Dual-mode mRNA Library Prep Kit from Illumina^® (12301ES96,YEASEN, China) following the manufacturer’s instructions. Quality control was performed using gel electrophoresis. Subsequently, libraries were sequenced in PE150 mode on Illumina Hiseq™ instruments at Sangon Biotech (Shanghai, China).

Reads were aligned to the mm10 mouse genome for read count and transcript per million data generation. Differential gene expression analysis was performed using edgeR (v3.36.0) in R 4.2.0. Differentially expressed genes were identified based on the criteria: p value <0.05 and absolute FC ≥1.5 (equivalent to |log2FC| ≥ 0.585). GO enrichment analysis and KEGG pathway analysis were performed using the DAVID database (https://david.ncifcrf.gov/). GO functional analysis included biological processes, molecular functions, and cellular components. Statistical significance was determined with adjusted p values using the Benjamini and Hochberg method, where corrected p value <0.05 indicated significance for differential expression.

EZH2 ChIP-seq data from mouse embryonic stem cells were obtained from NCBI-GEO using SRA software suite (version 3.0.0). The dataset included input samples (GSM1199187) and two EZH2 antibody-treated biological replicates (GSM1199182 and GSM1199183) [18]. After aligning to the mm10 genome with bowtie2 software (version 2.0.5), peak calling was performed using the HOMER software suite (version 4.11.1). File formats were converted using Samtools software (version 1.1), and peak annotation was conducted with ChIPseeker software (version 1.32.1).

Download metadata for the single-cell nuclear transcriptome sequencing dataset GSE139107 from the GEO website, including UMI count data for control, 12 h, and 2 days samples after IRI. The UMI count data related to PTS1, PTS2, PTS3, NewPT1 (new PT subpopulation 1), and NewPT2 (new PT subpopulation 2) were extracted based on cell type annotation using Seurat (v4.3.0.1) in R 4.2.0 [17]. The data were transformed into log2 count per million +1 values to depict expression levels. After data standardization, feature search, principal component analysis, and clustering, UMAP clusters were separately visualized based on sample time points and sources. Then, we extracted the cell expression matrix of key genes and calculated the single-cell average expression level of genes and the proportion of cells with an expression level ≥1. Finally, positive percentage bubbles were plotted in R 4.2.0.

GSE227970, GSE53769, and GSE76882 datasets were obtained from the GEO database (http://www.ncbi.nlm.nih.gov/geo/). Candidate gene expressions across different groups were extracted and visualized in R 4.2.0. Pearson correlation coefficients were calculated for correlation analysis, with a significance level set at p < 0.05, indicating significant correlations between the genes.

Data were presented as mean ± standard deviation. Two-group comparisons were performed using t-tests, while comparisons among multiple groups were conducted using ANOVA. GraphPad Prism software was used for data analysis, and R package ggplot2 (v3.4.2) was used for data visualization. p value <0.05 was considered statistically significant.

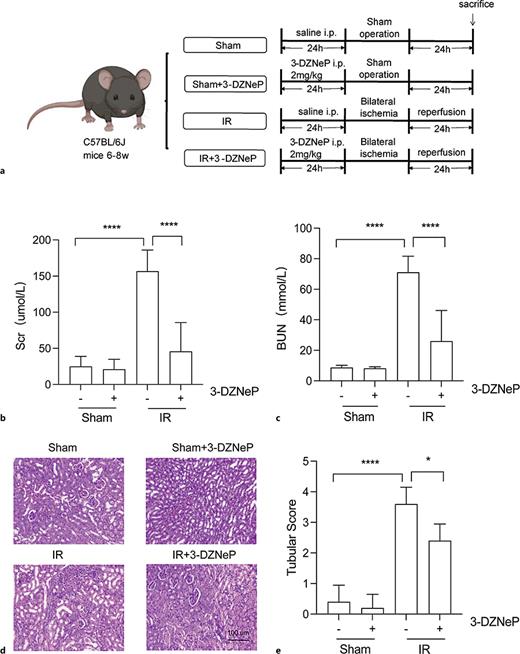

IRI was performed by bilateral renal artery clamping for 30 min and followed by 24 h of reperfusion in C57 mice (Fig. 1a). Scr and blood urea nitrogen levels were significantly higher in the IRI group compared to the sham group, which were reduced by 24 h pretreatment with 2 mg/kg 3-DZNeP (Fig. 1b, c). HE staining revealed that renal histology was injured in IRI kidneys, as shown by reduced tubular epithelial cell swelling, tubular dilation, and less tubular cell nuclear dissolution, which was improved by 3-DZNeP treatment (Fig. 1d). Renal injury was further quantified and showed that 3-DZNeP treatment significantly reduced the score of tubular injury in IRI kidneys (Fig. 1e). These results indicate that inhibition of EZH2 by 3-DZNeP prevents renal injury in IRI mice.

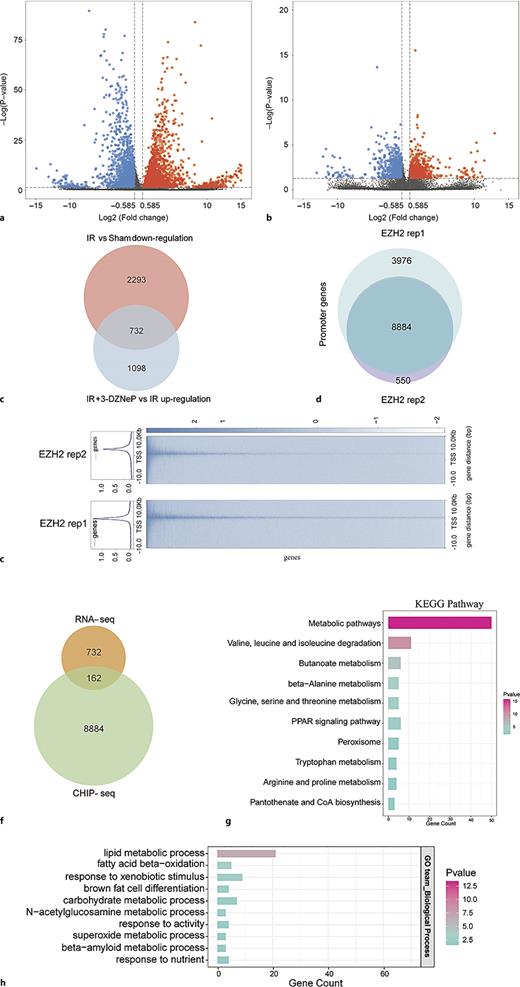

A total of 7,026 differential genes were identified between the IR (I/R) group and the sham group (with p value <0.05, fold change [FC] absolute value ≥1.5). Among these, 4,733 genes were upregulated in the IR mice, while 2,293 genes were downregulated (Fig. 2a). There were 2,361 differential genes between the IR + 3-DZNeP group and the IR group (p value <0.05, FC absolute value ≥1.5), of which 1,098 genes were upregulated in expression and 1,263 genes were downregulated in the IR mice (Fig. 2b).

Given that EZH2 is an epigenetic regulator of gene silencing and EZH2 is upregulated in AKI, we further selected differentially expressed genes that were downregulated in the IRI group and upregulated in the treatment group for subsequent study. A total of 732 differentially expressed genes were identified (Fig. 2c).

We next downloaded a public dataset for EZH2 ChIP-seq analysis of mouse embryonic stem cells (GSE49431) to search the direct targeted genes of EZH2. The ChIP-seq signal profiles were derived from the two biological replicates, which showed strong high enrichment of binding peaks near the transcription start site (Fig. 2e). A total of 8,884 genes with EZH2 enrichment in the promoter region were obtained from two biological replicates (Fig. 2d).

A joint analysis of RNA-seq and EZH2 ChIP-seq data was further performed. And the final 162 differentially expressed genes with EZH2 enrichment in their promoter region were obtained (Fig. 2f). Kyoto Encyclopedia of Genes and Genome (KEGG) pathway enrichment analysis and Gene Ontology (GO) functional enrichment analysis were performed. The 162 differentially expressed genes were mainly associated with the metabolic pathways, which were revealed by KEGG analysis (Fig. 2g). GO analysis showed that the differentially expressed genes are primarily involved in lipid metabolism as shown in Figure 2h.

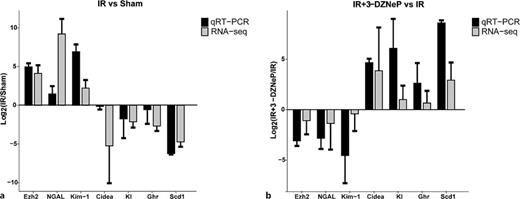

We selected four genes, Scd1, Cidea, Ghr, and Kl, for further validation because these genes are involved in lipid metabolism or cell growth, which is another key feature of AKI (Table 2). Quantitative PCR was performed to validate these differential expressed genes, which were compared with RNA-seq data (Fig. 3a, b). The analysis showed that the mRNA levels of these four genes were significantly decreased in IRI kidneys (p < 0.05), with a significantly increased after 3-DZNeP treatment (p < 0.01) (Fig. 3a, b). Furthermore, we demonstrated that the expression of these four genes were negatively correlated with the expression of Ezh2 and two injury markers (Kim-1 and NGAL) in IRI kidneys or 3-DZNeP-treated IRI kidneys (Fig. 3a, b).

Interestingly, we confirmed the negative correlation of EZH2 with KL, SCD1, and GHR expression in a cellular model of cisplatin-induced AKI. In the GSE227970 dataset, the expression of the EZH2 gene increased in the cisplatin-induced AKI group compared to the control group (online suppl. Fig. S1; for all online suppl. material, see https://doi.org/10.1159/000537866). Moreover, the expression of KL, SCD1, and GHR significantly decreased in the AKI group (online suppl. Fig. S1). Importantly, there was a clear negative correlation between these genes and EZH2 (online suppl. Fig. S1). The expression of the Cidea gene was consistently recorded as zero (data not shown), likely due to the limitation of sequencing technology. Thus, we excluded this gene during quality control.

According to previous studies, the PTs experience the most significant damage due to their high metabolic activity during IRI [17]. Therefore, we selected an snRNA-seq dataset with a similar experimental design to analyze the expression profiles of these four genes in various subpopulations of PT cells (GSE139107). Renal samples were taken at different time points (control, 12 h, and 2 days) after reperfusion, and PT cells were clustered into different groups according to their segment markers (PTS1, PTS2, and PTS3) or injury markers (NewPT1 and NewPT2) (Fig. 4a).

We first analyzed the expression of two injury markers Lcn2 (NGAL) and Havcr1 (Kim-1), which were quickly upregulated and reach a peak at 12 h after reperfusion in all five subgroups (Fig. 4b, c). Ezh2 was upregulated after reperfusion in all five subgroups but only reached a peak at 12 h after reperfusion in PTS1 and PTS2. In PTS3, NewPT1, and NewPT2 cells, Ezh2 was persistently upregulated at 12 h and 24 h after reperfusion (Fig. 4d).

An acute response of gene downregulation in PTS1 and PTS2 cells was only observed for Ghr and Kl genes, which was negatively and tightly correlated with Ezh2 gene expression (Fig. 4e, f). A steadily reduced gene expression in PTS3, NewPT1, and NewPT2 cells was observed for Scd1 (Fig. 4g). The Cidea gene was only negatively and tightly correlated with Ezh2 expression in PTS3 cells after reperfusion (Fig. 4h). These results indicate that these four genes are differentially regulated by EZH2 in different subgroups of PT, which may contribute to the acute or chronic responses after renal injury.

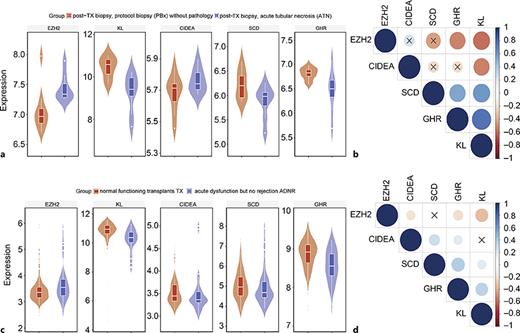

We next determined the correlation of these four genes with EZH2 in patients with AKI by analyzing the expression profiles of two highly annotated public clinical cohorts (GSE 53769 and GSE 76882), which were downloaded from the GEO website. The violin plots were generated based on the expression profiles from the GSE53769 dataset. The expression of the EZH2 gene was notably increased in the ATN group compared to the PBx group, while the expression of KL, SCD1, and GHR genes were decreased (Fig. 5a). KL and GHR exhibited a strong and negative correlation with EZH2 expression in this dataset, while SCD1 was weakly and negatively correlated with EZH2 expression in this dataset (Fig. 5b).

A similar result was obtained from the GSE76882 dataset. The upregulation of EZH2 and downregulation of KL, SCD1, GHR, and Cidea genes were observed in patients with acute kidney injuries (Fig. 5c). Interestingly, in this dataset, we only observed a negative correlation of EZH2 expression with KL, GHR, and Cidea genes (Fig. 5d).

In the current study, we first identified 162 EZH2 regulated genes in the kidneys of AKI mouse through RNA-seq analysis, which was combined with the ChIP-seq analysis. We further selected and verified four genes (Scd1, Cidea, Ghr, and Kl) involved in lipid metabolism or cell growth after KEGG and GO enrichment analysis of these 162 genes. By leveraging single-nucleus RNA-seq datasets, we confirmed the negative correlation of these four genes with EZH2 in the PT of AKI kidneys. The negative correlation of these four genes with EZH2 was finally confirmed in patients with acute kidney injuries.

The Scd1 gene plays a crucial role in lipid metabolism by primarily participating in the intracellular triglyceride synthesis [19]. It has been reported that the EZH2 inhibitor increased the expression of SCD1 in cancer cells [20]. Cidea is another gene playing an important role in lipid metabolism, which was found negatively regulated by EZH2 in our study [21]. It has been shown that lipid metabolism gradually declines with prolonged reperfusion time, leading to a higher risk of kidney fibrosis [17]. Our study implies that EZH2 may inhibit lipid metabolism through downregulation of SCD1 and Cidea. Interestingly, in PTS3, NewPT1, and NewPT2 cells, a steadily reduced gene expression of Scd1 was observed at 12 h and 24 h after reperfusion, which was tightly and negatively correlated with Ezh2 expression. A negative correlation between Cidea and Ezh2 expression was observed in PTS3 cells. Thus, EZH2 may inhibit lipid metabolism of a different population of PT cells contributing to normal physiological function, acute responses, and chronic responses of PTs after IRI-AKI.

The Kl and Ghr genes are involved in cell growth and apoptosis [22‒25]. During AKI, the expression of the Kl gene in renal tubular cells is reduced, and its restoration can alleviate kidney damage and promote AKI recovery [26, 27]. A significant decrease in GHR expression was observed in diabetic kidney disease, and GHR antagonists protected against diabetic kidney disease [28, 29]. Interestingly, we observed an acute downregulation of Kl and Ghr in PTS1 and PTS2 cells, which was negatively correlated with Ezh2 expression. Thus, EZH2 may inhibit cell growth in PTS1 and PTS2 to maintain a minimized physiological function of PTs after IRI-AKI.

The IRI-AKI model is the focus of this study. In order to confirm that our discovered molecular mechanisms can be shared by other type of AKI, we performed analysis on a publicly available RNA-seq data from a cisplatin-AKI model. We found that the expression of KL, SCD1, and GHR were significantly decreased in the cisplatin-AKI group, which was negatively correlated with EZH2 expression.

EZH2 dysregulation is associated with various tumorigenesis and cancer types. Hypermethylation, considered an early event in renal cell carcinoma (RCC), correlates with tumor invasiveness [30]. Inhibiting EZH2 can reactivate PEG3, thereby inhibiting RCC progression [31]. Surgery is the primary treatment for RCC, and nephron-sparing surgery (NSS) is the preferred option to minimize peripheral lesions [30]. During NSS, interruption of renal blood flow may induce kidney injury, representing a distinct pathological cause leading to IRI [32]. Thus, we speculate that our results may have potential applications particularly to IRI-AKI induced by NSS during RCC treatment, in which inhibition of EZH2 may not only inhibit residual RCC after surgery but also prove beneficial to the injured kidney.

One limitation in our study is that we validate these genes only at mRNA levels. The existing literature suggests direct regulation of the Scd1 gene by EZH2 in mRNA and protein levels in cancer cells [20]. However, direct evidence of Scd1 regulation by EZH2 in AKI-related studies is currently lacking. Epigenetic regulation of the Cidea gene has been shown in a study on intrauterine malnutrition, but direct evidence of Cidea protein regulation by histone modification is lacking [33]. The Ghr gene’s epigenetic regulation has not been reported. Interestingly, H3K27me3-mediated epigenetic regulation of the Kl gene has been studied in renal tubular cells, and inhibition of H3K27 methylation resulted in elevated Klotho expression [34]. Thus, we propose that proteins encoded by the Kl gene may participate in this epigenetic cascade and represent promising candidates as downstream targets for further studies.

In both human and animal models of AKI, consistent downregulation of Klotho is observed [26, 35]. Importantly, mice subjected to IRI exhibit reduced Klotho levels in the kidneys, urine, and blood, preceding the increase in NGAL, indicating an early response [26]. More importantly, ELISA kits and immunoprecipitation-immunoblot kits for detecting Klotho are commercially available [36]. Thus, the activation of the EZH2 signaling pathway after AKI can be indirectly detected through analyzing Klotho expression. EZH2 inhibitors are currently undergoing clinical trials for cancer patients. Tazemetostat, an orally administered selective EZH2 inhibitor, displays anti-tumor activity in both hematological malignancies and solid tumors [37]. As the pioneer among selective EZH2 inhibitors, tazemetostat underwent its initial human studies in 2018, revealing promising safety and anti-tumor efficacy in blood and solid cancer patients [38]. In 2020, tazemetostat entered phase 2 trials for patients with relapsed or refractory follicular lymphoma, which exhibited clinical significance and enduring responses, and maintained favorable tolerability [39]. Once available in the market, EZH2 inhibitors could be applied to AKI patients, particularly RCC patients undergoing NSS, where detection of EZH2 activation becomes important.

In conclusion, our study indicates that Scd1, Cidea, Ghr, and Kl are downstream genes regulated by EZH2 in IRI-AKI. Upregulation of EZH2 in IRI-AKI inhibits the expression of these four genes in a different population of PTs to minimize normal physiological function and to promote acute or chronic cell injuries following IRI-induced AKI. Understanding the working mechanism of EZH2 in AKI may help to design a therapy specifically targeting a certain subpopulation of PT to improve repairing and reduce fibrosis after IRI-AKI.

All animal experiments were in accordance with Institutional Animal Care and Use Committee guidelines. This study protocol was reviewed and approved by the Ethics Committee of the Ninth People’s Hospital, approval number SH9H-2020-A655-1.

The authors have no conflicts of interest to declare.

This work is supported by grants from the National Natural Science Foundation of China (No. 8207031445).

L.W. and M.W. conceived and designed the study; S.Z., J.C., and M.X. performed the research; S.Z., P.Z., and M.X. analyzed the data; S.Z. and M.W. wrote the paper.

Shanshan Zou, Jianing Chen, and Peihui Zhou contributed equally to this work.

All data generated or analyzed during this study are included in this article. Further inquiries can be directed to the corresponding author.
