Sodium Thiosulfate Ameliorates Renovascular Hypertension-Induced Renal Dysfunction and Injury in Rats Open Access

Hypertension is a major health problem associated with structural and functional modifications of the vasculature. Renovascular hypertension (RVHT) is one type of secondary hypertension due to the renal arterial stenosis-induced renin-angiotensin-aldosterone system (RAAS) activation, sodium/volume overload, and sympathetic nervous system excitation [1‒3]. The activation of RAAS is closely related to the progression and development of cardiovascular disease and chronic kidney disease [4]. Increased angiotensin II not only increases blood pressure but also produces reactive oxygen species (ROS) via the activation of NADPH oxidase [5]. Excessive ROS promotes the vasoconstriction and proliferation of vascular smooth muscle cells and induces endothelial cell dysfunction and inflammatory response in the vessel wall, which can cause heart or kidney dysfunction and injury [6]. On the other hand, exacerbated ROS generation from the mitochondria or other intracellular compartments may induce one type of programmed cell death, apoptosis, via the execution by Bax/Bcl-2/caspase/poly(ADP-ribose) polymerase (PARP) signaling leading to renal oxidative injury [7].

In translational medicine, the discovery of new drugs or new potential uses for currently available drugs is crucial for treating the resistant hypertension associated with renal artery stenosis. Sodium thiosulfate (STS), a major metabolite of H₂S, has been proven safe [8] for the treatment of calciphylaxis [9]. In addition, STS is suggested to be an antioxidant [9] and useful in case of cyanide poisoning [10] or cisplatin toxicity [11]. In clinical trials, vasodilating properties of STS itself have been reported in alleviating cerebral vasospasm [12] and hypertension and renal injury [13]. Moreover, direct evidence implicated that STS attenuates angiotensin II-induced hypertension, proteinuria, and renal damage [13] and ameliorates oxidative stress and preserves renal function in hyperoxaluric rats [14]. Oxidative stress plays a pathophysiologic role in hypertension and renal arterial stenosis. We therefore suggest that antioxidant and vasodilating STS could confer therapeutic potential in improving RVHT-induced hypertension and renal injury.

Several methods to induce hypertension with renal arterial constriction included 1-kidney 1-clip (1K1C), 2-kidney 1-clip (2K1C), and 2-kidney 2-clip (2K2C) methods [15]. 1K1C RVHT had a high mortality because of malignant hypertension, the 2K1C RVHT model was hard to induce hypertension, and the 2K2C RVHT model easily achieved hypertension with very few deaths as a result of acute renal failure [15]. Therefore, in this study, we employed the 2K2C RVHT rat model to explore STS’s protective effects and mechanisms on RVHT-induced systemic hypertension, kidney dysfunction, and oxidative damage. Moreover, we delineated the relationship between the beneficial role of STS and the antioxidant and antiapoptotic pathways in the hypertensive progression.

Male Wistar rats (200–250 g) were purchased from BioLASCO Taiwan Co. Ltd. (I-Lan, Taiwan) and housed at the Experimental Animal Center, National Taiwan Normal University, at a constant temperature and with a consistent light cycle (light from 07:00 to 18:00 h). The rats were fed standard chow (Laboratory Rodent Diet 5001 containing 0.4% sodium) and tap water ad libitum. All surgical and experimental procedures were approved by the Institutional Animal Care and Use Committee of National Taiwan Normal University (Approval No. 107026, September 26, 2018) and were in accordance with the guidelines of the National Science Council of Republic of China.

We adapted bilateral renal arterial partial ligation-induced RVHT in this study. Under 2.5% isoflurane (Panion & BF Biotech Inc., Taoyuan, Taiwan) anesthesia, RVHT was induced in the bilateral kidneys using a 2K2C method, as described by Zeng et al. [15]. In brief, under anesthesia, the median longitudinal incision on the abdominal skin was performed, and then the roots of both right and left renal arteries were constricted by placing ring-shaped silver clips with an inner diameter of 0.30 mm to induce hypertension. Under surgery of the induction of RVHT, the anesthetized rats were evaluated with the maintenance of deep anesthesia by the persistence of miotic pupils as judged from frequent inspection [16]. Body temperature was maintained at 37°C with a heat lamp. We also determined the renal arterial blood flow by placing the renal artery on a blood flow probe and connected to a transonic flow meter (T420; Transonic System Inc., Ithaca, NY, USA) and recorded on a Power Lab system (ML870 PowerLab 8/30; ADInstruments Pty Ltd, NSW, Australia). Renal arterial blood flow was continuously recorded during the baseline period and the clipping period 10 min for confirmation of the reduction in renal arterial blood flow. Similar surgery was also performed on sham rats including median longitudinal incision on the abdominal skin and isolation of bilateral renal arteries except the placement of silver clips on bilateral renal arteries. After RVHT induction and renal arterial blood flow measurement, all the rats were sutured and recovered.

After 8-week RVHT induction, these conscious 2K2C rats with systolic blood pressure higher than 140 mm Hg determined by tail‐cuff plethysmography (Blood Pressure Analysis System, BP-2000 SERIES II; Vistech Systems, Inc.) and without stroke symptoms were selected for further 4-week STS treatment experiment. We administered STS (Alfa Aesar, Lancashire, UK) at the dosage of 0.1 g/kg intraperitoneally 3 times per week for 4 weeks. The sham and RVHT groups were administered intraperitoneal saline. After 4-week STS treatment, under 2.5% isofluorane (Panion & BF Biotech Inc., Taoyuan, Taiwan), the left femoral artery of the anesthetized rats was catheterized with a PE-50 catheter connected with a pressure transducer to continuously record arterial blood pressure on the PowerLab system (ML870 PowerLab 8/30; ADInstruments Pty Ltd). After finishing physiologic parameter determination, the arterial blood was collected for renal functional determination. All the rats were then sacrificed with intravenous KCl. The 2 kidneys were resected and divided into 2 parts. One part was stored in 10% neutral buffered formalin for immunohistochemistry and in situ pathologic assay, and the other was quickly frozen in liquid nitrogen and stored at −70°C for protein isolation.

In the part one study, the scavenging ROS level of the different concentrations of STS was measured by the luminol-amplification chemiluminescence detection method as described previously [17]. In brief, 200 μL of freshly prepared STS solution (from 0.0001 to 0.2 g) was mixed with 0.5 mL of 0.1 mmol/L luminol (5-amino-2,3-dihydro-1,4-phthalazinedione; Sigma Chemical Co., St. Louis, MO, USA) and 0.1 mL of H₂O₂ (0.03%) and was analyzed with a chemiluminescence analyzing system (CLA-ID3; Tohoku Electronic Inc. Co., Sendai, Japan). The chemiluminescence signals emitted from the mixture of STS solution and luminol, which represented the hydrogen peroxide content in the mixture, were recorded. The enhanced chemiluminescent signals from the sample-luminol-H₂O₂ mixture were recorded for 300 s. The total chemiluminescent (CL) counts were calculated by the area under the curve.

In the part II study, 3 groups of rats (n = 6 in each group) were used for measurement of ROS in whole-blood samples. The blood samples (0.2 mL) from the left femoral artery were obtained. The blood samples were wrapped in aluminum foil and kept on ice until CL measurement. Immediately before CL measurement, 0.1 mL of phosphate-buffered saline (pH 7.4) was added to 0.2 mL of blood sample. The CL was measured in a completely dark chamber of the chemiluminescence analyzing system (CLA-ID3). After 100-s background level determination, 0.5 mL of 0.1 mmol/L luminol in phosphate-buffered saline (pH 7.4) was injected into the sample. The CL was monitored continuously for an additional 300 s. The total amount of CL was calculated by integrating of the area under the curve and subtracting it from the background level. The assay was performed in duplicate for each sample and was expressed as CL counts/10 s for blood CL.

The kidneys were ground to powder in liquid nitrogen, and then the powder was lysed in RIPA buffer (Bio Basic, Amherst, NY, USA) supplemented with protease inhibitor (Roche, Basel, Switzerland) for 10 min at 4°C. The detection of signals was done using Western Lightning Plus-ECL (PerkinElmer, Waltham, MA, USA). The expression levels of apoptosis-related proteins including Bcl-2, Bax, and PARP and 4-hydroxynonenal (4-HNE) were analyzed by Western blotting in kidney tissues. The Western blotting method has been described elsewhere [7]. Antibodies against 4-HNE (bs-6313R, 1:200; Bioss, Woburn, MA, USA), Bax (bs-0032R, 1:100; Bioss, Mass, USA), Bcl-2 (Transduction; Bluegrass-Lexington, KY, USA), PARP (#9532, 1:1,000; Cell Signaling Technology, Danvers, MA, USA), and β-actin (Sigma, St. Louis, MO, USA) were used. The density of the band with the appropriate molecular mass was determined semiquantitatively by densitometry using an image analyzing system (Alpha Innotech, San Leandro, CA, USA).

Secondary antibodies included horseradish peroxidase (HRP)-conjugated goat anti-mouse IgG, HRP-conjugated rabbit anti-goat IgG, and HRP-conjugated goat anti-rabbit IgG (all for 1:10,000; all from Southern Biotech Laboratories, Birmingham, AL, USA). For the quantitative comparison of the protein expression levels, intensities of specific bands corresponding to the proteins of interest were measured using densitometry analysis.

Tissue samples were fixed in 4% paraformaldehyde and embedded in paraffin. Then, 4-μm sections were obtained and stained with hematoxylin and eosin.

To examine the effect of STS on RVHT kidneys, several oxidative stress parameters, 4-HNE (ab46545; Abcam, UK), proapoptotic Bax (ab32503; Abcam, UK), antiapoptotic Bcl-2 (3498; Cell Signaling, USA), and PARP (9542; Cell Signaling, USA), and terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL assay) were performed to investigate the presence and extent of lipid peroxidation and apoptosis formation in RVHT kidneys. The technique has been reported previously [7]. In brief, renal sections (4 μm) were prepared, deparaffinised, and stained with hematoxylin and eosin, Bax, Bcl-2, and PARP stain. A biotinylated secondary antibody (Dako, Botany, NSW, Australia) was then applied followed by streptavidin conjugated to HRP (Dako). The chromogen used was Dako liquid diaminobenzene. Twenty high-power (×400) fields were randomly selected for each section, and the value of each oxidative stress was analyzed using Sonix Image Setup (Sonix Technology Co., Ltd., Hinschu, Taiwan, ROC) containing image analyzing software Carl Zeiss AxioVision Rel.4.8.2 (Future Optics Sci. & Tech. Co., Ltd., Hangzhou, China). The apoptotic index was calculated as the number of TUNEL-positive nuclei per high-power field (×400).

We evaluated the STS effect on urinary protein, BUN, and Cr in these 3 groups of animals. Urine was directly obtained from the urinary bladder of the anesthetized rats for urinary protein determination by a BCA protein assay kit (Bio-Rad, Hercules, CA, USA). Arterial blood was collected for ROS determination and renal function determination (BUN and Cr).

All values were expressed as mean ± standard error mean. Data were subjected to 1-way analysis of variance, followed by Duncan’s multiple-range test for assessment of the difference among groups. Differences within groups were evaluated by the paired t test. Differences were regarded as significant if p < 0.05 was attained. Statistical analyses were performed using SPSS 18.0 statistics software (IBM Corp., Armonk, NY, USA).

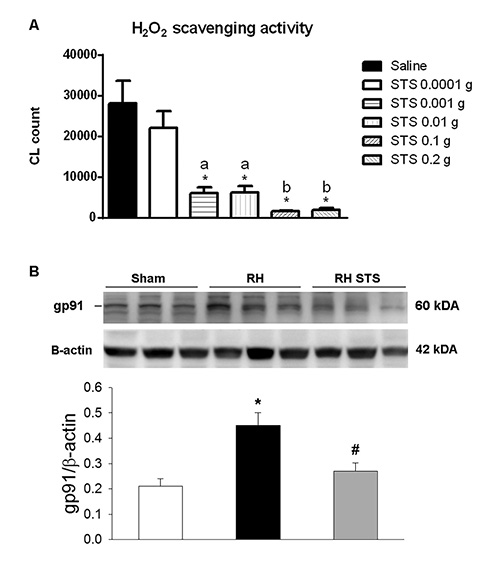

As shown in Figure 1A, STS dose-dependently and significantly reduced H₂O₂ amount. Our data further displayed that STS displays a maximal scavenging H₂O₂ effect at the dosage of 0.1 g, which is a safe dose <0.25 g/kg for human clinical trial. Therefore, we used the dosage of 0.1 g/kg of STS in this study. We explored the STS effect on renal NADPH oxidase gp91, a superoxide anion-producing enzyme, expression in the sham, RVHT, and RVHT STS groups. Our results showed that RVHT significantly enhanced NADPH oxidase gp91 in the RVHT and RVHT STS kidneys (Fig. 1B). However, STS treatment significantly reduced gp91 expression in the RVHT STS kidneys versus that in the RVHT kidneys.

As shown in Figure 2A and B, we determined the right and left renal arterial blood flow in response to bilateral renal arterial partial ligation in the anesthetized rats with a renal arterial flow probe. The left or right renal arterial blood flow was significantly decreased to a half value of the renal blood flow after partial ligation. After 8 weeks of the 2K2C model, the systemic arterial blood pressure was significantly increased to 220 mm Hg in the RVHT rats as compared to the 120 mm Hg of arterial blood pressure in the control rats (Fig. 2C). The level of arterial blood pressure in RVHT rats was 188.9% of the sham controls (the change was increased by 89.9% from the sham original) and that in RVHT STS rats was 171.2% of the sham controls (the change was increased by 71.2% from the sham original). In comparison with the arterial blood pressure of the sham controls, the difference of increased arterial blood pressure level between RVHT and RVHT STS rats calculated in percent points was 17.7%. A decreased arterial blood pressure degree by STS treatment is not very much.

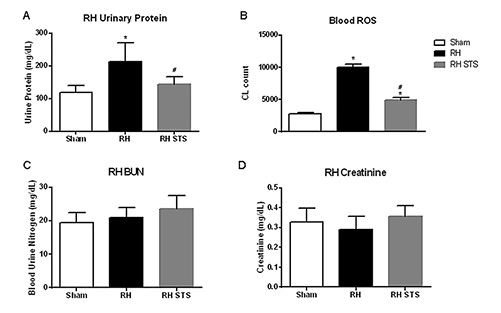

We explored the STS effect on RVHT-induced renal dysfunction including urinary protein, BUN, and Cr in this study. As shown in Figure 3A, the level of urinary protein was only significantly increased by 79.7% in RVHT rats versus sham controls. The urinary protein level was not significantly increased between STS-treated RVHT rats and sham controls. However, STS significantly depressed the elevated urinary protein level by 36.9% as compared to RVHT rats. Our RVHT model did not significantly affect the level of BUN (Fig. 3C) and Cr (Fig. 3D), and STS had no effect on the BUN and Cr levels in RVHT rats.

We used the ultrasensitive chemiluminescence amplification technique to determine the blood ROS amount in these animals. As shown in Figure 3B, the blood ROS amount was significantly (p < 0.05) increased in the RVHT rats (9,990 ± 517 counts/10 s) as compared to the sham rats (2,809 ± 132 counts/10 s). STS-treated RVHT rats displayed a significantly depressed blood ROS amount (4,959 ± 326 counts/10 s) as compared to that of RVHT rats (9,990 ± 517 counts/10 s). The blood ROS level was increased by 255% in RVHT rats, and STS efficiently depressed the increased blood ROS to 50.4% in the RVHT STS rats.

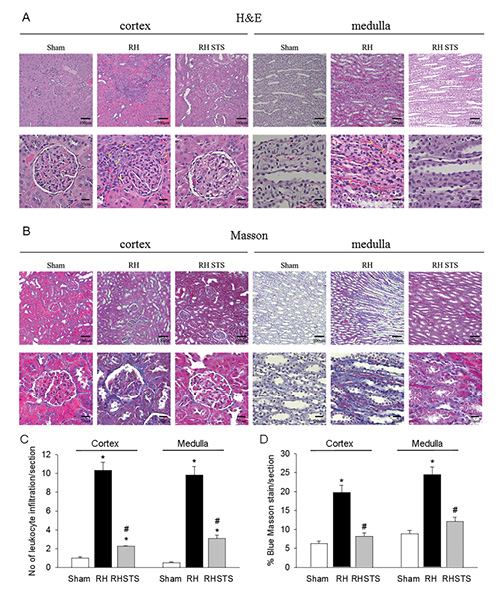

We examined the leukocyte infiltration in the cortex and medulla of these 3 groups of rats. In the sham rats, there were few leukocyte infiltrations in the cortex and medulla (Fig. 4A). In the RVHT kidneys, there were markedly increased leukocytes infiltrated in the cortex and medulla. In the STS-treated RVHT kidneys, the infiltrated leukocytes were significantly (p < 0.05) reduced as compared to RVHT kidneys (Fig. 4C).

To explore the STS effect on renal fibrosis in the RVHT kidneys, we used Masson stain to determine the blue collagen deposits in these rats. As shown in Figure 4B, blue Masson stain was markedly found in the cortex and medulla of the RVHT kidneys as compared to sham kidneys. STS treatment significantly (p < 0.05) reduced blue Masson stain in the cortex and medulla versus RVHT kidneys (Fig. 4D).

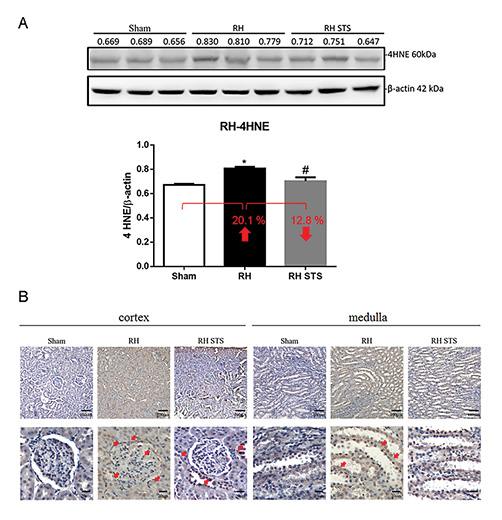

We determined the STS effect on renal 4-HNE expression in RVHT kidneys by Western blot and immunohistochemistry. Our data showed that RVHT injury significantly enhanced renal 4-HNE (increased by 20.1%) expression, a lipid peroxidation biomarker, as compared to that in sham kidneys (Fig. 5A). STS treatment significantly depressed renal 4-HNE expression by 12.8% in RVHT with the STS group versus the RVHT group. The data from immunohistochemistry also displayed an increase in brown 4-HNE expression in the cortex including glomeruli and tubules and in the medulla of renal distal tubules in the RVHT kidneys as compared to sham kidneys (Fig. 5B). STS treatment efficiently reduced brown 4-HNE expression in both the cortex and medulla (renal tubules and glomeruli) in the RVHT with STS kidneys versus RVHT kidneys.

We determined the effect of STS on RVHT-evoked apoptosis formation in the kidneys by Western blot and immunohistochemistry. Our data showed that the renal Bax expression was significantly (p < 0.05) increased in RVHT kidneys as compared to sham kidneys (Fig. 6A). STS treatment significantly reduced the Bax expression between the RVHT and RVHT STS groups. However, the renal Bcl-2 expression was not significantly different among the sham, RVHT, and RVHT STS groups. We used the Bax/Bcl-2 ratio to examine the possibly apoptotic mechanisms in the damaged kidneys. Our data found that the ratio of Bax/Bcl-2 was increased by 49.9% in the RVHT group versus the sham group. STS treatment significantly attenuated the increased Bax/Bcl-2 ratio by 30% in the RVHT STS group versus the RVHT group. The renal Bax immunohistochemistry (Fig. 6B) also displayed a consistent finding with the Western blot data.

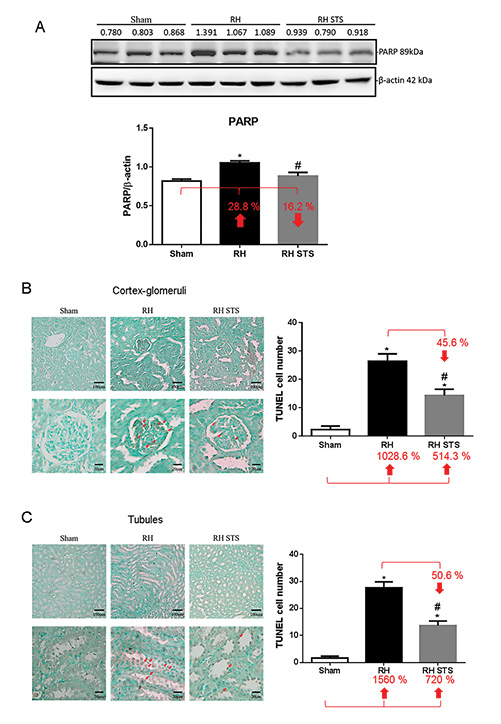

We further examined the effect of STS on RVHT-evoked PARP expression by Western blot and TUNEL immunohistochemistry. Our data showed that the renal PARP expression was significantly (p < 0.05) increased by 28.8% in the RVHT group as compared to the sham group (Fig. 7A). STS also significantly depressed PARP expression by 16.2% in RVHT STS kidneys as compared to RVHT kidneys. We further examined the renal TUNEL immunohistochemistry in the cortex (Fig. 7B) and medulla (Fig. 7C). These data showed a significant increase in TUNEL-positive stain cells in the cortex (1,028.6% increase in the RVHT group vs. the sham group) and medulla (1,560% increase in the RVHT group vs. the sham group), respectively. RVHT STS kidneys also demonstrated a significant increase in TUNEL apoptosis-positive stain cells in the cortex (514.3% increase in the RVHT STS group vs. the sham group) and medulla (720% increase in the RVHT STS group vs. the sham group). However, as compared to RVHT kidneys, STS significantly decreased TUNEL apoptosis-positive stain cells in the cortex (45.6% decrease in the RVHT STS group vs. the RVHT group) and medulla (50.6% decrease in the RVHT STS group vs. the RVHT group) in the RVHT STS kidneys.

RVHT is commonly used as an experimental model for the study of hypertension. There are many different methods to induce hypertension with renal arterial constriction, for example, 1K1C, 2K1C, and 2K2C methods [15]. This study was designed to utilize the 2K2C rat model developed as a model of RVHT through the activation of the RAAS system, sodium/volume overload, and sympathetic nervous system excitation [1‒3]. A previous study has found that 1K1C RVHT had high mortality rate [18], whereas in the 2K1C RVHT model, the development of arterial blood pressure is relatively low and hard to achieve hypertension [19]. However, in the 2K2C RVHT model, there are 2 silver clips and 2 remaining kidneys in each rat, so the deficiency inherent in the 1-clip method can be avoided, and the expected high BP is easy to achieve in the 2K2C model with very few or no deaths as a result of acute renal failure [15]. The intention was to determine whether traditionally used STS might ameliorate RVHT-induced hypertension and renal oxidative damage by antihypertensive, antioxidant, and antiapoptotic action. Our data support the hypothesis that STS treatment could attenuate hypertension, renal oxidative stress, fibrosis, and apoptosis formation in our 2K2C RVHT model.

ROS are produced by the aerobic metabolism. The imbalance between production of ROS and antioxidant defense in any cell compartment is associated with cell damage and may play an important role in the pathogenesis of renal disease. NADPH oxidase family is the major ROS source in the vasculature and modulates renal perfusion. Elevation of angiotensin II and adenosine activates NADPH oxidase via angiotensin II type 1 receptors and adenosine adenosine 1 receptors in renal microvessels, leading to superoxide production [20]. Oxidative stress in the kidney prompts renal vascular remodeling and increases preglomerular resistance leading to hypertension and acute and chronic kidney injury. ROS increase in hypertension results in upregulation of renal afferent arteriole vasoconstriction, enhancement of myogenic responses, and change of tubuloglomerular feedback, which further promotes hypertension and nephropathy [20]. Yildirim et al. [21] implicated leukocyte-associated angiotensin type 1 receptor and NADPH oxidase gp91(phox) in the induction of the pro-oxidative, proinflammatory, and prothrombogenic phenotype assumed by microvessels that are chronically exposed to elevated angiotensin II. Our data in the 2K2C RVHT model also demonstrated the significant elevation of NADPH oxidase gp91 and 4-HNE in the cortex and medulla in the RVHT kidneys implicating the increased oxidative stress in the damaged kidneys. Our results provided further important information that STS has direct scavenging ROS activity and suppressed NADPH oxiase gp91 activity and 4-HNE lipid peroxidation in both the cortex and medulla, as shown in Figure 1. Inhibition of NADPH oxidase reduces fibronectin expression in stroke-prone renovascular hypertensive rat brain in one previous report [22], implicating the possible role of STS on inhibition of fibrosis. Our data also informed that the antioxidant, antiapoptotic, and antifibrotic effects of STS seem to confer more locally renal protection in reducing proteinuria than in reducing systematically arterial blood pressure levels. Because a less leukocyte infiltration, NADPH oxidase gp91 and 4-HNE expression, and fibrosis were demonstrated in the renal cortex and medulla with RVHT injury, we suggest that STS exerts more therapeutic potential on the decrease of kidney injury than that of hypertension. Therefore, the antioxidant STS may have an antioxidant effect on reduction in angiotensin II/angiotensin type 1 receptor/NADPH oxidase gp91 (phox) signaling-mediated ROS production, vasoconstriction, inflammation, and fibrosis in the RVHT 2K2C model.

STS has been reported effective in treating calciphylaxis [9, 23], cyanide poisoning [10], cisplatin toxicity [11, 24], cerebral vasospasm [12], hypertension, and renal injury [13]. However, possible adverse effects of STS have been mentioned. Intravenous STS appeared to be the most common and acceptable mode of administration. However, patients with intravenous STS appeared to be more prone to sepsis (20%) [25]. In addition, intravenous STS can lead to changes in osmotic pressure, followed by the release of H ions, resulting in acidosis [26]. Previous literature also suggested that intraperitoneal injection of STS was a cause of chemical peritonitis [25, 27]. Several reports stated that STS via the pre-conditioning or post-conditioning method was protective against rat heart ischemia/reperfusion-induced apoptosis and oxidative stress [28, 29]. Shirozu et al. [30] indicated that administration of STS prevents acute inflammatory liver failure by augmenting thiosulfate levels and upregulating antioxidant and antiapoptotic defense in the liver. According to our survey, the exact role of STS on reduction of RVHT-induced renal apoptosis has not been clearly explored. In the present study, we found that STS can reduce RVHT-induced blood ROS amount, renal NADPH oxidase gp91, 4-HNE expression, Bax and PARP expression, and subsequent apoptosis production in the impaired kidneys, implicating STS reducing the proapoptosis-related mechanism by inhibiting the Bax/caspase 3/PARP signaling pathway. Based on the above information, STS has a wide range of protection against oxidative stress-evoked apoptosis induction in the heart, liver, and kidney.

A drug that is administered intravenously can be used only in several situations in human medicine. In an acute situation, STS does not decrease blood pressure enough in our results. Target organ damage needs more time to develop; therefore, STS cannot be used for prevention. In a chronic situation when no other options are available, it is vital to achieve improvement in the patients. This is also not true for high blood pressure as there are many drugs more suitable for treatment of hypertension and target organ damage. The dosage, the administered route, or the duration of STS treatment should be determined in the future. However, STS may have a protective potential effect against oxidative stress-evoked oxidative injury via oral administration or other pathways, which should be explored in the future.

In summary, STS treatment can mildly counteract RVHT-induced hypertension and renal injury by its antioxidant, anti-inflammatory, antifibrotic, and antiapoptotic mechanisms. Treatment of STS may partly attenuate RVHT-induced oxidative stress via the depression of angiotensin II/angiotensin type 1 receptor/NADPH oxidase gp91/ROS signaling and inhibition of Bax/caspase 3/PARP-mediated apoptosis in the kidneys.

All surgical and experimental procedures were approved by the Institutional Animal Care and Use Committee of National Taiwan Normal University (Approval No. 107026, September 26, 2018) and were in accordance with the guidelines of the National Science Council of Republic of China.

The authors declare that they have no conflicts of interest.

This work was partly supported by MOST-102-2320-B-003-001-MY3 (Dr. Chiang-Ting Chien) and partly by a research fund of the Taipei Hospital (Dr. San-Chi Lin).

P.-L.C., Y.-S.C., S.-C.L., and C.-T.C. fulfilled substantial contributions to conception and design. P.-L.C., Y.-S.C., S.-D.C., and C.-T.C. drafted and revised the article critically for important intellectual content. P.-L.C., S.-C.L., and C.-T.C. finally approved the manuscript to be published. P.-L.C. and Y.-S.C. contributed equally to the first author. S.-C.L. and C.-T.C. contributed equally to the corresponding author.

The analyzed data sets generated during the study are available from the corresponding author on reasonable request.
