Analysis of Innate and Adaptive Immunological Characteristics in Patients with IgG4-Related Disease Open Access

Immunoglobulin G4-related disease (IgG4-RD) is a systemic immunological disorder characterized by fibro-inflammatory conditions that can involve almost any organ [1]. In the early stage of its discovery, IgG4-RD was considered as a subtype of Sjögren's syndrome [2]; however, apoptosis of acinar and ductal cells was not observed and serum IgG4 levels were high in IgG4-RD patients. Therefore, IgG4-RD was classified as a disease distinguishing Sjögren’s syndrome clinically and histopathologically [3]. Although the pathobiology of IgG4-RD has not been fully characterized, previous studies confirmed that CD4⁺ cytotoxic T cells are clonally expanded into diseased tissues, and tissue fibrosis occurs due to excess production of type 2 cytokine (IL-4, IL-5, and IL-13) and regulatory cytokines (IL-10 and TGF-β) [4, 5]. Along with these changes, follicular helper T (Tfh) cells, regulatory T cells (Treg), and plasma cells are increased in IgG4-RD, and their cross-talk induces IgG4 productions from plasma cells [6, 7].

Glucocorticoids are regarded as highly effective agents for the exertion of disease control in IgG4-RD. However, the discovery of expanded plasmablasts in patients with IgG4-RD and their correlation with disease activity leads to the use of rituximab (RTX, anti-CD20 antibody) on IgG4-RD [8]. Although the effects of RTX are generally observed rapidly, with symptomatic improvement, there has been little knowledge about the populations of circulating immune cells in patients with IgG4-RD and the effect of RTX on these populations. In this study, we aimed to (i) measure the changes in the innate and adaptive immune responses in IgG4-RD patient compared to healthy controls and (ii) compared the changes in the innate and adaptive immune cells before and after the RTX treatment.

IgG4-RD was defined according to the consensus statements from a multinational, multidisciplinary group of experts on IgG4-RD [9]. Blood samples from seven IgG4-RD patients were collected at the time of diagnosis and re-collected from three patients who were in the asymptomatic state two months after RTX treatment. Nine blood samples were collected from sex- and age-matched healthy controls. Institutional review board approval was obtained for this study (IRB No. 1908-117-1056) at Seoul National University Hospital.

Peripheral blood mononuclear cells were isolated and stained by mononuclear antibodies to analyze the changes of immune cells. To analyze cytokine productions, peripheral blood mononuclear cells were stimulated by phorbol 12-myristate 13-acetate and ionomycin or LPS in vitro. Stained immune cells were analyzed by BD LSRFortessa^TMLSRII and BD LSRFortessa^TM X-20. Detailed materials and methods are available in online suppl. Materials and Methods; for all online suppl. material, see www.karger.com/doi/10.1159/000508699.

All statistical analysis was performed using GraphPad Prism7 (GraphPad Software, CA, San Jose, USA). The determination of normality of data was based on Shapiro-Wilk test. Two unpaired groups were compared using 2-tailed Student’s t test for parametric measure or Mann-Whitney test for nonparametric measures. Wilcoxon matched-pairs signed rank test were used to compare of 2 paired groups. Values of measurements represent as mean ± SD. p value <0.05 was considered statistically significant.

To investigate immunological changes in patients with IgG4-RD, blood samples were collected from 16 subjects (Nine healthy controls and seven IgG4-RD patients) (online suppl. Table 1). Initially, seven blood samples were drawn from the IgG4-RD patients at the time of diagnosis. Among seven IgG4-RD patients, three blood samples were re-collected two months after the administration of two doses of RTX (1,000 mg each) combined with methylprednisolone (40 mg).

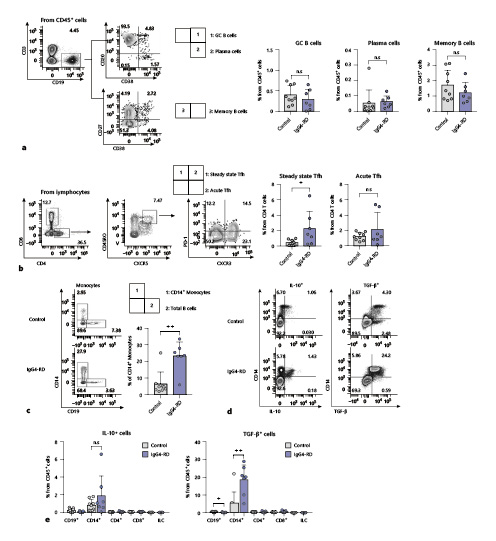

The percentage of circulating B cell subsets, including plasma cells, germinal center (GC) B cells, and memory B cells, showed similar frequencies between IgG4-RD patients and healthy controls (Fig. 1a). However, steady-state Tfh cells were significantly increased in patients with IgG4-RD. Although IgG4-RD patients and healthy controls showed no difference in the population of CD4 and CD8 T cells (online suppl. Figs. 1a, 2a), their IFNγ productions were increased in IgG4-RD patients (online suppl. Figs. 1b, c, 2b, c). Besides adaptive immune cells, innate immune cells, including innate lymphoid cells and monocytes, were also analyzed. The frequency of innate lymphoid cells (online suppl. Fig. 3a) and most of their cytokine productions (online suppl. Fig. 3b, c) were comparable to healthy control and patients with IgG4-RD. Instead, CD14⁺ monocytes were significantly increased in IgG4-RD patients (Fig. 1c).

Since storiform fibrosis is one of the major features of IgG4-RD, changes in IL-10 and TGF-β productions, known as cytokines for fibrosis induction, from circulating blood immune cells were analyzed. The levels of TGF-β were augmented in IgG4-RD patients (Fig. 1d), and we noted CD14⁺ monocytes were the predominant source of TGF-β (Fig. 1d, e). Although Treg and Tfh cells are known to produce IL-10 and TGF-β in local tissue of IgG4-RD, our data showed that circulating CD14⁺ monocytes produce more IL-10 and TGF-β than CD4⁺ T cells and CD19⁺ B cells (Fig. 1e). To determine which subsets of monocyte is associated with increased TGF-β productions from different monocyte in the IgG4-RD patients and healthy controls, monocytes were subclassified by CD14 and CD16 expressions (online suppl. Fig. 4a). Classical monocytes (CD14⁺⁺CD16⁻) constituted the major population (26–67%) of circu-lating monocytes (online suppl. Fig. 4b) and were predominantly increased in the IgG4-RD patients compared to controls (online suppl. Fig. 4b). However, there was no significant increase in the proportion of intermediate (CD14⁺⁺CD16⁺) and nonclassical (CD14⁺CD16⁺) monocytes compared to healthy controls (online suppl. Fig. 4b).

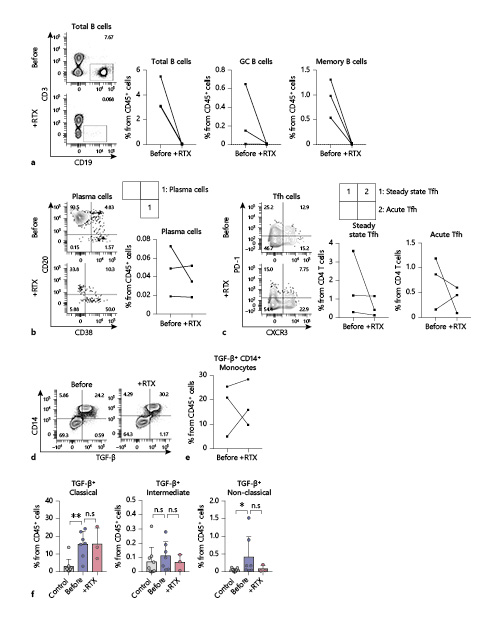

Next, the changes in immune cells by RTX treatment was validated in IgG4-RD patients. First, the plasma cells, Tfh cells, and monocyte populations were compared before and after RTX treatment. RTX treatment effectively eliminated the total B cells, GC B cells, and memory B cell subsets (Fig. 2a), but the number of plasma cells, which secrete large quantities of antibody, remained after RTX treatment (Fig. 2b). Moreover, Tfh cells (Fig. 2c) and CD14⁺ monocytes (Fig. 2d) were not significantly changed by RTX treatment. Second, we determined TGF-β production from CD14⁺ monocytes and found that the level of TGF-β was not affected by RTX treatment (Fig. 2d, e). Among CD14⁺ monocytes, classical monocytes secreted TGF-β dominantly, and they were not affected by RTX treatment (Fig. 2f). Those data showed that RTX therapy effectively eliminated pan-B cells; however, there were remaining Tfh cells and TGF-β in the blood from IgG4-RD, suggesting that these cells might be risk factors for sustaining inflammation.

Here, we analyzed the innate and adaptive immunological changes in IgG4-RD patients. We found a significant increase in the number of Tfh cells and CD14⁺ monocytes in patients with IgG4-RD. Moreover, the frequencies of plasma cells, Tfh cells, and CD14⁺ monocytes were not changed even after RTX treatment. RTX treatment was expected to cause direct depletion of circulating and tissue-resident B cells, thereby eliminating the progenitor to the plasma cells; however, we found that antibody-secreting cells, plasma cells, remained intact. Also, Tfh cells, that associated with B cell survivals and plasma cell generations, remained unchanged. Although B cell depletion appears to be an effective treatment strategy for IgG4-RD, the assessment of disease activity following treatment and appropriate timing of re-treatment remains challenging.

TGF-β is a well-known cytokine that regulates immune responses and induces fibrosis by activating fibroblasts. In IgG4-RD pathophysiology, systemic fibrotic inflammation is a critical characteristic of IgG4-RD. Several studies had shown that increased IL-10 and TGF-β secretion from Treg and Tfh cells in the inflamed lesions [4]. However, we found that circulating CD14⁺ monocyte produce TGF-β much more than any other immune cells. Besides, RTX treatment did not alter TGF-β production from CD14⁺ monocytes. Since the fibrotic features are unlikely to respond to the currently available therapies, specially designed therapies are urgently needed to address fibrosis problems.

IgG4-RD is an inflammatory and fibrotic state involving innate and adaptive immune cells. Unfortunately, a large proportion of patients with IgG4-RD have relative contraindications to long-term glucocorticoid treatment, even at moderate to low doses. A better understanding of the pathophysiology of IgG4-RD may lead to a variety of exciting mechanism-based therapies, including the possibility of modulating TGF-β-producing monocytes and Tfh cells.

Written informed consent was obtained from the subjects. Institutional review board approval was obtained for this study (IRB No. 1908-117-1056) at Seoul National University Hospital.

The authors have no conflicts of interest to declare.

This work was supported by Research Resettlement Fund for the new faculty of Seoul National University. This work was supported by the Korea Healthcare Technology R&D Project, Ministry of Health and Welfare, Korea (HI15C1736), and the National Research Foundation of Korea (SRC 2017R1A5A1014560).

Hye Young Kim and Hye-Ryun Kang conducted and supervised the manuscript development, Jongho Ham analyzed immune cell populations and statistical processing of the results, Kyoung-Hee Sohn and Soo Jie Chung recruited subjects and collected peripheral blood samples, and Hye Young Kim and Hye-Ryun Kang designed the conceptual framework of the present research.

K.-H.S. and J.H. contributed equally to this work.Edited by: O. Palomares, Madrid.
