Familial Kidney Disease Phenocopying Hypertensive Nephropathy Open Access

The Eastern Mediterranean has the highest incidence of kidney failure, as reported to the European Renal Association (ERA-EDTA) by Greece, Israel, and Greek Cypriots [1]. We have previously reported a high incidence of renal failure and familial kidney disease in northern Cyprus among Turkish Cypriots, where the incidence was 2–3 times greater than that reported in northwestern Europe by the UK, Norway, Finland, and Denmark [2].

Our investigation of Greek Cypriots with familial kidney disease has shown that the majority of patients have either hematuric nephropathy, often accompanied by significant proteinuria (termed here the “glomerular phenotype”), associated with heterozygosity for pathogenic rare variants within the COL4A3, COL4A4, or CFHR5 genes [3‒6], or a tubulointerstitial phenotype (that is, CKD in the absence of hematuria or glomerular proteinuria) typically associated with pathogenic rare variants in the PKD1, PKD2, MUC1, or UMOD genes [7]. We investigated 55 Turkish Cypriot families with evidence of CKD in at least two generations in whom we suspected pathogenic variants in COL4A3 and COL4A4.

Cyprus is the third largest island in the Mediterranean inhabited by a majority of Greek Cypriot population, with the largest minority (approximately 18%) Turkish Cypriot. Genetic studies indicate that Greek and Turkish Cypriots have similar origins with close affinities to southeastern Anatolia and the Near East [8‒10]. Turkish Cypriots are currently centered on the northern part of Cyprus. A 2006 census of the Turkish Cypriot population revealed that of 178,031 de jure citizens, 120,007 were born to parents who were both born in Cyprus [11].

The study was conducted at Dr. Burhan Nalbantoglu Nicosia State Hospital in northern Cyprus, a multispecialty tertiary care hospital that provides renal services to all of northern Cyprus. Family trees were created for families with 2 or more members with evidence of CKD [12] (shown in Figure 1a–e). Families were contacted and were either visited in their villages or at the hospital. The requirement for the use of family names (surnames) was introduced only in 1974. Families of 10 children were common until the 1970s.

DNA extractions were carried out using the PureLinkTM Genomic DNA Mini Kit (Invitrogen, Carlsbad, CA, USA) according to the manufacturer’s procedure. All DNA samples were quantified using a Qubit 2.0 fluorometer (Invitrogen, Thermo Fisher Scientific) and a Qubit dsDNA HS Assay Kit (Invitrogen, Carlsbad, CA, USA).

The index patients from a total of 55 families underwent NGS, which included parallel analysis of a 5-gene panel containing COL4A3, COL4A4, COL4A5, CFHR5, and FN1 as previously described [6]. Twenty-two patients had previously undergone whole-exome sequencing (WES). WES analysis was performed as we previously described [13]. See Supplementary material (for all online suppl. material, see https://doi.org/10.1159/000546094) for PCR methodology (and online suppl. Fig. S1).

The upper limit of normal for creatinine in men was 97 µmol/L, for women 80 µmol/L, and for blood urea nitrogen 7.1 mmol/L. Kidney function (eGFR) was reported by the MDRD formula.

Proteinuria was initially measured by 24-h urine collection, and a normal status was defined as a protein concentration <140 mg/day and an albumin concentration <30 mg/day. More recently, proteinuria has also been measured as the protein and albumin/creatinine ratio (Uacr <30 mg/mg and Upcr <200 mg/mg).

Hematuria was investigated historically by urine microscopy and more recently by urine dipstick tests. Hematuria was deemed positive and equivalent to “a trace” on a dipstick if there were 3–4 red blood cells per high-power field.

Kidney biopsies were performed in two families. Biopsy specimens were routinely examined by light microscopy and immunofluorescence, and in 1 case electron microscopy data were available.

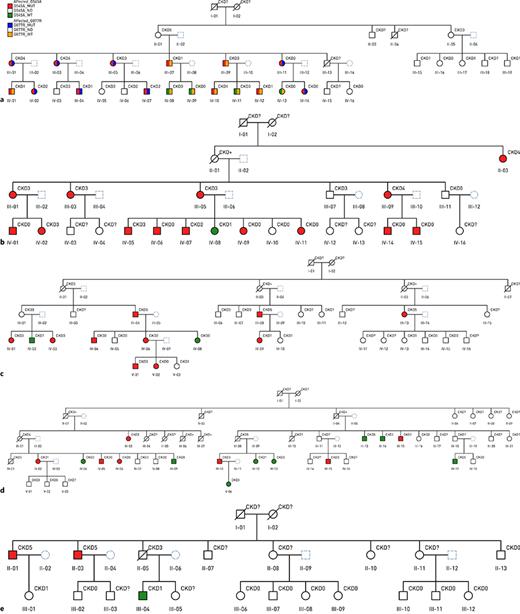

CKD staging as shown in the family trees (Fig. 1a–e: stage 0, no evidence of kidney disease; stage 1, eGFR>90 and microscopic hematuria; stage 2, eGFR 60–89 mL/min, microscopic hematuria, and/or Uacr >30 mg/mg; stage 3, eGFR in the range of 59–30 mL/min; stage 4, eGFR 29–15; and stage 5, kidney failure. The diagnostic criteria were based on KDIGO guidelines [12].

After we observed the COL4A4 p.G545A variant in our sequencing results, we tested 54 members of our 5 families. We also tested at least 1 member from 85 families with some evidence of a glomerular phenotype (at least 1 person with hematuria or proteinuria) for p.G545A. Twelve families (14%) had a member with this variant. As controls, we examined a total of 172 unrelated healthy volunteers.

Genotype and allele frequencies for both p.G545A and the wild type were calculated via the genotype counting method. The observed and expected genotype frequencies for both alleles were compared according to the Hardy-Weinberg equilibrium by using controls and the chi-square test (2-tailed test). Comparison of allele frequency in the replication cohort was compared to that among healthy controls using Fisher’s exact test (two-tailed).

Likely pathogenic variants in COL4A3/4/5 were identified in 7 of the 55 families initially investigated (COL4A3 (3), COL4A4 (2), and COL4A5 (2)), leaving 48 unsolved families. COL4A4:p.G545A was found in 5 of 55 families investigated by DNA sequencing (9.1%). Subsequently, we examined a replication set of 85 families with evidence of familial kidney disease most likely with a glomerular phenotype (at least 1 person with hematuria or proteinuria) and found 12 families (14%) with the p.G545A variant.

In one of the 5 families, we also found a pathogenic variant COL4A3:p.G877R (family 1a). Excluding those patients carrying the variant p.G877R, we investigated 54 available members from these 5 families for the p.G545A variant, and the minor allele frequency was 35% (χ² = 10, p = 0.001).

Affected individuals were assigned to CKD stages 1–5. We found that the variant p.G545A cosegregated with kidney disease more frequently than expected based on random transmission (p value = 0.000748, Table 1). As controls, a total of 172 unrelated healthy volunteers, with a mean age of 56 years were investigated for the p.G545A variant, which was present in 4 (2.3%) of individuals in this cohort, similar to the gnomAD allele frequency. Hardy Weinberg Equilibrium χ² was 0.07 (p = 0.78). COL4A4:p.G545A was therefore, significantly enriched among the families in the validation cohort compared with healthy individuals from the Turkish Cypriot population (p = 0.0005).

In the 5 families, 66 members were affected with CKD stages 1–5; a further 38 were unaffected (CKD 0); and no information available in 41 members. The clinical data from these 5 families are summarized in Table 2 and by family trees (shown in Fig. 1a–e). Genetic and clinical data are available from 54 members.

Of the affected members: mildly raised blood pressure was universal and was easily controlled with 1–2 drugs. There was no case of accelerated hypertension considered relevant to deteriorating kidney function. Hematuria could be intermittent or absent. Among the 46 people whose urine was tested on one or more occasions, 34 had a positive result at least once (74%). We found that the proteinuria test was 0–1+ according to a dipstick test until the eGFR was less than 30 mL/min. Proteinuria versus eGFR is shown in Figure 2, documenting the observation that proteinuria was not greater than 1 g/d until the eGFR was less than 30 mL/min. We noted that for proteinuria (more than 140 mg/d) in patients with an eGFR >50 mL/min, approximately 50% of the urine protein was albumin, and this percentage increased to 80–90% when the proteinuria exceeded 2.0 g/d with eGFR values less than 30 mL/min.

The age of onset of CKD and ESKD in the 5 families is shown in Table 2. The median age of the 38 patients with a GFR <60 mL/min at first detection was 61 years (range 34–84). Among family members with clinical evidence of renal disease and aged older than 50 years, 19.6% had progressed to ESKD at a median age of 66 years (range 48–80 years).

Histology was performed for 2 families and revealed tubulointerstitial disease with interstitial fibrosis, tubular atrophy and extensive global glomerular sclerosis, with some glomeruli exhibiting segmental sclerosis. On one of the biopsies, electron microscopy was performed and showed patchy thinning of the glomerular basement membrane measured at 159 nm (a value less than 260 nm is diagnostic for thin glomerular basement membranes). In one family, a 52-year-old female developed nephrotic syndrome, and a renal biopsy showed membranous nephropathy (see Fig. 1. C, IV-01). She is now in remission following a course of immunosuppression. Her data are not included in Table 2.

In Cyprus, diabetes mellitus is very common, and we have not specifically evaluated this topic in these families. The data recorded show that of the 65 family members over the age of 50 years with clinical information available, 40% with no renal disease (stage 0) had diabetes, and 40% with stage 1–5 disease were diabetic. Neither hearing loss nor eye problems were reported as a familial trait in any family studied, and screening for these traits was not performed.

In one of the five families (shown in Fig. 1a), DNA sequencing identified a second novel variant, COL4A3:p.G877R (c.2629G>A) that is classified as likely pathogenic strong by Varsome. CKD stages 3–4 were present in 4 patients with both variants, and CKD stage 3 was present once in a patient with only the p.G545A variant. In the latter case, there was no proteinuria despite an eGFR of 50 mL/min. In the former, all had proteinuria, but the maximum was 1.2 g/day with an eGFR of 20 mL/min.

While investigating families with autosomal dominant (AD) kidney disease presumed to be owing to mutations in COL4A3/4/5 genes (Alport spectrum nephropathy), we found that a subset of families had a clinical presentation that was characteristic of hypertensive nephropathy [14, 15]. This was first noted when we reviewed our original 55 samples that had undergone NGS for COL4A3/4/5 and found 5 families with the common variant COL4A:p.G545A, who all had this clinical phenotype.

The large number of people affected in these 5 families has allowed us to perform a detailed analysis of the natural history of this kidney disease, which is indolent and asymptomatic until the disease is advanced and it constitutes an important cause of ESKD, usually in the seventh decade of life.

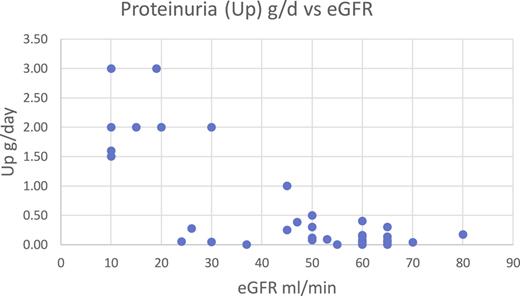

Among the initial 5 families investigated with 66 members with clinical evidence of renal disease, we observed the following: mild hypertension, little or no proteinuria until the eGFR <30 mL/min (shown in Fig. 2), variable microscopic hematuria, and kidney failure occurred in 20% of those affected who are aged >50 years.

These families often fulfilled the clinical KDIGO criteria for AD tubulointerstitial disease, which include CKD with bland urinary sediment, no to moderate proteinuria, and normal or small kidney size on ultrasound, with their pedigree consisting of at least 2 affected family members in 2 successive generations [16]. Histology revealed tubulointerstitial disease with interstitial fibrosis and tubular atrophy and extensive global glomerular sclerosis [17]. One of the family members had a renal biopsy which included electron microscopy that showed areas of thin glomerular basement membrane typical for Alport syndrome (see family 1 (e), Figure 1).

In the past 20 years, there have been an increasing number of reports of AD kidney failure associated with heterozygous pathogenic variants of COL4A3 or COL4A4 [4, 18‒22]. Although initially considered to be a benign condition (benign familial hematuria), end-stage renal failure was first reported in elderly individuals with these variants in 1985 [23].

Both AD and X-linked Alport syndrome have recently been reported as causes of AD tubulointerstitial disease [24, 25], and several mild pathogenic variants in the COL4A5 gene are associated with a much attenuated form of Alport syndrome with late-onset kidney failure [26]. These variants have widened the spectrum of Alport syndrome nephropathy to include a hypertensive nephropathy phenotype.

We subsequently studied a total of 85 families and observed significant enrichment in the frequency of COL4A4:p.G545A, as at least 1 patient in 12 families had this variant (14%). In the 5 families that we concentrated our study here, it is evident that the variant segregated with the disease substantially more frequently than it would be expected by chance (see Table 1).

It is a common variant and in gnomAD v4.0, which is a register of whole-genome sequencing data, the variant is most commonly found in people from the “Middle East,” with an allele frequency of 0.082. We note the allele frequency of 2.3% observed in our control cohort is lower than the data from GnomAD cohort, possibly reflecting the fact that individuals with hematuria or other evidence of kidney disease were excluded from the former but not the latter.

In silico variant predictions suggest that COL4A4:p.G545A is pathogenic based on the use of Polyphen as a “probably damaging,” SIFT as a “deleterious” variant and a Grantham score of 60. The evolutionary model of variant effects yielded a high EVE score of 0.966 [27]. The other predictor scores were as follows: REVEL: 0.776; CADD: 23.5; and PrimateAI: 0.575. AlphaMissense was benign. Varsome tools classify the variant as in silico predictors BP4: benign strong, with the use of the ACMG criteria, the main reason for being benign is its high frequency in population databases, compared with the disease prevalence [28].

Because the variant p.G545A is so common, it cannot be regarded as a monogenic cause of renal disease but could be considered a predisposing or risk factor rather than a pathogenic variant. Also, one cannot exclude the possibility that it acts as a genetic modifier in the presence of another pathogenic or likely pathogenic variant, either in cis or in trans.

In the Greek Cypriot population, we found that the p.G545A variant was significantly more common in patients referred for testing because of hematuria (n = 468) than in controls in the general population (n = 368), p = 0.037. On the other hand, COL4A4:p.G545A, either demonstrates incomplete penetrance or it acts as a genetic factor conferring higher predisposition to hematuria and CKD rather than as a causative mutation following a Mendelian inheritance (Deltas C and colleagues, unpublished results).

With regard to functional studies, a recent publication reports experiments in transiently transfected cells in culture, with the use of a dual luciferase assay to examine the efficiency of secretion of different mutant collagen trimers [29]. Different glycine substitutions in the collagen IV alpha chains demonstrated disparate abnormalities, with the p.G545A variant demonstrating minimal but distinct impaired secretion, compared with wild type molecules. We can hypothesize that the p.G545A variant is highly hypomorphic, with adequate residual activity, which only occasionally associates with CKD in a non-Mendelian fashion, and only in the presence of other genetic or environmental factors or a combination of these, which largely remain unknown.

The major limitation of the study is that although we expected to find that variants in COL4A3/4/5 were common we have not found this. We have not been able to investigate more families with WES, or compare with populations without renal disease and it was not possible to obtain more genetic information for most patients. More extensive genetic investigation is required to exclude deletions, insertions, copy number variation and intronic variants in these genes. Electron microscopy from more cases would be informative although CKD is often advanced before it is recognized and renal biopsy not performed.

In summary, we identify glycine substitution in COL4A4 that we propose is highly hypomorphic with adequate residual activity. It is common in all populations studied (precluding its classification as a Mendelian disease-causing pathogenic variant) but is significantly enriched among Turkish Cypriots and with evidence of kidney disease that is usually characterized by tubulointerstitial, rather than glomerular, clinical features.

Given its frequency in Eastern Mediterranean populations and its statistically significant enrichment among Turkish Cypriot families with kidney disease, this may represent a contributor to increased risk of renal failure that is well documented in the Eastern Mediterranean Region, with familial clustering reminiscent of APOL1 mediated kidney disease that is endemic in some African populations [30]. Identified APOL1 variants do not cause a disease with Mendelian inheritance but they confer high predisposition to those carrying it, as documented by numerous studies in African populations where it is most prevalent. Further studies will be needed to determine if the pathology relates to variants in Alport genes, and how intersection of various polygenic, common and uncommon genetic risk factors for kidney disease interact in individuals, families, and populations.
