The Efficacy and Short- and Long-Term Side Effects of Radioactive Iodine Treatment in Pediatric Graves’ Disease: A Systematic Review Open Access

In adults and children, hyperthyroidism is mostly caused by Graves’ disease (GD) [1, 2]. Treatment options for GD include antithyroid drugs (ATDs), thyroidectomy, and radioactive iodine (RAI). In Europe, ATDs are the preferred first-line treatment modality in newly diagnosed pediatric GD patients [3-5]. Unfortunately, the relapse frequency of hyperthyroidism is high in this age group, with only 20–30% reaching long-lasting remission after 2 years of ATD treatment [5]. Therefore, most pediatric GD patients eventually require definitive treatment.

Both thyroidectomy and RAI are proven effective therapeutic measures for hyperthyroidism. The choice between RAI and total thyroidectomy is a contentious topic and will reflect local expertise and opinion. The final decision on what option to follow will involve shared decision-making including the patient and parents, focusing on the (dis)advantages of each option and local expertise. Total thyroidectomy is a safe treatment option in pediatric GD patients, especially if performed by high-volume surgeons [6]. Only in a minority of pediatric patients, irreversible complications of surgery like permanent hypocalcemia (2.5%) or recurrent laryngeal nerve injury (0.4%) have been reported [6]. Furthermore, thyroidectomy is potentially associated with general surgical risks and consequences, like postoperative bleeding, infections, and a permanent scar. RAI treatment using iodine-131 has been carried out for 80 years. RAI is taken up by thyrocytes and stored within the thyroid follicle. The radioactive isotope decays by emitting β-radiation, causing DNA damage leading to thyrocyte apoptosis and necrosis. In the past, in many areas of the world, the aim of RAI treatment for GD was to achieve euthyroidism; hypothyroidism was considered a side effect. The current American Thyroid Association and European Thyroid Association treatment guidelines both state that in pediatric GD patients, the RAI treatment goal is to achieve hypothyroidism (ablative RAI treatment) [4, 7]. The main reason to aim for complete thyroid destruction in pediatric patients is to prevent the need for additional RAI therapy (and thus extra radiation exposure) as low RAI activity has been associated with poor remission rates. In addition, the current guidelines state that aiming at hypothyroidism will minimize the future risk of malignant transformation of viable but radiation-damaged thyrocytes [7]. RAI treatment should be avoided in cases with active Graves’ orbitopathy as it can result in exacerbation, and specific preparatory measures prior to RAI administration have to be taken in patients with inactive Graves’ orbitopathy [8].

Data on the efficacy of RAI treatment, the optimal RAI activity, and its short- and long-term side effects in pediatric GD patients are scarce. However, such data are necessary to aid in deciding on the modality of definitive treatment. Several approaches are used to determine the RAI activity to be used in pediatric GD patients. RAI activity may be calculated based on estimated thyroid weight or based on full dosimetry using the result of a RAI uptake, either probe or scan based [9, 10]. Alternatively, administration of a fixed amount of RAI activity has been reported [9]. In adult patients undergoing RAI treatment for GD, radiation thyroiditis is reported as a short-term side effect in 1.2% of the patients [11]. With respect to long-term side effects, there are some worries that RAI treatment at a younger age may increase the risk of other malignancies later in life [12]. In this study, we performed the first systematic review on the efficacy and short- and long-term side effects of RAI treatment in pediatric GD patients. Ideally, the results of this systematic review should be helpful in formulating an evidence-based advice on the optimal ablative RAI activity, preferably without short- or long-term side effects. An overview of available data on both the efficacy and side effects of RAI treatment may be helpful when counseling young patients and their parents who require definitive treatment for GD.

This systematic review was performed following the PRISMA 2009 guidelines [13].

The literature search for this review, using the electronic databases PubMed and Embase, was performed in July 2020 and was further not limited to a specific period. The following search terms were used: Graves’ disease, RAI, and efficacy or side effects. For all main terms, synonyms were inserted. MeSH and tiab terms were combined to find a wide range of articles. The exact search strategy used for both the PubMed and Embase database is available in online suppl. data (for all online suppl. material, see www.karger.com/doi/10.1159/000517174). The search was limited to studies in pediatric patients (age limit <18 years). Additional articles were searched by scanning the references of relevant articles and using the “related article” function of the databases.

Title and abstract screening was performed independently and blinded by S.L.L. and C.F.M. Full-text screening was performed by S.L.L. and discussed with C.F.M.; in case of disagreement, a third reviewer (A.S.P.v.T.) was consulted. Original studies reporting on the efficacy or on short- and long-term side effects of RAI treatment in a minimum of 10 pediatric GD patients were included. When a study reported data on pediatric patients separate from adult patients, the study was also included. Full-text availability was the last inclusion criterion. Exclusion criteria were conference abstracts, review articles, and articles published in other languages than English, Dutch, German, French, Italian, or Spanish. Part of the full-text screening was a critical appraisal to evaluate the quality per study using the Critical Appraisal Skills Program checklist. The used checklist is designed for cohort studies and is therefore applicable to all of the included articles.

Data extraction was performed by S.L.L. and was double-checked by C.F.M. Data on the treatment goal, efficacy, used RAI activity, and side effects of treatment were collected. The side effects were classified as either long- or short-term side effects. For efficacy, we mainly focused on studies using ablative RAI treatment. For side effects, studies on RAI treatment that aimed at either ablation or euthyroidism were analyzed. Short-term side effects were defined as side effects that occurred within 3 months of RAI treatment, while long-term side effects occurred >3 months after RAI treatment.

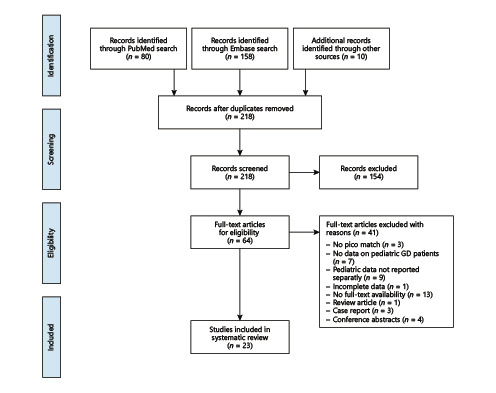

The PubMed and Embase searches were performed on July 16, 2020, and yielded 208 unique articles. Ten additional articles were identified via references reading. A total of 154 articles were excluded after title and abstract screening, and an additional 41 articles were excluded after full-text screening. Twenty-three retrospective observational cohort studies were included in this review (Fig. 1). Based on the quality assessment, the quality of 2 of the included studies was rated as good [14, 15], 18 studies as fair [16-33], and 3 studies as reasonable [34-36]. As reported RAI treatment protocols differed between studies or changed over time (including the treatment goal: aiming for eu- or hypothyroidism) and individual patient data were lacking, we were unable to perform a meta-analysis calculating the optimal iodine-131 activity aiming for hypothyroidism.

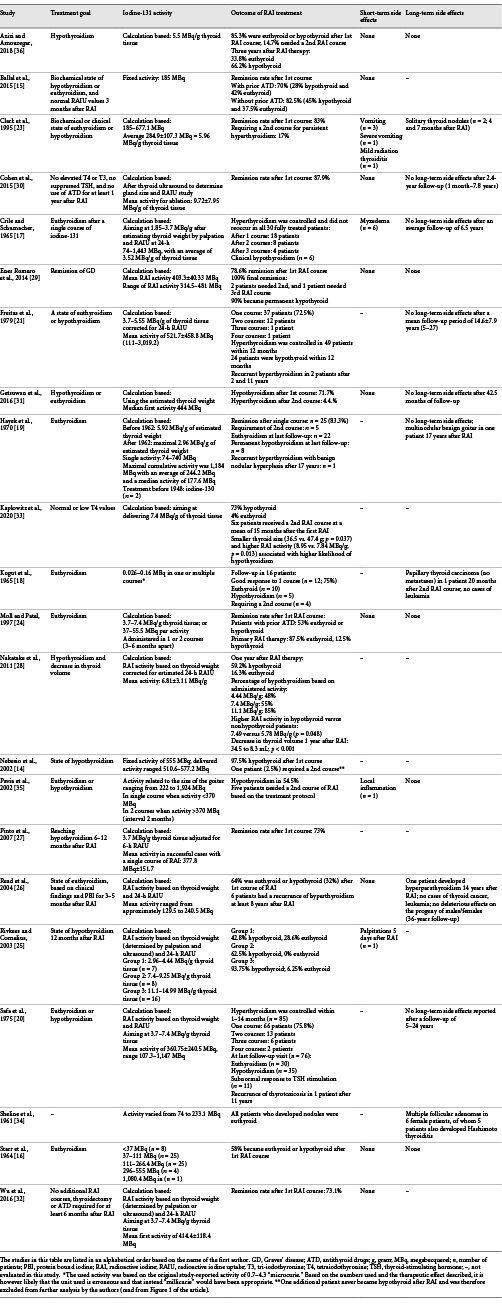

The 23 included studies reported on RAI treatment of 1,283 children and adolescents with GD. Study characteristics of the included studies regarding the study period, number of patients, gender of included patients, age at RAI treatment, and the indication for RAI treatment are shown in online suppl. Table 1. Extracted data on the applied iodine-131 activity (converted to megabecquerel [MBq]), the efficacy of RAI treatment, and the short- and long-term side effects are shown in Table 1. Seventeen studies used a calculated activity of RAI [17, 19-33, 36], and 2 studies a fixed activity of RAI [14, 15]. In 4 studies, it was not clear how the activity of RAI was determined [16, 18, 34, 35]. The way in which the efficacy of RAI treatment was evaluated differed between studies. In 13 of the 23 included studies, data on short-term side effects of RAI treatment are reported, and data on long-term side effects are reported in 15 studies. In most studies, the majority of patients was treated with ATDs prior to RAI treatment.

The goal of RAI treatment – hypothyroidism or euthyroidism – differed between and even within included studies. Based on the current treatment goal of aiming at destruction of the thyroid gland, we analyzed data on studies using ablative RAI treatment. This, however, was the specific treatment goal in only 5 of the included studies, reporting on a combined total of 278 patients [14, 25, 27, 28, 36]. In these 5 studies, the reported efficacy after a first RAI treatment aiming at hypothyroidism ranged from 42.8 to 97.5%, depending on the activity administered. When aiming at hypothyroidism, the efficacy appears to increase with a higher iodine-131 activity. The study by Nebesio et al. [14] was the only one aiming at hypothyroidism using a fixed RAI activity (555 MBq; equals 15,000 microcurie [µCi]) resulting in hypothyroidism in 97.5% of the studied patients after 1 course of RAI. This fixed RAI activity is far more than used in the other studies based on the average thyroid weight in children. Pinto et al. [27] reported hypothyroidism in 73% of the patients after a first activity of 3.7 MBq/g thyroid tissue adjusted for RAI uptake. Azizi and Amouzegar [36] aimed for hypothyroidism using an RAI activity of 7.4 MBq/g thyroid tissue and reported that 14.7% of the patients required a second cycle of RAI therapy, but did not specify the percentage of patients becoming hypothyroid after the first RAI activity (eventually 66.2% of the RAI-treated patients were classified as hypothyroid). The studies by Nakatake et al. [28] and Rivkees and Cornelius [25] are the only 2 studies that retrospectively evaluated the efficacy of different RAI activities aiming at hypothyroidism. Nakatake et al. [28] reported hypothyroidism in 48% of the patients who received 4.44 MBq (120 μCi) of iodine-131 per gram of thyroid tissue. However, 85% of the patients who received 11.1 MBq (300 μCi) of iodine-131 per gram of thyroid tissue became hypothyroid [28]. In line with these findings, Rivkees and Cornelius [25] reported similar results: hypothyroidism was achieved in 42.8% of the patients receiving an activity of 2.96–4.44 MBq (80–120 μCi) of iodine-131 per gram of thyroid tissue, while 93.75% of the patients who received 11.1–14.99 MBq (300–405 μCi) of iodine-131 per gram of thyroid tissue became hypothyroid. Based on these last 2 studies, administering a minimum activity of 11 MBq but possibly a little >15 MBq of iodine-131 per gram of thyroid tissue seems necessary to achieve thyroid destruction in the vast majority of pediatric GD patients.

Several of the other included studies aimed at either euthyroidism or euthyroidism/hypothyroidism and are therefore not usable for formulating an evidence-based advice on the optimal RAI activity that aims at thyroid destruction. However, overall, the studies show that the efficacy seems to increase with a higher iodine-131 activity. All studies reported patients requiring additional RAI treatment because of persistent or recurrent hyperthyroidism. A detailed presentation of the reported efficacy of RAI treatment in all included studies is presented in Table 1.

To evaluate the presence of side effects after RAI treatment, studies aiming at both euthyroidism and hypothyroidism were included. Short-term side effects of RAI treatment in pediatric GD patients were only rarely reported. Among them were vomiting (n = 4), radiation thyroiditis (n = 1), local inflammation (n = 1), palpitations (n = 1), and myxedema (n = 6). Reported long-term side effects included benign thyroid nodules (n = 6), multinodular benign goiter (n = 1), hyperparathyroidism (n = 1), and papillary thyroid carcinoma (n = 1). No additional cases of thyroid cancer, no cases of leukemia, and no impaired reproductive capacity were reported in the patients who received RAI treatment for pediatric GD, nor was there a reported increased frequency of congenital abnormalities in their offspring in studies with a long enough follow-up period. The cases of thyroid nodules, multinodular goiter, and thyroid carcinoma after RAI treatment were all reported in patients with RAI treatment not exclusively aiming at hypothyroidism. However, in these studies, a causal relation between RAI treatment and the development of thyroid nodules was not proven. Detailed information on the reported side effects of RAI treatment in the included studies is shown in Table 1.

In this systematic review, we report the efficacy and short- and long-term side effects of RAI treatment in pediatric patients with GD. Twenty-three studies evaluating 1,283 children and adolescents with GD were included. In 5 studies, the specific treatment goal of RAI was hypothyroidism (including a total of 278 patients). In these studies, the reported efficacy of the first RAI treatment in achieving hypothyroidism ranged from 42.8 to 97.5%, depending on the applied activity. Unfortunately, prospective studies evaluating the effect of different iodine-131 activities in the treatment of pediatric GD are lacking, hampering evidence-based activity advice. Yet, in the few retrospective studies in which RAI treatment aimed at hypothyroidism, a minimal activity of 11.1–14.99 MBq of iodine-131 per gram of thyroid tissue seemed to result in hypothyroidism in 85–94% of pediatric GD patients. Short- and long-term side effects of RAI treatment in pediatric GD were very rare. Reported long-term side effects were benign thyroid nodules, multinodular benign goiter, hyperparathyroidism, and papillary thyroid carcinoma. These side effects affecting thyroid tissue were only reported in cases in which the RAI treatment aim was euthyroidism. However, it has not been proven that the abovementioned long-term side effects are caused by low-level thyroid irradiation. Overall, the data in this systematic review show that RAI aiming at hypothyroidism of the thyroid seems a safe definitive treatment option for pediatric GD. Evidence for the best dosing strategy to reach hypothyroidism after RAI treatment is still weak as only 2 retrospective studies evaluated the efficacy of different RAI activities [25, 28].

Ideally, the optimal RAI activity should result in 100% efficacy without significant short- or long-term side effects. Based on the 2 studies reporting the effects of different RAI activities aiming at hypothyroidism, an activity of 11 MBq but possibly a little >15 MBq per gram of thyroid tissue leads to an efficacy of 85–94% [25, 28]. In addition, Kaplowitz et al. [33] stated that a higher RAI activity was associated with a higher likelihood of hypothyroidism (8.95 vs. 7.84 MBq per gram of thyroid tissue; p = 0.013). Interestingly, none of the studies aiming at hypothyroidism reached 100% efficacy, meaning that a minority of patients may require a second RAI treatment to achieve hypothyroidism. However, one may be reluctant to prescribe higher RAI activities for treatment of a benign thyroid disorder like GD as RAI has, at least theoretically, been associated with an increased risk of development of malignancies in other tissues than the thyroid later in life.

Recently, an association was reported between RAI treatment for benign adult thyroid disease and an increased risk of death from breast or gastric cancer many years later [37]. However, these results have been heavily criticized, and studies on this association in children are lacking [38]. Nevertheless, one should be prudent using higher RAI activities in the treatment of pediatric GD because of the (theoretical) risk of RAI-induced cancers later in life. None of the studies included in this review reported nonthyroidal malignancies or leukemia later in life, despite long-term follow-up after RAI treatment, up to 27 years in some studies [17, 19-21, 26]. Since all patients included in these 5 studies were treated with RAI between 1941 and 1973, new studies with a long follow-up are needed to determine the exact risk of secondary malignancies later in life after RAI treatment with dosing according to current treatment guidelines. The only reported case of malignancy was papillary thyroid carcinoma in a patient in whom RAI treatment aimed at euthyroidism [18]. Hypothetically, this side effect might not have occurred if treatment had aimed at thyroid destruction. Pediatric patients with differentiated thyroid carcinoma receive much higher activities of iodine-131 for remnant ablation after thyroidectomy [39], varying from 1,100 MBq (29,729 μCi) up to 7,400 MBq (200,000 μCi) in case of lung metastases. Even after the use of such high activities of RAI in pediatric differentiated thyroid carcinoma, an increased risk of secondary malignancies has thus far not been reported [40-42]. Therefore, one may assume that it is safe to apply somewhat higher activities than currently used for complete thyroid ablation in pediatric GD.

To our knowledge, this is the most extensive systematic review on the efficacy and short- and long-term side effects of RAI treatment in pediatric GD and therefore gives a good overview of the available data on outcome of RAI treatment in children and adolescents with GD. It is remarkable that in spite of the long history of RAI treatment in pediatric GD, the available studies only focused on activities administered and not on dosimetric parameters related to the actual radiation dose delivered to the thyroid. It is very well possible that individualization of administered RAI activity through more extensive dosimetry may not only increase efficacy but also minimize unnecessary exposure of other tissues than the thyroid. In many of the included studies, the procedure on determining or estimating thyroid weight was not fully explained. It is well known that in healthy children, thyroid size increases with age [43, 44], and that in pediatric GD patients, the thyroid is frequently symmetrically enlarged. In our opinion, when dosing RAI per gram of thyroid tissue, thyroid ultrasound by an operator experienced in thyroid ultrasound is the most reliable way to determine thyroid size in pediatric GD patients and should be performed prior to RAI treatment to calculate the desired RAI activity. A major limitation of our study is that we were unable to perform a meta-analysis on the efficacy of RAI treatment in pediatric GD patients as treatment goals changed over time, dosing regimens differed between and changed within studies, and original data were lacking. Endpoints for efficacy were not consistently defined across the included studies. As a result, it is difficult to compare efficacy between studies. Only 5 retrospective studies reported efficacy data on ablative RAI dose of which only 2 studies evaluated the efficacy of different RAI doses [25, 28]. Future prospective studies evaluating different RAI treatment strategies (fixed activity, calculated activity based on estimated thyroid weight, or activity based on full dosimetry) are needed to determine the best evidence-based RAI strategy for the treatment of pediatric GD. From the 5 studies in which RAI treatment specifically aimed at hypothyroidism [14, 25, 27, 28, 36], only the study by Azizi and Amouzegar [36] reported on long-term side effects of RAI treatment. In this study, the follow-up duration after RAI treatment was not fully specified, but was probably between 1 and 3 years. In the other 4 studies, the follow-up duration was not specified or reported to be <5 years, and authors did not mention long-term side effects. Although this does not mean that their presence or absence was not assessed, this may point to reporting bias.

In conclusion, based on the results of this review, RAI treatment is a safe definitive treatment option in pediatric GD. Both short- and long-term side effects of RAI treatment are very rare. However, new studies focusing on the long-term risk of RAI-induced malignancies are needed to evaluate risks associated with current treatment guidelines. Also, new well-designed prospective studies are essential to come to a well-founded RAI dosing strategy in pediatric GD patients. Yet, based on the few retrospective studies on this subject, RAI treatment seems to be effective in achieving hypothyroidism in the majority of treated patients when 11–15 MBq (approximately 300–400 μCi) iodine-131 per gram of thyroid tissue is administered.

For this type of study (systematic review), formal consent is not required.

The authors report that they have no conflicts of interest to disclose.

The authors did not receive any funding for the present work.

All authors conceived the idea of evaluating the efficacy and short- and long-term side effects of RAI treatment in pediatric GD patients. S.L.L. and C.F.M., and if necessary A.S.P.v.T., performed the literature search including title and abstract screening, full-text screening, and data abstraction. S.L.L., C.F.M., and A.S.P.v.T. discussed the abstracted data and took the lead in writing this review. All authors discussed previous versions of the manuscript and agreed to the submission of the final version.

A.S. Paul van Trotsenburg and Christiaan F. Mooij contributed equally.
