Remote Cardiac Safety Monitoring through the Lens of the FDA Biomarker Qualification Evidentiary Criteria Framework: A Case Study Analysis

The US Food and Drug Administration (FDA) has been working with external stakeholders to develop biomarkers as drug development tools to promote efficiencies and innovation. The FDA Center for Drug Evaluation and Research (CDER) has established a Biomarker Qualification Program to facilitate this mission. A list of qualified biomarkers can be found on the FDA website [1]. Biomarker qualification efforts started in 2008 and were carried out in collaboration with external stakeholders yielding qualifications for safety biomarkers, such as urinary nephrotoxicity biomarkers [2] and serum/plasma cardiotoxicity biomarkers [3]. Later on, diagnostic biomarkers [4], prognostic biomarkers [5], and monitoring biomarkers [6] were qualified.

In December 2018, the FDA CDER and Center for Biologics Evaluation and Research (CBER) jointly published a draft guidance titled Biomarker Qualification: Evidentiary Framework [7], providing recommendations on general considerations for developing and qualifying a biomarker as a drug development tool. This guidance drew upon several years of stakeholder meetings and consensus from the biomarker development community. Initial discussions started in August 2015 (symposium cosponsored by the University of Maryland CERSI/FDA/Critical Path Institute) and continued in additional meetings in 2016. An initial framework was suggested by Leptak et al. [8] with broad input from the international experts, including the EMA. To be qualified as a tool for clinical development, a biomarker of interest should address a specific medical need, be measured using reliable methods, and be interpreted in a context appropriate for this tool use and regulation. The evidentiary framework includes the following components: (1) describing the statement of need, which consists of a problem statement and a drug development need; (2) defining the context of use; (3) considering potential benefits and risks associated with the proposed use; and (4) summarizing the state of the evidence which describes existing data and knowledge. Context of use is defined as a statement that fully and clearly describes the way the medical product development tool is to be used and the regulated product development and review-related purpose of the use [9]. The evidence necessary for qualification consists of analytical validation (establishing detection method performance characteristics) and clinical validation (establishing a biomarker’s relationship with an outcome of interest). These principles are agnostic to biomarker types and categories.

Remote monitoring, which is defined as data collection outside the clinic while study subjects are not being supervised by a healthcare professional, has become a very attractive approach for use in drug development trials with high expectations for capturing subject information in real-life settings. This growing field of devices and potential applications has generated great enthusiasm and questions about how to develop these remote approaches for use within clinical trials. The FNIH Biomarkers Consortium Remote Digital Monitoring for Medical Product Development workshop was born from the need to provide a clear understanding on the amount and type of the evidence required in a remote monitoring context to make confident decisions. The workshop was designed to test the applicability of the FDA evidentiary criteria framework by relating it to real-world case studies. Workshop case studies were chosen to touch on multiple characteristics of potential measures that included sensor type, algorithm development, and clinical characteristics of the measure [10].

One of the case studies considered remote cardiac monitoring as a part of safety monitoring in drug development and it is summarized in this review. Clinical safety is defined here as any untoward medical occurrence in a patient or clinical investigation subject administered a pharmaceutical product and which does not necessarily have to have a causal relationship with this treatment [11]. This case study was specifically chosen because it included known biomarkers, such as heart rate, respiratory rate, and body temperature, but was focused on remote data collection using 510(k)-cleared devices [12]. In addition, the studies had already been completed to assess the viability of this approach and draw a conclusion about devices of interest to be fit for purpose [13, 14]. The case study provided a good basis for determining fit-for-purpose characteristics in a clinical trial beyond FDA requirements for device clearance for a well-established concept measured digitally [15]. Moreover, the need for vital sign remote monitoring came into the spotlight during the COVID-19 pandemic and is discussed in this paper in addition to the workshop materials.

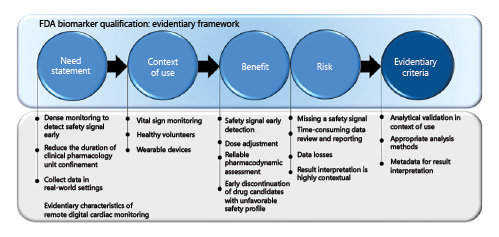

This article is organized according to the components of the biomarker qualification evidentiary framework followed by general conclusions about the applicability of this regulatory guidance to the cardiac monitoring use case.

The primary objective of early-stage drug development clinical trials is assessment of the emerging safety/tolerability profile along with pharmacokinetic and pharmacodynamic properties of an investigational compound. Safety data collection includes vital signs, laboratory tests, and patient reports on signs and symptoms which may or may not be related to an investigational drug. Cardiovascular monitoring is an integral part of safety monitoring and routinely includes certain ECG parameters, heart rate, respiratory rate, body temperature, blood oxygenation (SpO₂), and blood pressure. Vital sign data are collected throughout the entire process of drug development, though the collection schedule is sparser in later-stage trials. In early-stage trials, vital sign data (multiple time points per day) are usually collected in first-in-human and subsequent phase 1 studies. These data are collected before, during, and after administration of an experimental drug while study subjects are confined to a clinical pharmacology unit and during in-person follow-up visits. The confinement periods may range from several days to several weeks depending on the investigational compound properties, the study design, and the anticipated or emerging safety profile. Conventional 12-lead ECG data, SpO₂, blood pressure, heart rate, and body temperature data are usually collected at predefined time points by a clinical pharmacology unit healthcare professional using medical devices. Respiratory rate is usually collected manually by observation of chest falling and rising for a defined time. Holter monitoring (continuous multiple-lead ECG) is limited to one or several days during the study confinement for 24–48 h (Table 1).

Clinical safety issues remain one of the reasons for high rates of attrition for experimental medicines during clinical development. Often, cardiovascular liabilities of the investigational drugs are not detected in early-stage clinical trials and become apparent when drugs are administered chronically for extended periods of time in a larger patient population [16]. Conventional data collection at predefined times during phase 1 studies can lead to missing safety signals as some of the signals can be transient in nature and no data are being collected when study subjects are asleep. Additionally, clinical pharmacology unit confinements for extended periods of time are inconvenient for study subjects and may not provide data reflective of normal day-to-day activity. Safety data collected after subject discharge from the unit are limited to a subject’s memory recall, which can have biases, or infrequent follow-up during in person clinical pharmacology unit visits.

Remote ambulatory vital sign data collection may be able to capture the same parameters as conventional vital sign data collection in the unit while offering the opportunity for a deeper physiological characterization that permits earlier safety signal detection. However, outside of the clinic, adjunctive data, such as physical activity and patient-reported symptoms, are needed as an aid in interpretation of adverse event data collected without the supervision of a healthcare professional. The overall needs for remote vital sign data collection are multifold: (1) collect as much data as possible to better inform the emerging safety profile, (2) reduce the time of residential observation and the number of follow-up visits required while maintaining the quality of data, and (3) ensure that the collected data reflect the real-world patient experience (Fig. 1).

The need for remote vital sign data collection became even more pressing during the COVID-19 pandemic. Investigators and sponsors wished to continue the conduction of clinical trials while maintaining social distancing and limiting the participants’ risk. Both US and EU regulators issued guidance for clinical trial conduction during the pandemic [17, 18], urging sponsors to conduct clinical trial assessments remotely whenever possible in order to protect the study subjects while giving access to experimental drugs and maintaining GCP compliance. This need also represented an opportunity – by working out appropriate considerations for outpatient vital sign monitoring, the field could accelerate the use of prolonged outpatient remote monitoring outside of the current phase 1 setting, leading in the long term to earlier safety signal detection and more efficient drug development overall. However, important confounding considerations, such as the impact of SARS-CoV2 infection itself on key vital signs, quickly became apparent. Effective outpatient vital sign monitoring must be paired with a robust system of SARS-CoV2 testing and the ability to account for the expected effects of SARS-CoV2 infection on body temperature, heart rate, respiratory rate, physical activity, and other relevant physiologic parameters.

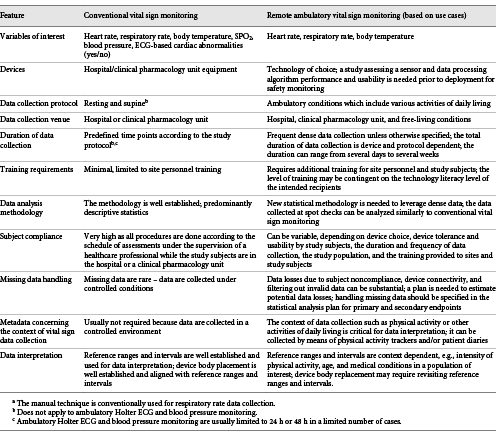

Vital sign elements of a safety profile, including cardiovascular parameters such as heart rate, respiratory rate, SpO₂, and body temperature, can be assessed comprehensively in early-stage clinical trials, during clinical pharmacology unit confinement, or after discharge from the unit by means of remote monitoring technologies and remotely if needed (Table 1). Many devices collect data passively, i.e., not requiring user input other than device placement on the body and recharging, thus improving the participant experience and potentially reducing bias (as data are collected passively and not influenced by the hospital environment, e.g., white coat hypertension). However, one cannot exclude the possibility of introducing a Hawthorne effect [19] by the fact of making study subjects aware that they are being monitored and inadvertently modifying their behavior. In contrast to devices used for vital sign data collection in the clinical pharmacology unit, wearable sensors should have the following properties: (1) Bluetooth-enabled internet connectivity allowing data streaming into the cloud for in-study review if needed, (2) ability to collect data passively, and (3) sufficient memory and/or ability to stream data frequently to collect data for extended periods of time (e.g., days). There are substantial differences in vital sign monitoring during conventional safety monitoring processes and in remote ambulatory settings (Table 1), indicating the need for experiments to assess the impact of these differences on clinical study conduction and study data.

The authors discussed the advantages and shortcoming of remote cardiac monitoring using 2 publications describing evaluation of 2 single-lead ECG devices supplemented by a wrist-worn actigraphy device in phase 1 clinical trials to assess deployment and data collection feasibility and ascertain whether these devices were fit for purpose for vital sign data collection in clinical research [13, 14]. The device evaluation objectives were exploratory; the data were placed in a “safe harbor” and they were not used for any clinical decision-making. All devices under evaluation had 510(k) clearance from the FDA [20-22] and were used continuously during both clinical pharmacology unit confinement and after the subject discharge (Table 2). Devices were evaluated by comparing the wearable device-derived data to vital sign measures collected as a part of conventional safety monitoring at matching time points, estimating the data loss and examining the face validity of the data, such as the proportion of values within a physiological range and diurnal change patterns. Overall, the evaluation experiments demonstrated the need for specifically designed experiments to establish the analytical accuracy of measures of interest. Specifically, the HealthPatch device was found to be problematic because of a large number of episodes with an elevated heart rate which were not corroborated after manual review of the selected ECG tracing [13]. In contrast, the BodyGuardian showed good accuracy in detecting the heart rate using the same evaluation approach [14]. Additionally, the use of the BodyGuardian device demonstrated the benefits of continuous heart rate data collection: an elevated heart rate was detected during the periods of physical activity after treatment with amphetamine [14] and not detected during the periods of conventional vital sign data collection using a resting and supine protocol. Moreover, both studies indicated the need for monitoring physical activity as an adjunct measure to enable interpretation of certain vital sign measures such as heart and respiratory rate (Table 3). The general limitations included data losses due to subjects taking devices off for unspecified reasons and filtering out invalid data according to manufacturer’s recommendations (Table 3). The limitation specific to single-lead ECG devices is their inability to accurately detect QT interval prolongation [23], a side effect described for a number of experimental and approved medicines [24]. Additionally, ambulatory monitoring is prone to data artifacts introduced by physical activity and motion [25]. Skin temperature measured on the chest showed no correlation with body temperature measured in the oral cavity, indicating the need for establishing reference ranges for continuous data collection in a specific location which would guide data interpretation [13]. The use of these wearable devices was well received by both the study subjects and the site personnel, who indicated the need for hands on experience prior to device deployment [13].

In the context of potential SARS-CoV2 infection, important vital signs of interest include body temperature, heart rate, respiratory rate, and SpO₂ [25]. An elevated temperature is a frequent presenting symptom of CO-VID-19, and continued fevers can indicate persistent infectivity. Individuals who have a clinically significant infection may develop an elevated heart rate from the infection and later may develop a baseline elevated respiratory rate secondary to pulmonary compromise. Continued respiratory involvement may lead to hypoxemia, detectable by pulse oximetry. Low blood oxygenation is linked to worse outcomes in COVID-19, whether through unmistakable clinical deterioration [26] or through more insidious “silent hypoxia” [27]. The majority of commercial pulse oximeters collect measures intermittently, but some of the models have been used successfully at home to collect data continuously at night in patients with COPD [28]. While evidence exists to support the use of outpatient monitoring for body temperature, heart rate, respiratory rate, and SpO₂ [25], the above considerations in COVID-19 illustrate that context is critical when interpreting outpatient vital signs data – whether vital signs are obtained in the setting of physical activity, in the setting of a COVID-19 infection, or otherwise. The issue of context is further elevated when clinical trials are specifically testing interventions for potential efficacy against SARS-CoV2. Understanding the anticipated effects of the virus on the normal human physiology as assessed by ambulatory remote monitoring is critical to assessing the therapeutic impact and/or safety signals from experimental treatments.

All biomarker development is done in the context of the risks and benefits of the decisions made when using the biomarker. For example, a biomarker that is meant to detect lethal, irreversible, drug-induced organ damage will need to be very sensitive to a potential false-negative rate as the risk of getting the signal detection wrong will lead to death, though the benefit of getting it right is enormous. The risk will be directly related to the inherent risk in which the patient’s condition places him or her. A patient population is likely to accept more risk in making decisions with a biomarker if their condition is extremely debilitating and has no known therapy compared to a population with a less severe condition. Parameters that describe the standard limits of the measurement need to be compared to the risk to the patient if misidentified and the risk that the drug developer is willing to accept for making development decisions. Like a traditional biomarker approach, the risk and benefit must be determined in the context for which the tool will be used and what decision will be made. In the case of measuring heart rate, respiratory rate, and body temperature, each as a separate variable constituting a safety signal in a drug development trial, the risk will be dependent on the study population and on the likelihood that the drug may cause a change in body physiology. If the study population is comprised of normal healthy volunteers and the drug is not suspected to generate any changes in heart rate, respiratory rate, or body temperature, the risk is low to the study subjects. However, if the population consists of severely ill patients and the drug has shown a potential for cardiac or respiratory functions or having a pyrogenic effect, the risk will be high. In this second case, the data accuracy will need to be extremely high and missing or spurious data will not be acceptable for decision making. The evidentiary framework provides a useful means to organize characteristics about a digital tool, establishing the purpose, validating tools for its intended use, and deploying digital measurements to get to interpretable results. More importantly, it provides a lattice to identify the risks, benefits, and key gaps that need to be filled before these tools can be used in clinical trials.

The potential benefits of continuous vital sign monitoring based on the use cases evaluated include early safety signal detection that can inform dose adjustments or lead to discontinuation of drug candidates with an unfavorable safety profile at an early stage. Additional benefits include a continuous pharmacodynamic assessment if relevant measurements, such as heart rate, are pertinent to the drug mechanism of action (Fig. 1). The limitation of this benefit is the detection of a potential safety signal restricted to arrhythmias. The risks include missing safety signals if a detection method has an unacceptably high false-negative rate. A high false-positive rate will lead to time-consuming data review and reporting. Additional risks, such as data losses and the need for metadata to interpret results, were identified (Fig. 1).

Changes that have come to the healthcare community due to SARS-CoV2 virus and COVID-19 have had a significant impact on many aspects of the risk-and-benefit equation. The impacts to ongoing trials compared to trials yet to launch can be very different. For ongoing trials, the risk of exposure to infection has changed the ability and willingness of trial participants to travel to clinical sites, making in-person testing very difficult. In yet-to-start trials, the travel issues will affect enrollment and ultimately the likelihood that a trial will obtain enough subjects to generate decision-making data. Both situations offer opportunities for remote monitoring, reducing the risks of travel to clinical sites where exposure to infection is higher. In addition, trial sponsors may be willing to take more risk on established measurement methods [29] to allow some data collection and provide a trial result. If any trials are focused on COVID-19 therapies, the scales are even more in favor of adoption of the remote approach. Truly successful use of remote monitoring will await the results of what changes were made during this time, but the external environment, i.e., the pandemic, has moved the use of these approaches to the forefront of every clinical testing program.

The case study showed that the determination of fit for purpose according to the FDA evidentiary framework for biomarker qualification could be applied for this remote monitoring approach. The level of evidence needed could be clearly derived by following a step-wise approach, defining the unmet need, the context of use, and the risk/benefit assessment of a biomarker’s use (Fig. 1). However, the case studies revealed several challenges which are imposed by changes in the means of data collection. First, while the reference ranges for heart and respiratory rates are well established, these only apply to a resting and supine subject heart and respiratory rate data collection technique. The corresponding ambulatory reference ranges are highly context dependent; e.g., they vary depending on the intensity of physical exercise, age, and medical conditions a study subject might have, presenting a bigger challenge for data interpretation compared to the spot check data collection method. The data are available from Holter monitoring studies [30, 31], but this technique does not account for physical activity which has an impact on the range of measures. Moreover, skin temperature measured at the chest wall is different from the oral body temperature, being more impacted by environmental factors. Second, the requirements for device clearance vary with device type and do not necessarily include analytical validation. Additionally, 510(k) clearance summaries may contain only abbreviated information about device performance characteristics and are not sufficient to reconstitute experimental details and understand the generalizability of the results. However, the requirement for ascertaining the quality of a measurement test exists for biomarker qualification according to the evidentiary framework. This case study confirmed the need for analytical validation for an established concept combined with digital measurement methods (Table 3). Third, there are certain limitations imposed by use of wearable devices. For instance, an important ECG-derived parameter, such as QT interval prolongation, can be problematic when measured by a single-lead ECG device [23]. This measure needs to be supplemented by conventional 12-lead ECG or multi-lead ECG wearable devices which became recently available [32]. In general, this case study showed that, for this application, the FDA evidentiary framework was completely compatible with development of the cardiac monitoring approach.

Continuous vital sign monitoring collects a large volume of data that raises substantial challenges for extracting relevant signals but also provides unique opportunities for a deeper understanding of the patient status.

Given the current lack of unified standards for continuous ambulatory vital sign monitoring, the results of ongoing studies have to be interpreted through a prism of study-specific devices, raw data-processing pipelines (e.g., removing artefacts), and description data analytical methods at a high level. Before such standards are established and accepted by all key stakeholders, device manufacturers should publish evidence for validation of their methods. It is also highly desirable to have access to raw/sample level data to be able to perform retrospective analyses by study sponsors, i.e., to detect device malfunctioning, to identify values outside of the calibration range, or to deal with missing data.

Modern ambulatory cardiac monitors based on wearable device and accompanying apps can enable collection of important contextual information surrounding the time of cardiac events through: (1) patient-friendly reporting interfaces (collecting information about cardiac feeling such as heart palpitations and type of event) and (2) algorithm-based detection of sleep periods and identification of body posture using information from built-in accelerometers. Ambulatory cardiac monitoring should be used to establish accurate patient level normative values for heart rate rhythmicity or the cardiac burden including the frequency, duration, severity, and timing of adverse cardiac events and greatly facilitate detection of a divergence from the pretreatment baseline or flag a safety concern. Novel statistical approaches, such as time-frequency analysis and signal processing [33], functional data analysis (24-h diurnal patterns) [34], state transition time series analysis [35], and multi-modal multi-resolution analysis [36] efficiently leverage the temporal resolution of the collected data. These approaches provide a more sensitive quantification of cardiac function, particularly in the context of safety, efficacy, and estimating the main and side effects of a treatment.

We concluded that the approval/clearance of a biomarker test by the CDRH or by the CBER does not indicate qualification (or even fit-for-purpose use) of the biomarker for drug development. The examination of evidence in 2 publications [13, 14] demonstrated the need to conduct a validation or evaluation experiment to ascertain whether a biomarker and associated data collection methods are fit for purpose for use in a clinical trial. The data generated for the purposes of 510(k) clearance may be very different from the statement of need, context of use, and benefit/risk assessments which constitute the evidentiary criteria needed for qualification of the biomarker for use in a clinical trial. The information provided in a 510(k) summary, such as indications of use and intended use as well as device performance characteristics, can be informative for designing biomarker qualification experiments. However, the device performance (both hardware and software) and the benefit/ risk assessment need to be evaluated in the context of use (Table 3).

The evidentiary framework guidance is agnostic to biomarker type, class, and measurement method. The 2 specific use cases discussed here by the authors did not introduce novel biomarkers. Instead, they used the following well-qualified biomarkers for monitoring vital signs in clinical trials: heart rate, respiratory rate, and body temperature, but they changed the context of use, including the method of measurement. The changes in the context of use included new devices, single-lead ECG instead of 12-lead ECG, respiratory rate measured by a chest-worn device instead of manual counts, and skin temperature measured on the chest wall instead of in the oral cavity (change in body placement). The other parameter that changed is the duration of data collection; the devices were worn continuously for multiple days data instead of spot check data collection at predefined time points. The examination of case studies revealed the number of challenges imposed by the context of use change (Table 3).

The results of the evaluation demonstrated the critical importance of the context of use and the need to design evaluation or validation experiments according to the context of use instead of extrapolating from the information used for device 510(k) clearance. Additionally, these studies highlighted the importance of assessing the accuracy of wearable devices in the context of use. Heart rate, respiratory rate, and skin temperature measures were evaluated by comparing the mobile measures to corresponding conventional safety measures obtained by an orthogonal method. The heart rate measures were additionally corroborated by a manual review of ECG tracing. Establishing the analytical validity of a digitally measured biomarker can be challenging because, in some cases, the data processing algorithms are proprietary and not available to the users. Nevertheless, this issue can be overcome by comparing a device readout to the readout done by an independent method and, in some cases, by evaluating sample level data [37].

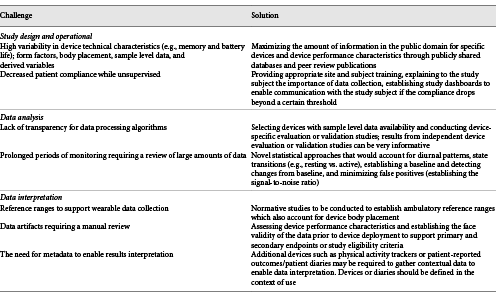

The long duration of data collection also highlighted the need for new statistical methods that would leverage the richness of dense data. Moreover, the contextual information is needed to enable data interpretation (Table 3). In the context of conventional clinical trials, when the data are captured at predefined time points, this requirement does not exist.

This review does not consider aspects of technology evaluation outside of the FDA biomarker qualification evidentiary framework such as technology cost, security, data rights, and governance. These important aspects are considered elsewhere [38].

The cardiac monitoring use case confirmed the utility of the FDA biomarker qualification evidentiary framework for remote ambulatory vital sign monitoring in clinical trials. Specifically, the key elements of the framework were applicable to this use case. The alignment of the evidentiary framework with the remote cardiac monitoring approach highlighted the need for data collection method validation irrespectively of the regulatory status of a device of interest. Currently, the information in the public domain, including the results of device clearance review by the FDA and data from independent evaluation/validation studies, is limited, indicating the need for more use cases to be available for examination and knowledge generation in the scientific community. Additionally, the richness of the data afforded by remote monitoring devices will not be fully leveraged without an appropriate statistical methodology to analyze the data. Novel statistical approaches are needed to maximize the use of continuous data and provide novel insights. Moreover, remote monitoring for extended periods of time is feasible when supported by an appropriate device selection, data collection, and analysis methods. However, a wider adoption of this approach for drug development purposes will require collaborators across industry efforts to establish methodologies and supportive data sets to enable data interpretation and decision-making.
