Millard-Gubler Syndrome Associated with Cerebellar Ataxia in a Patient with Isolated Paramedian Pontine Infarction – A Rarely Observed Combination with a Benign Prognosis: A Case Report Open Access

Pontine infarction accounts for 7% of all ischemic strokes and 20% of brain stem strokes [1]. Pontine infarctions can be isolated or not isolated if they present in other parts of the brain [1]. Caudal pontine syndrome can have two patterns of presentation based on the segment of penetrating paramedian vessel affection: proximal and distal occlusion [2]. Likewise, infarction involving the ventral segment of the paramedian pons will result in ventral pontine syndrome, also called Millard-Gubler syndrome (MGS) [3]. The eponymous MGS, an example of crossed hemiplegia, was named after Adolphe Gubler (1821–1879) and Auguste Millard (1830–1915), following their accurate description of the pontine stroke [4]. MGS is defined as a unilateral lesion of the ventral pons at the level of the facial nerve nucleus that presents as unilateral facial nerve and abducens nerve palsy with contralateral hemiplegia [3, 5]. Ventral pontine syndromes are commonly secondary to demyelinating lesions, tumors, trauma, infectious causes, and rarely infarctions [5]. To our knowledge, this is the first case to be reported from the sub-Saharan African region.

We report the case of a 55-year-old male patient having presented to the Yehuleshet Specialty Clinic (YSC) 6 years back with sudden-onset dysarthria and appendicular ataxia of 10 days duration. In addition, he reported having right hemibody weakness and blurred vision, which has significantly improved since then. He had a history of smoking of 30 pack-years. However, he quit smoking 8 years ago. His blood pressure and pulse rate were normal. Furthermore, he reported paresthesia of the left upper limb since recent times. There was no history of prior stroke, transient ischemic attack, diabetes, hypertension, head trauma, or dyslipidemia. On examination, he was fully conscious and oriented. He had horizontal left gaze palsy with horizontal nystagmus, suggesting left-sided 6th cranial nerve palsy. He had mild left-sided facial palsy causing dysarthric speech. Right upper limb dysmetria was observed during examination; otherwise, motor, sensory, fundus, and gait examination results were normal.

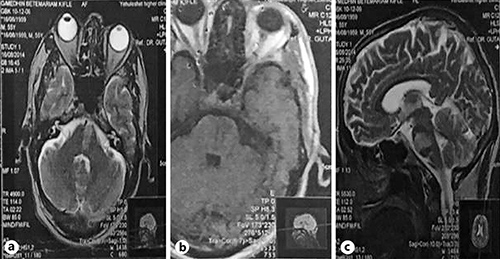

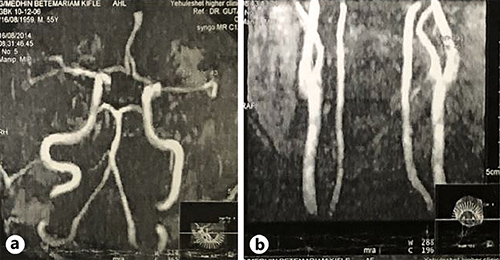

Routine laboratory investigations showed normal results. The fasting blood sugar level was 342 mg/dL and hemoglobin A_1c was 6.1%. The serum vitamin D level was 17.1 ng/dL. Serology tests for HIV, syphilis, and hepatitis B and C virus were negative. The echocardiography, electrocardiography, and carotid Doppler study results were unremarkable. A nerve conduction study of the upper limbs was done for his left hand paresthesia, and it was unremarkable. Brain magnetic resonance imaging (MRI) examination showed a 25 × 10 mm segmental lesion in the left median pons involving the basis pontis and tegmentum section. The lesion had T2 and T1 abnormal prolongation with no diffusion restriction, suggesting a subacute pontine infarct (Fig. 1). Magnetic resonance angiography showed normal common carotid, internal carotid, external carotid, and vertebrobasilar arteries (Fig. 2). Diagnosis of MGS was considered, taking into account the clinical evidence, such as: horizontal nystagmus and gaze palsy, which was secondary to ipsilateral abducens palsy; ipsilateral facial palsy, which resulted in dysarthria; the history of right-sided hemiparesis, which had improved upon evaluation; and the MRI evidence of subacute pontine infarction. Factors such as a history of chronic smoking, elevated fasting blood sugar, being male, and old age further supported our assumption of caudal pontine infarction secondary to chronic paramedian pontine perforator blockage over other differential diagnoses of pontine syndromes, such as tumors, demyelinating disorders, neuroinfectious disorders, and vascular malformations.

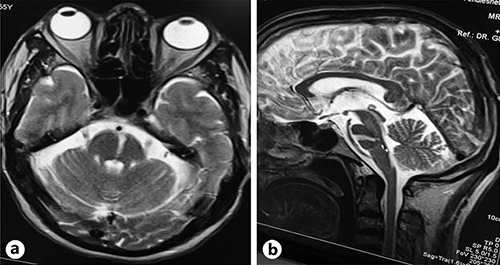

Subsequently, the patient was managed with aspirin 325 mg, atorvastatin 80 mg, physical therapy, and vitamin D supplementation and advised on behavioral risk factors. On subsequent follow-up visits, the patient showed significant clinical improvement. Six years after his isolated pontine infarction, the patient has fully recovered from dysarthria, facial palsy, hemiparesis, right-sided appendicular ataxia, and horizontal nystagmus. The follow-up brain MRI showed radiological evidence of chronic paramedian pontine perforator infarction (Fig. 3). Currently, he is on secondary stroke preventive therapy as well as physical and behavioral therapy.

We reported the case of a 55-year-old man with a history of chronic smoking having presented 6 years back to the YSC with clinical features suggestive of MGS and cerebellar ataxia, with brain MRI evidencing left paramedian pontine perforator infarction involving predominantly the ventral segment of the caudal pons. He was started on secondary stroke prevention therapies as he presented late. On a follow-up evaluation 6 years after the first stroke, his neurological signs and symptoms had fully resolved without any residual effect.

Isolated pontine infarctions are classified as either paramedian pontine infarctions (PPI) or lacunar pontine infarctions [6]. This classification helps us to distinguish between the underlying causes of isolated pontine infarctions: PPI is caused by occlusion of perforating branches of the basilar artery (BA), whereas lacunar pontine infarction is caused by small vessel disease [6]. Therefore, the present case falls under the category of PPI. Based on brain MRI, PPI is defined as a lesion extending to the anterior surface of the pons, is often wedge-shaped, and further extends to the basal surface of the pons, which further supports our diagnosis [6].

At the level of the pons, we have three vascular territories. The anteromedial section of the pons is supplied by the pontine perforating arteries arising from the BA; these penetrate the basilar sulcus. The anterolateral section is supplied by arteries arising from the anterior inferior cerebellar artery. Finally, the lateral zone is supplied by the lateral pontine perforators that arise directly from the BA, from the anterior inferior cerebellar artery, or from the superior cerebellar artery [7]. Anteromedial infarction causes hemiparesis or hemiplegia, contralateral ataxia, dysarthria, nystagmus, and often ipsilateral facial palsy. The anteromedial pons harbors the descending motor fibers, the nuclei of the 6th and 7th cranial nerves, and the pontocerebellar fibers [1, 7].

Our patient presented with right-sided hemiparesis, left upper limb ataxia, dysarthria, and left-sided facial and abducens palsy. These clinical features were fairly consistent with lesions involving the neural structures located in the anteromedial pontine section. The absence of contralateral sensory dysfunctions and auditory dysfunction may be explained by the relatively lateral location of spinothalamic fibers and vestibulocochlear nuclei, respectively [1, 3, 7-9].

The most common risk factors in previous series of small vessel pontine infarcts have been hypertension, diabetes, and dyslipidemia [10]. Likewise, our patient had multiple risk factors such as being a chronic smoker, having insulin intolerance, being male, and being older. These risk factors likely indicate the atherosclerotic origin of the pontine infarction in the present case. This further supports the need to identify patients at risk of ischemic stroke and the importance of secondary stroke prevention strategies.

MGS is a clinical syndrome which occurs following lesions involving the ventral portion of the caudal pons, resulting in classic clinical features such as ipsilateral abducens and facial nerve palsy and contralateral hemiparesis [3, 5, 11, 12]. The present patient presented late to our clinic, and by the time of evaluation he had horizontal nystagmus and gaze palsy from abducens nerve affection, dysarthria from ipsilateral facial muscle weakness, and contralateral (right)-sided appendicular ataxia. By the time of evaluation, he reported having right-sided hemiparesis, which significantly improved in the subsequent days. The paramedian caudal pons contains neural structures including the abducens nucleus, facial nerve fibers, and corticospinal fibers, which were affected in our patient [2]. Furthermore, neural structures such as the middle cerebellar peduncles (MCP) are also in this region [2]. Therefore, the contralateral ataxia observed in our patient could be explained by infarction extending to involve the ipsilateral MCP [2, 3, 13, 14].

Our case shows the importance of brain MRI in differentiating vascular causes of a ventral pontine syndrome from other potential differential diagnoses such as tumors, tuberculoma, neurocysticercosis, demyelinating disorders, and vascular malformations [2]. MGS may present with cerebellar ataxia if the PPI area slightly extends laterally, affecting the MCP. Isolated pontine infarction may have a good prognosis if diagnosed and managed early [15].

We would like to acknowledge the YSC and the patient for their unreserved support.

The authors’ institutions do not require ethical approval for the publication of a single case. Written informed consent was obtained from the patient for publication of this case report and any accompanying images. The completed consent form is available from the corresponding author on reasonable request from the editor.

The authors have no conflicts of interest to declare.

No funding was received from any organization or individuals.

All authors contributed to the conception, evaluation, investigation, diagnosis, management, and follow-up of the patient.
