Sodium Butyrate Attenuates Diarrhea in Weaned Piglets and Promotes Tight Junction Protein Expression in Colon in a GPR109A-Dependent Manner Open Access

With the intensive and large-scale development of the pig industry, the early weaning of piglets has become a universal goal in pig production. However, early weaning causes a series of adverse effects on the growth and development of piglets due to nutritional, immunological, psychological, and environmental stress. The main symptoms are diarrhea, stunted growth, and high mortality. Diarrhea is a major challenge for neonatal and post-weaning piglets, and results in a reduced growth rate, increased morbidity and mortality, and large economic losses in the global swine industry [1]. Nutritionists have devised a series of solutions such as adding antibiotics, probiotics, enzymes, and oligosaccharides to feed. However, the use of antibiotics can increase the antibiotic resistance of pathogens and endanger human health [2, 3]. Similar to antibiotics, the addition of organic acids or their salts to the diet has been shown to relieve diarrhea in weaned piglets [4]. As a physiological small-molecule derived from the microbial fermentation of dietary fibers, butyric acid has received special attention among short-chain fatty acids. Butyrate is naturally present in the gut, milk, sweat, and feces of most mammals. Butyric acid provides energy for intestinal epithelial cells and exerts immunomodulatory and anti-inflammatory effects on intestinal inflammation [5]. Butyrate or sodium butyrate has been reported to decrease intestinal permeability and enhance the intestinal barrier [6-8]. Intestinal permeability is related to diarrhea; thus, sodium butyrate decreases the incidence of diarrhea in weaned piglets. However, the mechanisms remain unclear [4, 9].

G protein-coupled receptor 109A (GPR109A; HM74A or HCA2 in humans) belongs to the niacin receptor family [10-12]. Sodium butyrate and β-hydroxybutyric acid are endogenous GPR109A ligands that activate the GPR109A receptor and inhibit inflammation and carcinogenesis [13, 14]. GPR109A is the major receptor for butyric acid in colonic epithelial cells and protects against colitis [15]. As shown in our previous studies, the AMP010014A09 gene in Sus scrofa encodes an analog of GPR109A that exhibits high nucleotide homology and amino acid identity and similarity to HM74A [16]. We hypothesized that sodium butyrate activates the GPR109A analog in piglets and causes a series of biochemical reactions to protect against diarrhea after weaning. The aim of this study was to determine whether the activation of GPR109A by sodium butyrate triggers the activation of a series of signaling pathways that alter the expression of tight junction proteins and decrease the permeability of the colon.

Sodium butyrate was purchased from Aladdin (Shanghai, China). Antibodies against p-ERK1/2 (Thr202/ Tyr204), ERK1/2 (Thr202/Tyr204), Akt (Ser473), p-Akt (Ser473), p-P38 (Thr180/Tyr182), and P38 (Thr180/Tyr182) were purchased from Cell Signaling Technology (Danvers, MA, USA). Antibodies against zonula occludens 1 (ZO-1; ab59720), Occludin (ab31721), and Claudin-3 (ab15102) were purchased from Abcam (Cambridge, UK). Dulbecco’s Modified Eagle’s Medium Nutrient Mixture was obtained from Gibco Life Technologies, Inc. (Grand Island, NY, USA). Fetal bovine serum was purchased from Clark (Australia). TRIzol was obtained from Invitrogen (Carlsbad, CA, USA). 2× Taq Master Mix was purchased from Vazyme (Nanjing, China). A SYBR Green QuantiTect RT-PCR Kit and X-treme GENE HP DNA transfection reagent were obtained from Roche (South San Francisco, CA, USA). Polybrene was obtained from Sangon Biotech Co., Ltd. (Shanghai, China). The pGPU6-GFP-Neo-AMP+-sus-392 plasmid was used to decrease GPR109A expression in Caco-2 cells. The selective inhibitors U0126 (ERK1/2), MK2206 (Akt), and SB203580 (P38) were purchased from Selleckchem (Houston, DE, USA).

The animals used for the experiments were provided by the breeding pig farm at Jilin University. All procedures performed on experimental animals were approved by the Jilin University Institutional Animal Care and Use Committee, according to the Guidelines for the Care and Use of Laboratory Animals in China. All pigs were provided with food and water ad libitum. Twenty-four Landrace weaned piglets were used in the experiments. The normal control group (n = 12) was fed the basal diet consisting of a typical commercial post-weaning diet [17], and the sodium butyrate treatment group (n = 12) was fed the basal diet supplemented with 2000 mg/kg sodium butyrate. The experiment lasted for 21 days.

A human colonic epithelial cell line (Caco-2) was purchased from the Cell Bank of Shanghai, Institute of Cell Biology, Chinese Academy of Sciences (Shanghai, China), and was maintained in a standard culture medium consisting of Dulbecco’s Modified Eagle’s Medium supplemented with 10% fetal bovine serum, 50 U/mL penicillin, and 50 μg/mL streptomycin (Gibco Life Technologies, Inc.). The cells were collected every 2 or 3 days until they reached 80–90% confluence.

During the 21-day experiment, weaned piglets were weighed every 7 days, and the diet used for the experiment was recorded weekly. Diarrhea was observed at 09: 00 and 16: 00 daily. The standard grade of diarrhea was scored as follows: liquid = 3, semiliquid = 2, semisolid = 1, and solid = 0 [4].

Weaned piglets were starved for 6 h to determine baseline urine sugar levels. Then, 500 mg/kg lactulose (3 g/10 mL; Shanghai Yuanye Bio-Technology Co., Ltd., Shanghai, China) and 50 mg/kg mannitol (0.3 g/10 mL; Shanghai Yuanye Bio-Technology Co., Ltd.) were administered intragastrically to weaned piglets on days 7, 14, and 21. The piglets were feed-deprived for the 6-h study period, but were allowed to drink water after 30 min. The lactulose-mannitol ratio in urine was detected using high-performance liquid chromatography to reflect intestinal permeability accurately.

After 21 days, portions of the duodenum, jejunum, ileum, and colon were collected, washed with cold phosphate-buffered saline (PBS), and stored at -80°C until protein or mRNA extraction. Then, 1-cm portions of the duodenum, jejunum, ileum, and colon were fixed with 4% formaldehyde for 12 h, embedded in paraffin, and sectioned.

Recombinant human tumor necrosis factor (TNF)-α (R&D Systems, Minneapolis, MN, USA) was dissolved in sterile PBS to a concentration of 100 µg/mL along with 0.1% human or bovine serum albumin (BSA). This solution was used to destroy cell permeability. Caco-2 cells were divided into 3 groups: control group, TNF-α (150 ng/mL) treatment group, and TNF-α (150 ng/mL) and sodium butyrate (1.5 mM) treatment group. The cells were starved for 4 h and then pre-treated with sodium butyrate for 1 h before TNF-α was added. Caco-2 cells were collected after 48 h to detect the expression of the intracellular tight junction protein Claudin-3. Each experiment was repeated 3 times.

Permeability experiments were performed on Caco-2 cell monolayers grown in culture inserts comprising a microporous transparent bioporous membrane (Millicell CM; Millipore, Bedford, MA, USA). The cells were seeded into culture inserts at a density of 1.0 × 10⁶ cells per insert. The medium (200 µL in the insert and 800 µL in the well) was changed daily. Electrical resistance was measured using the Millicell-Electrical Resistance System (Millipore). Once the trans-epithelial resistance (TEER) values had stabilized at 313 ± 21 Ω, the cells in the inserts were ready for experimentation. The TEER values of the Caco-2 cell monolayers were measured at 24 h after the addition of 1.5 mM sodium butyrate, and TEER was calculated in ohms using the formula (R_sample – R_blank) × membrane area (cm²).

GPR109A short hairpin RNA (shRNA) was purchased from OLIGOBIO Biotechnology (Beijing, China) and mixed with X-treme GENE HP DNA transfection reagent (Roche) in 96-well plates, according to the manufacturer’s instructions. The sequence of the recombinant plasmid was the same as the predicted sequence [16].

Total RNA was extracted from cells using TRIzol according to the supplier’s protocol. RNA samples were extracted in sterile and RNase-free EP tubes during the extraction process, and cDNAs were synthesized using 2 μg total RNA. Total RNA was treated with RNase-free DNase I and quantified by measuring the absorbance at 260 and 280 nm. RNA was stored at -80°C until analysis. The first reaction contained 2 μL oligo(dT)18 primer, 1 μg total RNA, 0.5 μL recombinant RNase inhibitor, 4 μL of 5× Reverse Transcriptase M-MLV Buffer, 1 μL dNTP mixture, and 0.5 μL Reverse Transcriptase M-MLV. The expression levels of TNF-α, Claudin-3, Occludin, ZO-1, and GPR109A were calculated by comparing them with the levels of GAPDH (normalization control) using the comparative cycle threshold method. The primer sequences for the tested genes are shown in Table 1 (pig) and Table 2 (human).

The cells were collected in cold PBS and centrifuged at 3000 × g for 10 min at 4°C. The cells were lysed in P0013B containing phosphatase inhibitors and PMSF. Then, 50 µg extracted protein was separated by 12% sodium dodecyl sulfate-polyacrylamide gel electrophoresis and transferred to a polyvinylidene fluoride membrane (Chemicon International, Millipore). The membrane was blocked with 5% milk for 2 h. The target bands were excised and incubated with the following specific antibodies overnight at 4°C: β-tubulin (1: 40, 000), p-P38 (1: 2000), P38 (1: 1000), p-ERK1/2 (1: 2000), ERK1/2 (1: 2000), Akt (1: 1000), p-Akt (1: 1000), Claudin-3 (1: 1000), Occludin (1: 1000), and GPR109A (1: 100). The blots were washed 4 times with TBST for 15 min each and incubated with a goat anti-rabbit IgG-HRP (1: 2000; Santa Cruz Biotechnology, Dallas, TX, USA) or goat anti-mouse IgG-HRP antibody (1: 2000; Santa Cruz Biotechnology) for 1 h at room temperature. The blots were again washed 4 times with TBST for 15 min each. The immunoreactive proteins were developed with an ECL detection system (Millipore). All results were normalized to β-tubulin and are expressed as relative values compared with those of the control group. Each experiment was repeated 3 times.

Paraffin sections were deparaffinized and rehydrated using successive soakings in xylene and alcohol. The paraffin sections were incubated with 0.5% Triton X-100 for 1 h at room temperature and then washed them 3 times with PBS for 3 min each. The sections were blocked with 100 μL of 5% BSA for 30 min. The sections were incubated with 100 μL of solutions containing an antibody against Claudin-3 (1: 50) in 5% BSA overnight at 4°C. Next, the sections were washed 4 times with PBST for 5 min each prior to incubation with goat anti-rabbit IgG (green) in 5% BSA for 60 min in the dark. The sections were mounted with DAPI for 10 min, and fluorescence was detected using a confocal microscope.

The results are expressed as the mean ± standard deviation. The data were analyzed using the statistical software package SPSS 12.0 (SPSS, Inc., Chicago, IL, USA). Differences between the groups were compared using one-way analysis of variance followed by the least significant difference test. P-values less than 0.05 were considered statistically significant, and values less than 0.01 were considered markedly significant.

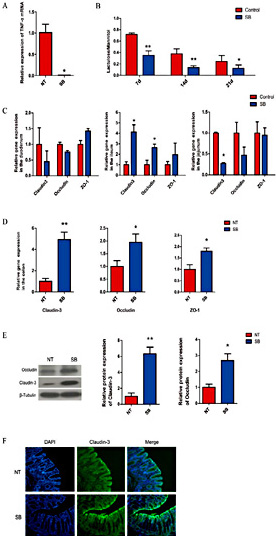

We first evaluated diarrhea in early weaned piglets after 21 days of feeding on a standard diet containing or lacking sodium butyrate. The diarrhea rate, frequency, and index were significantly decreased (P < 0.05) in piglets fed the diet supplemented with 2000 mg/ kg sodium butyrate (Table 3) compared with the piglets in the control group. The sodium butyrate group showed a higher average daily gain (0.02 ± 0.00) and lower feed gain ratio (8.52 ± 0.15) than the control group (0.01 ± 0.00, P = 0.0349 and 25.82 ± 0.30, P = 0.0259, respectively) after the first week. However, significant differences in the average daily gain, average daily feed intake, and feed gain ratio were not observed between the control and sodium butyrate groups at other phases over the next 3 weeks and throughout the time course of this study (Table 4). Sodium butyrate effectively suppressed the expression of mRNA encoding the pro-inflammatory cytokine TNF-α in colon tissue (Fig. 1A).

The lactulose-mannitol ratio in urine was determined on days 7, 14, and 21 after weaning using high-performance liquid chromatography to assess intestinal permeability in piglets during the early weaning period. A low lactulose-mannitol ratios corresponds to reduced permeability, and greater permeability corresponds to more diarrhea. A significantly lower lactulose-mannitol ratio was detected in the urine of the sodium butyrate group (P < 0.05) than in the control group at the time points tested here. This lower ratio represents the lower intestinal permeability and higher intestinal integrity of the sodium butyrate group (Fig. 1B). The expression of tight junction proteins in the duodenum, ileum, jejunum, and colon was assessed using quantitative real-time PCR. Interestingly, significant changes in Claudin-3, Occludin, and ZO-1 expression were not observed in the duodenum or jejunum, regions that contribute to the enhancement of intestinal barrier function. Nevertheless, the sodium butyrate diet up-regulated Claudin-3 and Occludin expression in the ileum(Fig. 1C). Notably, higher expression levels of tight junction mRNAs encoding Claudin-3, Occludin, and ZO-1 were observed in the colon of the sodium butyrate group (P < 0.05) than in the control group (Fig. 1D), and the increased levels of Claudin-3 and Occludin proteins were confirmed by western blotting (Fig. 1E). Notably, the levels of Claudin-3 protein were increased in the colon of the sodium butyrate diet group, as determined by immunofluorescence staining (Fig. 1F).

The GPR109A receptor is activated by butyric acid, niacin, and β-hydroxybutyric acid, triggering the activation of a series of downstream signaling pathways. Western blot analysis was performed to detect the levels of phosphorylated transcription factors and protein kinases involved in intracellular signaling pathways in colon tissue to identify the signaling pathway that may mediate the effects of sodium butyrate. As shown in Fig. 2, the levels of phosphorylated ERK1/2, P38, and Akt were significantly increased in the colon of weaning piglets that were fed the basal diet supplemented with 2000 mg/kg sodium butyrate for 21 days. GPR109A receptor expression was also up-regulated by sodium butyrate in colon tissue. To identify further the effect of sodium butyrate on ERK1/2 and Akt activation in colonic epithelial cells, Caco-2 cells were cultured in the presence of 1.5 mM sodium butyrate for 5, 15, 30, 60, or 90 min to determine ERK1/2 and Akt phosphorylation. As shown in Fig. 3, the levels of phosphorylated ERK1/2 and Akt were increased in Caco-2 cells after a 15-min treatment with sodium butyrate, which was consistent with the results for tissue obtained from the colon.

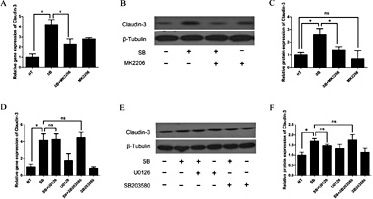

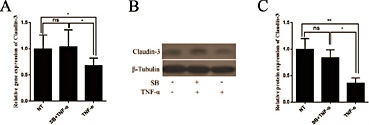

Caco-2 cells were used as a colon cell model to confirm the effects of sodium butyrate on Claudin-3 expression. As shown in Fig. 4A, treatment with 1, 1.5, or 2 mM sodium butyrate for 48 h markedly increased the expression of Claudin-3 mRNA in Caco-2 cells. The incubation of Caco-2 cells with 1.5 mM sodium butyrate for 24 and 48 h significantly increased the expression of Claudin-3 protein in a time-dependent manner (Fig. 4B and C). Furthermore, sodium butyrate reversed the TNF-α-induced reduction in the expression of the tight junction protein Claudin-3 (Fig. 5). We also determined the TEER values of Caco-2 cells grown in culture inserts comprising a microporous transparent bioporous membrane, and the results showed that the TEER values of Caco-2 cell monolayers were profoundly increased following treatment with 1.5 mM sodium butyrate for 24 h (Fig. 6D).

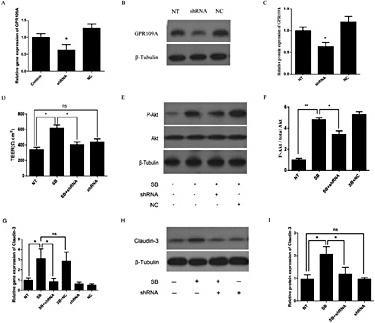

GPR109A shRNA was used to silence GPR109A expression in Caco-2 cells and to determine whether GPR109A mediates the effects of sodium butyrate on Claudin-3 expression in the colon. After knocking down GPR109A expression using shRNA (Fig. 6A, B, and C), the activation of Akt induced by sodium butyrate was partly inhibited (Fig. 6E and F). Claudin-3 expression was examined in sodium butyrate-treated Caco-2 cells transfected with or without GPR109A shRNA using quantitative real-time PCR and western blotting analyses. The effect of sodium butyrate on Claudin-3 expression was effectively impaired by the transfection of 30 ng/mL GPR109A shRNA, but not by a noncoding plasmid (NC) (Fig. 6G, H, and I). TEER was tested in sodium butyrate-treated cells transfected with or without GPR109A shRNA. The effect of sodium butyrate on TEER was effectively impaired by the transfection of 30 ng/mL GPR109A shRNA compared with the sodium butyrate group (P < 0.05) (Fig. 6D). Caco-2 cells were pre-incubated with 10 µM U0126 (a highly selective inhibitor of ERK kinase), 10 µM MK2206 (an allosteric Akt inhibitor), and 10 µM SB203580 (a specific inhibitor of P38) for 2 h followed by incubation with sodium butyrate for 4 h to elucidate whether the phosphorylation of ERK1/2, P38, and Akt is required for sodium butyrate-induced Claudin-3 expression in these cells. Sodium butyrate-induced Claudin-3 expression was blocked by MK2206 in Caco-2 cells compared with the sodium butyrate group (P < 0.05) (Fig. 7A, B, and C); however, U0126 and SB203580 had no effect on its expression (P < 0.05) (Fig. 7D, E, and F). These results provided strong evidence that sodium butyrate increased Claudin-3 expression by activating Akt and reducing colon permeability.

The addition of organic acids to the diet of piglet is considered useful for overcoming post-weaning syndrome. The advantage of using butyrate rather than free acids is that it is generally tasteless and not volatile during feeding [18]. As a physiological small molecule that is produced by microbial fermentation, butyrate plays an important role in maintaining intestinal health. Compared with other short-chain fatty acids, butyric acid has received special attention. Our study did not reveal an obvious change in average daily feed intake, average daily gain, and the feed/gain ratio between the sodium butyrate and control groups, but sodium butyrate exerted a significant effect on ameliorating diarrhea. Sodium butyrate has been shown to relieve diarrhea caused by weaning stress or enterohemorrhagic Escherichia coli in piglets [19-21]. Moreover, butyrate therapy is beneficial in patients with congenital chloride diarrhea [22, 23], consistent with our results. In patients with Crohn’s disease, butyrate decreases the expression of pro-inflammatory cytokines [24]. As shown in the study by Xu et al., early intervention with sodium butyrate modulates the inflammatory cytokine profile in the ileum of neonatal piglets [25]; notably, sodium butyrate effectively suppressed the expression of mRNA encoding the pro-inflammatory cytokine TNF-α in piglet colon tissue. Thus, sodium butyrate exerts positive effects on alleviating diarrhea and reducing inflammation.

Although the effects of butyrate on intestinal health have already been described in detail in many reports, the underlying mechanisms remain largely unknown. Evidence suggests a role for butyrate in reinforcing the colonic defense barrier. Butyrate increases the expression of the mucin 2 gene, and the induction of mucin synthesis in a human colonocyte cell line (LS174T) affects the mucous layer to enhance protection against luminal agents [26, 27]. Butyrate also regulates the colonic defense barrier through its effects on intestinal permeability in a concentration-dependent manner. Butyrate induces a concentration-dependent reversible decrease in the permeability of intestinal cell line models [8, 28]. In the present study, a 24-h treatment with 1 mM sodium butyrate increased Claudin-3 expression in Caco-2 cells, which contributed to the enhancement of intestinal barrier function. Although we did not observe this effect following the administration of sodium butyrate at concentrations of less than 1 mM, 1.5 mM sodium butyrate also induced a time-dependent increase in Claudin-3 expression. Ocejo et al. revealed the beneficial effects of a diet supplemented with both whey and coated calcium butyrate on duodenal villus integrity and decreased mortality in chickens [29]. As described above, the intestinal barrier plays an important role in maintaining intestinal health. Butyrate exerts an effect on several components of this barrier [30], including tight junctions [31]. According to Huang et al., sodium butyrate decreases small intestinal permeability and increases intestinal Occludin expression [17]. In the present study, we confirmed that butyrate increased the expression of the tight junction proteins Claudin-3, Occludin, and ZO-1 in the colon in vivo and in vitro, contributing to the alleviation of diarrhea in weaned piglets.

Sodium butyrate activates Akt and ERK1/2 in different cells [32]. The effect of butyrate on intestinal epithelial permeability involves the assembly of tight junctions via AMPK [7]. As shown in a study by Miao, sodium butyrate activates the calcium/calmodulin-dependent protein kinase kinase β pathway to mediate AMPK phosphorylation and contributes to the reassembly of tight junctions in Caco-2 cells [15]. Sodium butyrate improves oxidative stress by activating Akt in hepatocellular carcinoma cells [33]. On the basis of recent evidence, AIM2 contributes to the expression of the tight junction protein Claudin-3 via Akt and protects against mucosal Salmonella infections [34]. In the present study, the levels of phosphorylated ERK1/2, P38, and Akt were significantly increased in the colon of weaning piglets in the sodium butyrate group compared to the control group. Correspondingly, the levels of phosphorylated ERK1/2 and Akt were increased in Caco-2 cells after a 15-min treatment with sodium butyrate. Akt activation has been shown to increase Claudin-3 expression [34]. According to Yan et al., butyrate might increase the levels of tight junction proteins through mechanisms such as the activation of Akt/mTOR-mediated protein synthesis [35]. Here, sodium butyrate-induced Claudin-3 expression was blocked by MK2206 in Caco-2 cells. This finding provided solid evidence that Akt phosphorylation is essential for the sodium butyrate-mediated up-regulation of Claudin-3 expression in the colon.

GPR109A is G protein-coupled receptor for nicotinate [12, 36], and sodium butyrate plays a role in activating G protein-coupled receptors, such as GPR43 [37] and GPR109A, in different cell types. A study by Thangaraju et al. suggested a novel mode of action for butyrate in the colon that involved GPR109A. The inhibition of DNA methylation in colon cancer cells induces GPR109A expression, and the activation of this receptor causes tumor cell-specific apoptosis [38]. Corrêa et al. found that sodium butyrate activates GPR109A to regulate the function of immune cells [39]. As shown in the studies conducted by Cresci, tributyrin protects mice from ethanol-induced gut injury by increasing the expression and co-localization of tight junction proteins (ZO-1 and Occludin) and the expression of a butyrate receptor (GPR109A) in the ileum and proximal colon [40]. However, no report identified GPR109A in swine until we discovered that the AMP010014A09 gene in Sus scrofa encodes an analog of GPR109A that mediates the anti-inflammatory effects of beta-hydroxybutyric acid [16]. In the present study, 30 ng/mL GPR109A-shRNA plasmid was used to knock down GPR109A; the efficiency of interference was 35%, which was due to limitations of the method used and the characteristics of plasmid interference in this cell line. However, the effect of sodium butyrate on Claudin-3 expression was effectively eliminated by GPR109A shRNA. Thus, GPR109A mediates the sodium butyrate-induced enhancement of intestinal barrier function.

Sodium butyrate acts on the Akt signaling pathway to facilitate Claudin-3 expression in a GPR109A-dependent manner. Depending on the tissues and cells, GPR109A activation may trigger a series of signaling pathways and subsequently alter the expression of the tight junction protein Claudin-3 to influence the intestinal permeability of piglets during the early weaning period.
