Transient Receptor Potential Channel, Vanilloid 5, Induces Chondrocyte Apoptosis in a Rat Osteoarthritis Model Through the Mediation of Ca²⁺ Influx Open Access

Osteoarthritis (OA) can cause pain, stiffness, swelling, and loss of function in the joints, which greatly affects quality of life in the elderly population. In the Global Burden of Disease 2010 study, knee OA was ranked the 38^th highest of 291 conditions contributing to global disability [1]. Pathologically, OA is characterized by the progressive degeneration of articular cartilage [2]. Articular cartilage depends solely on its resident cells, chondrocytes, to maintain the extracellular matrix. The cartilage is often accompanied by lacunar emptying, which is evidence that chondrocyte apoptosis is a central feature in OA progression [3]. Thus, in the progression of cartilage degeneration, finding a cause for chondrocyte apoptosis during OA may become a potential strategy against OA disease.

Ca²⁺ is a major intracellular second messenger and a key regulator of cell survival. The disruption of Ca²⁺ homeostasis due to its sustained elevation in the cytoplasm can trigger apoptosis [4]. Our recent study described the role of Ca²⁺ influx through Ca²⁺-selective channels, such as transient receptor potential channel vanilloid 5 (TRPV5), and that the increase Ca²⁺ in the intracellular space can inhibit chondrocyte autophagy in OA by activating calmodulin-dependent protein kinase 2 (CAMK II) [5]. Transient receptor potential channel vanilloid 5 (TRPV5) is a member of the TRPV subfamily, and functions as a facilitative Ca²⁺ transporter [6]. TRPV5 is particularly important in regulating Ca²⁺ influx to maintain Ca²⁺ homeostasis [7]. Loss of TRPV5 function results in abnormal ionocyte proliferation and increased colon cancer risk [8]. TRPV5 may contribute to the process of estrogen-inhibited osteoclastogenesis and bone resorption activity by mediating extracellular Ca²⁺ [9]. The increase in intracellular Ca²⁺ levels can result activation of the Ca²⁺sensor protein calmodulin and combined target proteins to form the Ca²⁺/calmodulin complex [10]. Ca²⁺/calmodulin complexes can participate in the extrinsic apoptotic pathway by promoting the recruitment of FAS-associated death domain (FADD) [11]. Activated FADD initiates caspase-8 activation, which in turn is released into the cytoplasm and initiates further downstream caspase cascades, including caspase-3, 6, and 7 [12]. However, the mechanism of TRPV5-mediated Ca²⁺ influx in the activation of the extrinsic apoptotic pathway in chondrocytes requires further investigation.

The purpose of this study is to reveal the potential regulatory mechanism of TRPV5 in mediating Ca²⁺ influx and initiating chondrocyte apoptosis in an MIA-induced rat OA model. Therefore, TRPV5 could be a potential therapeutic target for OA treatment.

Male Sprague-Dawley Rats (2 months old, 220-230 g in weight) were used. Experimental animals groups flowchart was arranged in Fig. 1. All rats were housed in groups of five per cage under standard laboratory conditions with free access to food and water, and a constant room temperature (22°C) and humidity (45% to 50%). Monosodium iodoacetate (MIA, Sigma USA) was dissolved in sterile saline (0.9% NaCl). Rats were randomly divided into groups as described below. Rats were given an intra-articular injection of MIA and ruthenium red through the infra-patella ligament of both knees, at a dose of 1 mg in 50 µl sterile saline and control (normal) animals were given an intra-articular injection of equi-volume sterile saline.

Joint space was monitored using the digital X-ray (MX-20, Faxitron X-Ray Corp., Wheeling, IL, US). X-rays were graded as follows: 0 = normal appearance; 1 = slight narrowing of the joint space; 2 = narrowing of the joint space but with no osteophytes; 3 = severe narrowing of the joint space with some osteophytes; 4 = severe narrowing of the joint space with many osteophytes. The articular appearance of macroscopic lesions was graded as follows: 0 = normal appearance; 1 = slight yellowish discoloration of the chondral surface; 2 = small cartilage erosions in load-bearing areas; 3 = large erosions extending down to the subchondral bone; 4 = large erosions with large areas of subchondral bone exposure. Each of the chondral compartments (the femoral condyles, the tibial plateaus, the patella, and the femoral groove) were examined. All samples were measured by three assessors who were blinded to the induction procedure.

The RNA of chondrocytes was isolated using a Trizol reagent (Invitrogen, USA). According to the manufacturer’s instructions, RNA was reverse-transcribed into complementary DNA using the PrimeScript RT reagent kit (Takara RR036A, Shiga, Japan). RNA expression of TRPV5 was evaluated by real-time PCR using SYBR® GreenER^TM SuperMix (Takara, Shiga, Japan) with the specific primer for TRPV5 (Fw: 5’-CTGCCTGTGTGGGTAGTGAG-3’ and Rv: 5'-GGTGAGTCCTTGGTTGTTGG-3'), calmodulin (Fw: 5′-GGCATCCTGCTTTAGCCTGAG-3′ and RV: 5′-ACATGCTATCCCTCTCGTGTGA-3′), cleaved caspase-8 (Fw: 5′-ACTGGCTGCCCTCAAGTTCCTGTGC-3′ and RV:5′-TCCCTCACCATTTCCTCTGGGCTGC-3′), β-actin (Fw: 5’-CAGCCTTCCTTCCTGGGTATG-3’ and Rv: 5-TAGAGCCACCAATCCACACA-3') and an ABI Prism 7500 sequence detection system (Applied Bio-systems, Foster City, CA, USA). The fold changes in gene expression were calculated using the following formula: 2^–Δct where Δct is the difference of the threshold cycle of the sample.

The resected knee samples were fixed in neutral formalin-buffered solution for 2 weeks, then decalcified in EDTA decalcification liquid for 3 weeks. Samples were embedded in paraffin and cut into 4-µm tissue sections. After antigen retrieval and blocking endogenous peroxidase activity, sections were then incubated with anti-calmodulin antibody (Abcam, Cambridge, UK; 1: 200 dilution) at 4°C overnight. Then the secondary antibody (Zhongshanjinqiao, Beijing, China) was applied for 30 min at room temperature. Staining was detected with DAB (3, 3′-diaminobenzidine tetrahydrochloride). Sections were next counterstained with hematoxylin for 4 minutes to stain the nucleus and then dehydrated with ascending concentrations of ethanol solution, cleared with xylene and mounted with a coverslip.

Primary chondrocytes were isolated from rats as described [5]. Fresh medium was replaced every 2 days and chondrocytes reached approximately 80% confluence by days 4-5 as the P₀ generation. Confluence chondrocytes were then detatched with trypsin for subculture continually as generations P1, P2, and P3. Cells were used for experiments within the P₃ generation. Immunocytochemistry was performed to identify chondrocyte phenotypes. Monolayer cells were incubated with anti-type II collagen antibody (Abcam, Cambridge, UK; 1: 400 dilution) at 4°C overnight. The secondary antibody was then applied for 30 min at room temperature. Staining was detected with DAB.

Chondrocytes were transfected at 60–70% confluence using siRNA transfection reagent (sc-29528; Santa Cruz Biotechnology, Santa Cruz, CA, USA) with TRPV5 siRNA (sc-42676; Santa Cruz Biotechnology, Santa Cruz, CA, USA) diluted into siRNA transfection medium (sc-36868; Santa Cruz Biotechnology, Santa Cruz, CA, USA) at a final concentration of 100 nM according to the manufacturer’s instructions. Chondrocytes that were transfected with scrambled control siRNA (sc-37007; Santa Cruz Biotechnology Santa Cruz, CA, USA) at a concentration of 100 nM were served as the negative control. Cells were transfected for 72 h for the TRPV5 knockdown study prior to Ca²⁺ measurement, immunofluorescence and western blot analysis.

Chondrocytes and chondrocytes transfected with TRPV5 or control siRNA were seeded at a density of 1×10⁶ cells/well in complete growth medium in a 6-well plate for 24h. The following day, cells were treated with 0-6 µM MIA for 12 h, and one group was pre-incubated with 10 µM ruthenium red for 30 minutes before 6 µM MIA incubation. Each well was brought to a final volume of 2 ml with complete growth medium. Treated cells were then fixed in neutral formalin-buffered solution for 30 minutes, washed three times with PBS and incubated with primary anti-calmodulin antibody (Abcam, Cambridge, UK; 1: 200 dilution) and anti-cleaved caspase-8 (Abcam, Cambridge, UK; 1: 400 dilution) antibodies overnight at 4°C. Samples were then incubated with secondary antibody (Abcam, USA, 1: 100 dilution) for 1 h at 37°C. The chondrocyte nuclei were stained with DAPI (4′,6-diamidino-2-phenylindole) for 5 min. The stained chondrocytes were observed under a fluorescence microscope.

Chondrocytes and chondrocytes transfected with TRPV5 or control siRNA were seeded at a density of 1×106 cells/well in complete growth medium in a 6-well plate for 24h. The following day, cells were treated with 0-6 µM MIA for 12 h, and two wells were pre-incubated with 10 µM ruthenium red and 10 µM BAPTA-AM, respectively, for 30 minutes then washed with PBS before 6 µM MIA incubation. Each well was brought to a final volume of 2 ml with complete growth medium. Treated cells were washed three times with D-Hanks balanced salt solution without Ca²⁺. Subsequently, cells were loaded with 2 µmol/l Fluo-4AM (Dojindo, Japan) for 30 min at 37°C in the dark, then washed twice with D-Hanks balanced salt solution without Ca²⁺ to remove extracellular Fluo-4/AM. Imaging was performed using an OLYMPUS IX71 inverted microscope and analyzed with Image-Pro Plus 6.0. The measured average fluorescence intensity of each cell in the field (F) was normalized with the non-specific background fluorescence (F0) to obtain the fluorescence intensity (F/F0) [13]. Statistical data are expressed as percentage variation of treatment group vs. control (0 µM MIA).

MIA-induced chondrocyte apoptosis was detected using an annexin V-FITC/PI apoptosis detection kit (AD101; Dojindo, Japan). Chondrocytes were grouped as in determination of intracellular Ca²⁺ described above in determination of intracellular Ca2+ by fluo-4AM staining. Chondrocytes were washed twice with PBS containing 5% FCS and resuspended in 500 µl binding buffer provided in the detection kit, followed by incubation with 5 µl annexin V-FITC and 5 µl propidium iodide (PI) at room temperature for 15 min in the dark. Flow cytometry was performed using Cell Quest software (BD Biosciences, San Jose, CA, USA).

Chondrocytes were grouped as in determination of intracellular Ca²⁺ described above. Western blotting was performed as previously described [5]. Blots were incubated with primary antibodies including TRPV5 (Abcam, USA, 1: 2000 dilution), calmodulin (Abcam, USA, dilution 1: 1000), DAP (Abcam, USA, dilution 1: 2000), FADD (Abcam, USA, dilution 1: 2000), cleaved-caspase-8 (Abcam, USA, dilution 1: 5000), cleaved-caspase-3 (Abcam, USA, dilution 1: 5000), cleaved-caspase-6 (Abcam, USA, dilution 1: 5000), cleaved-caspase-7 (Abcam, USA, dilution 1: 5000), and β-actin (Abcam, USA, dilution 1: 10000).

All experiments in this study were repeated three times. All data are expressed as mean ± standard error of the mean (SEM). Differences between means were analyzed using one-way analysis of variance (ANOVA) with MIA injected different at times and at different concentrations as the independent factors. A paired t-test was applied to evaluate the differences between 6 µM MIA appended different intervention treatment and 6 µM MIA alone. All statistical analyses were performed using SPSS 17.0 (IBM, Armonk, NY, USA). Significance was set at P = 0.05 for all statistical analyses.

Radiographic and macroscopic graphs with their evaluation scores of the knee joints were assessed. In the radiographic graph Fig. 2A, the surface of the knee joints was smooth in the normal (sterile saline) group. In contrast, obvious osteophytes as well as incomplete and thickened articular surfaces were observed in the OA group, particularly with the longest time of MIA injection. Regarding macroscopic evaluation of the OA group (Fig. 2B), the cartilage on the articular surface was thin and yellowish, with focal erosions of the tibial plateaus. Moreover, pathological features became increasingly severe as the MIA injection time lengthened. The gradual deterioration of cartilage successfully simulated the progressive aggravation characteristic of OA over time. However, the MIA + ruthenium red group had markedly reduced pathological processes in both radiographic and macroscopic imagery. The evaluation scores at varying time points of the MIA group were significantly different, but consistent with the pathologic level of OA in radiographic and macroscopic graphs (Fig. 2C, 2D). These results suggest that, in articular chondrocytes, inhibition of TRPV5 using ruthenium red may be protective against the development of OA, and that TRPV5 may participate in progressive cartilage destruction during OA.

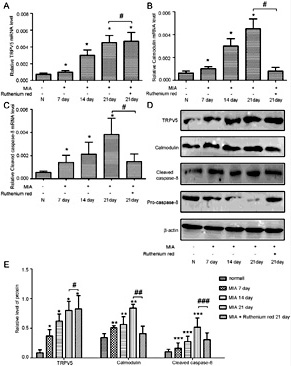

TRPV5 mRNA (Fig. 3A) was detected by RT-PCR and TRPV5 protein was identified by western blotting in articular cartilage. TRPV5 was weakly expressed in normal (sterile saline) cartilage. Accordingly, high TRPV5 mRNA expression was detected in the articular cartilage of the most severe OA (MIA 21 days; Fig. 3D), which is consistent with results obtained via western blotting. TRPV5 levels were significantly greater in the OA cartilage, and the degree of up-regulation was positively correlated with the degree of OA lesions (Fig. 3E, P < 0.05).

Calmodulin and cleaved caspase-8 mRNA (Fig. 3B; 3C) were weakly expressed in normal (sterile saline) cartilage, but high expression was detected in the most severe OA articular cartilage (MIA 21 days). Calmodulin and apoptosis marker cleaved-caspase 8 protein levels as detected by western blotting (Fig. 3D) were consistent with RT-PCR results. Calmodulin protein was immunolocalized in articular cartilage by immunohistochemistry. In normal cartilage, its staining is very light (sterile saline; Fig. 4A). Mild staining of calmodulin was observed in moderately degenerative articular cartilage (MIA 7 days; Fig. 4B), while staining became progressively higher with increased OA severity (MIA 14 and 21 days; Fig. 4C and 3D respectively), which suggests that calmodulin expression was up-regulated gradually with the OA progression development. In summary, these results suggest up-regulated expression of calmodulin and cleaved caspase-8 correlate positively with the progression of osteoarthritis induced by MIA.

Chondrocyte morphology, as observed under the microscope, is rounded early after plating and becomes flat and polygonal shape by 72h of growth (Fig. 5A, B). Primary chondrocytes were stained with anti-collagen II (Fig. 5C) for identification. In order to investigate the effect of TRPV5 in MIA-stimulated chondrocyte, Small interfering RNA transfection technique was used to knockdown TRPV5 in rat primary chondrocytes. The silenced levels of TRPV5 mRNA and TRPV5 protein were identified 72h later (Fig. 6). We observed calmodulin and cleaved caspase-8 expression in chondrocytes in vitro by immunofluorescence staining. As shown in Fig. 7A and 7B, immunofluorescence staining of both calmodulin and cleaved caspase-8 in the MIA-stimulated group gradually increased with increasing MIA concentrations. However, calmodulin and cleaved caspase-8 staining were diminished in the ruthenium red group and TRPV5 siRNA groups. Thus, calmodulin and cleaved caspase-8 expression in chondrocytes may be linked to TRPV5 expression in experimental OA.

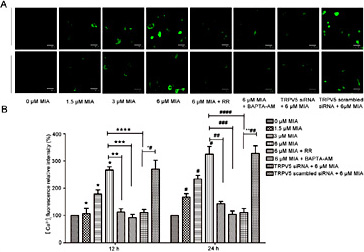

Calcium influx results show that the relative fluorescence intensity in the MIA-stimulated group gradually increases with increasing concentrations of MIA (0-6 µM) for 12h and 24h (Fig. 8A, 8B), while the fluorescence intensity was significantly reduced after treatment with ruthenium red (10 µM) and the Ca²⁺ chelator BAPTA-AM (10 µM). Additionally, fluorescence intensity was significantly reduced in chondrocytes transfected TRPV5 siRNA. These results indicate that TRPV5 may have a specific role in mediating extracellular Ca²⁺ influx.

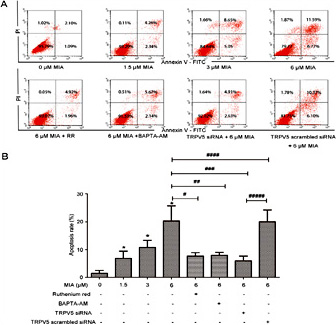

Flow cytometric analysis results show that the percent of apoptotic cells significantly increases with increasing MIA concentrations, but is dramatically attenuated in the presence ruthenium red and BAPTA-AM or in chondrocytes transfected TRPV5 siRNA (Fig. 9https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4025893/figure/fig01/A, 9B). Chondrocyte apoptosis is thereby demonstrated to be initiated via up-regulation of TRPV5, and this effect can be diminished by TRPV5 inhibition.

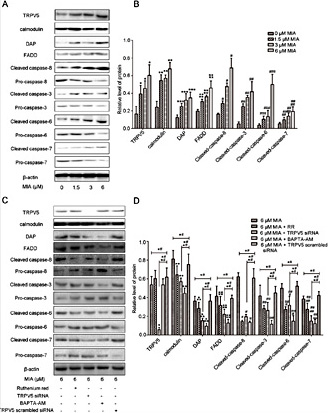

To explore the mechanism whereby upregulation of TRPV5 increases chondrocyte apoptosis, the expression of core proteins was determined by western blotting. As shown in Fig. 10A, 10B, as compared to the untreated group, the expression levels of calmodulin, DAP, FADD, cleaved caspase-8, cleaved caspase-3, cleaved caspase-6 and cleaved caspase-7 gradually increase with increasing MIA doses. However, the expression levels of these proteins was decreased in chondrocytes pretreated with ruthenium red and BAPTA-AM or in chondrocytes transfected TRPV5 siRNA correspondingly, compared with the 6 µM MIA-stimulated group in Fig. 10C, 10D.

Based on current knowledge, chondrocyte apoptosis could be the underlying factor for the initiation of OA, as well as being involved in the advanced stages of the disease [3]. Understanding the mechanism of chondrocyte apoptosis is essential for developing appropriate targeted therapies for OA treatment. Therefore, a MIA-induced experimental OA rat model was developed to imitate the articular cartilage degeneration, in order to study the mechanism of chondrocyte apoptosis. The advantages of the MIA-induced experimental OA model are that it involves a quick and easy procedure, produces OA-like lesions, and displays functional impairment similar to that observed in the human disease [14].

Since the TRPV family was first discovered in early 1997 [15] and was proposed systematically in 2001 [6], TRPV proteins have been investigated in the etiologies of diseases in many systems. Transient receptor potential channel vanilloid 5 (TRPV5) is a member of the TRPV subfamily that functions as a facilitative Ca²⁺transporter. TRPV5 expression has been previously described in tissues involved in Ca²⁺ transport including hepatocytes, osteoblasts, and enterocytes. TRPV5 has also been found to be expressed in neurons [16] and other non-neurons like smooth muscle cells [17]. It is noteworthy that few studies have reported the functionality of TRPV5 in articular chondrocytes. In our study, we have comprehensively shown that TRPV5 expression in cartilage and up-regulation of TRPV5 participated in the development of OA in the MIA-induced rat model; TRPV5 expression was weak in normal cartilage (sterile saline), while mild staining was observed in moderate severity degenerative cartilage (MIA 7 days, MIA 14 days). High TRPV5 expression was detected in the articular cartilage of the most severe OA (MIA 21 days) (Fig. 4A, 4D). A direct linear correlation was obtained between the TRPV5 expression and the severity of the OA. We also found that calmodulin and the apoptosis marker-cleaved caspase-8 were significantly upregulated in OA cartilage in a positive linear relationship with TRPV5 protein (Fig. 3B, 3C). We speculate that the expression of calmodulin linked with osteoarthritis may be promoted by TRPV5-mediated Ca²⁺ influx. It has been previously reported that abnormal TRPV5 can cause Ca²⁺ influx overloading in HEK293 [18] and mice ear hair cells [19]. Our study delineated that Ca²⁺ increase via intracellular influx through TRPV5 can inhibit chondrocyte autophagy in OA [5]. The complex role of TRPV5 expression in cartilage chondrocytes may require further investigation.

So, we verified the functionality and activation of the TRPV5 channel in primary rat chondrocytes by measuring Ca²⁺ influx using a Fluo-4AM. Fluo-4AM Assay Kit, which is one of the commonly used methods to measure free calcium ions in cells [20]. Fluorescence values (F) were normalized by the non-specific background fluorescence (F₀) to obtain the fluorescence ratio (F/F₀), and the relative fluorescence intensity was counted statistically as percentage variation of treatments from untreated (0 µM MIA). Even if Fluo-4AM is not a radiometric dye, it can also be used to detect changes in relative fluorescence values if there are changes in free calcium concentration. The relative fluorescence intensity in the MIA-stimulated group increased gradually with increasing concentrations of MIA, while the fluorescence intensity was significantly reduced by treating with the TRPV5 specific inhibitor, ruthenium red or BAPTA-AM, or in chondrocytes transfected TRPV5 siRNA. Our results suggested that TRPV5 had a specific effect on cytosolic Ca²⁺ concentration and on mediating extracellular calcium influx. Indeed, Ca²⁺ entry pathways have been identified in developing and mature chondrocytes including N-methyl-d-aspartate receptor (NMDA) subunits [21], transient receptor potential (TRP) channels and voltage-operated Ca²⁺ channels (VOCCs) [22]. Among these pathways, TRPV is an important channel, but has been less studied. The TRPV4 ion channel has been reported as being a key mediator and significant component of chondrocyte mechanotransduction pathways [23]. Ca²⁺ is a major intracellular second messenger and has a direct or indirect role in mediating apoptosis [4]. Ca²⁺ was highlighted as being important in apoptosis involving calcium entry-dependent reactive oxygen species (ROS) production [24], mitochondrial depolarization and DNA fragmentation [25]. Although most studies regarding the role of Ca²⁺ in apoptosis have mainly focused on its increased release from the ER, the role of Ca²⁺ influx through Ca²⁺-selective channels has also been studied extensively [5, 18, 26]. Our results suggested that calcium influx though the TRPV5 channel could induce apoptosis of chondrocytes.

Mutation of TRPV5 channels in lymphocytes can also activate apoptosis of lymphocytes [27], but the exact mechanism is not clear. In the present study, flow cytometric analysis confirmed that upregulated TRPV5 leads to apoptosis and that both pharmacological inhibition and siRNA-mediated knockdown of TRPV5 can reduce the apoptosis rate of MIA-induced chondrocytes.

The involvement of DAP-kinase in Fas-induced cell death is supported by independent evidence [28]. Knockdown of FADD blocks Fas-induced activation of caspase-8 and caspase-3, thus rendering them resistant to Fas-induced apoptosis [29]. Western blotting indicated that up regulated the TRPV5 channel can activate calmodulin, DAP, and FADD proteins in this pathway. In turn, activated FADD can stimulate caspase-8, which can activate caspases-3, 6, and 7. The cascade activation pathway was shown in Fig. 9. Our results were consistent with our previous hypothesis (Fig. 11).

In summary, we found that the TRPV5 cation channel was functionally expressed in normal cartilage and upregulated in OA articular cartilage. The up-regulated TRPV5 could be an initiating factor that induces extrinsic chondrocyte apoptosis via the mediation of Ca²⁺ influx. These findings suggested TRPV5 could be as an intriguing mediator for drug target in OA.

This work was supported by the National Natural Science Foundation of China (General Program; No.: 81272050; No.: 81772420); Excellent PhD Program of ShengJing Hospital of China Medical University (No.: ME332).

No conflict of interests exists.
