ADAMTS9 is Silenced by Epigenetic Disruption in Colorectal Cancer and Inhibits Cell Growth and Metastasis by Regulating Akt/p53 Signaling

Colorectal cancer (CRC) has caused high morbidity and mortality worldwide. According to global cancer statistics, in 2012 CRC accounted for 10% and 9.21% of all new cancer cases in men and women, respectively; and for 8.02% and 9.03% of deaths by cancer in men and women, respectively [1].

CRC progresses through a series of histopathologic stages: atrophy, metaplasia, dysplasia and carcinoma [2-3]. This progression is the result of a series of multiple genetic and epigenetic changes [4-5].

DNA CpG (CG dinucleotide) methylation, an important form of epigenetic modification, often results in the hypermethylation of specific gene promoters and the inactivation of tumor suppressor genes (TSGs) [6-7]. Silencing of TSGs by epigenetic modification is a fundamental contribution to tumor development [8].

ADAMTS (disintegrin-like and metalloproteinase with thrombospondin motifs) is an important family of zinc-dependent proteases, which in humans contains 19 members. ADAMTS proteins play a significant role in various physiological and pathological processes, including wound healing, angiogenesis, cancer, atherosclerosis, arthritis, blood coagulation, melanoblast development, extracellular matrix turnover, and inter-digital web regression [9-10].

ADAMTS9, which encodes a member of the ADAMTS family [11], is located on chromosome 3p14.2-14.3. This chromosome region is lost in multiple tumors, including hereditary renal tumors, cervical cancer and nasopharyngeal carcinoma [11-13]. It has been suggested that ADAMTS9 is silenced by promoter methylation, and that it is associated with tumor suppression in gastric cancer, in esophageal squamous cell carcinoma, in nasopharyngeal carcinoma and in multiple myeloma [14-17].

Here, we evaluated the frequency of ADAMTS9 inactivation in colorectal cancer and explored its functions and mechanisms in CRC cell lines.

Colorectal cancer cell lines HCT15, SW480, LoVo, and CaCo2 were purchased from ATCC. HCT116 and HT29 were kindly provided by Prof. Qian Tao (the Chinese University of Hongkong, China). Cells were maintained at 37 °C, in a humidified atmosphere containing 5 % CO₂, in RPMI 1640 (Gibco-BRL, USA) medium supplemented with 10% fetal bovine serum (Gibco, USA), 100 U/ml of penicillin, and 100 mg/ml streptomycin [18]. For DNA demethylation, cells were treated with 10 µM 5-aza-2’-deoxy cytidine (Aza; Sigma-Aldrich) for 3 days and then treated with 100 nM histone deacetylase inhibitor trichostatin A (TSA; Cayman Chemical Co.) for 1 day. Primary colorectal cancer tissues and paired cancer adjacent normal tissues were obtained from the Surgery Department of the First Affiliated Hospital of Chongqing Medical University (Chongqing, China).

Twenty-three primary colon carcinoma tissues and 20 corresponding tumor adjacent tissues were used to evaluate ADAMTS9 protein expression and location by IHC staining. Anti-ADAMTS9 antibody was from Santa Cruz (1: 50, sc-21502; Santa Cruz Biotechnology, California). IHC was performed as described previously [19]. Images were captured with a Leica microscope photography system and the mean optical density was analyzed using Image Pro Plus 6.0 (Silver Spring, MD, USA).

Genomic DNA was extracted from cells and tissue specimens using the QIAamp DNA Mini Kit (Qiagen, Hilden, Germany). Bisulfite modified DNA was amplified by MSP using methylation-specific primer pairs as described previously [20-21]. The primer sequences for methylated ADAMTS9 promoter are 5’-TTTTTCGTTTTTTTTTGTTCGTTC-3’ and 5’-AAACTAAACCG CTCGAACCG-3’; primer sequences for the unmethylated promoter are 5’-GTTTTTTGTT TTTTTTTGTTTGTTT -3’ and 5’- AAAAACTAAACCAC TCAAACCA -3’. MSP was performed for 40 cycles with an annealing temperature of either 60 °C or 58 °C using AmpliTaq-Gold DNA Polymerase (Applied Biosystems, Foster City, CA, USA).

The plasmids pCEP4 (+)-ADAMTS9 or pCEP4 (+) were transfected into CaCo2 and HCT116 cells using Lipofectamine 2000 reagent according to the manufacturer’s protocols (Invitrogen, USA). Forty-eight hours post-transfection, CaCo2 and HCT116 cells were selected for 2–4 weeks with hygromycin (Sigma) at a concentration of 300 µg/ml and 200 µg/ml, respectively. Total RNA and protein from the transfected cells were extracted, and analyzed by RT-PCR, or western blot, to confirm the expression of ADAMTS9 in stable cells.

Total RNA was extracted from cells and tissues using Trizol reagent (Invitrogen, USA), according to the manufacturer’s instructions. RT-PCR was performed as described previously [22]. PCR components were added to a 10-µl reaction mixture that included 2 µl of cDNA. GAPDH was used as a control to assess the overall cDNA content. The primer sequences for ADAMTS9 are 5’-CATGCAGTT TGTATCCTG-3’, and 5’-GCGTTCTTTTGAAGTGGACG-3’. RT-PCR was performed for 32 cycles for ADAMTS9 and 23 cycles for GAPDH using Go-Taq (Promega, Madison, WI, USA). Agarose gel electrophoresis (120 V, 25 min) was performed on a 2% agarose gel. Results were analyzed using a BioRad’s Gel Doc XR+ system (Bio-Rad, USA).

Quantitative RT-PCR was performed using Maxima SYBR Green/ROX qPCR Master Mix (MBI Fermentas, St. Leon-Rot, Germany) on an ABI 7500 Real-Time PCR System (Applied Biosystems). The expression levels of ADAMTS9 in normal colorectal tissues were set as baseline levels.

CaCo2 and HCT116 cells were collect ed, and then plated in six-well plates in triplicate. Forty-eight hours post-transfection, the transfectants were select ed for 2–3 weeks with hygromycin (Sigma) at a concentration of 300 µg/ml (CaCo2 cells) or 200 µg/ml (HCT116 cells), as previously described [23]. Surviving colonies were stained with gentian violet after methanol fixation, and visible colonies (≥ 50 cells/colony) were counted.

Forty-eight hours after transient transfection with pCEP4 (+)-ADAMTS9 or pCEP4 (+) plasmids (4 µg each), CaCo2 and HCT116 cells were transferred to 96-well plates (2 × 10³ cells per well, in triplicate). Proliferation was measured using the Cell Counting Kit-8 (CCK-8, Beyotime, Shanghai, China) after 0 h, 24 h, 48 h, and 72 h [24].

For cell cycle analysis, CaCo2 and HCT116 cells were cultured overnight in six-well plates at 70-80% density. Cells were then transfected with 4 µg pCEP4 (+)-ADAMTS9 plasmid or the control vector using Lipofectamine-2000, according to the manufacturer’s instructions. Forty-eight hours after transfection, cells were harvested and centrifuged at 200 ×g for 5 min. Cells were then washed with PBS twice and fixed overnight in 70% ice-cold ethanol. Fixed cells were then treated with 50 µg/ml RNase at 37 °C for 30 min, and stained with 50 µg/ml propidium iodide for 30 min at room temperature, in the dark. Data were analyzed by flow cytometry using a FACSCalibur instrument and the CELL-QUEST software (Becton Dickinson).

Apoptosis assays were performed using the FITC Annexin V Apoptosis Detection Kit I (BD Biosciences) by flow cytometry. CaCo2 and HCT116 cells, transfected with either the pCEP4 (+)-ADAMTS9 plasmid or the control vector, were harvested 48 h after transfection. Apoptosis and cell viability were measured by FITC-Annexin V and propidium iodide (PI) staining. Cell populations were categorized as viable (Annexin V-, PI-), early apoptotic (Annexin V+, PI-), or late apoptotic cells (Annexin V+, PI+). Both late and early apoptotic cells were counted together for relative apoptotic changes. All experiments were performed three times.

Migration assays were performed using transwell inserts (Corning, NY, USA) containing an 8-µm pore-size PET membrane. Cells were trypsinized and resuspended in serum-free RPMI 1640 medium at a density of 10 × 10⁵ cells/ml. RPMI 1640 medium (700 µl) containing 10% fetal bovine serum was placed in the lower chamber of the transwells, and 100 µl of the cell suspension was added into the upper chamber. After incubation at 37 °C for 36 h (CaCo2 cells) or 48 h (HCT116 cells), cells on the upper side were removed carefully with cotton swabs, and cells that migrated to the lower chamber were fixed with methanol, stained with 0.05 % crystal violet, and counted under a light microscope. The experiment was performed three times.

Transfected cells were lysed in M-PERM Mammalian Protein Extraction Reagent (Pierce, Thermo Scientific, UK) containing a protease inhibitor cocktail (Sigma Aldrich) and PMSF. Lysates containing 40 µg protein were separated by sodium dodecyl sulfate/polyacrylamide gel electrophoresis and then transferred to PVDF membranes (Bio-Rad, Hercules, CA, USA). After blocking with 5 % non-fat milk and 0.1 % Tween 20 in TBS, membranes were incubated with the following primary antibodies: ADAMTS9 (sc-21500), MDM2 (sc-965), p53 (sc-126), and vimentin (sc-6260) from Santa Cruz Biotechnology; p21 (#2947), p27 (#3686), caspase 9 (#9502), cleaved caspase 9 (#9501), caspase 3 (#9662), cleaved caspase 3 (#9664), Akt (#4691), phospho-Akt (#4060), GAPDH (#2118), anti-rabbit IgG, and anti-mouse IgG HRP from Cell Signaling Technology; E-cadherin (ab40772) and β-actin (ab9485) from Abeam; VEGFA (TA500042, Origene) and anti-goat IgG HRP from Liankebio (RAG007). Immunoblots were visualized using an enhanced chemiluminescence detection system (Pierce Chemical Co., Rockford, IL, USA) and blots were developed using a Fujifilm Las-4000 Imaging System.

Statistical analysis was performed using the SPSS software (SPSS Inc., Chicago, IL). The expression of ADAMTS9 in tumor tissues, and its expression in the corresponding normal adjacent tissues, were compared using Student’s t-tests. RT-PCR data were analyzed using the 2^-∆∆ct method, using GAPDH as a refer ence gene. Data on colony formation, cell proliferation and cell migration are expressed as mean ± SD from three independent experiments. Statistical significance was analyzed by x²-tests or 2-tailed t-tests. Fisher’s exact test was used when appropriate. Differences were considered statistically significant if the p value was less than 0.05.

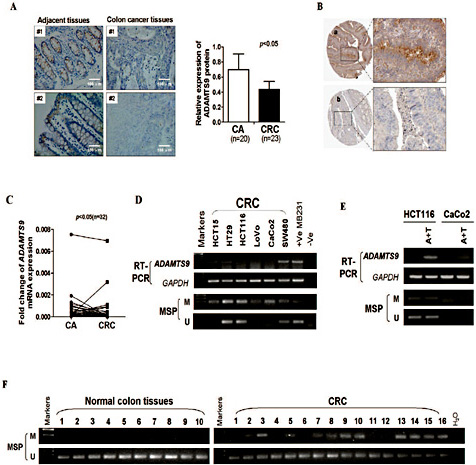

Expression of ADAMTS9 at the protein level was detected by IHC in 23 primary tumors and 20 of the corresponding tumor adjacent normal tissues. IPP 6.0 analysis showed that ADAMTS9 protein level was lower in colon tumor tissues than that in tumor adjacent normal tissues (Fig. 1A, p < 0.05). ADAMTS9 expression location is in agreement with these data from the human proteinatlas (http://www.proteinatlas.org/) (Fig. 1B).

Relative to normal tissue, the expression of ADAMTS9 mRNA was down-regulated in 65.6% (21/32) of colorectal cancer tissues (p < 0.05, Fig. 1C). However, lower expression of ADAMTS9 in CRC did not correlate with its differentiation and histological classification (data not shown).-According to RT-PCR analysis, ADAMTS9 expression was absent in 3 of the 6 colorectal cell lines tested, and weakly expressed in HCT15 and HT29 cell lines (Fig. 1D).

We sought to determine whether promoter methylation is involved in ADAMTS9 down-regulation in colorectal cancer. Typical CpG islands were found in the promoter region of ADAMTS9 using CpG island analysis software (http://cpgislands.usc.edu) (data not shown). MSP was used to analyze the ADAMTS9 promoter methylation status in CRC. Methylation of the ADAMTS9 promoter was observed in all CRC cell lines, which was consistent with its low expression or absence (Fig. 1D).

To determine whether ADAMTS9 silencing was a direct result of promoter methylation, we treated HCT116 and CaCo2 cells with Aza and TSA, and then performed MSP analysis. After the demethylation treatment, we observed decreased methylation of the ADAMTS9 promoter, and restored ADAMTS9 expression (Fig. 1E).

We also investigated the level of ADAMTS9 promoter methylation in colorectal cancer tissues. MSP results showed that ADAMTS9 was methylated in 68.75 % (44/64) of primary colorectal cancer tissues, but no methylation was found in normal colorectal tissues (Fig. 1F).

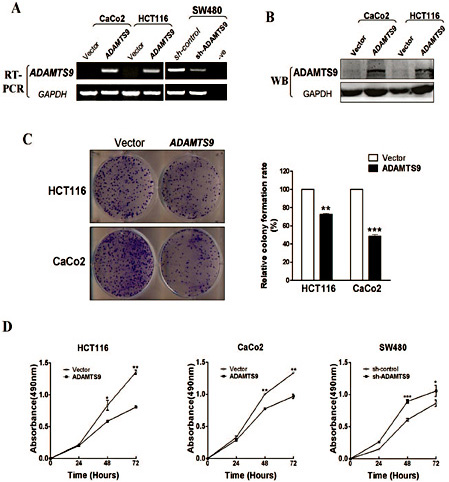

The frequent silencing of ADAMTS9 in CRC cells and tissue specimens suggested that this gene might be a tumor suppressor. Colony formation assay and CCK8 assays were used to investigate whether ADAMTS9 can inhibit tumor cell growth. Exogenous expression of ADAMTS9 reduced colony formation in CaCo2 and HCT116 cells, relative to cells transfected with the empty vector (Fig. 2C). In CaCo2 and HCT116 cells overexpressing ADAMTS9, cell proliferation was significantly suppressed (Fig. 2D). In addition, knockdown of ADAMTS9 in SW480 by shRNA significantly promoted cell growth (Fig. 2D).

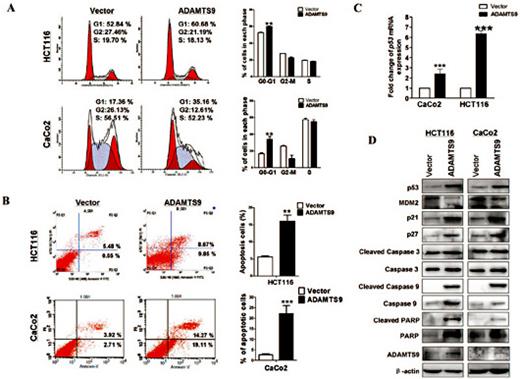

We sought to confirm whether ADAMTS9 regulated cell cycle and apoptosis in CRC cells. Compared to control cells, cells transfected with ADAMTS9 were arrested in the G0/G1 phase, accompanied by the decrease of cells in G2/M and S phase (Fig. 3A). Suppression of cell growth in tumors is usually associated with the activation of cell death pathways. The percentage of early and late apoptotic cells increased in cells transfected with ADAMTS9, relative to control cells (Fig. 3B). The expression of down-stream target genes of the p53 signaling pathway, such as caspase 3, caspase 9, PARP, p21, p27 increased in CRC cell lines transfected with ADAMTS9 (Fig. 3C, 3D).

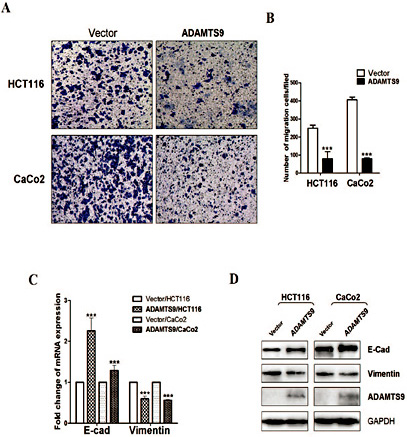

Transwell assay was performed using CaCo2 and HCT116 cells to assess the effect of ADAMTS9 on colon cancer migration.The number of cells adhering to the lower membrane of the transwells was lower in cells overexpressing ADAMTS9 than in control cells (p < 0.001, Fig. 4A, 4B). qPCR and western blot analysis showed that the expression of the epithelial marker E-cadherin was up-regulated in cells overexpressing ADAMTS9, while vimentin was repressed, providing more evidence that ADAMTS9 represses EMT (Fig. 4C, 4D).

The Akt/VEGFA signaling pathway contributes to proliferation and metastasis in colorectal cancer. To gain insight into the possible mechanism of ADAMTS9 in colorectal cancer, we tested the expression levels of key molecules in the Akt/VEGFA signaling pathway by western blot. Total Akt, p-Akt, and VEGFA were down-regulated in CRC cell lines transfected with ADAMTS9 (Fig. 5).

ADAMTS family plays functions roles in extracellular matrix (ECM) assembly and degradation. By acting on a large panel of extracellular substrates, an increasing body of evidence indicates that several members of ADAMTS family shows anti-tumorigenic properties through regulated cell adhesion, proliferation, and migration [25]. Most of ADAMTS family members (ADAMTS1, ADAMTS8, ADAMTS9, ADAMTS12, ADAMTS15 and ADAMTS18) share a complex structural design characterized by the presence of a metalloproteinase domain linked to a variety of specialized ancillary domains, including a series of thrombospondin type 1 (TSP1) repeats [26-28].

Previous studies reported that ADAMTS genes (e.g. ADAMTS8, ADAMTS12 and AD-AMTS18) were frequently methylated and down-regulated in various carcinomas [29-31]. ADAMTS1, ADAMTS15 and ADAMTS20 are down-regulated in CRC progress [32-33]. It has also been shown that the promoters of ADAMTS1, ADAMTS5, ADAMTS9, ADAMTS12, ASDAMTS15 and ADAMTS18 are methylated in CRC, suggesting a decreased expression of the proteins in this state [29-31, 34]. In contrast, ADAMTS4, and ADAMTS5 are overexpressed in CRC, which might be an invasive mechanism of cancer cells to degrade proteoglycans of ECM [32]. Other studies found that ADAMTS15 and ADAMTS18 were frequently mutated in CRC cells, but the functions were not clear. Hence, it is of potential clinical value to investigate the expression and methylation of ADAMTS genes in CRC.

ADAMTS9 is an extracellular matrix metalloprotease with proteolytic activity, localizes to the cell surface and in the ECM [35]. ADAMTS9 is silenced or down-regulated in esophageal squamous cell carcinoma, nasopharyngeal carcinoma, and gastric cancer [14-16, 36]. The down-regulation of ADAMTS9 in multiple carcinomas is due to hypermethylation of promoter CpG islands [37-38]. Furthermore, ADAMTS9 reduces phosphorylation of mTOR downstream targets, including p70 ribosomal S6 kinase, eIF4E-binding protein, and down-regulated hypoxia-inducible factor-1α [15].

In this study, we observed that ADAMTS9 was silenced or down-regulated in five colorectal cancer cell lines and repressed in 65.6% of colorectal cancer tissues, indicating that a loss of ADAMTS9 expression could lead to colorectal cancer tumorigenesis.

MSP revealed that ADAMTS9 promoter methylation was partially responsible for its down-regulation in CRC. Furthermore, down-regulation of ADAMTS9 correlated with promoter methylation in most cell lines. The methylation of ADAMTS9 in SW480 cells showed a limited effect on mRNA expression. This might be caused by the heterogeneity of tumor cells. Aza inhibited promoter methylation and restored the expression of ADAMTS9, suggesting that promoter methylation is a predominant regulatory mechanism of ADAMTS9 inactivation in colorectal cancer.

ADAMTS9 was silenced or down-regulated in colorectal cancer cell lines and human CRC tissue specimens, suggesting that ADAMTS9 might be a potential TSG, and that its inactivation could have a role in the development of colorectal cancer. Our results indicate that exogenous ADAMTS9 expression in CaCo2 and HCT116 cells induce apoptosis, suppress cell growth and cell migration, and induce G0/G1 cell cycle arrest. On the other hand, knockdown of ADAMTS9 in SW480 cells significantly promoted cell proliferation.

ADAMTS9 could also reverse EMT In addition, the mesenchymal marker vimentin was inhibited and E-cadherin was up-regulated by ADAMTS9Akt pathway plays an important role in cancer development and progression by regulating cell proliferation and apoptosis [39-40]. We analyzed the relationship between ADAMTS9 and Akt signaling pathway in colorectal cancer. ADAMTS9 inhibited the expression of p-Akt and VEGFA, but up-regulated the expression of p53 in CRC. Whereas p53, another downstream target gene of Akt, is very important tumor suppressor gene in multiple carcinogenosis, these results imply that ADAMTS9 might act as a tumor suppressor in colorectal cancer.

In summary, our results demonstrated that ADAMTS9 expression is frequently silenced by promoter methylation in colorectal cancer cell lines and primary CRC tissues. Expression of ADAMTS9 was restored by pharmacological demethylation. Down-regulation of ADAMTS9 in colorectal cancer increased cell proliferation. ADAMTS9 functions as a tumor suppressor, acting on the Akt/p53 signaling pathway in colorectal carcinogenesis.

The authors declare that they have nothing to disclose.

The authors thank Prof. Qian Tao (the Chinese University of Hong Kong, Hong Kong, China) for generously providing cell lines, plasmids, primers, technical assistance and help with experimental design.

This study was supported by the National Natural Science Foundation of China (No 81572769), the Natural Science Foundation of Chongqing (cstc2016 jcyjA0309) and special research funds from the Chinese University of Hong Kong.

L. Chen and J. Tang contributed equally to this work.
