Myocardial Lipid Profiling During Time Course of High Fat Diet and its Relationship to the Expression of Fatty Acid Transporters

Maintaining physiological contractile activity of the heart requires substantial energetic inputs. Therefore, it is important to supply appropriate amounts of substrates which are used in ATP production in cardiomyocytes, i.e. glucose, free fatty acids (FFA), lactate, ketone bodies and amino acids [1,2]. Free fatty acids, apart from glucose, are the main source of energy in working heart, accounting for approximately 50-70% of the energy substrates used [1,3]. Healthy cardiac muscle is characterized by high rates of fatty acids metabolism and low myocellular lipids storage, thus supplying FFA to the cardiomyocytes from the plasma must be effective [4]. It is well known that blood-born FFA enter the cardiac myocytes both by passive diffusion (flip-flop process) and with participation of fatty acid transporting proteins. So far, in the heart three types of protein transporters have been identified. They are fatty acid translocase (FAT/CD36), plasma membrane fatty acid binding protein (FABPpm) and fatty acid transport proteins (FATP-1, FATP-4 and FATP-6) [5]. There is growing evidence that FAT/CD36 plays the pivotal role in regulating fatty acids uptake by cardiac myocytes. It was shown in the heart that FAT/CD36 relocates from intracellular depots to the sarcolemma, which results in substantial increase in FFA uptake (e.g. after insulin treatment or activation of AMP-dependent kinase) [6,7]. Studies on FAT/CD36 knockout mice revealed that fatty acids transport into cardiomyocytes is mainly CD36-dependent due to marked reduction of FFA uptake by approximately 70% [8,9]. Moreover, lack of FAT/CD36 in animal models also affected lipids metabolism in cardiac and skeletal muscles by decreasing β-oxidation [10] and esterification of fatty acids [9]. Results of recent studies confirmed that permanent translocation of FAT/CD36 to the sarcolemma and high rates of fatty acids uptake result in augmented triacylglycerol (TAG) content in cardiac myocytes [11,12,13]. On the other hand, in skeletal muscles, a strong association between high fat diet and the accumulation of intramuscular lipids is quite well established. It is well known that insulin resistance in skeletal muscles is caused by elevated content of lipid in myocytes and increased plasmalemmal FAT/CD36 expression [14,15,16]. Whether it occurs in heart and how the content of specific lipid fractions might be affected in relation to the duration of high fat diet (HFD) is currently less known. Moreover, it is interesting whether there is an association between changes in myocardial lipid content and plasmalemmal expression of fatty acid transporters in each week of HFD feeding. Additionally, we wanted to check out whether there is a temporal association between administration of high fat diet, accumulation of myocardial lipids and whole body insulin resistance.

Male Wistar rats (initial body mass ∼140 g) were maintained at 20°C on a reversed light-dark cycle in approved animal holding facilities. Experiments were carried out after one week of acclimatization of the animals. Rats were randomly assigned to one of two dietary groups for 5 weeks; 1) control group, fed ad libitum on a standard chow (kcal distribution = 62% carbohydrate, 16% fat and 22% protein; Agropol, Motycz, Poland) for rodents, or 2) high fat diet group fed ad libitum on a rodent diet rich in fatty acids (kcal distribution = 60% fat, 20% carbohydrate and 20% protein; Research Diet INC, D12492). In our experiment two control groups were set at the beginning (the 1^st week) and at the end (the 5^th week) of the study (instead of 6 respectively to each single week of the diet to minimize the number of animals used in experiment in accordance with the requirements of local ethical committee on animal care). In these control groups the same measurements were made as in HFD groups. There were no significant changes between these two control groups, hence the results were referred as one control group (week 0). Body mass was monitored throughout the study. At the end of each experimental week (1, 2, 3, 4 and 5) rats (fasted overnight) were anaesthetized by intraperitoneal injection of pentobarbital (80 mg per kilo of body weight). Samples of the left ventricle were excised, immediately freeze - clamped with aluminum tongs precooled in liquid nitrogen. Furthermore, left ventricles were weighted at the end of each week in all groups. There were no significant changes in heart weights (% of body mass) in HFD groups compared to the control group (data not shown). Blood was collected in heparinized tubes, centrifuged and the plasma was separated. All samples (left ventricle and plasma) were stored at -80°C until further analysis. Data from each experimental week are based on six independent determinations (n=6). All experimental procedures and the number of animals were approved by the ethics committee on animal care at the Medical University of Bialystok.

Concentrations of plasma glucose, insulin and free fatty acids were determined with the use of Accu-Chek (Bayer, Basel, Switzerland) glucose-meter, Rat Insulin ELISA kit (Mercodia, Uppsala, Sweden) and gas-liquid chromatography (GLC), respectively. Concentrations of fasting glucose and insulin were used to calculate insulin resistance index (HOMA-IR = fasting glucose (mmol/l) x fasting insulin (µU/ml)/22.5).

Subcellular fractionation of cardiac myocytes was performed to examine changes in the expression of FAT/CD36 and FABPpm at the level of plasma membranes (PM) and low density microsomes (LDM). Subcellular fractionation of the left ventricle was performed by using procedures previously described [6,17,18]. Briefly, after thawing, hearts were thoroughly minced and incubated for 30 min in a high-salt solution (2 mol/l NaCl, 20 mmol/l HEPES pH 7.4, 5 mmol/l NaN₃ and protease inhibitors) at 4°C. Thereafter, the suspension was centrifuged for 5 min at 1000 g and the pellet was homogenized in 6.0 ml TES-buffer (20 mmol/l Tris pH 7.4, 1 mmol/l EDTA, 250 mmol/l sucrose and protease inhibitors) using a tightly fitting 10-ml Potter-Elvejhem glass homogenizer with 10 strokes. The resulting homogenate was centrifuged for 5 min at 1000 g, after which the pellet was rehomogenized in 4.0 ml TES-buffer with 10 strokes and then recombined with the 1000 g supernatant. The homogenate was centrifuged for 10 min at 100 g. After centrifugation resulting pellet (P1) was resuspended in 300 µl TES-buffer and saved. The supernatant was centrifuged for 10 min at 5,000 g. Next the pellet (P2) was resuspended in 300 µl TES-buffer and saved. The supernatant was centrifuged for 20 min at 20,000 g. The pellet (P3) was resuspended in 300 µl TES-buffer and saved. Next the supernatant was centrifuged for 30 min at 48,000 g. The pellet (P4) was resuspended in 150 µl TES-buffer and saved. The supernatant was centrifuged for 65 min at 250,000 g and received pellet (P5) was resuspended in 150 µl TES-buffer and saved. It has been established upon analysis of P1-P5 with ATPase sodium/potassium pump (Na⁺/K⁺) and glucose transporter 4 (Glut-4), that fractions P2 refers as PM-fraction and P5 as LDM-fraction [18,19].

Mitochondria were isolated from the left ventricle by using trypsin digestion method [20,21]. In brief, the left ventricle was minced into small pieces and suspended in 10 ml of isolation buffer (0.3 M sucrose, 10 mM sodium HEPES, pH 7.2, 0.2 mM EDTA). Next, to the isolation buffer with myocardial tissue trypsin was added and samples were incubated for 15 min. After trypsin digestion samples were diluted with 10 ml of isolation buffer containing bovine serum albumin (BSA) and trypsin inhibitor. The suspension was mixed, and the supernatant was discarded. Thereafter, digested myocardial tissue was resuspended in 10 ml of isolation buffer with BSA and homogenized in glass homogenizer. The resulting homogenate was centrifuged for 10 min at 600 g, after which the supernatant was centrifuged again (15 min, 8,000 g). The resulting pellet was resuspended in 10 ml of isolation buffer with BSA and centrifuged (15min, 8000 g). This step was repeated twice. The final pellet was resuspended in 500 µl of isolation buffer with BSA. Low temperature (4°C) was maintained at each step of the procedure.

Routine Western blotting procedure was applied to detect proteins expression in myocardial plasma membranes, low density microsomes and mitochondria as it was described previously [22]. In all samples protein concentration was determined by using the bicinchonic acid method (BCA) with BSA as a standard. Briefly, after SDS poliacrylamide gel electrophoresis and transfer the membranes were incubated with primary antibodies FAT/CD36 (Abcam, UK), FABPpm (a gift from Dr. Calles-Escandon), cytochrome c oxidase (COX-4) and β-actin (Cell Signaling Technology, USA), β-hydroxyacyl-CoA dehydrogenase (β-HAD) (Santa Cruz Biotechnology, USA). Signals obtained by immunoblotting were quantified densitometrically using a ChemiDoc visualization system (Bio Rad, Warsaw, Poland). Equal protein concentrations were loaded in each lane which was also confirmed by staining Ponceau S. Protein expression was standardized to β-actin expression and the control group was set as 100%. Additionally, purity of isolated PM and LDM from the left ventricle was confirmed by measuring the expression of ATP-ase Na⁺/K⁺ and Glut-4 (Santa Cruz Biotechnology, USA) according to Fuller et al. [18]. Furthermore, plasmalemmal and intramyocellular content of fatty acid transporters was standardized to ATP-ase Na⁺/K⁺ (PM fraction) and Glut-4 (LDM fraction) expression, respectively. Moreover, the purity of mitochondria was confirmed by measuring the expression of COX-4 (Cell Signaling Technology, USA).

The samples of the left ventricle were powdered and lipids were extracted in a chloroform-methanol solution according to the Folch method [23]. Lipid fractions of phospholipids (PL), FFA, diacylglycerols (DAG) and TAG were separated using thin-layer chromatography (TLC) [24]. Individual fatty acid methyl esters were identified and quantified according to the retention times of standards by GLC (Hewlett-Packard 5890 Series II gas chromatograph, HP-INNOWax capillary column). Total PL, FFA, DAG and TAG content was estimated as the sum of the particular fatty acid species of the assessed fractions and it was expressed in nanomoles per gram of tissue.

The content of ceramide (CER) was determined by using high performance liquid chromatography (HPLC) system as it was described previously [25]. Briefly, samples of the left ventricle were homogenized and lipids were extracted into chloroform. An aliquot of the lipid extract was transferred to a fresh tube with pre-added 40 pmol of N-palmitoyl-D-erythro-sphingosine (C17 base) (a kind of gift from Dr Z. Szulc, Medical University of South Carolina) as an internal standard. Thereafter, the samples were subjected to alkaline hydrolysis to deacylate ceramide. Free sphingosine released from ceramide was then converted to their o-phthalaldehyde derivatives and analyzed using a HPLC system equipped with a fluorescence detector and C18 reversed-phase column (Varian Inc. OmniSpher 5, 4.6 × 150 mm). The chloroform extract used for measurement of ceramide also contained small amounts of free sphingoid bases. Therefore, the content of ceramide was corrected for the level of free sphingosine determined in the same sample. Prior to the sphingolipid analysis, the protein content was measured in all samples with BSA as a standard and ceramide content was expressed in nanomoles per mg of the protein.

Total content of LCFA-CoA was estimated as it was described previously in details [25]. In brief, the amount of LCFA-CoA was measured indirectly after hydrolysis to free CoA according to the method of Ingebretsen et al. [26]. The samples of the left ventricle were homogenized in ice-cold 6% perchloric acid and centrifuged (10 min, 1600 g). Next, received pellet containing LCFA-CoA was washed twice with 0.6% perchloric acid and water, respectively. The pellet was resuspended by ultrasonication in water and 1.77 M KOH and incubated (60 min, 55°C). After incubation samples were cooled and 0.5 M triethanolamine-HCl in 6% perchloric acid was added. Thereafter, samples were centrifuged (10 min, 5200 g), 100 µl of the supernatant was injected into the column (Varian Inc. OmniSpher 5, 4.6 × 150 mm) and the content of released CoA was estimated with the HPLC system equipped with a UV detector using gradient elution. The content of LCFA-CoA in all samples was expressed in nanomoles per mass of wet tissue.

All data are expressed as mean values ± SEM. Statistical difference between groups was tested with analyses of variance and appropriate post hoc tests, or with a Student t-test using Statistica version 10 (StatSoft, Krakow, Poland). Results were considered statistically significant at P<0.05.

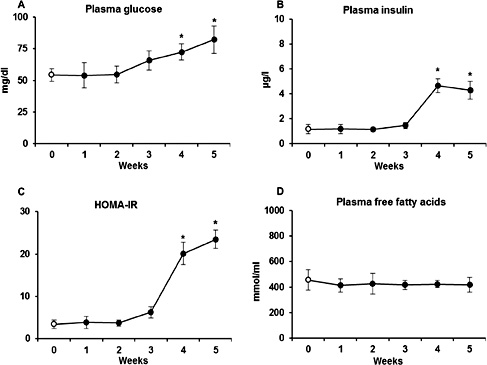

We observed significant increase in plasma glucose concentration by + 33.3% (P<0.05) in the fourth week and by + 51.3% (P<0.05) in the fifth week HFD compared to the control group (Fig. 1A). At the same time we noticed a substantial increase in insulin concentration by + 299.3% (P<0.05) in the fourth week and by + 269% (P<0.05) in the fifth week HFD in comparison with animals fed on standard chow (Fig. 1B). As expected, HOMA-IR, was increased at the end of feeding animals with HFD compared to the control group (the 4^th week: +483.1%; the 5^th week: +581.3%, P<0.05, Fig. 1C). Interestingly, high fat diet had no effect on the plasma concentration of free fatty acids (Fig. 1D).

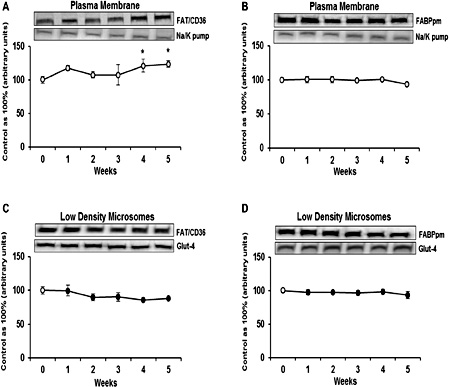

Feeding on HFD caused a relocation of FAT/CD36 from intracellular compartments to the plasma membranes observed at the end of the fourth and the fifth week compared to the control group (PM, + 21.0% and + 23.5%, P<0.05, Fig. 2A, respectively). Moreover, there was a decreasing tendency of intramyocardial expression of FAT/CD36 in low density microsomes during time course of HFD, although it did not reach significant level (P > 0.05, Fig. 2C). On the other hand, plasmalemmal and intramyocellular expression of FABPpm remained stable during each week of HFD regime (P>0.05, Fig. 2B and 2D).

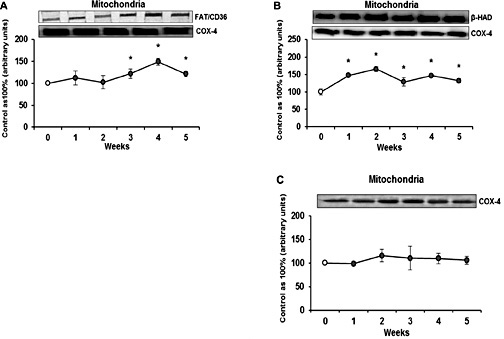

Mitochondrial expression of FAT/CD36 increased at the end of the third week on HFD (the 3^rd week: + 22.2%; the 4^th week: + 49.4%; the 5^th week: + 22.0%, P < 0.05, Fig. 3A). Whereas, the content of β-HAD protein was significantly elevated as early as at the end of the first week and remained considerably increased in the following weeks of the experiment compared to the control group (the 1^st week: + 47.1 %; the 2^nd week: + 65.4%; the 3^rd week: + 28.6%; the 4^th week: + 46.7% and the 5^th week: + 32%, P<0.05, Fig. 3B). However, we did not notice any changes in mitochondrial expression of COX-4 during HFD compared to the control group (P>0.05, Fig. 3C).

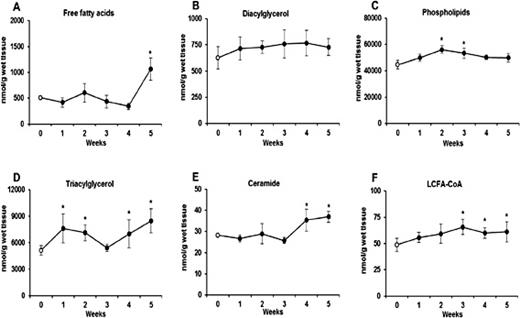

A trend towards increase in myocardial level of FFA was observed during HFD regime, but only in the fifth week the significance was reached (+ 109.4%, P < 0.05, Fig. 4A). We did not notice any substantial changes in the level of DAG fraction (P > 0.05, Fig. 4B), whereas the content of PL in cardiac muscle was affected by HFD in each week with the considerable increase in the second and the third week in comparison with the standard chow (+ 25.9% and + 19.5%, P < 0.05, Fig. 4C, respectively). We recorded marked increase in the level of TAG in the left ventricle in all groups on HFD, with the exception for the third week compared to the control group (the 1^st week: + 48.1%; the 2^nd week: + 38.8%; the 4^th week: + 36.1% and the 5^th week: + 65.2%, P < 0.05, Fig. 4D, respectively). Similarly to TAG fraction, the content of intramyocardial LCFA-CoA was substantially elevated in the third, fourth and fifth week on HFD (+ 34.8%, + 23.2% and + 25.4%, P < 0.05, Fig. 4F, respectively). Content of CER in the left ventricle increased significantly only at the end of our study (the 4^th week: + 25.2% and the 5^th week: + 31.0%, P < 0.05, Fig. 4E).

The purpose of our study was to assess how high availability of fatty acids affects myocardial lipid profile in rats fed on HFD for 5 weeks. Furthermore, all the measurements were made after each week of HFD, as we wanted to establish the exact time of imbalance in lipid metabolism in cardiac muscle. Moreover, we determined the presence of temporal association between the content of lipids in the left ventricle and the expression of fatty acid transporters at the plasma membranes (FAT/CD36, FABPpm) and mitochondria (FAT/CD36) during feeding on HFD. The data presented herein show that feeding rats a HFD reduces whole body insulin sensitivity at the end of diet regime (the 4^th and the 5^th week). Besides, excess lipid supply probably increases FFA utilization (β-oxidation and esterification) and affects significantly lipid content in cardiac muscle in different weeks of the study, particularly by elevating intramyocardial TAG, LCFA-CoA, CER, and FFA fraction. Similarly, the expression of a key fatty acid transporter, FAT/CD36, also increased both in plasma membrane and mitochondria in the fourth and the fifth week of HFD. To sum up, our data indicate that increased fatty acids supply causes concomitant elevation of fatty acid uptake by cardiac myocytes and alternations in metabolism of intramyocardial lipid fractions. We may assume that changes in myocardial lipid profile and utilization of fatty acids probably precedes the occurrence of hypertrophy of cardiac muscle, functional disturbances and heart failure (i.e. lipotoxicity).

Probably, significant elevation of FAT/CD36 expression at plasma membrane of cardiomyocytes at the end of the study increased fatty acid uptake in the left ventricle. Our data are in line with other animal models of obesity, insulin resistance and diabetes such as obese Zucker rats [12,27,28], db/db mice [13] and high fat diet rats [11]. In these studies it was shown that rise in fatty acid uptake resulted from abundance of FAT/CD36 at plasma membrane and permanent relocation of the transporter from intracellular depots to the sarcolemma of cardiac myocytes, which is consistent with our results (the 4^th and the 5^th week). Moreover, in these animal models it was demonstrated that there is a close association between increased plasmalemmal expression of FAT/CD36, fatty acid uptake and the intracellular accumulation of TAG in cardiomyocytes. In our present study we have also observed similar interdependence due to concomitant elevation of FAT/CD36 at sarcolemma and increased content of intramyocardial TAG, however it was seen only at the end of the HFD feeding (the 4^th and the 5^th week). Some authors indicate elevation of plasmalemmal FAT/CD36, as one of the main factors contributing to the accumulation of lipids in rat heart [12,29] and precede the development of cardiac contractile dysfunction [11]. Yang et al. [30] have shown that FAT/CD36 deficiency in mice with cardiac specific overexpression of PPARα prevents intramyocardial lipid accumulation and cardiac dysfunction. Furthermore, another studies demonstrated that elevated influx of FFA into the cardiomyocytes enhanced the rate of β-oxidation, but when the cytoplasmic content of FFA exceeded the demands of the cells, there was a shift towards esterification and intracellular accumulation of lipids instead of β-oxidation process [31,32]. Our observations indicate that after the third week of feeding on HFD, the balance between FAA uptake and oxidation is disrupted and the amount of intracellular LCFA-CoA exceeds the capacity of cardiac myocytes for its utilization. Furthermore, throughout the study there was a significant increase in expression of β-HAD protein. This indicates that probably each experimental week had elevated β-oxidation of fatty acids. Despite these changes, suggesting increased FA β-oxidation it appears that FA influx overcome oxidative capacity of cardiac myocytes and the accumulation of TAG and other lipid intermediates has occurred. Moreover, our results are in agreement with previous reports [13,33,34] in which db/db mice exhibited enhanced oxidation of lipids without any parallel changes in plasma concentrations of FFA or marker enzymes involved in β-oxidation process and mitochondrial electron transport chain in cardiomyocytes. Although we did not notice any changes in mitochondrial expression of COX-4 during HFD time course, the expression of mitochondrial FAT/CD36 and β-HAD was considerably augmented, which may suggest that oxidation of lipids in cardiomyocytes was enhanced. What is more, recent studies are also contradictory in terms of number of mitochondria, their morphology and respiratory function in the heart in animal models of insulin resistance, obesity and Type 2 diabetes [28,35,36]. At present, there are only a few contradictory reports obtained from rodent studies on the role of FAT/CD36 in cardiac [37] and skeletal muscles [38,39] mitochondria. Nevertheless, there is some evidence confirming the presence of this transporter on the outer mitochondrial membrane in skeletal [39] and cardiac muscles [37] and functional contribution of FAT/CD36 to the regulation of mitochondrial fatty acid oxidation in response to various metabolic challenges [39,40]. The study by King et al. [37] also revealed that mitochondrial content of FAT/CD36 in the heart is 10-fold greater compared to skeletal muscles, which may confirm remarkable role of this transporter in the regulation of lipid oxidation in the heart. Summing up, we may assume that considerable and progressive accumulation of myocardial lipid from the end of the third week of feeding rats a HFD probably was caused by lipid overload despite enhanced β-oxidation.

Furthermore, it is well known that insulin by activating PI3 kinase pathway is able to induce translocation of FAT/CD36 (not FABPpm) to the sarcolemma thereby increasing fatty acid influx into the cardiomyocytes [19,41]. It is very likely that in our study and similar models of insulin resistance [27] elevated expression of FAT/CD36 at the sarcolemma of cardiomyocytes (the 4^th and the 5^th week of HFD) resulted from increased translocation of FAT/CD36 to the plasma membrane due to significantly high concentrations of plasma insulin at the same time. Moreover, recent reports have indicated that increased basal Akt activity during HFD feeding [11] as well as PPARs activation [17] may be responsible for the permanent relocation of FAT/CD36 from intracellular compartments to the plasma membrane in the heart. Surprisingly, plasmalemmal expression of FABPpm in the left ventricle in contrast to FAT/CD36 did not change throughout five weeks of feeding rats a HFD, which is consistent with some other reports related to insulin resistance state (ZDF rats) [42]. Probably, lack of alternations in expression of FABPpm resulted from unchanged concentration of free fatty acids in plasma and insensitivity of this transporter to insulin stimulation [19].

Many studies performed on rodent and human skeletal muscle demonstrated that elevated levels of myocardial CER, DAG, FFA and LCFA-CoA apart from TAG fraction are toxic and detrimental [5]. Whether increased levels of lipid intermediates in myocardium impair glucose metabolism and cause cardiac dysfunction is currently unknown. In our study, we did notice that significant elevation of myocardial LCFA-CoA (from the 3^rd to the 5^th week) coincides with the increased plasmalemmal and mitochondrial expression of FAT/CD36. In physiological state most of cytoplasmic LCFA-CoA are preferentially directed towards β-oxidation. However, overload of LCFA-CoA may lead to enhanced esterification of fatty acids to TAG, DAG and CER fraction [43]. Therefore, increased content of LCFA-CoA in the left ventricle (from the 3^rd to the 5^th week) is another evidence for alternations in lipids utilization and accumulation of TAG and other lipid metabolites in response to HFD. Most data indicate that TAG is an inert fraction and has no influence on insulin signaling pathway and glucose metabolism in lipid overloaded heart and skeletal muscles. Additionally, the level of intramyocellular TAG is in equilibrium with other lipid intermediates (e.g. DAG and CER). Nevertheless, increased intracellular TAG probably may disrupt contractile activity of cardiac muscle [43]. Moreover, it is well known that in skeletal muscles DAG as well as CER is able to induce insulin resistance, thereby inhibiting glucose transport into the myocytes. Whether the same mechanism is present in the heart and is responsible for induction of myocardial insulin resistance is still unclear. However, it has been recently shown that elevated content of DAG is one of the potential causes of induction of myocardial insulin resistance in mice fed on HFD for 10 weeks as a result of activating protein kinase C (PKC), thereby inhibiting insulin signaling and reducing glucose oxidation in cardiomyocytes [44]. In our study DAG content was slightly elevated during each week on HFD. It suggests that the impact of this lipid fraction on glucose metabolism was minor. However, we did observe a marked increase of myocardial ceramide content (the 4^th and the 5^th week), which probably resulted from elevated intramyocellular content of LCFA-CoA in the left ventricle at that time. There are a few contradictory reports regarding increased myocardial content of ceramide and its potentially harmful effects on functioning of cardiomyocytes (i.e. activation of apoptosis). In vivo (ZDF rats) [45] and in vitro (isolated rat cardiomyocytes) [46] studies revealed that elevated level of myocardial ceramide was the main cause of induction of apoptosis in lipid overload state. However, the data were not confirmed in chronically fed rats (diet rich in saturated fatty acids) [47]. Hence, a mechanism by means of ceramide induces apoptosis in cardimyocytes in its early stage of development remains unclear and requires further elucidation.

In conclusion, this study has demonstrated for the first time that HFD in each week of its duration causes changes in the lipid profile in cardiac muscle. Dietary fatty acids significantly affected myocardial lipid metabolism (from the 3^rd to the 5^th week) mostly by elevating the content of TAG, LCFA-CoA, CER and FFA fraction. It is likely that at the end of the third week of HFD the amount of intramyocellular LCFA-CoA exceeded cardiac myoctes β-oxidation capacity and progressive myocardial lipid accumulation began. Probably, these alternations in lipid utilization may disrupt glucose metabolism and eventually may lead to lypotoxicity and cardiomyopathy. Whether changes in cardiac lipid profile are detrimental for the functioning of the heart requires further investigation.

This work was supported by the Medical University of Bialystok (grant number 114-18920L, 124-18526L and 144-18510L) and National Science Centre in Poland (grant number N N401 005236). The authors have no conflicts of interest to declare.

The authors have no conflicts of interest to declare.
