Arterial Stiffness in Chronic Kidney Disease and End-Stage Renal Disease

Epidemiological and clinical cross-sectional studies emphasized the roles of arterial remodeling and arterial stiffness as independent cardiovascular risk factors and predictors of all-cause and cardiovascular death in several diseases [1-3]. Arterial stiffness describes the arterial pressure response to stroke volume changes. During ventricular contraction, a part of the stroke volume is stored in the aorta and central arteries, distending and stretching the arterial walls (raising the blood pressure [BP]). Distension and stretching divert part of the cardiac work. To limit this part of cardiac work, the energy necessary to distend the artery should be low (for a given stroke volume, the pressure increase should be low). The efficiency of this function depends on artery stiffness. When stiffness is mild, the arterial wall opposes low resistance to distension and the pressure effect is minimized. In addition, arterial stiffness determines the propagation velocity of the pressure wave in the arterial segments and tree, that is, pulse wave velocity (PWV). PWV assesses the stiffness of an artery as a hollow structure and according to Moens and Korteweg equation, it depends on the artery geometry (wall thickness, h; radius, r), arterial biomaterials elastic properties (E-incremental elastic modulus), and tissue density (δ): PWV² = E.h/2r.δ [4]. Due to arterial system heterogeneity, PWV increases progressively from the ascending aorta to the peripheral muscular conduit arteries, generating a progressive stiffness gradient [5, 6]. Although PWV can be measured on any artery or between any arterial sites, only carotid-to-femoral PWV (“aortic”) has been shown to have a predictive value for morbidity and mortality [5, 6]. The measurement of carotid-to-femoral PWV is considered the gold standard as a large body of evidences demonstrated the association of aortic stiffness with cardiovascular disease and mortality in various populations, independently of traditional risk factors [1-3, 6, 7].

Due to arterial system heterogeneity, PWV increases progressively from the ascending aorta to the peripheral muscular conduit arteries, generating a stiffness gradient that regulates pressure transmission along the arterial tree and to the microcirculation [4, 5, 8-10]. The stiffness gradient, together with aortic geometry changes (tapering), local arterial branching, and lumen narrowing, creates impedance mismatches, causing partial reflections (reflected waves) of the pressure wave generated in the aorta (forward/incident) [4]. Forward and reflected pressure waves overlap. The final amplitude and shape of the pulse pressure wave along the arterial tree are determined by the timing between these component waves. Arterial stiffening disrupts the desirable timing principally in the aorta and central arteries. With increased PWV, the reflected waves return earlier during systole, amplifying aortic and ventricular pressures during systole, and reducing aortic pressure during diastole [4, 5, 8-10]. The principal consequences are increased myocardial pressure load (left ventricular hypertrophy), higher oxygen consumption, and decreased diastolic BP and coronary blood flow [5, 11, 12].

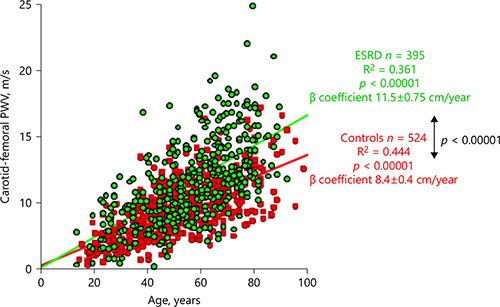

Cardiovascular disease is a major cause of morbidity and mortality in patients with chronic kidney disease (CKD) or end-stage renal disease (ESRD) [13-15]. Premature aging and early vascular aging is the most characteristic arterial change observed in ESRD [14, 15] (Fig. 1). Premature vascular aging and arterial stiffening are observed with the progression of CKD [16-18]. The most characteristic arterial change observed is the arterial stiffening, more pronounced in the aorta than in peripheral arteries [6, 19]. This condition is responsible for the reduction of the arterial stiffness gradient and impedance mismatch with diminished capacity to lower pulsatile pressure transmission to the peripheral microcirculation [8, 15]. In ESRD, the aortic PWV was shown to have an independent predictive power for all-cause and CV mortality [1-3, 20, 21]. Increasing arterial stiffness is representative of the arterial aging process. Nevertheless, a significant interaction exists between aortic PWV and age, and compared to the general population, in ESRD, the difference in the mortality rate gradually decreases with aging [22]. In a recent study [20] aimed to analyze the interplay between age and PWV in ESRD, it has been shown that the predictive value of aortic PWV on cardiovascular and all-causes mortality was significant in the younger population. An aortic PWV >12 m/s provides important prognostic information in ESRD patients <60 years of age, whereas in older patients, its prognostic relevance is lost. Patients with ESRD have a 10 to 30-fold higher cardiovascular mortality rate compared to the general population. This difference is highly accentuated in younger individuals in whom mortality rates can reach up to a value that is 500-fold higher [22].

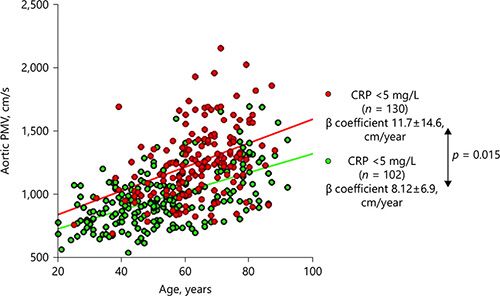

Arterial remodeling and premature vascular aging are already observed in the early stages of CKD and its progression [16-19]. Compared with normotensive and hypertensive controls, patients with CKD stages 2–5 had significantly higher aortic PWV. The arterial stiffening in earlier stages of CKD and increased risk in ESRD populations <60 years suggest that PWV measurement should be performed in younger CKD and ESRD patients in order to gain prognostic information and to potentially guide early interventions before the occurrence of irreversible structural changes. In CKD and ESRD, stiffening is associated with increased arterial diameters and intima-media thickness, and alterations of the intrinsic elastic properties of arterial walls (E), namely, calcification of elastic lamellae, elastinolysis, increased collagen content, collagen cross-linking, apoptosis and rarefaction of vascular smooth muscle cells, and inflammation [5, 23-29]. In ESRD patients, arterial stiffness was associated with arterial calcifications and worsens with increasing calcifications. Chronic microinflammation is a characteristic condition in ESRD and plays a role in arterial aging [14, 15]. Figure 2 shows that age-associated aortic stiffening is more pronounced in subjects with increased highly sensitive CRP. Inflammatory cytokines are potent activators of «osteogenic» phenotype of smooth muscle cells and arterial calcifications [26]. Several noncardiovascular diseases, such as rheumatoid arthritis or systemic lupus erythematosus, are associated with increased aortic stiffening, underscoring the role of inflammation in the rigidity of large arteries [27-29]. The association of arterial stiffening and inflammation was also demonstrated in essential hypertension through the relationships between arterial stiffness and either tumor necrosis factor-α, interleukin-6, or highly sensitive CRP [29].

Besides age, arterial stiffness is also influenced by arterial BP. The association of BP and stiffness are ambiguous, since stiffening can directly influence the BP profile with higher systolic and pulse pressures, but in parallel, the increased BP-related distension of arterial walls can increase stiffness [4]. In essential hypertensive subjects, the arterial stiffness is in part due to higher distending stress applied on arterial walls. BP reduction should normally decrease PWV, which in this case is “pressure dependent.” In hemodialysis subjects, Guérin et al. [30] examined the patients’ outcomes according to aortic PWV response to antihypertensive therapies (nonpharmacological interventions and antihypertensive drugs) and reduction in BP. Over a mean follow-up of 50 months, surviving patients were characterized by simultaneous decrease in aortic PWV and BP, that is, “pressure-dependent stiffness.” In non-survivors, despite a similar reduction in BP, the aortic PWV steadily increased, that is, “pressure-independent stiffening.” This observation suggested the hypothesis that modification of arterial stiffness and not BP could be the risk factor associated with the prognosis and outcomes. The recent study by Sarafidis et al. [19] supports this hypothesis. In hemodialysis patients, authors compared the value of 48-h ambulatory BP (brachial and central) and 48-h aortic PWV measures for major cardiovascular outcomes and all-cause mortality. In a multivariate analysis, only 48-h PWV measure was the vascular parameter independently associated with the increased risk of cardiovascular events and mortality, supporting that arterial stiffness is the prominent cardiovascular risk factor in hemodialysis. When the arterial stiffness is pressure dependent, BP reduction should normally contain rigidification. Nevertheless, evidences are still required for therapies that should reflect a real diminution of arterial wall rigidity, independent of BP effects.

Many studies emphasized the role of arterial stiffness in the development of cardiovascular diseases, Arterial rigidity is closely associated with vascular aging, and premature vascular aging is observed with CKD progression and in ESRD. Arterial hardening is of a multifactorial origin, with extensive arterial calcifications representing a major covariate. With aging, the stiffening is more pronounced in the aorta than peripheral conduit arteries, leading to the disappearance or inversion of the arterial stiffness gradient with diminished protection of the microcirculation against high pulsatile-pressure transmission. Various nonpharmacological or pharmacological interventions can modestly slow arterial stiffness but presently treatment methods that are able to prevent stiffness mainly include antihypertensive drugs.
