The Lamprey Forebrain – Evolutionary Implications Open Access

In this homage to the contributions of Luis Puelles and Agustin González, we will discuss recent data on the lamprey forebrain including the pallium (cortex), thalamus, basal ganglia, habenula, and the dopamine system. With a privileged position phylogenetically, the lamprey presents itself as a remarkable ancient vertebrate, belonging to the oldest group of now living vertebrates that diverged from the evolutionary line leading to mammals around 500 million years ago [Kumar and Hedges, 1998]. It has become apparent that these different parts of the lamprey forebrain are remarkably similar to those of their mammalian counterparts, although with much fewer nerve cells in each structure. The similarity applies to the overall organisation, connectivity, transmitters, expression of ion channels, and synaptic properties [Stephenson-Jones et al., 2011, 2012a, b, 2013; Ericsson et al., 2011, 2013a, b; Robertson et al., 2012; Pérez-Fernández et al., 2014, 2017; Ocaña et al., 2015; Grillner and Robertson, 2016; Suryanarayana et al., 2017, 2020, 2021], and we will review the evidence below and suggest that many aspects of the mammalian forebrain had evolved already before the lamprey and the mammalian lineage became separate.

The cortical homologue in the lamprey, the pallium, had been considered for a long time to be largely olfactory with little or no representation of non-olfactory modalities [Northcutt and Wicht, 1997; Daghfous et al., 2018]. The evolutionary relationship of the pallium with that of the mammalian cortex was also virtually unknown, other than it being identified as the anatomical homologue with some suggestions of its subdivisions [Northcutt and Wicht, 1997; Nieuwenhuys and Nicolson, 1998]. One can identify two main anatomical subdivisions of the lamprey pallium – the medial pallium and the lateral part of pallium that we here will refer to as pallium. The medial pallium was suggested to be the anatomical homologue of the hippocampus while the pallium was thought to represent the cortex [Nieuwenhuys, 1977; Northcutt and Wicht, 1997]. Below we will show that the dorsal part of pallium contains a motor, a visual, and a somatosensory area, whereas the ventral part of pallium contains an olfactory area similar to the piriform cortex.

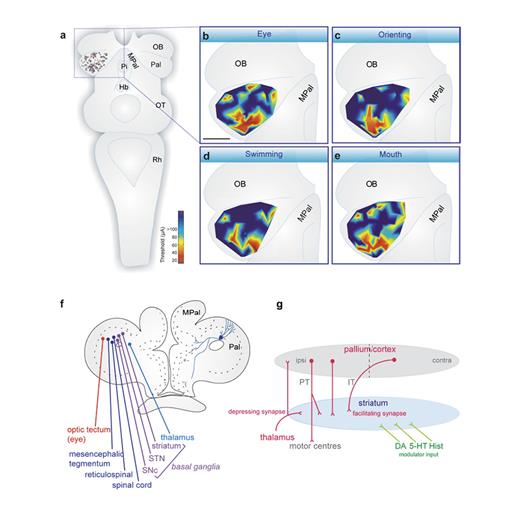

Our foray into the pallium began with the question of whether it had any role in generation of movements. In mammals including man, it has been well established that the motor areas of cortex can elicit different types of movements of the head and body [Georgopoulos and Grillner, 1989; Lemon, 2008, 2019] in response to electrical stimulations [Penfield and Boldrey, 1937]. Our extracellular low-threshold electrical stimulations of the lamprey pallium/cortex resulted in well-delineated movements of the eyes, neck, and mouth, as well as locomotion (Fig. 1a–e). These motor areas are localised to the caudolateral part of the pallium/cortex, identified as a “motor pallium” (see heatmaps) [Ocaña et al., 2015; Suryanarayana et al., 2020]. Different properties of the elicited movements including amplitude, latency, and duration are dependent on stimulus parameters. The clear involvement of the pallium in motor behaviour led us to examine its efferent connectivity and whether the different movements generated were due to monosynaptic glutamatergic projections, which is a typical aspect of efferent mammalian neocortical control [Drew et al., 2004; Lemon, 2008, 2019]. The pallium/cortex has efferent projections to all downstream motor centres, including the striatum, subthalamic nucleus (STN), thalamus, deep layer of optic tectum, mesencephalic tegmentum, reticulospinal neurons, and interestingly, with some fibres also observed at the level of the rostral spinal cord (Fig. 1f). These efferent projections largely target the same areas as the equivalent projection neurons (layer 5b) in the mammalian neocortex. A major feature of the efferent glutamatergic projections of the mammalian neocortex are the two major subdivisions – the “PT-type” or pyramidal tract/extratelencephalic projections, which target the different downstream motor centres, and the “IT-type” with intratelencephalic projections, which cross through the corpus callosum to target the contralateral cortex and striatum [Reiner et al., 2010; Suárez et al., 2014; Kim et al., 2015]. The lamprey pallium/cortex also has these two types of projections – the PT-type projections target the ipsilateral striatum and downstream motor centres, while the IT-type cells target the ipsilateral and contralateral striatum and contralateral pallium with the fibres crossing in the habenular commissure (Fig. 1g) [Ocaña et al., 2015; Suryanarayana et al., 2020]. The PT-type projections to the optic tectum and the reticulospinal neurons are monosynaptic and glutamatergic [Ocaña et al., 2015].

The neocortex has been described as a “broadcaster” of motor command signals, which can utilise the subcortical motor infrastructure to generate and mediate goal-directed behaviours [Arber and Costa, 2018]. Our data with similar efferent connectivity in the lamprey pallium/cortex suggests that this is an ancestral architecture and that during evolution, this design has been maintained. Pallial projections to downstream motor centres have also been mapped in non-mammalian amniotes including reptiles and avians [Hall et al., 1977; Dugas-Ford and Ragsdale, 2015], as well as in anamniotes, as for instance in sharks, in which pallial projections to the spinal cord have been observed [Ebbesson and Schroeder, 1971]. These data further support the common ancestry of the cortical efferent projection pattern.

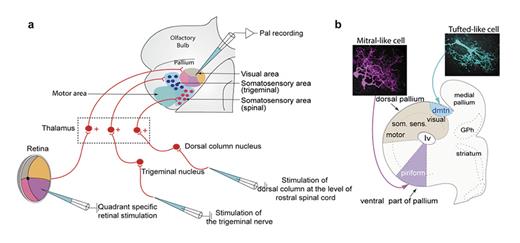

In addition to the motor area in the lamprey pallium/cortex, there are distinct visual and somatosensory areas. These areas were located in the dorsal parts of the pallium/cortex, the dorsal pallium (Fig. 2a) [Suryanarayana et al., 2020]. The visual area is retinotopically organised with stimulation of a specific quadrant of the retina eliciting response from a specific point within the visual area. The retinotopy is hardwired and maintained via the thalamic relay [Suryanarayana et al., 2020]. The somatosensory input is organised with distinct representations of the head and body – a basic somatotopy in the somatosensory area of the dorsal pallium, which is distinct from the visual and motor areas (Fig. 2a). Stimulations of the dorsal column in the spinal cord and the trigeminal sensory nerve elicit responses in different loci within the somatosensory area [Suryanarayana et al., 2020].

Distinct topographic visual, somatosensory, and motor areas are a hallmark of neocortical organisation in mammals and has been demonstrated in all mammals examined [Kaas, 2013; Raghanti et al., 2017; Briscoe and Ragsdale, 2019]. The order from visual to motor is the same sequence as in mammals, but in the lamprey case the visual is medial and the motor in a more lateral position. It is conceivable that the overall relative topology of the sensory and motor areas of the lamprey dorsal pallium could be accounted for by a differential growth of pallium during evolution. There are also distinct representations of vision and somatosensation in the dorsal cortex of reptiles and in the avian Wulst, although the visual cortex in reptiles (turtle) has been reported not to be retinotopically organised [Dugas-Ford and Ragsdale, 2015; Fournier et al., 2018; Briscoe and Ragsdale, 2019]. The presence of a similar organisation in mammals, reptiles, and lamprey gives rise to the compelling possibility of this being an ancestral and conserved aspect of dorsal pallial organisation across vertebrates. This also overturns the long-held notion that the anamniote pallia are largely olfactory [Northcutt and Wicht, 1997; Wicht and Northcutt, 1998; Northcutt, 2011]. Furthermore, the sensory streams of somatosensory information, both trigeminal and spinal, are relayed to thalamus via the trigeminal sensory nucleus and the dorsal column nucleus, respectively. Retinal afferents target the thalamus directly, as shown earlier [Heier, 1948; Kennedy and Rubinson, 1977] but also indirectly via the optic tectum [Capantini et al., 2017]. Thus, the thalamus is an important relay of multi-modal sensory input to the cortex in lamprey as in other vertebrates [Sherman and Guillery, 1996; Suryanarayana et al., 2020]. The overall evidence suggests that distinct and topographic representation of sensory modalities are a hallmark of the dorsal pallial organisation. With respect to visual input, retinotopic topography is maintained at three levels in the lamprey brain – the pallium, thalamus, and tectum, which is also true in mammals [Jones et al., 2009; Suryanarayana et al., 2020].

Another major source of sensory input to the lamprey pallium/cortex is olfaction and for a long time, the entire pallium was thought of as largely olfactory [Northcutt and Puzdrowski, 1988]. The main olfactory system in lamprey has two discrete afferent systems as in mammals [Shepherd, 1972, 2004; Igarashi et al., 2012] – the mitral- and the tufted-like cells, which have distinct terminations in the forebrain. The mitral-like cells, via the lateral olfactory tract, target the medial, ventral part of pallium, which forms the olfactory cortex, corresponding to the piriform cortex of mammals (Fig. 2b) [Igarashi et al., 2012]. In fact, early anatomical studies had suggested that the ventral part of pallium in lamprey corresponds to the primordial piriform cortex [Heier, 1948; Polenova and Vesselkin, 1993; Nieuwenhuys and Nicolson, 1998].

The other subgroup, the smaller tufted-like cells, pro-ject separately and exclusively to a relay nucleus called the dorsomedial telencephalic nucleus, which is located at the interface between the olfactory bulb and pallium (Fig. 2b). The dorsomedial telencephalic nucleus in turn projects to a circumscribed area in the anteromedial olfactory cortex. The lamprey olfactory cortex in the ventral pallium is activated with a short latency upon olfactory nerve stimulation, is three-layered similar to that of mammals, and has neurons with layer-spanning spiny dendrites [Suryanarayana et al., 2017]. In addition, this area relays information to the dorsal pallium wherein the dorsal pallial neurons may integrate the olfactory inputs and those from non-olfactory modalities [Suryanarayana et al., 2017].

It thus appears that visual, somatosensory, and motor areas in the dorsal pallium and olfactory representation in the ventral pallium are a general and common schema of vertebrate pallial organisation. One must also consider here evidence of distinct developmental sectors – the dorsal, medial, lateral, and ventral pallium [Puelles et al., 2019]. The four divisions have been identified in the developing pallia of avians and non-avian reptiles, as well as mammals [Puelles, 2017; Watson and Puelles, 2017]. Molecular evidence suggests that pallial and subpallial divisions and at least two pallial developmental sectors, the dorsal and ventral pallium, are present in cyclostomes [Sugahara et al., 2016, 2017]. Overall, the evidence pushes back the ancestry of pallial sectors to the dawn of vertebrate evolution [Puelles, 2019].

A distinct feature of the mammalian pallium is the presence of laminated structures. The neocortex has a six-layered laminated architecture in its sensory areas but also granular areas.

The mammalian pallium, however, also includes three-layered structures like the piriform cortex and the hippocampus. The dorsal cortex of non-avian reptiles is also a three-layered structure. The lamprey pallium/cortex is similarly three-layered, with an outer molecular layer largely devoid of neurons and a cellular layer, which can be subdivided into two parts based on the relative distribution of GABAergic neurons and general cell density (Fig. 3a, e). The “inner cellular layer” consists of a higher proportion of GABAergic cells and an “outer cellular layer” with a smaller proportion of GABAergic cells but a higher cell density than the inner cell layer (Fig. 3a–c). The overall proportion of GABAergic neurons in pallium is about 22% (Fig. 3d, e), which is roughly the same proportion as in mammals. With regard to GABAergic interneurons, calbindin- and calretinin-expressing interneurons are present.

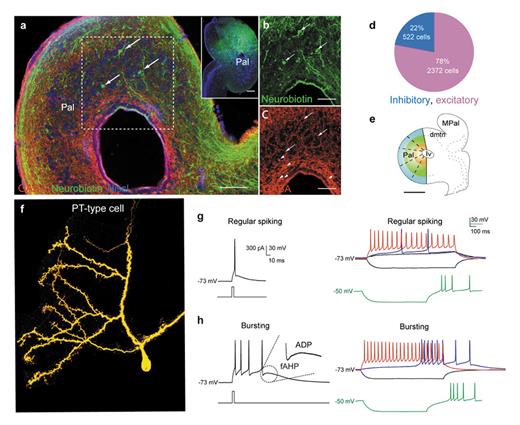

The morphology of the pallium/cortex excitatory neurons resemble their pyramidal neuron counterparts in that their dendrites are spiny and layer spanning, extending to the outer molecular layer. These neurons generally possess two but sometimes one dendrite extending to the molecular layer (Fig. 3f). While the typical pyramidal neuron has an apical dendrite and basal dendrites [DeFelipe and Fariñas, 1992], the pallial/cortical neurons lack basal dendrites, and this is perhaps compensated by the second layer spanning dendrite and the rich ramifications. The morphology of the pallial excitatory neurons is similar to the morphology seen in the pyramidal neurons of the dorsal and lateral cortices of reptiles, which also typically have two main dendrites [Ulinski, 1990]. The excitatory neurons (PT, IT, and thalamorecipient types) [Suryanarayana et al., 2017] revealed two classical cortical firing properties – regular and burst firing (Fig. 3g, h).

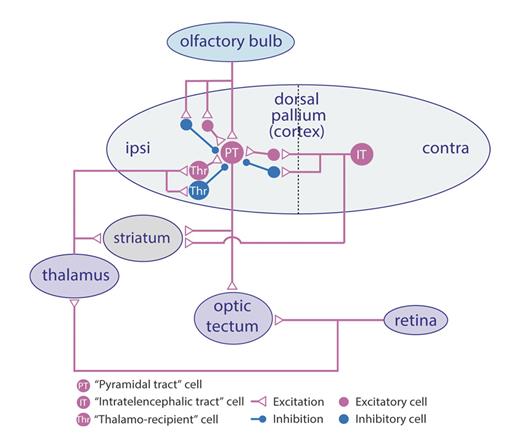

With regards to sensory input to the pallial microcircuit (Fig. 4) [Suryanarayana et al., 2017], the thalamic input reaches the PT-type cells polysynaptically, via both excitatory and inhibitory intercalated cells. Cells which receive monosynaptic thalamic input are the thalamorecipient cells. The thalamic input is glutamatergic and mediated by NMDA and AMPA receptors and the thalamic neurons projecting to pallium/cortex are located in the dorsal thalamus [Suryanarayana et al., 2017, 2020]. The intratelencephalic input from the contralateral hemisphere is also glutamatergic and mediated via both NMDA and AMPA receptors. It is relayed polysynaptically via intercalated excitatory and inhibitory neurons to the PT-type neurons.

The lamprey pallium/cortex has a basic input-output circuitry, which has been conserved in reptiles and mammals with PT, IT, and thalamorecipient neurons [Shepherd, 2011; Harris and Shepherd, 2015]. The excitatory neurons are located in the outer cellular layer while the number of GABAergic neurons is larger in the inner cellular layer, as in the three-layered dorsal cortex of reptiles [Ulinski, 1986, 1990]. Furthermore, the PT-type neurons in the pallium/cortex, the reptilian dorsal cortex, and the mammalian neocortex receive thalamic input polysynaptically [Shepherd, 2011]. The layer 4 neurons in the mammalian neocortex receive monosynaptic input, which is similar to thalamorecipient neurons in the lamprey pallium/cortex.

The mammalian neocortex has a plethora of cell types, both excitatory and inhibitory [Huang and Paul, 2019; Matho et al., 2020]. The major output cells, the layer 5b (PT-type) cells, which target the brainstem and spinal cord, are conserved from lamprey in terms of their projection pattern and function [Ocaña et al., 2015]. Similar output neurons are also found in the dorsal pallial homologues in sauropsids. In addition, the IT-type cells are conserved in terms of their projection pattern targeting the contralateral pallium and striatum in the lamprey and reptiles. It has been proposed that also the ancestral reptile dorsal pallium had these three cell types (PT, IT, and thalamorecipient) [Briscoe and Ragsdale, 2019] and that this is a conserved feature of the dorsal pallium (see Fig. 7). This connectivity has been maintained from the lamprey and reptiles to mammals. However, there has been a conspicuous increase in the number of these cells during evolution and a dramatic generation of new excitatory cell types in mammals in terms of their molecular identity [Tosches and Laurent, 2019]. It is also interesting to consider that these cells appear to differ in their marker expression between different areas within neocortex itself – for instance between the visual cortex and the premotor cortex [Tasic et al., 2018]. It is conceivable that these new molecularly defined excitatory cell types have emerged from ancestral ones and this seems to be a fundamental principle of the evolution of the dorsal pallium across vertebrates. With regard to the inhibitory cell type, there seems to be a more robust conservation of the major classes of GABAergic interneurons in the reptile dorsal pallium when compared with the neocortex [Tosches et al., 2018]. In the lamprey, there are calbindin and calretinin immunoreactive neurons, while the presence of other major classes of interneurons remains unclear.

In summary, significant similarities are found at the microcircuit level including afferent inputs, connectivity, soma-dendritic morphology and physiology of constituent cell types in the lamprey pallium/cortex, the reptilian dorsal cortex, and the mammalian cortex suggesting a common ancestry of these features.

The thalamus is a key forebrain structure across vertebrates that contains relay nuclei for the different senses, but also higher order nuclei that relay for instance, pre-processed information from the tectum/superior colliculus [Jones, 2002; Sherman, 2016; Guillery, 2018]. In the lamprey, the thalamus can be divided into a periventricular zone of densely packed neurons and a lateral area of loosely arranged cells. The thalamopallial neurons are glutamatergic and located in both parts of the thalamus and are interspersed with GABAergic neurons [Pombal and Puelles, 1999; Villar-Cerviño et al., 2011; Suryanarayana et al., 2017, 2020].

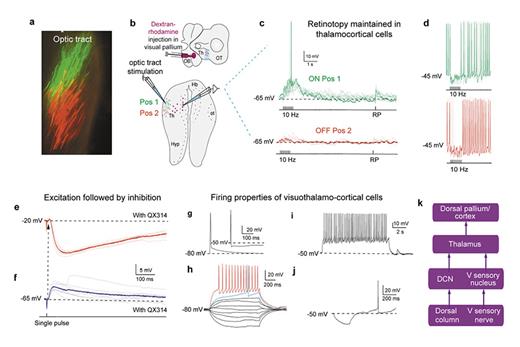

The thalamus receives visual input from the retina and indirectly from tectum [Heier, 1948; Kennedy and Rubinson, 1977; Capantini et al., 2017]. Visual thalamopallial neurons extend their dendrites into the optic tract where synapses are formed [Suryanarayana et al., 2020]. In the optic tract the axons are arranged retinotopically and activate thalamopallial neurons maintaining the topography (Fig. 5a–d). Local GABAergic neurons are recruited by the visual input. While the excitatory thalamopallial neurons are activated from only one location of the optic tract, the GABA cells are activated from multiple locations and provide lateral inhibition (Fig. 5c–f). The somatosensory input from the body and head also reaches the thalamus from the dorsal column nucleus and the trigeminal sensory nucleus, respectively (Fig. 5k) [Suryanarayana et al., 2020, 2021]. Neurons in the periventricular area of thalamus target the striatum and its input is glutamatergic, depressing, drives intrastriatal inhibition, and is mediated by NMDA and AMPA receptors [Ericsson et al., 2013a]. Moreover, the thalamus receives input from the output nuclei of the basal ganglia [Stephenson-Jones et al., 2011, 2012a]. Regarding the cellular properties of the thalamopallial neurons, they show an afterhyperpolarisation, tonic firing, and postinhibitory rebound spiking (Fig. 5g–j) as in other species.

The lamprey thalamus thus serves as a relay for sensory information to the pallium/cortex, but it also receives a major tectothalamic projection and input from the basal ganglia. It has a separate thalamostriatal projection. Hence, the main components of the mammalian thalamus are present already in the lamprey thalamus.

We will consider three intertwined subpallial forebrain systems that are important for determining the control of action and which motor programs to be recruited, (1) the basal ganglia and (2) the dopamine system corresponding to substantia nigra pars compacta (SNc), which is critical for basal ganglia function, being activated by salient, rewarding, and aversive stimuli. Lastly, (3) the habenula, which consists of two separate parts with different functions, the lateral and medial habenulae. The lateral part controls the activity of dopamine neurons and other modulator systems and is considered to contribute to the evaluation of actions. The medial part is engaged in the control of fear responses like freezing and flight. We will discuss recent studies which show that these subpallial systems are conserved and that their basic organisation is very similar between the lamprey and mammals and most likely other vertebrate groups.

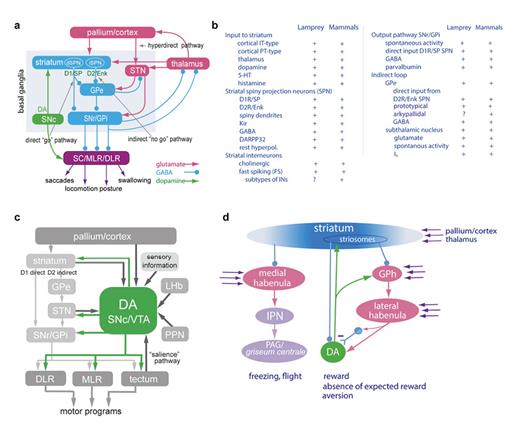

The circuit diagram of the lamprey basal ganglia is shown in Figure 6a, and it also applies to rodents [Stephenson-Jones et al., 2011, 2012a, 2013; Ericsson et al., 2011, 2013a, b; Robertson et al., 2012, Pérez-Fernández et al., 2014]. It consists of striatum, with input from the cortex and thalamus, a globus pallidus, an STN, and a substantia nigra pars reticulata (SNr). There is also a prominent input to striatum from dopamine neurons located in the SNc. These are the same compartments as in mammals, as shown in the scheme in Figure 6a. The output neurons of the basal ganglia in the SNr and globus pallidus interna (GPi) are GABAergic, tonically active under resting conditions, and they project to different motor centres to keep them under tonic inhibition. The striatal projection neurons (SPNs) are of two types. One that expresses dopamine receptors of the D1 type and substance P, and projects directly to the SNr. When activated, they will inhibit SNr neurons and thereby disinhibit the motor centres concerned downstream. These SPNs represent what is called the “direct pathway” and will promote action and they are referred to as dSPNs. The second type of SPNs express D2 receptors and enkephalin and project to cells in the globus pallidus externa (GPe), which in turn project to the glutamatergic STN. The net effect of an activation of D2-expressing SPNs is an enhanced activity in the SNr, which leads to an enhanced inhibition of the downstream motor centres. The pathway from D2-SPNs is referred to as the “indirect pathway” and the SPNs as iSPNs. For some time, the developmental subpallial component which gives rise to the pallidum in mammals, the MGE, was thought to be absent in the lamprey. However, recent studies have demonstrated a Nkx2.1-positive MGE in the lamprey further adding evidence to the presence of a lamprey pallidum [Sugahara et al., 2016].

Figure 6b provides a detailed comparison between the lamprey and the mammalian basal ganglia components and it brings out the striking resemblance between the two systems. On the input level it should be noted that the cortex in both groups acts through collaterals of pyramidal tract (PT) neurons projecting to brainstem motor centres and through the intratelencephalic (IT) neurons that target, apart from the contralateral pallium/cortex, only the ipsi- and contralateral striatum (see Fig. 1g). There are also the three modulator systems reaching the striatum – the dopamine, 5-HT, and histamine systems. SPNs are hyperpolarised during resting conditions and difficult to activate due to the expression of K_ir, a potassium channel open at rest, but closed when the membrane potential is depolarised. With regard to the interneurons in striatum, cholinergic and fast spiking interneurons exist in both groups, but whether the other subtypes present in mammals exist in lamprey is unknown. Both the direct and indirect pathways are present in both groups. The GPe neurons that iSPNs contact could correspond to the prototypical neurons. They in turn target the STN. Whether the newly discovered GPe neurons, called the arkypallidal neurons [Mallet et al., 2012], exist in lamprey is unknown. In rodents, these neurons project back to the striatum and have been referred to as “stop-cells”. As in birds, the neurons of the lamprey GPe and GPi are intermingled, whereas in mammals they form two separate nuclei. All neurons within the GPe, GPi, and SNr are GABAergic and have spontaneous activity at rest, as do STN neurons.

Our data from the lamprey basal ganglia is based on a large number of studies combining neurophysiology, tracing studies, immunohistochemistry, and behaviour [Ericsson et al., 2011, 2013a, b; Stephenson-Jones et al., 2011, 2012a, 2013, Robertson et al., 2012, Pérez-Fernández et al., 2014]. These studies have unexpectedly revealed a very detailed similarity on all levels between the lamprey and mammals and strongly suggest that the basal ganglia had evolved very early in vertebrate evolution already when the lamprey lineage separated from that leading to mammals [Grillner and Robertson, 2016].

In the lamprey, dopamine neurons are present in several locations, like the olfactory bulb, SNc (located in the posterior tuberculum), hypothalamus, brainstem, and spinal cord [Schotland et al., 1995; Pierre et al., 1997; Pombal et al., 1997; Pérez-Fernández et al., 2014] and distribute their effects broadly (Fig. 6c). Dopamine neurons in the SNc send their processes to the striatum, STN, SNr, GPi, motor centres in the tectum, and to the locomotor command centres in the diencephalon and mesencephalon (Fig. 6c) [Pombal et al., 1997; Robertson et al., 2012; Pérez-Fernández et al., 2014, 2017; Ryczko et al., 2013, 2017a, b, 2020]. The lamprey dopamine receptors located on dSPNs are of the D1 receptor subtype and provide depolarisation, whereas the iSPNs expressing D2 receptors exert an inhibitory effect [Robertson et al., 2012; Ericsson et al., 2013b; Pérez-Fernández et al., 2014, 2017], the same effects as in mammals.

Dopamine neurons in the SNc receive input from a variety of sources and are activated by salient stimuli and presumably also in reward-related situations. Salient visual or electro-sensory stimuli activate the tectum, which in turn excites the dopamine neurons via direct projections in the lamprey, as well as in mammals [Pérez-Fernández et al., 2014, 2017]. They are also under direct inhibitory control from SPNs in the striosome compartment of striatum (Fig. 6d) [Graybiel and Ragsdale, 1978]. In addition, they receive input from the lateral habenula (see below), which can exert a direct excitatory effect on the dopamine neurons in the SNc, but also an inhibitory effect conveyed via a local GABAergic relay (Fig. 6d) [Stephenson-Jones et al., 2012b]. In addition, the pedunculopontine nucleus and pallium can activate SNc neurons. With regard to the pattern of input to SNc neurons and their output targets, the connectivity is virtually identical to that of the SNc in rodents and other mammals. The mammalian dopamine neurons in SNc are located primarily in the mesencephalon but extend into the diencephalon [Smeets et al., 2000; Wulliman, 2014], while the SNc in lamprey is located in the diencephalon. A diencephalic part of the dopamine innervation of striatum is present in all vertebrate groups [Wulliman, 2014; Pérez-Fernández et al., 2014]. Coexpression of shh (sonic hedgehog) and TH (tyrosine hydoxylase) in posterior tubercular nuclei is a striking developmental parallel to the amniote mesodiencephalic dopamine cells of SN/VTA and supports homology of the teleostean posterior tubercular striatal projecting neurons with the diencephalic portion of the amniote SN/VTA [Wullimann and Umeasalugo, 2020]. The striking similarity between the innervation pattern and input between lamprey, zebrafish, and mammals and other vertebrate groups strongly suggest that they represent the same group of neurons [Pérez-Fernández et al., 2014] and that the dopaminergic neurons in the posterior tuberculum can be referred to as the lamprey SNc.

The effect of the dopaminergic downstream innervation of motor centres like the tectum [Pérez-Fernández et al., 2017] and MLR [Ryczko et al., 2013, 2017a, b, 2020] has been studied in considerable detail. In the lamprey, activation of the dopamine neurons in the SNc promotes the initiation of locomotion at the level of MLR, and a blockade of dopamine receptors increases the threshold for activation of locomotion. Also in other vertebrates, there is a facilitation of locomotion via the dopaminergic projections to MLR [Ryczko et al., 2013, 2017a, b, 2020]. In the lamprey as well as in mammals there are dopaminergic projections from the SNc to tectum/superior colliculus by collaterals of the axons that target striatum [Campbell and Takada, 1989; Pérez-Fernández et al., 2017; von Twickel et al., 2019]. Thus, each time there is a burst of activity in the dopamine neurons due to a salient stimulus, not only the striatum but also the tectum will be affected. The number of dopaminergic axonal terminals are dense in the deep tectal layer, where the output premotor neurons are located, while being sparse in the superficial sensory layer. The tectal output neurons express either D1 or D2 receptors [Robertson et al., 2012; Pérez-Fernández et al., 2014, 2017]. Activation of the dopamine input affects the excitability of the tectal output neurons and is dependent on receptor subtype either in a facilitating or depressing direction. Visual looming or bar stimuli evokes eye or orienting/evasive trunk movements elicited via tectum [Suzuki et al., 2019]. They are markedly facilitated by dopamine. The dopamine innervation of tectum thus markedly affects the tectal circuitry responsible for eye and trunk movements.

As mentioned earlier, the same dopamine neuron sends axonal branches to both tectum and striatum, but it turns out that the two branches display different properties. The axonal branch to striatum co-expresses and co-releases glutamate and dopamine in the striatum, while the branch projecting to tectum does not contain glutamatergic vesicles and it releases only dopamine [von Twickel et al., 2019]. This presumably means that there is an interaction between the axon terminal and the target cells at the synapse that will determine whether glutamatergic vesicles will be formed or not.

The impact of the dopamine system on motor behaviour in the lamprey has been investigated by using the neurotoxin MPTP that kills the dopamine cells [Thompson et al., 2008]. After MPTP, the lampreys become very inactive and it is difficult to make them swim, and if at all they move, it will be a short bout of swimming. Moreover, they have rigidity remaining after any swimming episode and an increased reaction time. These are the same type of Parkinsonian symptoms that a dopamine-denervation gives rise to in other vertebrates, including primates and humans.

In conclusion, the dopamine system (SNc) of the lamprey and that of other vertebrates are very similar with regard to overall organisation, connectivity, cellular and synaptic properties, and the behavioural effects of dopamine.

The medial and lateral habenulae are present throughout vertebrate phylogeny and located dorsal to thalamus in the diencephalon (epithalamus). The main connectivity of the lamprey lateral and medial habenulae are shown in Figure 6d. They are engaged in the control of the different modulator systems and in eliciting fear reactions, respectively.

The lateral habenula receives input from the glutamatergic part of globus pallidus (GPh), which in turn receives inhibition from the striosomal compartment of the striatum [Stephenson-Jones et al., 2012b, 2013, 2016]. The striosomes, GPh, and the lateral habenula themselves receive input from the pallium, thalamus, and other structures. As in primates and other vertebrates, the lateral habenula also receives input from the lateral hypothalamus [Proulx et al., 2014; Lazaridis et al., 2019]. Separate glutamatergic subpopulations within the lateral habenula control the activity of the dopamine neurons in SNc, the 5-HT neurons in the mammillary area, and histaminergic neurons in the periventricular area of hypothalamus, all of which in turn provide important modulatory input to the striatum. Histaminergic neurons display circadian activity and affect the excitability of striatal neurons [Ellender et al., 2011].

The medial habenula receives relayed input from different senses, like olfaction from the olfactory bulb, light activating the pineal gland, and electrosensation and vestibular input mediated from the pretectum. There is also a direct input from the striatum. In mammals, there is in addition input from limbic structures that are absent in lamprey. The cholinergic projections of the medial habenula target the interpeduncular nucleus, which in turn projects to griseum centrale [Olson et al., 2017]. In zebrafish, the griseum centrale mediates freezing responses to cope with aversive responses [Okamoto et al., 2021]. The griseum centrale corresponds to the periaqueductal grey in mammals, which triggers a variety of fixed action patterns related to freezing, flight, and vocalisation [Subramanian et al., 2020].

In conclusion, the organisation of the input to the lateral habenula is similar to that of mammals, whereas the input to the medial habenula is related more directly to the different senses, while additionally in mammals, the septum and limbic structures provide the input. The organisation of the output from both the medial and lateral habenulae is similar in both vertebrate groups. The control of the different modulator systems and protective responses such as freezing are important contributions of the two habenulae.

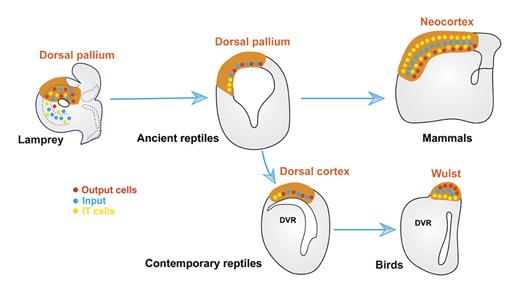

A critical yardstick for evaluating homologous structures, similarities, signify an important evolutionary principle – conservation and common ancestry. As we have shown in considerable detail above, there are consistent and detailed similarities between the lamprey and mammals with regard to the basal ganglia, thalamus, the dorsal and ventral pallia in terms of organisation, connectivity, neurotransmitters, peptides, and ion channel expression. Similarly, the habenula, the SNc dopamine system also show a very high degree of conservation. It must be remembered that the lamprey (cyclostomes) and mammals represent two extreme phylogenetic groups in vertebrates, and any evolutionary conclusions will echo across vertebrate evolution. Much less information is available in other groups of anamniotes, but the fragments available are consistent with an evolutionary lineage through elasmobranchs, basic teleosts (holosteans, gar) and amphibians. More recent teleosts have evolved an additional relay structure between tectum and pallium/cortex [Bloch et al., 2020], which is not present in another vertebrates. Figure 7 illustrates schematically an evolutionary line from the dorsal pallium of lamprey to basal reptiles and mammals [Briscoe and Ragsdale, 2019; Suryanarayana, 2019; Suryanarayana et al., 2020]. Modern reptiles, have in addition developed the dorsoventricular ridge that is further developed in birds [Briscoe and Ragsdale, 2019]. When the entire forebrain is considered together, the data strongly supports our interpretation that fundamental aspects of the vertebrate forebrain design had evolved very early in vertebrate evolution, some 500 million years ago before the lamprey lineage became separate from that leading to mammals, and has been maintained notwithstanding the significant plasticity in forebrain structures seen across vertebrates [Stephenson-Jones et al., 2012a; Grillner and Robertson, 2016; Briscoe and Ragsdale, 2019; Suryanarayana, 2019]. We conclude that there is a very high degree of detailed similarity at the molecular level (ion channels, transmitters, neuropeptides) and regarding connectivity, overall organisation within each of the systems discussed, and the interaction between these intertwined components of the forebrain. It is therefore not credible to assume that they could have evolved independently through convergence, but rather must be explained by conservation and common ancestry. We believe and propose that these commonalities present a common schema of forebrain organisation conserved across vertebrates. It must be noted here that detailed investigations of forebrain structures with modern techniques have not been undertaken in large groups of vertebrates, particularly in the vast anamniote lineage. More data from phylogenetically important basal species in different vertebrate clades will eventually help paint the full picture of vertebrate forebrain evolution.

In this review of the lamprey forebrain, we have shown that there is a remarkable similarity with the mammalian forebrain with regard to overall organisation, connectivity, transmitters, and cellular properties in dorsal and ventral pallium, thalamus, basal ganglia, the dopaminergic SNc, and the lateral and medial habenulae. We infer that the overall design of the vertebrate forebrain through evolution, must have taken place before the separation of the lamprey and the mammalian evolutionary lines.
