Abstract
Background: The amyloidoses are a rare and heterogeneous group of disorders that are characterized by the deposition of abnormally folded proteins in tissues ultimately leading to organ damage. The deposits are mainly extracellular and are recognizable by their affinity for Congo red and their yellow-green birefringence under polarized light. Current classification of amyloid in medical practice is based on the amyloid protein type. To date, 36 proteins have been identified as being amyloidogenic in humans. Summary: in clinical practice, it is critical to distinguish between treatable versus non-treatable amyloidoses. Moreover, amyloidoses with a genetic component must be distinguished from the sporadic types and systemic amyloidoses must be distinguished from the localized forms. Among the systemic amyloidoses, AL continues to be the most common amyloid diagnosis in the developed world; other clinically significant types include AA, ALECT2, and ATTR. The latter is emerging as an underdiagnosed type in both the hereditary and wild-type setting. Other hereditary amyloidoses include AFib, several amyloidoses derived from apolipoproteins, AGel, ALys, etc. In a dialysis setting, systemic amyloid derived from β2 microglobulin (Aβ2M) should be considered, although a very rare hereditary variant has also been reported; several amyloidoses may be typically associated with aging and several iatrogenic types have also emerged. Determination of the amyloid protein type is imperative before specific therapy can be implemented and the current methods are briefly summarized. A brief overview of the target organ involvement by amyloid type is also included. Key Messages: (1) Early diagnosis of amyloidosis continues to pose a significant challenge and requires the participation of many clinical and laboratory specialties. (2) Determination of the protein type is imperative before specific therapy can be implemented. (3) While mass spectrometry has emerged as the preferred method of amyloid typing, careful application of immune methods is still clinically useful but caution and experience, as well as awareness of the limitations of each method, are necessary in their interpretation. (4) While the spectrum of amyloidoses continues to expand, it is critical to distinguish between those that are currently treatable versus those that are untreatable and avoid causing harm by inappropriate treatment.
Introduction
The amyloidoses are a rare and heterogeneous group of disorders that are characterized by the deposition of abnormally folded proteins in tissues. Amyloid deposits are formed from globular, soluble proteins, which undergo misfolding and, subsequently, aggregate into insoluble fibrils, leading to progressive organ damage. By electron microscopy, amyloid fibrils appear rigid, are non-branching, and typically measure 8–12 nm in diameter [1].
Fibrillogenesis involves abnormal protein folding leading to a conformational shift into a β-pleated sheet secondary structure consequent to which the protein becomes hydrophobic, insoluble, non-functional, and resistant to degradation. Amyloid formation involves a combination of several factors, including: a sustained increase in the concentration of proteins with an acquired or hereditary mutation, or wild-type proteins with an intrinsic propensity to misfold, or a proteolytic remodeling of a wild-type protein into an amyloidogenic fragment [2-4].
Protein folding is under the control of quality control systems, which operate at the cellular (as well as extracellular) level and promptly eliminate misfolded proteins. It is only when these quality control systems are overwhelmed by the conditions listed above, or are reduced in their capacity by aging, that amyloidogenesis occurs. In this process, misfolded proteins are generated and aggregate as protofibrils and ultimately mature fibrils. Importantly, amyloid toxicity (referred to as proteotoxicity) begins at the level of the protofibril and is continued by the mature fibril. Mature fibrils have binding sites for Congo red. During fibrillogenesis, amyloid P component, apoliporotein E, and glycosaminoglycans contribute to the formation and persistence of amyloid deposits. These components are found in all amyloid deposits, regardless of the protein type, and therefore serve as universal amyloid signatures [2-4].
This review will focus on the extracerebral amyloidoses and the practical issues associated with their diagnosis and classification. First, the rationale for the modern classification of amyloidoses will be discussed followed by a brief overview of the major amyloidoses, focusing on systemic types, diagnosis, and, finally, an organ system-based summary.
Classification
As per the International Society of Amyloidosis (ISA) guidelines, in human medicine, the term amyloid is applied to mainly extracellular deposits of a fibrillary protein that are recognizable by their affinity for Congo red and their yellow-green birefringence under polarized light [1].

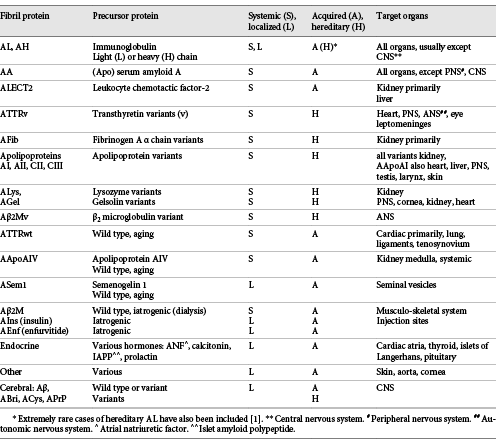

The current classification of amyloid in medical practice is based on the amyloid protein type. The amyloid is termed A (for amyloid) followed by an abbreviation of the protein type: AL (amyloid derived from immunoglobulin light chain), ATTR (amyloid derived from transthyretin), etc. Table 1 provides an abbreviated list of amyloid fibril proteins and their precursors in humans. Amyloid protein variants associated with hereditary amyloidoses are named according to the substitution or deletion in the mature protein; thus, the name of the amino acid involved and the position of the change are listed: e.g., ATTRV30M (valine is replaced by methionine). While the single-letter amino acid code is recommended by the ISA, frequently, the three-letter amino acid designation is used in the literature, in keeping with the recommendations of the Sequence Variant Description Working Group of the Human Genome Variation Society. The name “hereditary” rather than “familial” is recommended by the ISA for amyloid diseases associated with mutant proteins. Moreover, “hereditary ATTRv,” where “v” stands for variant instead of “m” for mutant, is recommended by the ISA; however, at times, ATTRm (or hATTR for hereditary ATTR) may be encountered in the literature as an alternative to ATTRv. The designation ATTRwt is frequently used to underscore the association with wild-type protein in contrast to the variant.
To date, 36 proteins have been identified as being amyloidogenic in humans. Amyloid deposits may be localized or systemic, with deposits being present in a single organ in the former case and affecting various organs and tissues throughout the body in the latter. Exclusively localized amyloid deposits have been associated with at least 19 protein types, while at least 14 protein types (and many more variants) appear to be consistently associated with systemic amyloidosis. Interestingly, however, at least 3 protein types (most notably AL/AH, amyloidosis derived from immunoglobulin light or heavy chain, respectively, ATTR, and amyloidosis derived from β2 microglobulin, Aβ2M) can occur as either localized or systemic deposits.
Clinical manifestations are heterogeneous and may be influenced by genetic and environmental factors. Although certain phenotypes may typically be associated with certain amyloid types, considerable clinical overlap exists and, hence, the classification of amyloidoses on clinical grounds alone is not recommended.
In clinical practice, it is critical to distinguish between treatable versus non-treatable amyloidoses. Moreover, amyloidoses with a genetic component must be distinguished from the sporadic types and systemic amyloidoses must be distinguished from the localized forms [5-12].
Main Amyloidoses
AL, amyloidosis derived from immunoglobulin light chain, has been considered, thus far, the most common form of systemic amyloidosis in the developed world [6, 7, 12, 13].
Approximately 2,200 new cases of AL are diagnosed every year in the US. The prevalence of AL amyloidosis has increased significantly (2.6-fold) between 2007 and 2015, from 15.5 cases per million in 2007 to 40.5 in 2015 [13]. Since AL is discussed in several chapters in this issue, here, it will be addressed only briefly in the context of other amyloidoses.
By definition, AL is associated with the clonal proliferation of plasma cells, producing a monoclonal protein that circulates in the blood and amyloid fibrils are derived from the immunoglobulin light chain or its fragment; rare cases that are derived from a heavy chain fragment are designated AH. Only 20% of AL amyloidosis patients present with an accompanying multiple myeloma; the majority are diagnosed with plasma cell dyscrasia. Importantly, AL amyloidosis may be associated with near normal counts and polyclonal plasma cells in a bone marrow biopsy [6, 7, 12, 13]. Extremely rare cases of hereditary AL have also been included [1].
Approximately 70% of patients present with renal involvement – typically with nephrotic syndrome – and an equal proportion of patients present with cardiac involvement – heart failure and arrhythmias [6, 7, 12-14]. Between 17–35% of patients with AL have clinically significant neuropathy. Importantly, the AL phenotype, with cardiomyopathy and/or peripheral neuropathy, overlaps with hereditary amyloidoses (Fig. 1).
AA
In AA amyloidosis, amyloid fibrils are derived from serum amyloid A protein, which is an acute phase reactant produced by the liver [15, 16]. AA is typically associated with an underlying chronic inflammatory process and remains the leading cause of systemic amyloidosis in developing countries, due to the high prevalence of associated, underlying, infectious diseases [15, 17-19]. AA can develop in association with hereditary auto-inflammatory diseases, both monogenic (familial Mediterranean fever) as well as polygenic, including inflammatory bowel disease [15]. It is important to recognize the distinction between the familial amyloidoses (i.e., familial AA associated with autoinflammatory diseases) versus those referred to as “hereditary” amyloidoses. In the former, the genetic abnormality affects the protein(s) involved in modulation of the inflammatory response, which, in turn, creates an environment that is permissive for AA development [15]. In contrast, in hereditary amyloidoses, the mutation involves the amyloidogenic protein itself and, thereby, makes it prone to amyloidogenesis. The list of conditions associated with AA continues to expand and, most recently, obesity was added as a significant susceptibility factor for idiopathic AA [20]. It is, therefore, important to monitor patients at risk. However, no association with an identifiable underlying disease can be seen in up to 19% of patients diagnosed with AA [15, 17]. Interestingly, while a chronic, sustained inflammatory process may lead to the development of AA amyloidosis, not every patient with chronic disease develops AA. The typical phenotype of AA amyloidosis includes involvement of the kidneys, gastrointestinal tract, spleen, and liver [15, 18] (Fig. 1).
ALECT2
ALECT2 accounts for 2.7–10% of patients with renal amyloidosis in the United States; thus, overall, it represents the third most common renal amyloidosis after AL and AA [21]. However, the proportion of patients affected depends on ethnicity [19, 21, 22]. Remarkably, in the Southwestern United States, which has a high proportion of Mexican Americans, ALECT2 accounts for 54% of amyloid diagnoses and has emerged as the most prevalent renal amyloidosis in Mexican Americans [21]. In Egypt, ALECT2 is the second most common renal amyloidosis type after AA [19].
In ALECT2, the amyloid fibrils are derived from leukocyte chemotactic factor 2 [23]. However, the pathogenesis is unclear: no genetic component has emerged as yet, despite a strong association with Mexican American ethnicity. Additional ethnic groups that are prone to develop ALECT2 include: Native Americans, First Nations people in British Columbia, Punjabis, and Egyptians [19, 21-27].
ALECT2 affects the older patient population, typically presents with slowly progressive renal failure, and is an important cause of end-stage renal disease [25-27]. While ALECT2 is a systemic amyloidosis with predominant involvement of the kidney and liver, subclinical involvement has been reported in the spleen, lungs, prostate, gallbladder, pancreas, small bowel, and adrenal and parathyroid gland; however, to date, no patient with cardiac ALECT2 amyloidosis has been confirmed histologically [22-27] (Fig. 1).
Hereditary Amyloidoses
Among the hereditary amyloidoses, most types are individually rare but, collectively, hereditary amyloidoses constitute approximately 10% of all systemic amyloidoses currently diagnosed [28]. This may, however, represent underdiagnosis. ATTRv is the most common hereditary amyloidosis worldwide. AFib (amyloidosis derived from a fibrinogen variant) is rare in North America but more common in Europe; other rarer examples of hereditary amyloidoses include diseases associated with variants of apolipoproteins (AI, AII, C-II, C-III), gelsolin (AGel), and lysozyme (ALys) [5, 12, 28-33].
Hereditary amyloidosis caused by mutations in the TTR gene (TTRv, variant) has begun to emerge as a significantly underdiagnosed cause of cardiac failure and polyneuropathy [8-10, 12]. The worldwide prevalence of ATTRv is estimated at 50,000 individuals, with varying phenotypic presentations [29].
Transthyretin, a protein primarily produced by the liver, comprises four monomers forming a tetramer in the mature protein and is involved in the transport of thyroxine and retinol. TTR gene mutations can lead to weaker monomer interactions, leading, in turn, to dissociation of the tetramer. Monomers can misfold and then aggregate into amyloid fibrils [12].
In the United States, the most common transthyretin mutation is Val122Ile, which affects 3–4% of African Americans. In Sweden, Portugal, and Japan, there are endemic foci of Val30Met [34, 12]. To date, there are more than 120 TTR mutations reported. Val122Ile is predominantly cardiopathic, while Val30Met is predominantly associated with polyneuropathy; the prevalence of other rarer mutations varies according to geographical location and these mutations appear to be associated with more pronounced cardiomyopathy rather than polyneuropathy [28].
The majority of patients are male heterozygous carriers. Hereditary TTR amyloidosis is autosomal dominant with variable penetrance and variable age at onset; hence, a family history is often missing. The median age at onset can vary depending on geographic location: in the US – 68 years, in Portugal – 32 years, in Sweden – 52 years [9, 12, 35]. But even in similar geographic locations, the age range of patients can be fairly wide. Amyloid deposits typically contain a mixture of both mutant and wild-type TTR. Moreover, in Val30Met, fibrils may be composed of either the full-length TTR molecule or a mixture of full-length TTR and fragments thereof and the fibril composition may be associated with the age at onset of the disease and the degree of cardiac involvement [35].
Phenotypically, there is a considerable overlap between AL and ATTRv amyloidosis with both being associated with cardiomyopathy and peripheral neuropathy [9, 10, 12](Fig. 1). Moreover, a substantial proportion of patients with ATTR also have MGUS – in a recent study, 49% of patients with cardiac ATTRv amyloidosis were shown to have a concurrent MGUS [36]. Regrettably, some ATTRv patients have been misdiagnosed as having AL amyloidosis.
AFib – amyloidosis derived from a fibrinogen variant – has a worldwide distribution [32, 33, 37-39]. It is the most frequent hereditary amyloidosis in Northern Europe but is rare in the US (1%) [21, 32, 33]. Fibrinogen, a plasma protein involved in the final phase of blood coagulation, is produced exclusively by the liver and the amyloidogenic mutation involves the fibrinogen A α-chain. Several variants have been reported that usually have no effect on fibrinogen function, with the exception of deletions associated with frame shift mutations. Some patients have decreased fibrinogen levels. Median age at presentation is 55 years. The typical presentation involves nephrotic syndrome and hypertension. Pathology usually shows massive glomerular amyloid with essentially no extraglomerular deposits. Spleen involvement may be associated with anemia and spleen rupture. A family history is frequently missing. Certain mutations may be associated with neuropathy [28].
Other hereditary amyloidoses include several associated with variants of apolipoproteins (AI, AII, C-II, C-III), gelsolin (AGel), and lysozyme (ALys) [28].
AApoAI (amyloidosis derived from an apolipoprotein AI variant) is the most common type encountered in this group. Mutations in the aminoterminal portion of the protein are associated with renal and/or hepatic amyloid deposits. The former are typically extraglomerular with dense deposits at the cortico-medullary junction and are associated with renal failure. Certain mutations are associated with hepatic, testicular, laryngeal, and cutaneous deposits as well as peripheral neuropathy and/or cardiomyopathy. AApoAII is primarily nephropathic [28].
Amyloidosis derived from a gelsolin variant, AGel, is much less common than ATTRv and is associated with predominant seventh cranial nerve neuropathy, early and prominent corneal lattice dystrophy, cutis laxa, and, later, in the course of the disease, a distal polyneuropathy. AGel follows a benign course with relatively late onset, slow progression, and limited morbidity. Most known patients have been reported in Finland, but patients from the United States, Denmark, the Netherlands, and Japan have also been encountered [28].
ALys – amyloid derived from lysozyme – is particularly nephropathic; massive hepatic deposits may lead to hepatic rupture. Cardiomyopathy and gastrointestinal involvement have also been reported.
Hereditary and systemic amyloidosis derived from a β2 microglobulin variant (Aβ2M) is exceedingly rare [40]. It was reported with autonomic and subsequent symmetric sensorimotor axonal polyneuropathy. This is in contrast to dialysis-associated amyloidosis, derived from wild-type β2 microglobulin, where there is no associated polyneuropathy.
Amyloidoses of Aging
Several amyloidoses are associated with aging, including systemic (ATTRwt, AApoAIV) and localized forms (atrial and seminal vesicle amyloid) [41-47]. Development of these amyloidoses may be associated with age-related reduced effectiveness of the protein folding quality control systems.
ATTR, derived from the wild-type protein (ATTRwt) and causing predominantly cardiac failure, is recognized as an underdiagnosed cause of cardiac failure in older patients, predominantly males. ATTRwt, formerly called “senile systemic amyloidosis,” is increasing rapidly in recognition and, with an aging population, ATTRwt is likely to become the most common type of cardiac amyloidosis [9, 12].
With aging, the TTR tetramer becomes less stable, resulting in the release of misfolded intermediates that ultimately form amyloid deposits, mainly in the heart. Most commonly, ATTRwt is reported in men over the age of 75 years. Autopsy data have shown TTR deposits in the myocardium of ≈25% of individuals >80 years old [9, 42]. While extracardiac amyloid deposits are largely limited to the vasculature, amyloid associated with carpal tunnel syndrome and lumbar spine stenosis may also be detected [43-46].
A substantial proportion of patients with ATTR also have MGUS. In a recent study, 39% of patients with cardiac, wild-type, ATTR amyloidosis had concurrent MGUS and, hence, there is a danger of misdiagnosis [36].
AApoAIV predominantly involves the renal medulla but systemic deposits in the small intestine, heart, and, very rarely, in the lung and skin were detected by mass spectrometry studies.
Atrial localized amyloid, derived from atrial natriuretic factor (a natriuretic peptide hormone secreted from the cardiac atria), may be associated with atrial fibrillation that is refractory to medical treatment [47].
Localized amyloid deposits, which may involve cardiac valves and the aorta, are considered to represent local, age-related amyloidosis and, in most instances, are asymptomatic and incidental findings [46].
Localized amyloid involving seminal vesicles in elderly men is derived from semenogelin 1 [46].
Iatrogenic Amyloidoses
Localized Amyloid Deposits
Exclusively localized amyloid deposits may be associated with several endocrine organs or tumors, where they are derived from the respective hormones or local protein precursors [1, 46].
Localized deposits of amyloid may also involve the pulmonary and lower urinary tracts [46]. While these deposits may be multifocal and bilateral, they involve a single organ system. Deposits of amyloid are most frequently of the AL type, derived from mucosa-associated lymphoid tissue (MALT) lymphoma [48]. Localized deposits of amyloid may form a tumor-like mass, referred to as an “amyloidoma,” which may be seen in peripheral nerves and, rarely, in the gastrointestinal tract.
Diagnosis
Amyloidosis should be suspected in patients with non-diabetic nephrotic proteinuria, heart failure with preserved ejection fraction, non-diabetic neuropathy, or unexplained gastrointestinal symptoms/hepatomegaly [5-7]. However, except for patients with a positive pyrophosphate scan (and absence of paraprotein), a diagnosis of amyloidosis is based on the tissue detection of deposits [29, 49, 50].
Congo red stain under polarized light is the current gold standard for a “generic” diagnosis of amyloidosis – i.e., regardless of the protein type. A subsequent step involves the identification of the specific amyloid protein type – “amyloid typing” – which, in turn, has direct implications for the choice of therapy [1, 50].
While, in the routine pathology stain H&E, amyloid has a nonspecific appearance as extracellular “amorphous” deposits, early deposits may be inconspicuous. Hence, a Congo red stain should be examined to rule out early amyloid and not just to confirm a suspicion of amyloid based on H&E. The sensitivity of the Congo red stain may be greatly enhanced by combining it with fluorescence microscopy [50, 51] (Fig. 2a, b). In addition to Congo red stain, Thioflavin may merit consideration [52]. Pathology reporting of tissue positivity for amyloid should specify the location of deposits (stromal versus vascular), since it is relevant clinically for the classification of organ involvement [14].
a Colon biopsy positive for amyloid by Congo red stain. Small deposits of amyloid are seen in the lamina propria, focally in muscularis mucosae and vasculature. Congo red stain viewed under polarized light. Original magnification 100×. b Colon biopsy, the same field as in a. Amyloid deposits are more readily visible. Congo red stain viewed under fluorescence light using TRITC filter. Original magnification 100×. c Bone marrow biopsy specimen with periosseous soft tissue positive for amyloid while the actual marrow was negative (not shown). Congo red stain. Original magnification 200×. d Carpal tunnel biopsy specimen positive for amyloid by Congo red stain while amyloid deposits were inconspic-uous by H&E stain (not shown). Original magnification 200×. e, f Fat biopsy stained with anti-lambda light chain antibody (e) and anti-kappa light chain antibody (f) illustrating lambda light chain restriction. Immunofluorescence stains in frozen section. Original magnification 400×.
a Colon biopsy positive for amyloid by Congo red stain. Small deposits of amyloid are seen in the lamina propria, focally in muscularis mucosae and vasculature. Congo red stain viewed under polarized light. Original magnification 100×. b Colon biopsy, the same field as in a. Amyloid deposits are more readily visible. Congo red stain viewed under fluorescence light using TRITC filter. Original magnification 100×. c Bone marrow biopsy specimen with periosseous soft tissue positive for amyloid while the actual marrow was negative (not shown). Congo red stain. Original magnification 200×. d Carpal tunnel biopsy specimen positive for amyloid by Congo red stain while amyloid deposits were inconspic-uous by H&E stain (not shown). Original magnification 200×. e, f Fat biopsy stained with anti-lambda light chain antibody (e) and anti-kappa light chain antibody (f) illustrating lambda light chain restriction. Immunofluorescence stains in frozen section. Original magnification 400×.
While biopsy of a target organ (kidney, heart) is most sensitive if amyloid is clinically suspected, a less invasive biopsy is recommended, such as abdominal fat biopsy and bone marrow biopsy [50-56]. The sensitivity of fat in amyloid detection is amyloid-type dependent, ranging from 70–90% in AL and 67% in ATTRv to only 14% in ATTRwt [53]. Fine needle fat biopsy typically yields a small amount of tissue; hence, a small excisional biopsy has been advocated, which increases the likelihood of amyloid detection and provides ample tissue for amyloid typing [50, 56, 57].
Bone marrow biopsy is routinely performed for the diagnosis/follow-up of patients with most hematologic disorders. The reported overall sensitivity of this procedure for amyloid detection is ∼60% and may be the basis of a first-time diagnosis of amyloidosis in up to one-third of patients [6, 51, 58, 59]. In bone marrow biopsies selected for Congo red stain because of light chain restriction, increased plasma cells, MGUS, clinical suspicion, or prior diagnosis of amyloidosis in other tissues, amyloid was detected in 10.5% [51]. Bone marrow biopsy findings in non-AL patients, may also be useful since there is evidence that at least AA, ATTR, and ALECT2 may be associated with vascular and/or extramedullary deposits of amyloid [21, 26, 51, 60]. The sensitivity of bone marrow biopsy in ATTRv has been reported as 41%, while in ATTRwt it is reported as 30% [53].
In patients with AL, both samples (fat and bone marrow biopsy) were negative for amyloid in only 14.6% [6]. Therefore, bone marrow biopsy, together with fat pad biopsy, may obviate the need for more invasive target organ biopsies in a significant number of patients [51, 61].
In bone marrow biopsy specimens, amyloid deposits may be seen in the vessel wall, bone marrow stroma, periosteal soft tissue, or a combination thereof. Importantly, non-stromal deposits are more than 2.25 times more common than stromal deposits. Hence, it is important to look for amyloid in periosteal soft tissue in bone marrow biopsy specimens [51] (Fig. 2c).
While labial and rectal biopsies have been used extensively for screening in the past, more recently, luminal gastro-intestinal biopsies have been utilized as well. In AL amyloidosis, labial salivary gland biopsies have reported 81–89% sensitivity, while gastrointestinal biopsies have 70–90% sensitivity. In ATTRv, rectal biopsy sensitivity is 81%, while in ATTRwt, it is 50% [53, 56]. Moreover, testing for amyloid in tenosynovial and carpal tunnel specimens has also been advocated [43-46] (Fig. 2d).
Amyloid Typing
Determination of the amyloid protein type is imperative before specific therapy can be implemented [5-12]. There is significant heterogeneity in the spatial distribution of amyloid in various tissues and, while there is some predilection of certain amyloid types for particular organs, the determination of the amyloid type on clinical grounds alone is not reliable; the amyloid protein type must be determined by immune and/or proteomic examination of the actual amyloid deposits. Recently, PYP scans have been advocated for the radiologic detection of ATTR cardiomyopathy in patients without MGUS [49].
In the US and other developed countries, the main differential diagnosis of the amyloid protein type is between AL and non-AL types. Among clinical amyloidoses diagnosed at the Mayo clinic by proteomics (regardless of the specimen site), AL was the most frequent diagnosis (61.7%), followed by ATTR (24.5%), with other types being much rarer – AA (3.7%) and ALECT2 (3.6%) [21].
While immunofluorescence in frozen sections and immunohistochemistry in paraffin sections have traditionally been used for amyloid typing, mass spectrometry has emerged as the method of choice for the typing of amyloid proteins, in particular in paraffin sections [6-12, 62-72].
In general, immunofluorescence in frozen sections performs better than immunohistochemistry in paraffin sections and continues to be used as a first step in amyloid typing by many laboratories worldwide [21, 62](Fig. 2e, f). More recently, the application of paraffin-section immunofluorescence has been reported as superior to routine paraffin-section immunohistochemistry, in particular for the detection of AL [68-70]. Moreover, some centers continue to use immunogold labelling with good results and the application of antibodies raised against free light chains (as opposed to conventional antibodies) may also yield better results [73, 74]. While detailed discussion of the issues associated with amyloid typing by immunohistochemistry and mass spectrometry are beyond the scope of this review, suffice it to say that caution and experience, as well as awareness of the limitations of each method, are necessary in their interpretation.
The rationale for the application of proteomics to amyloid typing lies in the relative abundance of amyloid protein in the tissue, where, usually, amyloid protein is the dominant protein [64-66]. Thus, the diagnosis of amyloid by proteomic methods is based on the presence of large spectra numbers for the amyloidogenic protein in conjunction with apolipoprotein E and serum amyloid P component (also known as “amyloid signature”). Importantly, mass spectrometry proteomics allows global identification of proteins and, thereby, the discovery of unsuspected amyloid protein types.
Currently, amyloid typing by mass spectrometry is recommended for the typing of amyloid deposits where routine IF/IHC is negative or equivocal, for the detection of less common/unusual types, for the confirmation of an unusual or unexpected amyloid type, or in cases with an inadequate sample for immunofluorescence typing [21].
Amyloid protein typing must be done on the actual tissue deposits. Ancillary laboratory studies are used to support the diagnosis of the amyloid protein type but not to make it! Thus, the detection of MGUS is not in itself diagnostic of AL and caution is mandatory since as many as 10–49% of patients with ATTR may have MGUS [36]. In cases of hereditary amyloidosis, gene sequencing is recommended since hereditary amyloidosis types cannot be distinguished from acquired types based on clinical presentation alone.
Amyloidosis staging involves the distinction between systemic and localized amyloidoses as well as determination of the organ type involvement. These issues are discussed by Schonland et al. elsewhere in this issue.
Target Organ – Amyloid Involvement by Type
Kidney-Genitourinary System
The kidney parenchyma is one of the most frequently involved sites in essentially all systemic amyloidoses including AL, AA, ALECT2, and several of the hereditary amyloidoses [21](Fig. 1). While AL is still the most common form of amyloidosis in the developed world, the worldwide distribution of amyloidosis types depends on ethnicity and/or geographic location (see above). In a recent series of 474 patients with biopsy-proven renal amyloidosis from the Mayo Clinic, 86% were immunoglobulin derived, 7% were AA derived, 3% were ALECT2 derived, and 1% were fibrinogen A derived [21]. However, among Mexican Americans, ALECT2 accounts for 54% of renal amyloid diagnoses, being therefore even more prevalent than AL [22]. Similarly, among Egyptians, renal ALECT2 was the second (after AA) most common amyloidosis at 31% [19]. Thus, ALECT2 appears to represent an important and most probably under-recognized cause of chronic kidney disease among Mexican Americans, Egyptians, and other ethnic groups around the world [19, 22, 24, 25].
Renal amyloidoses most commonly involve the glo-meruli and are typically associated with proteinuria, which, in turn, prompts a kidney biopsy. In routine sections (H&E stained), amyloid is typically suspected through the presence of amorphous “hyaline” deposits, which are also weakly PAS positive and show loss of argyrophilia [21, 50, 75]. However, early deposits of amyloid may be inconspicuous and, therefore, a Congo red stain should be performed, not only to confirm the suspicion of amyloid but also to rule it out [50]. If early deposits are missed, minimal change disease may be misdiagnosed. Typically, amyloid deposits are first seen in the mesangium and, subsequently, also involve the capillaries; ultimately, they may obliterate the entire glomerulus, mimicking sclerosis or diabetic nephropathy. While extraglomerular deposits of amyloid are typically associated with glomerular involvement, in some cases, deposits of amyloid may be purely extraglomerular and, clinically, may be associated with renal failure without insignificant proteinuria [75]. In ALECT2, cortical interstitium is typically involved, while glomeruli may be spared. In some patients with AA, AApoAI, or AApoAIV, amyloid deposits may be limited to the medullary interstitium. While in certain mutations in ATTR, glomeruli may be involved, typically, amyloid is limited to the deep medulla [75, 76].
Rarely, patients presenting with amyloid in the urinary tract are affected by localized amyloidosis. Small fiber neuropathy and endocrine involvement in systemic amyloidoses (AL, ATTR) may be associated with lower genitourinary dysfunction and/or functional impairment of the testes and adrenal glands [77].
Heart
The major systemic amyloidoses with clinically significant involvement of the heart include AL and ATTR, both wild type and hereditary; very rarely, other hereditary amyloidoses (AApoAI, AFib, ALys, and AGel) may also involve the heart [7-9, 28, 29, 31, 78](Fig. 1). Cardiac involvement in AA amyloidosis is rare and usually not clinically significant; vascular deposits of amyloid may also be seen in systemic Aβ2M in dialysis patients [28].
Cardiac amyloidosis is an underdiagnosed cause of heart failure. Cardiovascular manifestations are rather nonspecific, with arrhythmias, conduction blocks, and congestive heart failure being typical. Nevertheless, ventricular wall thickening with preserved ejection fraction and absence of left ventricular dilatation is suspicious for amyloidosis and cardiac ATTR was reported in 13% of patients with this condition [78]. Five percent of patients with presumed hypertrophic cardiomyopathy had a TTR gene mutation and 8% of patients with amyloidotic carpal tunnel syndrome also had cardiac ATTR [79]. Cardiac ATTR may also be associated with lumbar spinal stenosis [43, 46]. By PYP scintigraphy, 16% of patients with aortic stenosis and up to 3% of all individuals older than 75 had scans indicative of TTR cardiac amyloidosis [49]. Genetic testing is necessary to differentiate between ATTRv and ATTRwt cardiomyopathy. Moreover, among ATTRv, certain mutations are typically associated with cardiomyopathy.
The true incidence of ATTRwt is difficult to determine but it is suspected of being widely underdiagnosed. Some patients may be relatively asymptomatic, while others, predominantly males, may develop congestive heart failure and arrhythmias with massive amyloid deposits.
In AL, approximately 70% of patients have cardiac involvement, which confers a poor prognosis and warrants prompt specific treatment [6, 7]. Compared to patients with ATTR, patients with cardiac involvement in AL have a greater hemodynamic impairment, despite a lesser amyloid load. Experimental data suggests that in AL, there is a direct cardiotoxic effect of amyloidogenic light chains, which plays a significant role in driving the cardiac function compromise [3].
Although the PYP scan has emerged as a helpful diagnostic modality in patients with cardiac ATTR (and no evidence of MGUS), definitive diagnosis requires an endomyocardial biopsy [41, 49, 78].
In AL, amyloid deposits are seen diffusely infiltrating peri-myocyte connective tissue (“chicken-wire” pattern). In contrast, in ATTRwt, myocardial amyloid deposits are patchy in distribution; intramural coronary arteries may also be involved in both types [50, 80]. Since early deposits of amyloid can be rather subtle on routine pathology, it is prudent to examine a Congo red stain of all native heart biopsies.
Light chain deposition disease, a systemic deposition of non-fibrillar deposits of immunoglobulin light chain that typically involves the kidney, may also involve the heart.
Peripheral Nerves and Autonomic System
Amyloidosis involving peripheral nerve includes AL and the hereditary amyloidoses, ATTRv, AGel, AApoAI, AFib, and Aβ2Mv; AA is not known to cause peripheral neuropathy [28, 81] (Fig. 1).
By definition, peripheral nerve amyloidosis includes infiltrative deposits of amyloid with associated clinical manifestations [81]. A diagnosis of amyloid peripheral neuropathy is often delayed because the clinical features may mimic many other neuropathies. Overall, amyloidosis is a relatively rare cause of peripheral neuropathy – in the Mayo Clinic peripheral nerve laboratory, amyloid peripheral neuropathy accounted for only 3% of cases [81-83].
Currently, fat aspiration is considered insensitive and nonspecific in the evaluation of amyloid neuropathy and, therefore, sural nerve biopsy is recommended, while in cases of focal amyloid (amyloidoma), a targeted biopsy is needed. The sensitivity of sural nerve biopsy in ATTRv is approximately 83% [53].
Hereditary amyloidosis derived from transthyretin variant (ATTRv) is the most common amyloidosis associated with polyneuropathy in the US and also worldwide [28, 81]. In AL, peripheral neuropathy is reported to occur in 17–35% of patients. The clinical presentation is dominated by acral extremity pain and autonomic features (hypohidrosis, gastrointestinal dysmotility, orthostasis, and impotence).
Amyloidosis derived from a gelsolin variant, AGelv, is much less common than ATTRv, and is associated with predominant seventh cranial nerve neuropathy as well as (later in the course of the disease) distal polyneuropathy. Neuropathy may occur in AApoAI and certain mutations in AFib, and Aβ2Mv has been reported with autonomic and subsequent symmetric sensorimotor axonal polyneuropathy [28, 40, 81].
Amyloid mimickers include non-amyloidotic immunoglobulin deposition disease and diabetes.
Gastrointestinal Tract
Gastrointestinal tract is frequently involved in systemic amyloidoses – most commonly AL, followed by AA and hereditary types; ALECT2 involvement was also recently reported [22, 26, 64, 84](Fig. 1). A localized form of amyloid – “amyloidoma” – can also occur. The clinical presentation of gastrointestinal amyloid may range from relatively vague signs and symptoms to frank diarrhea, malabsorption, hematochezia or hematemesis, obstipation, obstruction or pseudo-obstruction, and perforation. Gastric involvement may include nausea, vomiting, and epigastric pain or gastric outflow obstruction.
In general, the pattern of amyloid deposition is not reliable in amyloid typing. The earliest amyloid deposits involve small arterioles of the submucosa and later extend to involve the lamina propria, muscularis mucosa, submucosa, and muscularis propria; polypoid amyloid deposits have been reported in the stomach, small bowel, and colonic mucosa (Fig. 2a, b). Subserosal connective tissue deposits may extend into the adjacent mesentery. Colonic mucosal amyloid may mimic collagenous colitis. In ATTRwt, deposits of amyloid are typically limited to the vasculature [46].
Liver
The liver is frequently involved in systemic amyloidoses, including AL, ALECT2, AA, AApoAI, and ALys [5-7, 28, 85](Fig. 1). In a recent series of 130 patients with liver amyloidosis diagnosed by proteomics at the Mayo Clinic, 62% were AL, 25% were ALECT2, 7% were AApo AI, 4% were AA, 2% were ATTR, and 1% ALys.
Symptomatic dysfunction due to amyloid is uncommon and typically occurs late; hence, liver biopsy remains the gold standard for diagnosis. Patterns of hepatic amyloid involve sinusoidal, globular, arteriolar and/or capsular, and portal. Although transthyretin is primarily manufactured in the liver, amyloid deposits are limited to the vasculature and the capsule. ALECT2 produces amyloid with a globular pattern, which may be relatively specific for this amyloidosis type. However, similar to other organs, the pattern of amyloid deposition is not reliable in diagnosis of the amyloid type. Light chain deposition disease is a mimicker of hepatic amyloidosis; however, its deposits lack affinity for Congo red. In the liver, ALECT2 appears to be the second most commonly diagnosed amyloid type [85].
Lungs
Pulmonary amyloid deposits may be associated with a systemic disease or represent localized amyloidosis [48, 86]. Lung involvement in systemic amyloidosis is frequent, representing the fifth most common biopsy site yielding positivity for amyloid. The most common form of amyloidosis is AL (about 80%) followed by ATTR (both hereditary and wild type), AA, AApoAIV, and Aβ2M (Fig. 1). Localized pulmonary amyloidosis is relatively rare and most frequently of the AL type, associated with MALT lymphoma [48].
Light chain deposition disease and crystal-storing histiocytosis may form pulmonary deposits mimicking amyloid.
Other Tissues
Recently, several studies reported on positivity for ATTR amyloid in 10% of carpal tunnel and 33–44% of lumbar stenosis surgery specimens [43-46]. There is growing evidence that amyloid in these sites may be associated with an early cardiac amyloidosis, at least in some patients. It may also be prudent to look for other possible biopsies/pathology specimens from a given patient and, retrospectively, to test them for the presence of amyloid.
Conclusions
1Early diagnosis of amyloidosis continues to pose a significant challenge and requires the participation of many clinical and laboratory specialties.
2Determination of the protein type is imperative before specific therapy can be implemented.
3While mass spectrometry has emerged as the preferred method of amyloid typing, careful application of immune methods is still clinically useful but caution and experience, as well as awareness of the limitations of each method, are necessary in their interpretation.
4While the spectrum of amyloidoses continues to expand, it is critical to distinguish between those that are currently treatable versus those that are untreatable and to avoid causing harm by inappropriate treatment.
